Built for speech, music, and connection — at the same time
Worship spaces bring unique challenges — long reverb, spoken word and live music, volunteer
operation, and architectural constraints. Electro-Voice systems are designed to handle all of it,
from small chapels to large cathedrals.
Find the system that fits your space
Start with a system sized for spaces like yours — then adapt it with your integrator.
Small worship spaces
Houses of worship pose big acoustic challenges: hard, reflective surfaces, long reverberation times, and architecture that leaves little room for technology. Problem-solving loudspeakers such as the EVC‑1122‑VI model answers with a variable-intensity horn that delivers even coverage down long, narrow rooms from a single loudspeaker. Slim LRC Series columns keep sound focused and controlled on the listeners instead of the walls and ceiling while to keep the speech intelligible. The EVC series range offers a full family of compact two-way loudspeakers offering a choice of woofer sizes and coverage patterns to match any room — all with the same signature sound and discreet, installation-friendly design.
The perfect system drive are Dynacord C Series installation amplifiers with onboard DSP and FIR-Drive for best sound performance. Also recommended depending on the installation size: Dynacord V600 multichannel compact amplifiers. All system configurations are simple to set up, efficient to operate, and built to perform, service after service.
Typical needs
- Speech-first tuning
- Architecture-friendly mounting
- High-Z (70/100V) or Low-Z installation type
- Simple volunteer control
- Loudspeakers available in white or black
A variable-intensity 12-inch install loudspeaker in white that covers a long room evenly.
Quantity: 1

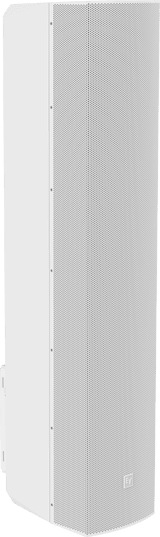

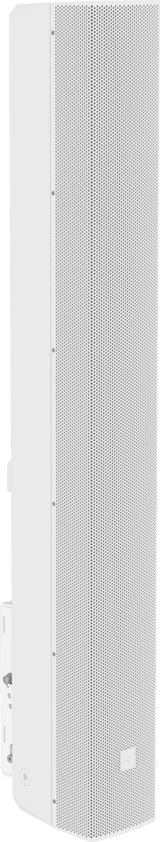

A passive line-radiator install column with a built-in 70/100-V transformer and ASC protection.
A passive line-radiator install column with a built-in 70/100-V transformer and ASC protection.
A passive line-radiator install column for indoor or outdoor use, tuned best with Dynacord DSP.
A weatherized 8-inch two-way install loudspeaker with 100° x 100° coverage, in white.
A 2-channel live DSP power amplifier rated 2 x 650 W, with integrated FIR Drive speaker processing, controlled in SONICUE
Quantity: 1
A 2-channel install DSP power amplifier rated 2 x 900 W, with integrated FIR Drive speaker processing, controlled in SONICUE, Euroblock connections.
A 2-channel install DSP power amplifier rated 2 x 1400 W, with integrated FIR Drive speaker processing, controlled in SONICUE, Euroblock connections.
Quantity: 1
A 2-channel install DSP power amplifier rated 2 x 1800 W, with integrated FIR Drive speaker processing, controlled in SONICUE, Euroblock connections.

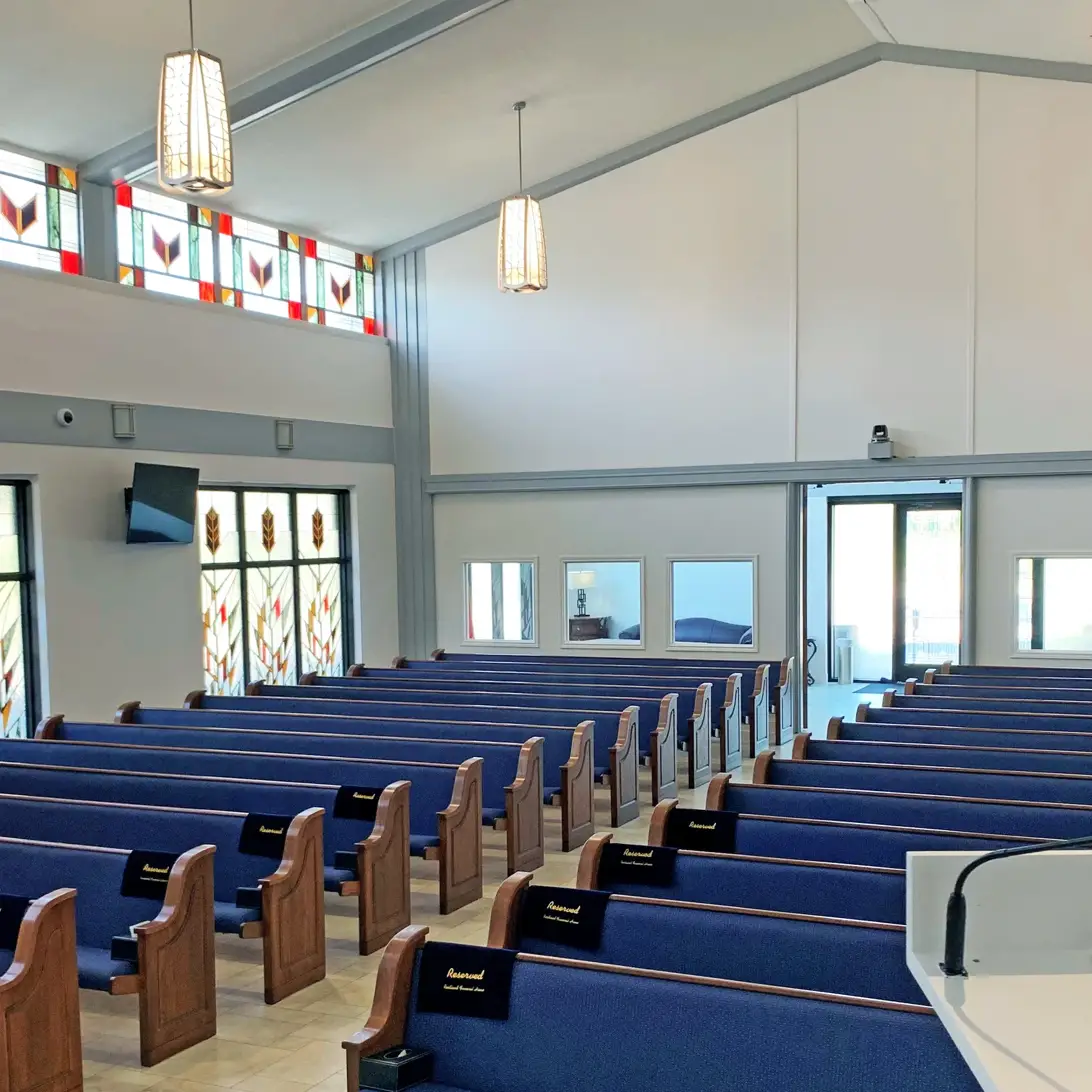

Restland Chapel
Mid-sized worship spaces
Mid-sized houses of worship face multiple acoustic challenges at once: speech must remain intelligible in reverberant rooms, live music demands genuine headroom, and audio often needs to reach well beyond the main space. Electro-Voice EVC Series loudspeakers and LRC Series columns deliver even, controlled coverage that directs energy toward the listeners rather than the walls, ensuring clarity where it counts and discretion where it matters. Ultra-compact EVU Series speakers can be used wherever space is very limited, e.g. as under balcony speakers. Subwoofers such as the ELX200 add the low-frequency foundation that contemporary worship music demands, ensuring full-range impact for bands, choirs, and playback alike.
Behind the scenes, Dynacord IX Series amplifiers offer Dante audio networking and flexible multi-zoning to serve every area from lobby to classroom. SONICUE Sound System Software handles quick and easy system setup, monitoring, and control. Customized touch-panel GUIs make daily operation simple and intuitive, even for untrained staff and volunteers.
Typical needs
- Multi-zone coverage and control
- Powerful live sound for choir and band
- DSP and loudspeaker presets
- Discreet loudspeaker installation & cabling
- Intuitive touch panel control
A weatherized 8-inch two-way install loudspeaker with 100° x 100° coverage, in white.
A weatherized 12-inch two-way install loudspeaker with wide 90-by-55-degree coverage.
A weatherized 15-inch two-way install loudspeaker in white with wide 90-by-55 coverage.
A passive line-radiator install column with a built-in 70/100-V transformer and ASC protection.
A passive line-radiator install column with a built-in 70/100-V transformer and ASC protection.
A passive line-radiator install column for indoor or outdoor use, tuned best with Dynacord DSP.
An ultracompact two-way install speaker with a single 6.5-inch woofer and rotatable 90° x 50° horn.
An ultracompact two-way install speaker with dual 8-inch woofers and a rotatable 90° x 50° horn.
A weatherized 18-inch install subwoofer that anchors the EVC system outdoors and in.
A 12-inch powered subwoofer with 1,200 W of Class-D punch and DSP you tune from your phone.
An 18-inch powered subwoofer with 1,200 W of Class-D power and phone-based DSP.
A 4-channel networked DSP install amplifier delivering 1,500 W total, with powerTANK power sharing, mic/line inputs, matrix mixer and FIR-Drive processing in a single rack unit.
A 4-channel networked DSP install amplifier delivering 3,000 W total, with powerTANK power sharing, mic/line inputs, matrix mixer and FIR-Drive processing in a single rack unit.
An 8-channel networked DSP install amplifier delivering 3,000 W total, with powerTANK power sharing , 8 mic/line inputs, a 16x16 matrix and FIR-Drive procesing in a single rack unit.
A 4-channel networked DSP install amplifier delivering 6,000 W total, with powerTANK power sharing, 4 mic/line inputs, 12x12 matrix mixer and FIR-Drive processing in a single rack unit.
An 8-channel networked DSP install amplifier delivering 6,000 W total, with powerTANK power sharing , 8 mic/line inputs, a 16x16 matrix and FIR-Drive procesing in a single rack unit.

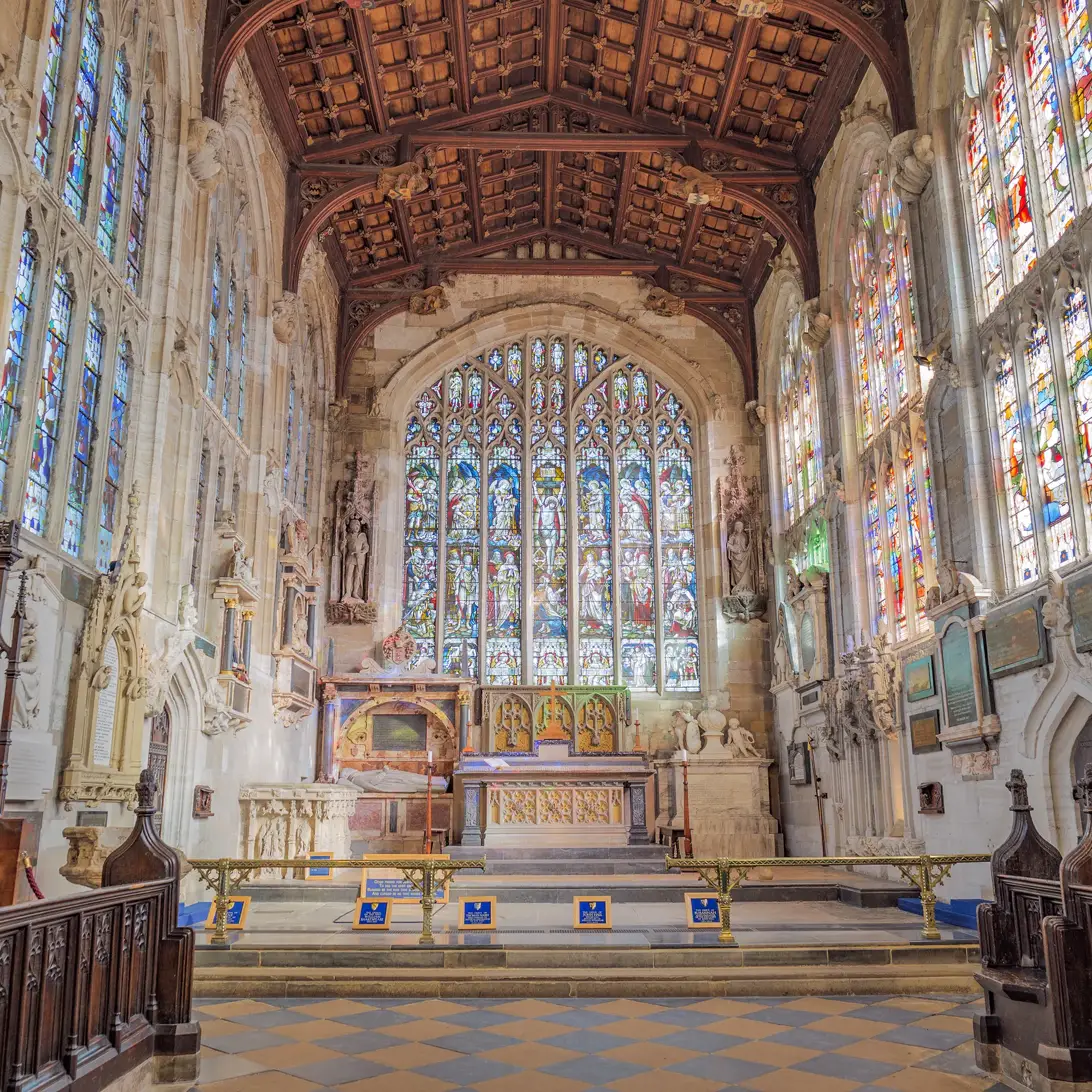

Holy Trinity Church
Large worship spaces
Large houses of worship with congregations of 1,000 and more place the highest demands on a sound system: every seat needs consistent coverage, speech must remain intelligible across vast distances, and modern worship productions call for concert-level impact.
Starting with the compact EVA line array, Electro-Voice offers scalable solutions for every room size and budget. Where maximum throw and output are required, X-Line Advance line array systems bring true concert performance to the worship environment, projecting clear, powerful sound to the farthest rows while keeping energy off reflective surfaces. EVF point-source loudspeakers deliver precisely controlled coverage for focused zones, from main floor to balcony, while slim LRC column speakers, EVC and ultra-compact EVU Series loudspeakers can serve as discreet fills for under-balcony areas, side seating, and overflow spaces. With PREVIEW prediction software, system designers can model coverage and performance in advance, ensuring the right solution for every architectural challenge.
Dynacord IPX power amplifiers provide the muscle behind the system, combining highest channel density, Dante audio networking, DSP and outstanding efficiency. The MXE5-64 performance audio matrix serves as communication hub and provides premium processing power. SONICUE Sound System Software handles setup and control, and includes a comprehensive database with optimized loudspeaker settings. Customized touch-panel GUIs make daily operation simple and intuitive.
Typical needs
- Best pattern control at large distances
- Highest SPL output
- Line arrays as main PA
- Loudspeaker prediction and sound system software
- Dante audio networking for multiple audio zones
- Comprehensive loudspeaker processing and amping
A weatherized dual 8-inch line-array module with wide 120° by 20° coverage for fixed installs.
A weatherized dual-15-inch line-array subwoofer module for permanent outdoor installs.
The 12-inch EVF G2 in a versatile 90° by 50° pattern.

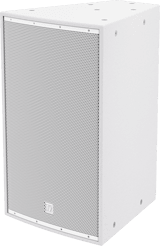

The 15-inch EVF G2 in a versatile 90° by 50° pattern.
A dual 15-inch EVF G2 subwoofer reaching down to 32 Hz.
The 90 or 120 degree X-Line Advance install element that brings concert-grade output to a fixed room.
The 90 or 120 degree X-Line Advance install element that brings concert-grade output to a fixed room.
The dual 18 X-Line Advance install subwoofer that anchors the low end under an X1i or X2i array.
The 90 or 120 degree X-Line Advance install element that brings concert-grade output to a fixed room.
The 90 or 120 degree X-Line Advance install element that brings concert-grade output to a fixed room.
The dual 18 X-Line Advance install subwoofer that anchors the low end under an X1i or X2i array.
An open-architecture DSP matrix mix engine with 12 analog in / 8 analog out, 64x64 Dante, dual-SHARC processing, fully suppoerted in SONICUE.
A networked wall controller with a 1.77-inch color display and encoder, powered over Ethernet, for SONICUE zone and source control.

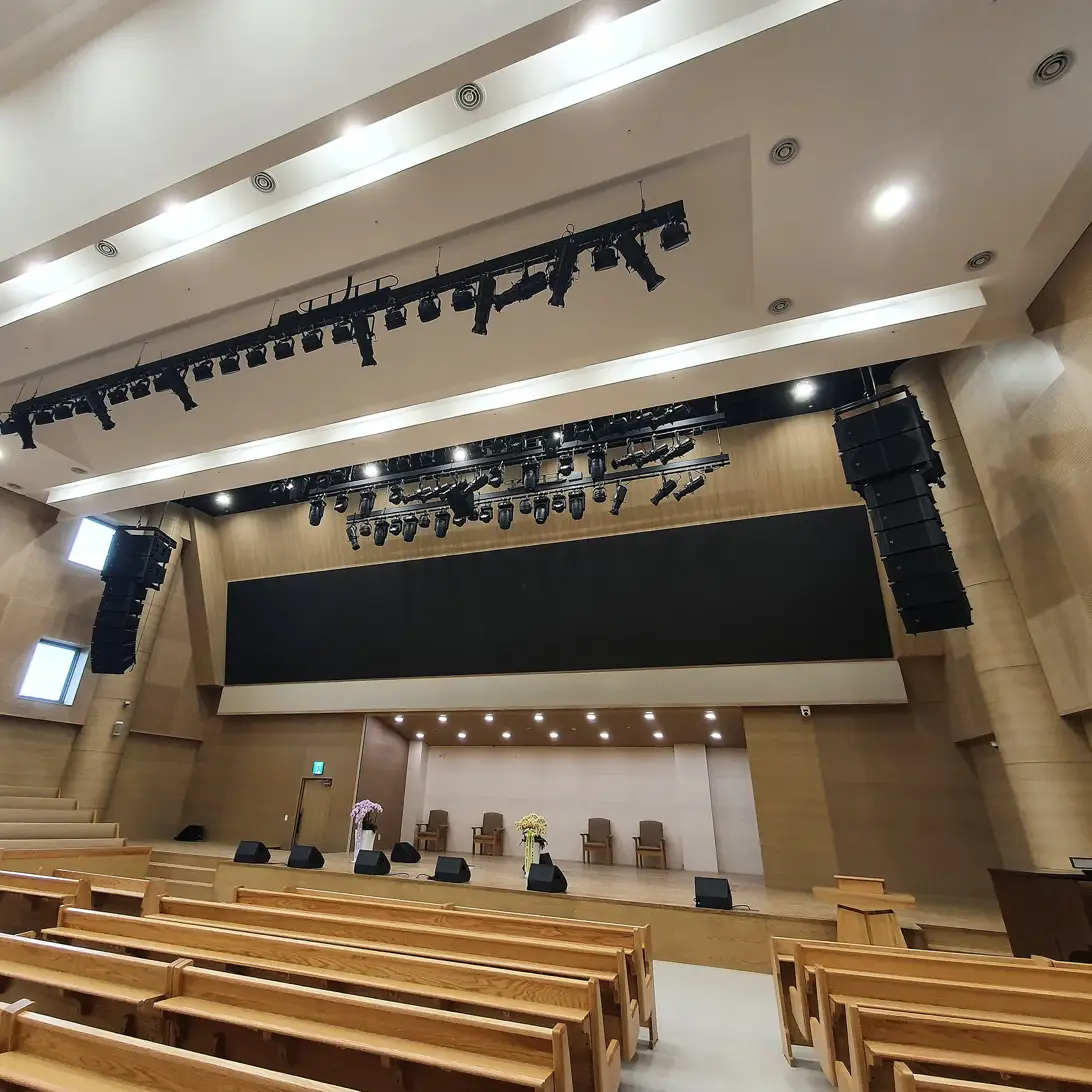

Grace Kwangsung Church
Every space is different — these recipes are starting points.
Clear sound. Fewer distractions.
A worship sound system should support the service without drawing attention to itself. With the right system, worship spaces can expect:
Proven in Shakespeare's church

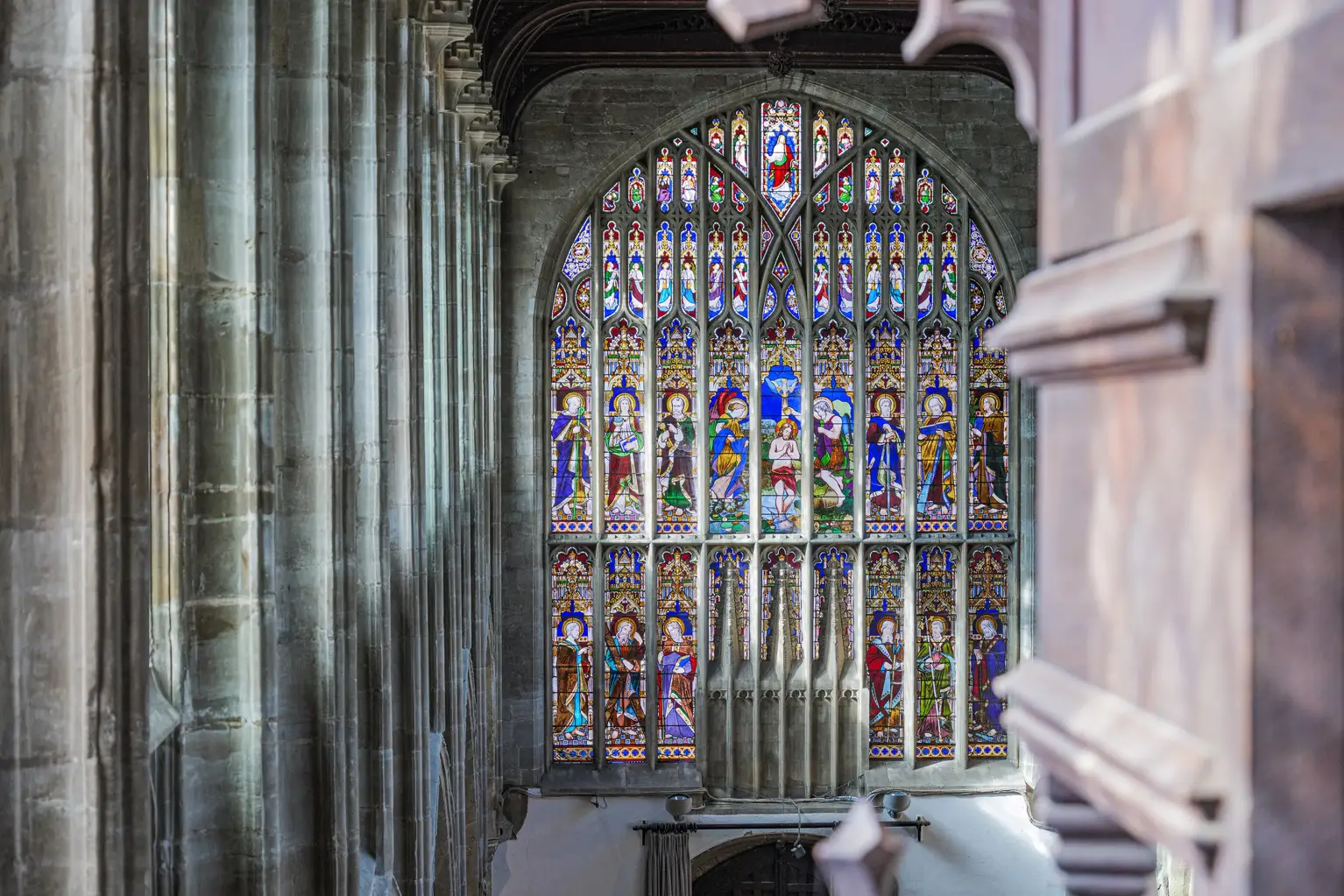

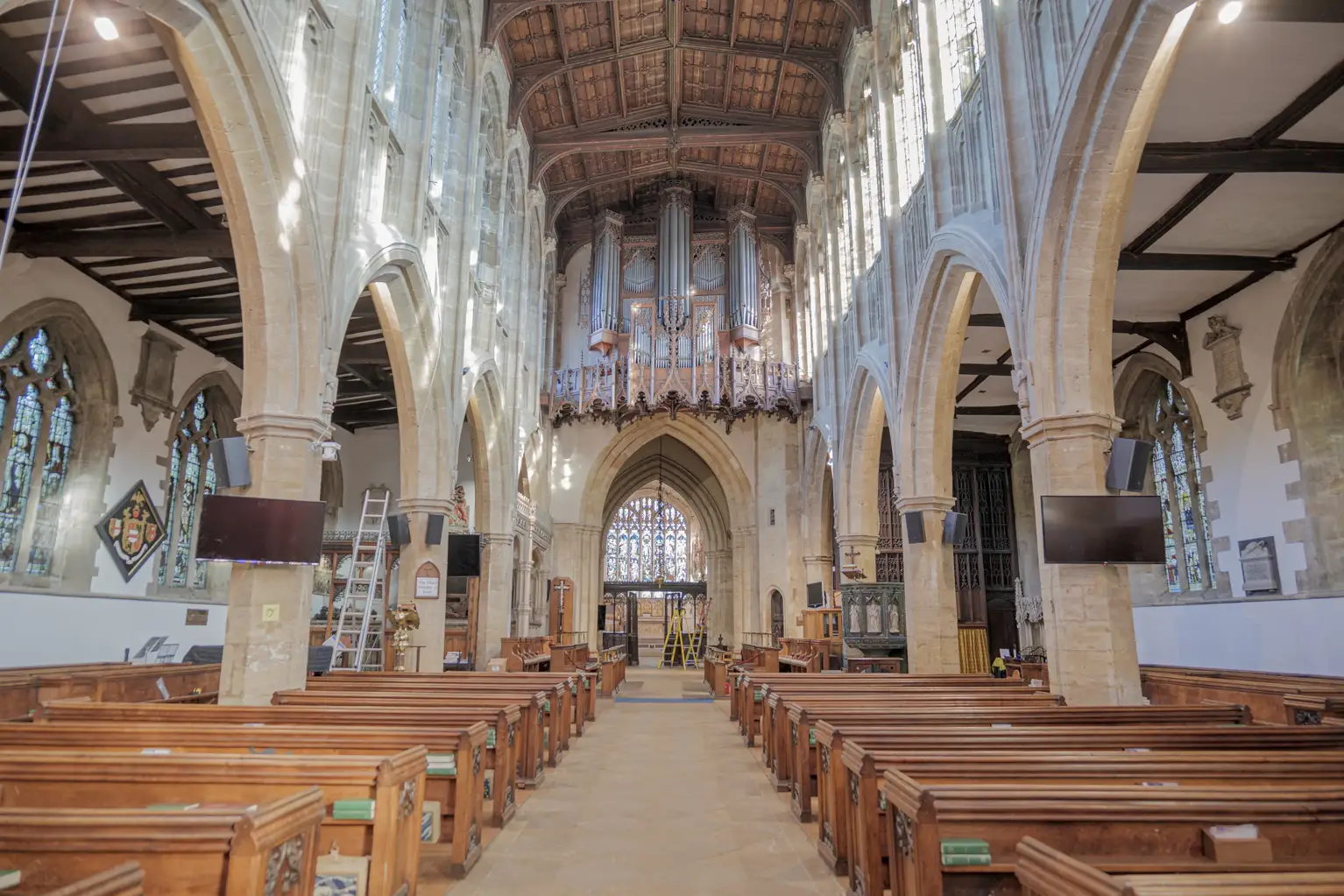

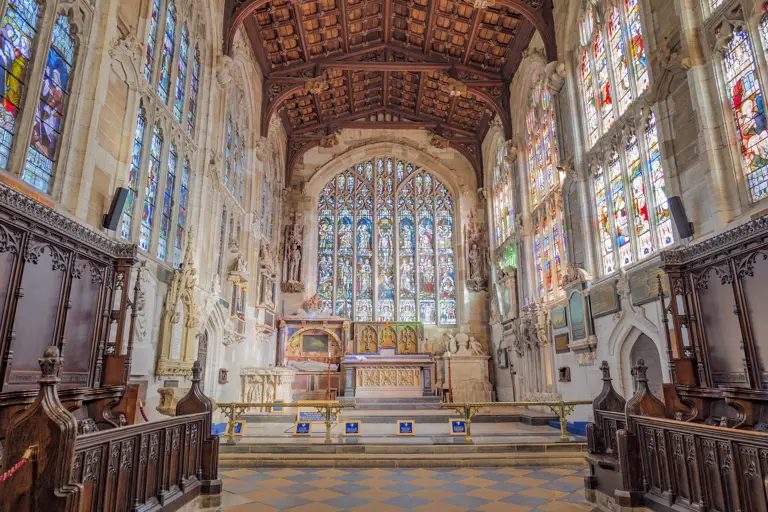

Holy Trinity Church in Stratford-upon-Avon replaced an end-of-life 100 V system with an Electro-Voice and Dynacord solution. LRC columns control dispersion naturally through centuries of stone — services, spoken word, and a full worship band on one system.
Years of history at Holy Trinity — speech made clear in centuries of stone
Narrow-dispersion boxes throw down the nave; 100°×100° variants cover the aisles
Practical design for real-world services
Every worship space is different, but the goal is always the same: make sure people can hear clearly and stay focused on the service.
Everything works together
Electro-Voice loudspeakers and Dynacord amplification and DSP
are designed as one system — making it easier to design, install, and operate.
Engineered together from the start.
Shared tools make systems easy to run and maintain.
Cleaner setup with fewer
compatibility issues.
Fewer unknowns. More
consistent results.
For integrators and consultants, this reduces risk and speeds up deployment. For venue teams, it means a system that’s easier to operate and support.
Popular categories
Ready to move forward?
For integrators & consultants

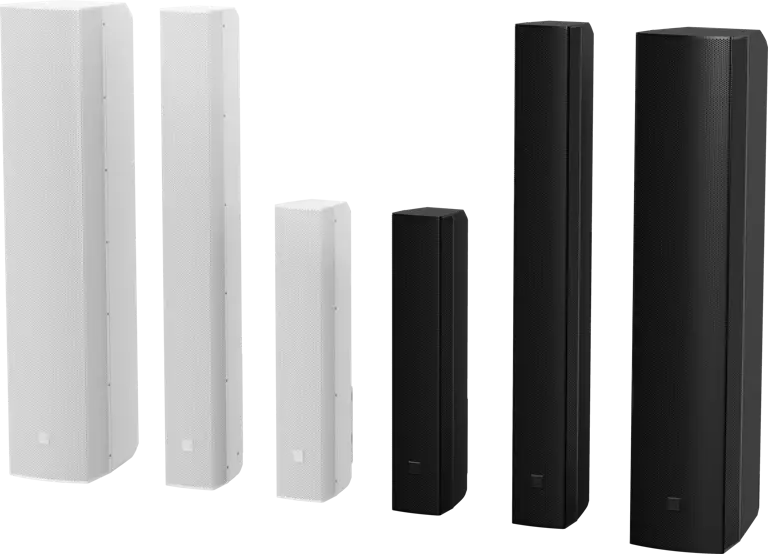

Start with LRC
Columns built for rooms where the architecture matters.
For venue operators
Read the Holy Trinity story
How Shakespeare's church got a new voice.
Talk to a specialist
Consultants who design worship systems every day.
