Holy Trinity Church, Stratford-upon-Avon
A new voice for Shakespeare’s Church
Holy Trinity Church has gathered worshippers since the 13th century, and it holds the grave of William Shakespeare. It is also a working church with services, spoken word, full-band worship, and special events, all in a reverberant space. One question sat under every event: carry clear speech and music across the church, and leave the architecture untouched.
Case Study
House of Worship
Electro-Voice
Dynacord
Europe
Multi-zone
Dante
Holy Trinity Church, Stratford-upon-Avon
A new voice for Shakespeare’s Church
Case Study
House of Worship
Electro-Voice
Dynacord
Europe
Multi-zone
Dante
Holy Trinity Church has gathered worshippers since the 13th century, and it holds the grave of William Shakespeare. It is also a working church with services, spoken word, full-band worship, and special events, all in a reverberant space. One question sat under every event: carry clear speech and music across the church, and leave the architecture untouched.
- Venue
- Holy Trinity Church
- Location
- Stratford-upon-Avon, United Kingdom
- Install partner
- NoiseBoys Technologies
- Product highlights
- Electro-Voice EVC-1082, LRC-1100 · Dynacord IX, SONICUE
The venue
A room that was never built for amplified sound

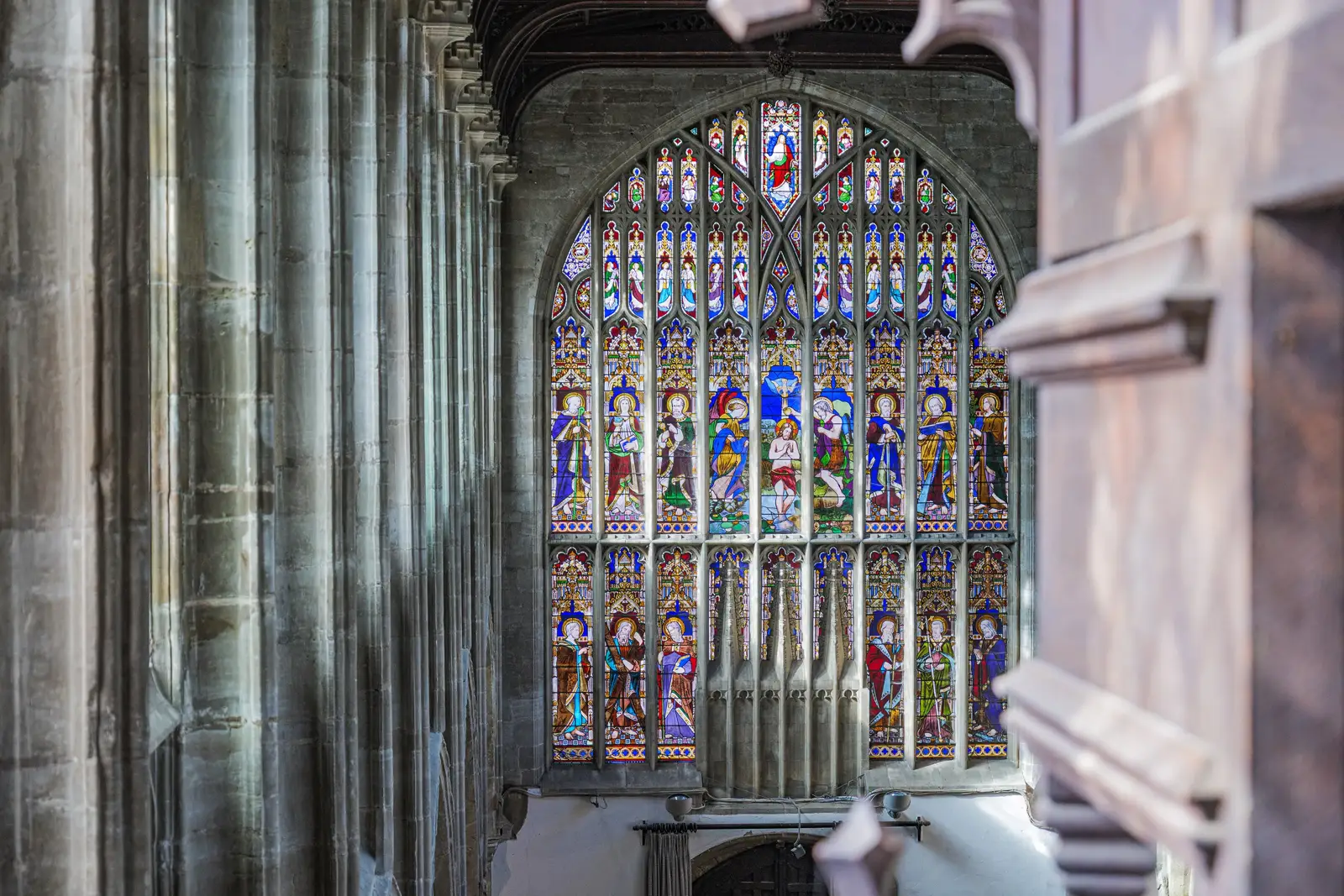

Holy Trinity with a history dating back over 800 years runs on its acoustics, centuries of stone that lift a choir and blur a sentence in the same breath. Services, spoken word, contemporary worship with a full band, and special events require different sound qualities.
The old 100 V sound system had reached the end of its life. It could not carry both speech and music, and it could also not reach the separate spaces where the congregation gathers.
“It was a once in their lifetime upgrade for the people dealing with this, and they were so keen to get it right.”
Phill BeynonDirector, NoiseBoys Technologies
The challenge
Beating reflections and serving several sound needs without touching the architecture
The brief was clear and unforgiving. One system had to handle a spoken service and a full band with equal clarity, treat side chapels and overflow spaces as their own zones, and stay invisible inside a listed church. The room's reverberation punished anything that chose to be loud instead of clear.
The solution
A fully IP-networked solution with precise coverage and simple control options

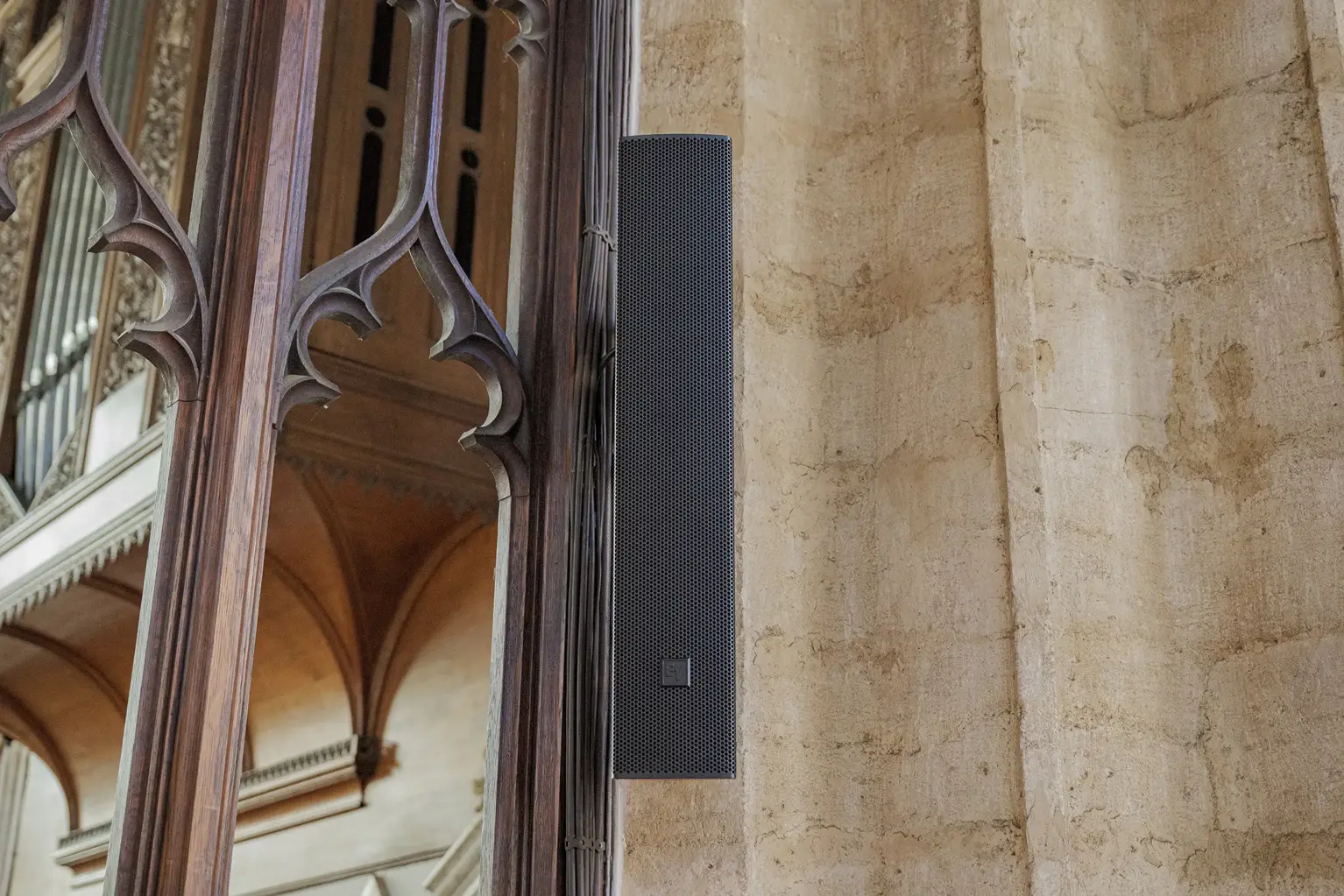

Reverberation was tackled at the source: the Electro-Voice EVC-1082 loudspeakers are available in different dispersion pattern variants, allowing the team to pick the best models to direct sound precisely at the audience and away from the reflective stone surfaces, minimizing acoustic buildup in the nave. Narrow 90°×60° units handle the longer throw down the nave, while wider 100°×100° variants cover the side aisles evenly. In the chancel and choir stalls, LRC-1100 line radiator column speakers control vertical dispersion naturally, keeping energy focused and off the ceiling. Their slim profile blends seamlessly with the historic woodwork. An ELX200 subwoofer adds low-frequency support whenever live music demands it.
Three Dynacord IX Series networked DSP amplifiers drive the system over Dante audio, feeding both the amps' built-in mixer and an external sound desk, allowing the church flexible control for day-to-day use and more complex live events alike. With the help of SONICUE Sound System Software, a customized TPC-1 touch panel interface was created, allowing staff and volunteers to mute individual zones and recall presets with a single press of a button.
- Electro-Voice EVC-1082 loudspeakers — 90°×60° and 100°×100° coverage
- Electro-Voice LRC-1100 columns for discreet fill
- Electro-Voice ELX200 subwoofer
- Dynacord IX30:8 and IX15:4 amplifiers with Dante
- Dynacord TPC-1 touch panels
- SONICUE Sound System Software
“Having the EVC is really good because you can choose the dispersion on it,” explains Beynon. “It allows you to tailor the coverage a little bit more to these super reverberant spaces that were not designed for electronic reproduction.”
Phill BeynonDirector, NoiseBoys Technologies
The result
A historic church that finally sounds as good as It looks

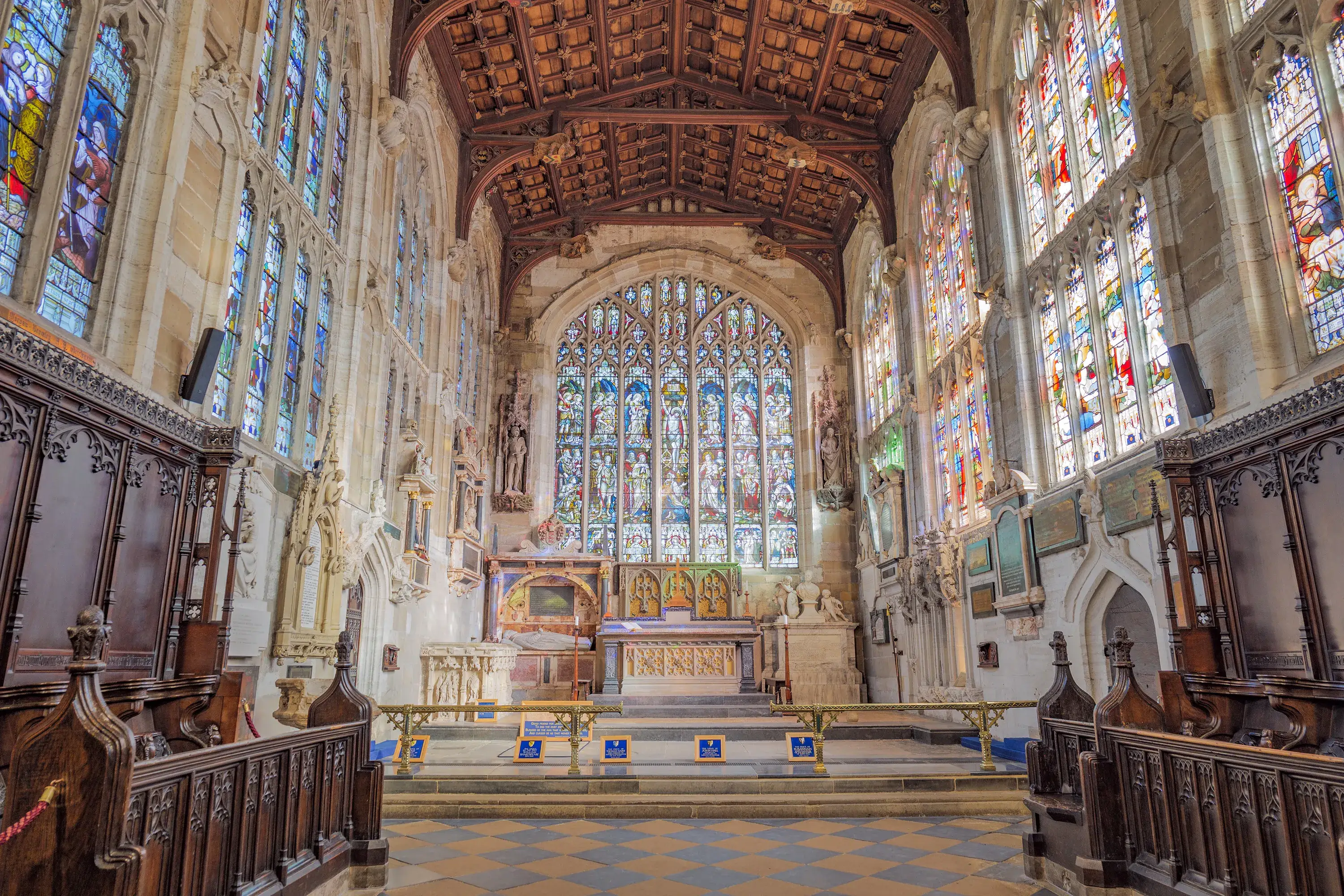

From the first week of services, the verdict was clear: the church sounds right. Controlled dispersion from the EVC loudspeakers keeps sound focused on the audience rather than the stone walls, and the LRC columns handle the sensitive areas with the same precision. Speech lands clearly in every zone, and the band fills the space without fighting the room. Staff switch between service styles with a single preset, no specialist required.
Controlled dispersion tames a notoriously reverberant space
EVC and LRC loudspeakers cover every zone without visual compromise
Flexible, zone-by-zone control
One system handles speech, live band and everything in between
Staff switch service modes with a single touch
