Grace Kwangsung Church, Seoul

Every word clear, no matter the event

Grace Kwangsung Church in Gangdong-gu, Seoul is a multi-purpose house of worship. Services, worship meetings, church events, and concerts all share the same hall. The sound system had to carry spoken word with full clarity, flex for community gatherings, and hold up at concert level, and it had to stay out of the sightlines.

Case Study
House of Worship
Electro-Voice
Dynacord
Asia

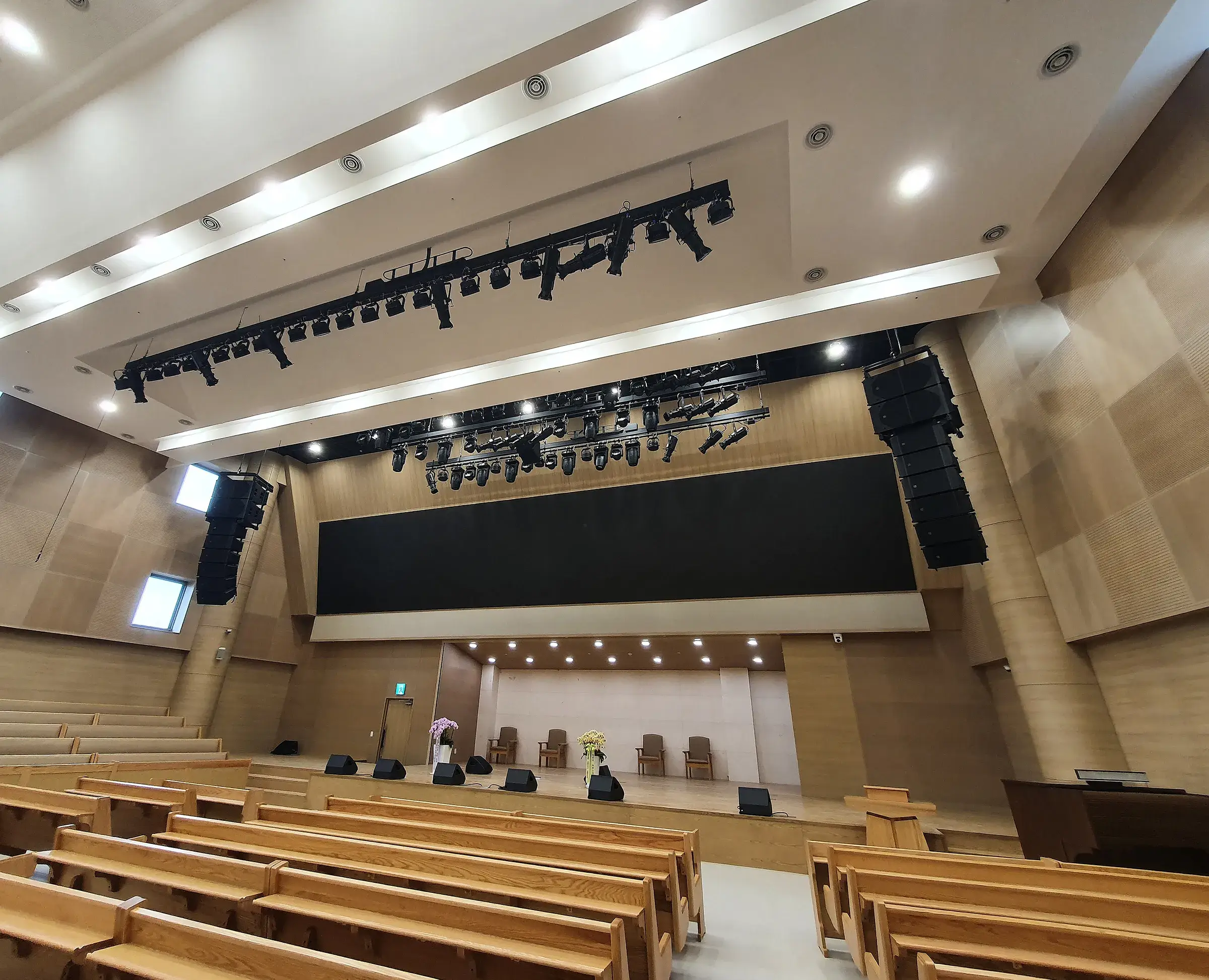

2023-EV-DC-Grace-Kwangsung_01
Venue
Grace Kwangsung Church
Location
Seoul, South Korea
Install partner
dB Sound Interactive
Product highlights
Electro-Voice X1-212/120, X12-125F, EVC-1122-VI · Dynacord IPX10:8, TGX, SONICUE
The venue

A modern hall built to do more than one thing

Grace Kwangsung Church in Gangdong-gu, Seoul is a newly constructed house of worship hosting services, worship meetings, church events, and concerts, so the room rarely does the same job twice in a week.

That range set the brief. The congregation needed the utmost clarity and uniform coverage during services, while the same rig had to handle community events and full concert sound without compromise.

“The system has delivered exactly what we wanted – we are very happy”
Mr. ParkExecutive Pastor, Grace Kwangsung Church

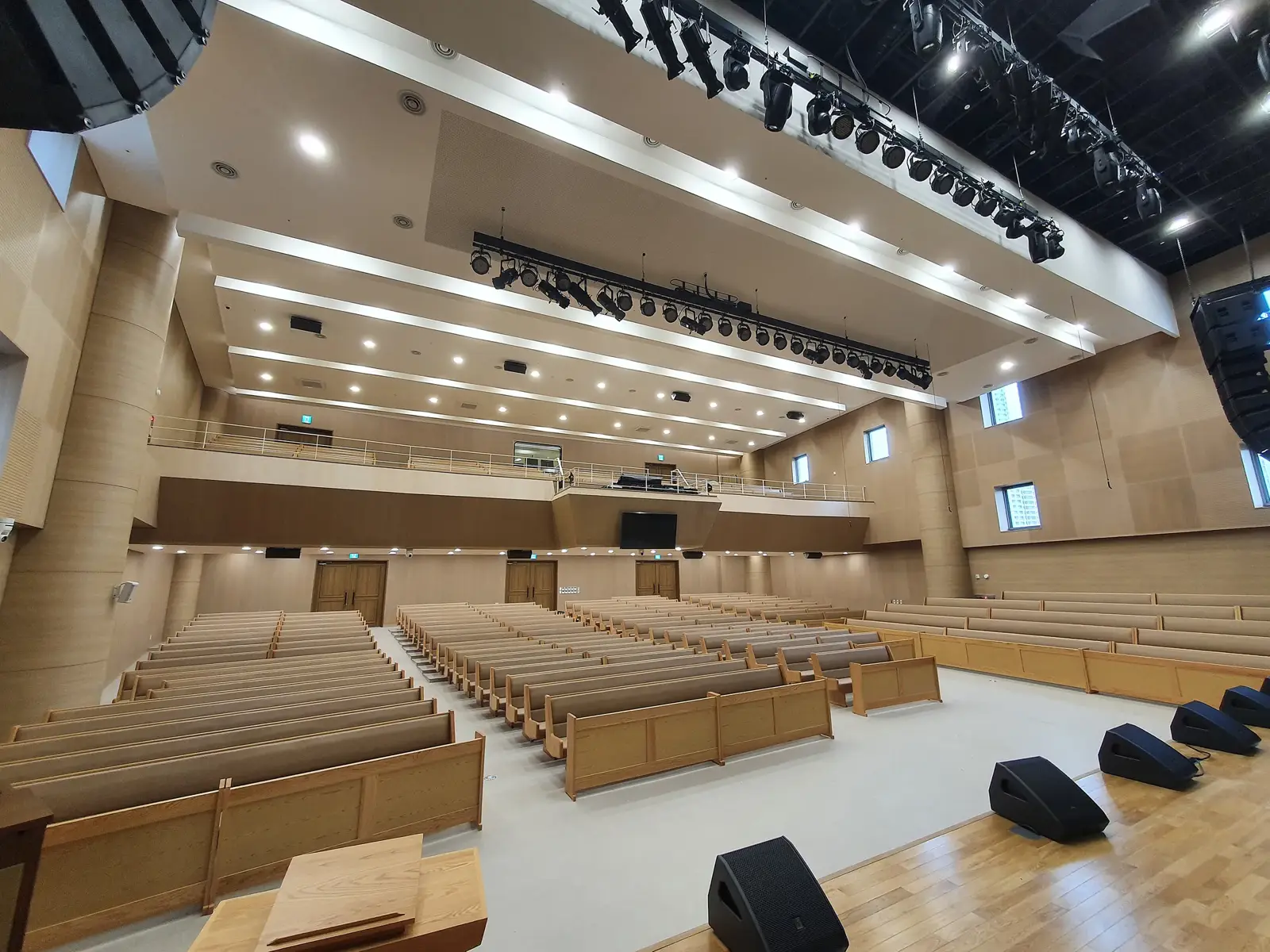

2023-EV-DC-Grace-Kwangsung_02

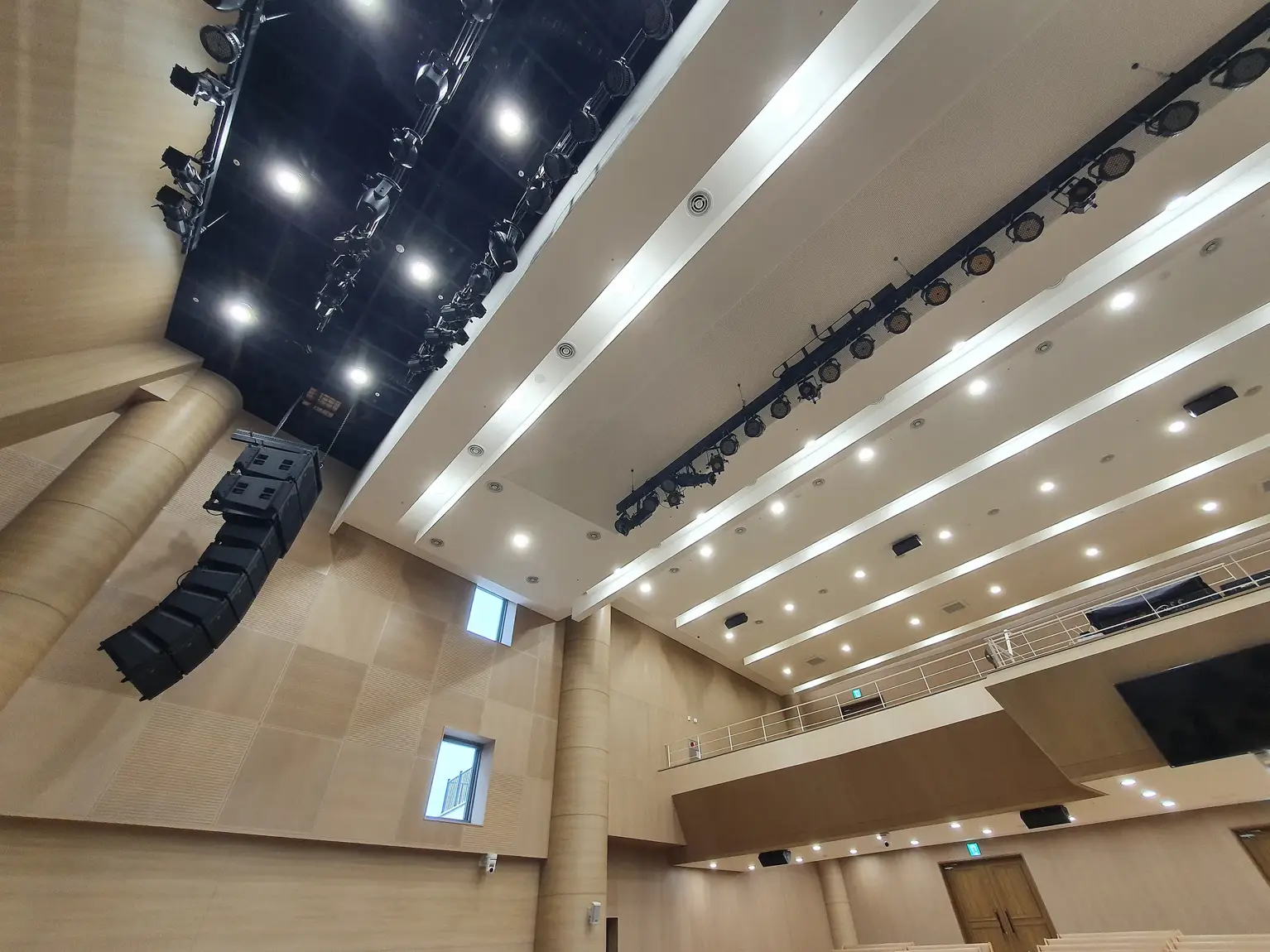

2023-EV-DC-Grace-Kwangsung_04
The challenge

One sound system to cover it all: speeches, community events, and concerts

One room had to serve four kinds of event without trade-offs. Spoken word demanded high resolution and even coverage; concerts demanded high output; community events demanded flexibility in between.

The hardware also had to stay discreet. Low-profile loudspeakers were needed to keep sightlines open and complement the architecture of the new building.

  • Highest intelligibility for spoken word

  • Uniform coverage

  • High output for concert sound

  • Flexibility for various community events

  • Low-profile loudspeakers that keeps sightlines open

The solution

One networked sound system precicely tuned to the room

The design team ran the room through PREVIEW Loudspeaker Software to select models for optimal coverage, SPL, and frequency response before any cabinet was hung. Six Electro-Voice X1-212/120 line-array loudspeakers and two X12-125F flying subwoofers per side form the main system, with one EVC-1122-VI variable-intensity model for precise center fill.

Four ultracompact EVU-1082/95 and eight FRI-2082 loudspeakers cover the over and under balcony areas. Dynacord IPX10:8 and TGX-series amplifiers drive the system, and SONICUE Sound System Software handles monitoring and control from a single point.

“The X1 arrays are a solution we can trust to provide coverage from the front to the back of the hall. We didn't even use processing at first and it already sounded fantastic.”

Mr. KimdB Sound Interactive

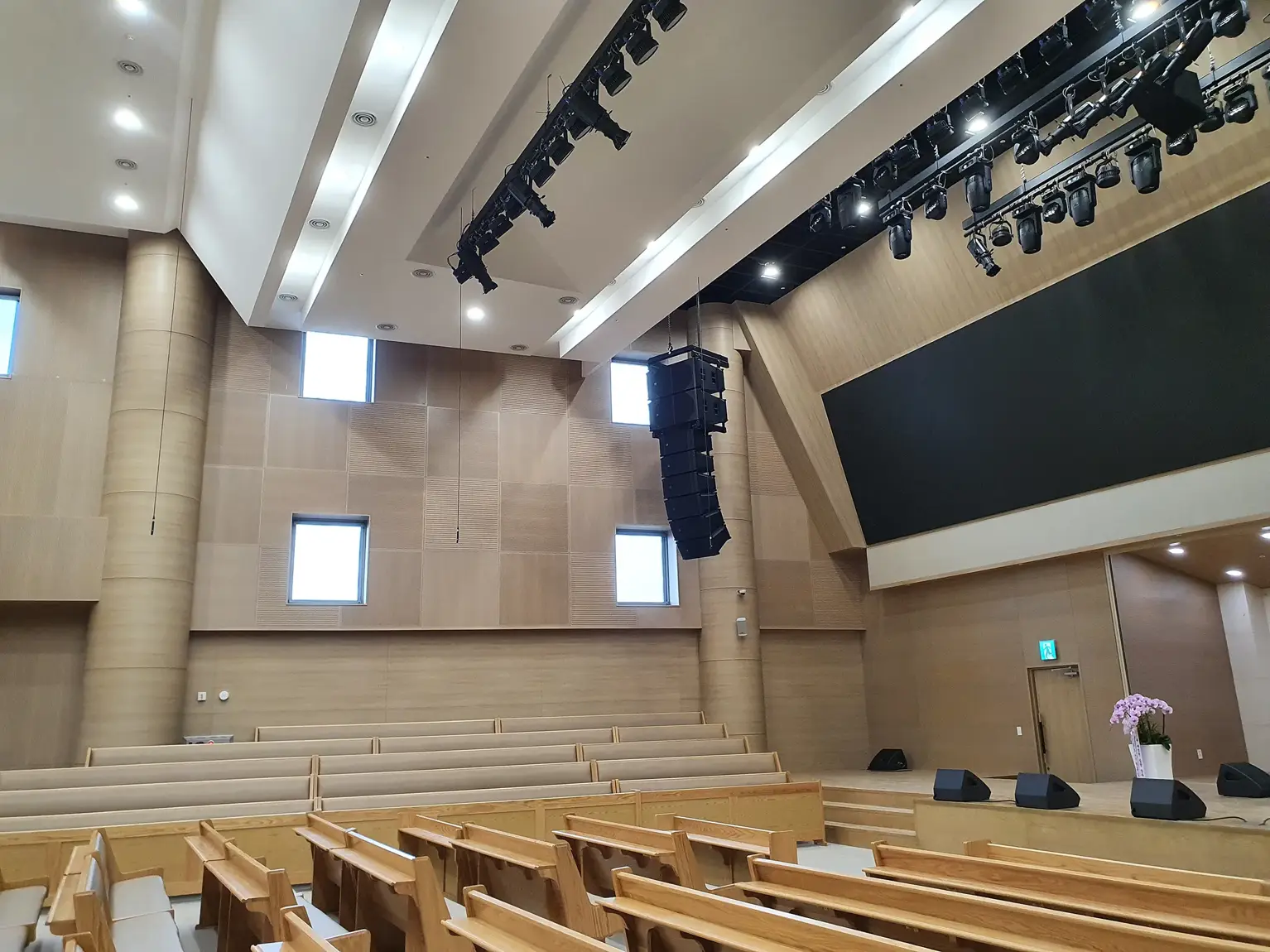

2023-EV-DC-Grace-Kwangsung_03
The result

Clear from the front to the back of the hall

The finished system reaches the resolution the spoken word needs, the flexibility community events call for, and the output concerts require. Coverage holds from the front of the room to the back, across the main floor and both balcony levels.

The low-profile loudspeakers keep sightlines open and complement the church's architecture, and SONICUE gives the in-house engineer one place to monitor and control the whole rig.

  • Even coverage from front to back of the hall

  • Spoken word, community events, and concerts from one system

  • Low-profile install that protects sightlines

  • Single-point monitoring and control through SONICUE
