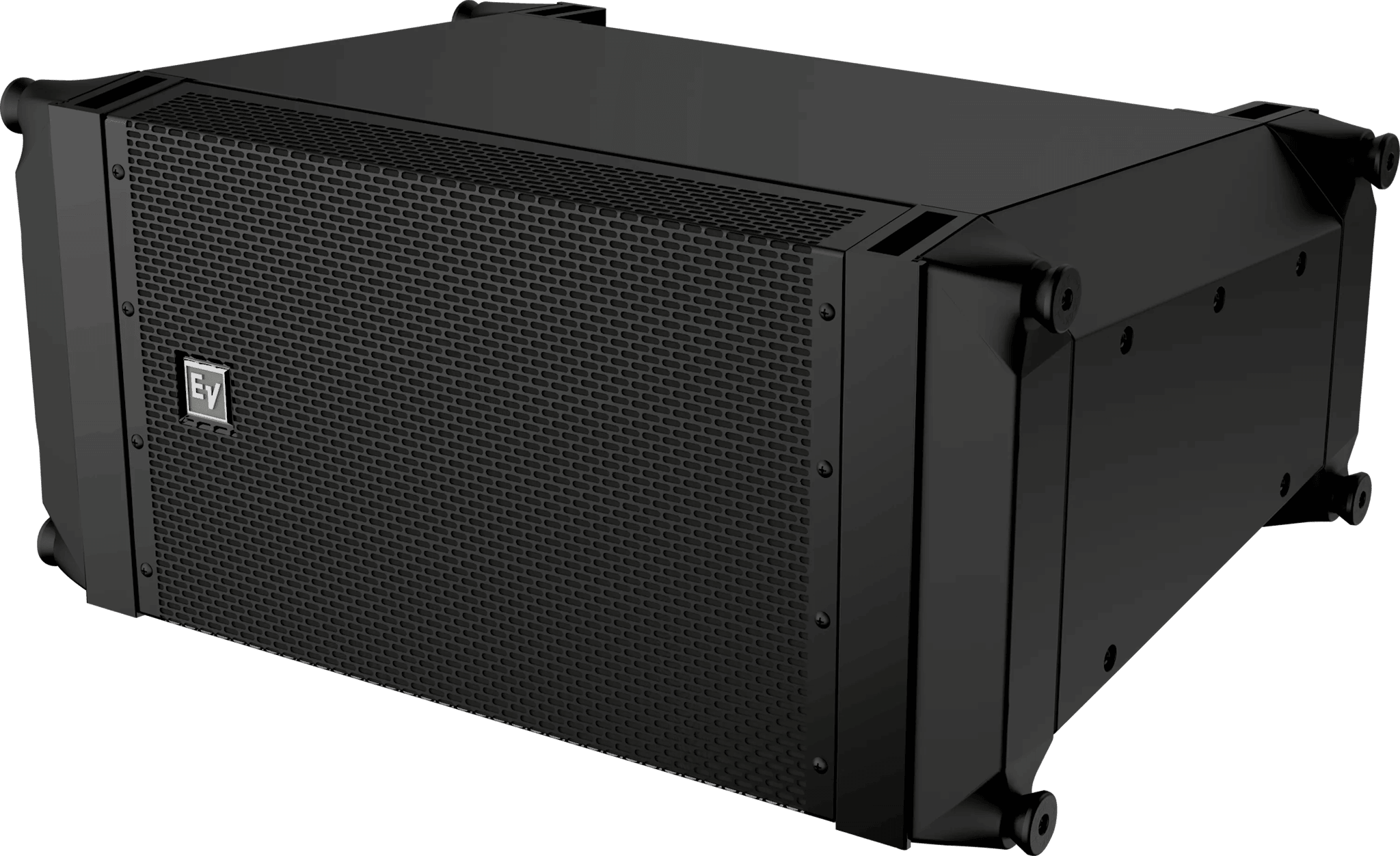

X2-212/120 High-Performance Touring Line-Array Element
DetailsKey FeaturesImage galleryNext steps

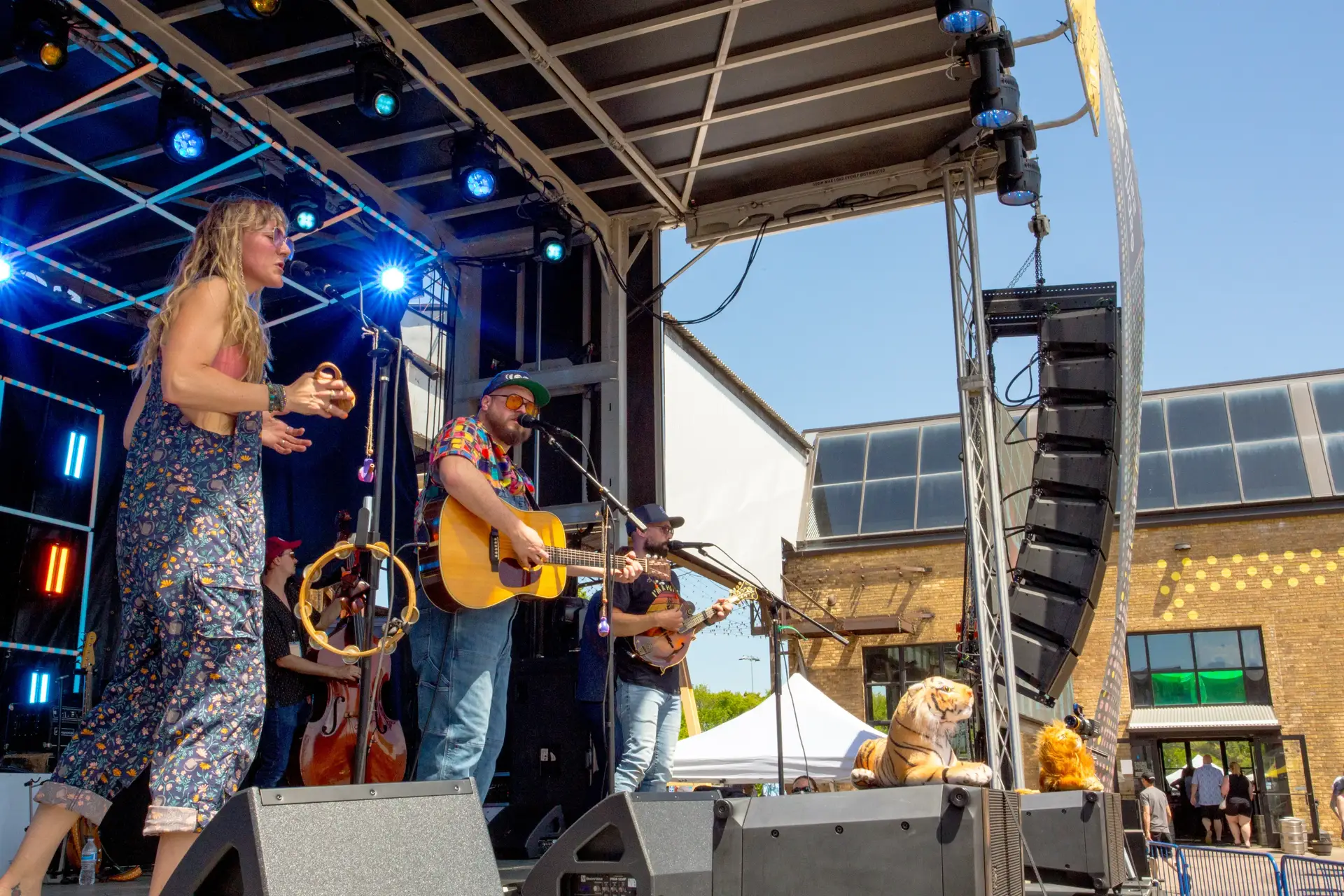

Liquid Zoo 26_01
X-Line Advance

BRING THE HEADLINE RIG

The high-performance X-Line Advance touring element for the loudest rooms on the routing.
Loading

X2-212/120 High-Performance Touring Line-Array Element

The high-performance X-Line Advance touring element for the loudest rooms on the routing.
Documentation & Downloads

Bring the headline rig. The X2-212 is the high-performance compact touring element of X-Line Advance, a DVN3125 12-inch neodymium woofer and two ND6A 3-inch titanium drivers with Pin Diffraction Hydra plane-wave generators and Mid-Band Hydra coupling. Bi-amp only, driven by Dynacord TGX20 amplifiers with matched FIR-DRIVE presets. The Integrated Rigging System flies it fast with splay 0 to 10 degrees, designed in PREVIEW or LAPS 3. Arenas, festivals, stadium shows: higher output, lower distortion, night after night.

Key features

2-way bi-amp touring element
High-performance element for arenas, festivals, and stadium shows, driven bi-amp only.
Neodymium transducers
DVN3125 12-inch woofer with two ND6A 3-inch titanium HF drivers.
Hydra wave shaping
Pin Diffraction Hydra plane-wave generators with Mid-Band Hydra coupling.
Matched Dynacord power
Driven by Dynacord TGX20 amplifiers with matched FIR-DRIVE presets.
IRS rigging
Integrated Rigging System flies fast with splay 0 to 10 degrees; design in PREVIEW or LAPS 3.
Road-ready build
Dual NL8 connectors, EVCoat birch enclosure, galvanneal grille.

X-Line Advance

Features

Bring the headline rig. The X2-212 is the high-performance compact touring element of X-Line Advance, a DVN3125 12-inch neodymium woofer and two ND6A 3-inch titanium drivers with Pin Diffraction Hydra plane-wave generators and Mid-Band Hydra coupling. Bi-amp only, driven by Dynacord TGX20 amplifiers with matched FIR-DRIVE presets. The Integrated Rigging System flies it fast with splay 0 to 10 degrees, designed in PREVIEW or LAPS 3. Arenas, festivals, stadium shows: higher output, lower distortion, night after night.

Specifications

Overview & Features

Configuration

2-way, bi-amp only (Dynacord TGX20 amplifiers)

Acoustic Performance

Frequency response low (-3 dB) (Hz)

52

Frequency response high (-3 dB) (Hz)

19000

Frequency Response

52 Hz - 19 kHz

Coverage angle (H)

120

Sensitivity

LF 101 dB / HF 111 dB (1W/1m)

EV_X2-212-90_Array_Front_Left

Thirty X2-212 elements, one standard rig, scaled from stalls to balcony on Level 42's anniversary tour.

From The World Machine case study

Read the Case Study

Complete Your Rig

See the Whole X-Line

Line-array elements, cardioid subwoofers, and the Integrated Rigging System that flies them fast. Explore the full X-Line Advance system.

Explore Line Arrays

Design the Hang

From coverage maps to rigging loads, plan the deployment with an Electro-Voice system specialist.

Talk to a Specialist
