Built With the People Who Fly Them
To build line arrays with the best acoustic and mechanical performance, Electro-Voice consulted industry professionals and blended their real-world insights with decades of line-array expertise. The result is a range with an ideal combination of audio quality, ease of use, and energy efficiency.
Every model — from passive elements to subwoofer systems — carries advanced waveguide technology and premium transducers, holding performance and efficiency even at the highest output levels.

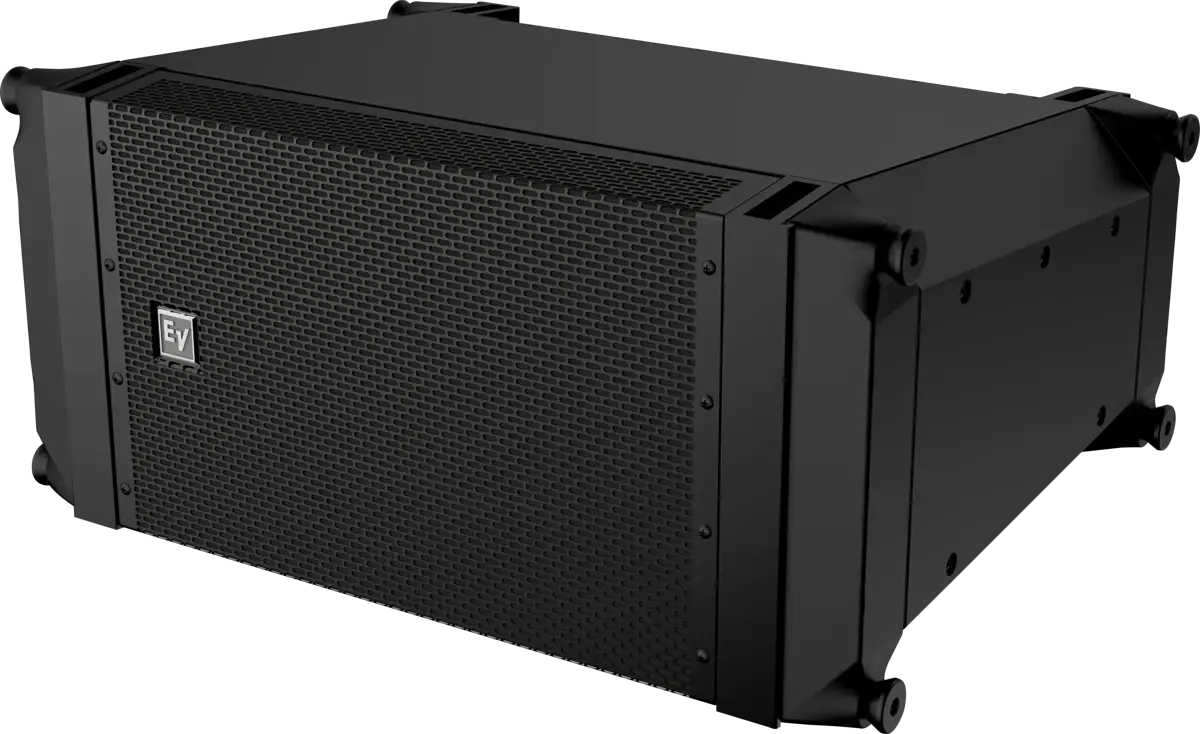

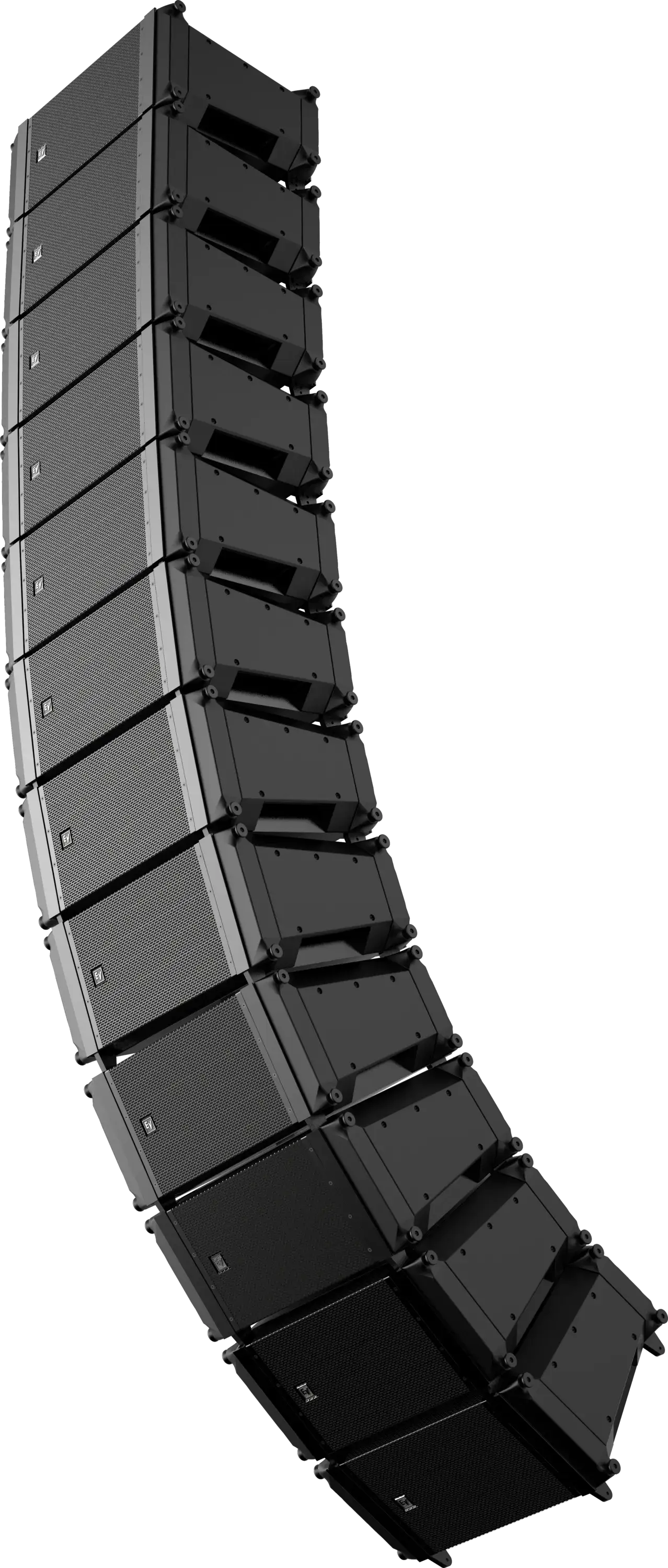

X2 — The Headline Rig
The flagship X-Line Advance element for tours and installs alike — 145 dB peak output in arrays up to 24 boxes.

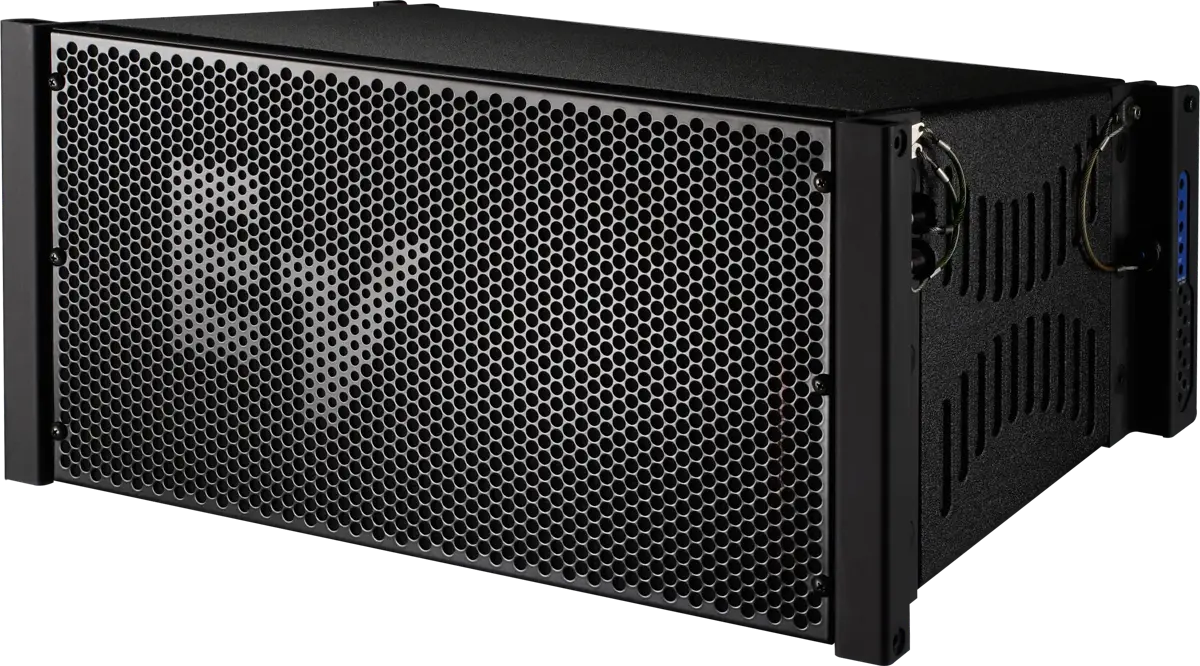

XLE — Very Compact 2-Way Elements
The 8″ two-way element that puts a line array where a line array should not fit.

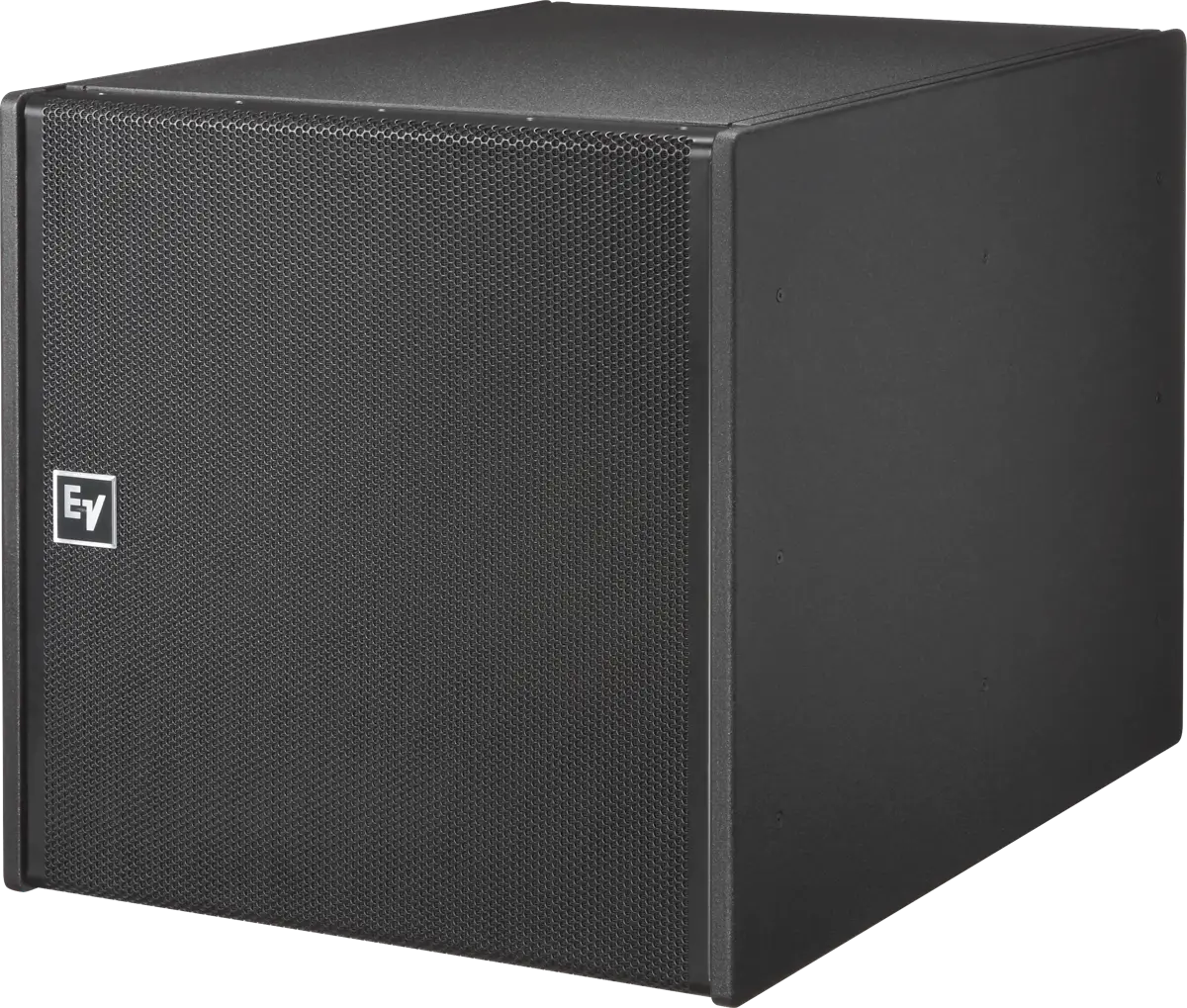

EVA-2151D — the Subwoofer Module
Each EVA-2151D module carries dual 15-inch drivers in 13-ply weather-resistant birch with EVCoat, connecting over dual 4-pin 10 AWG at 2.8 Ω.
Black or white, with weatherized versions rated IP55 — coverage built in fixed vertical slices for transit halls, arenas and long rooms.
Grids & Rigging

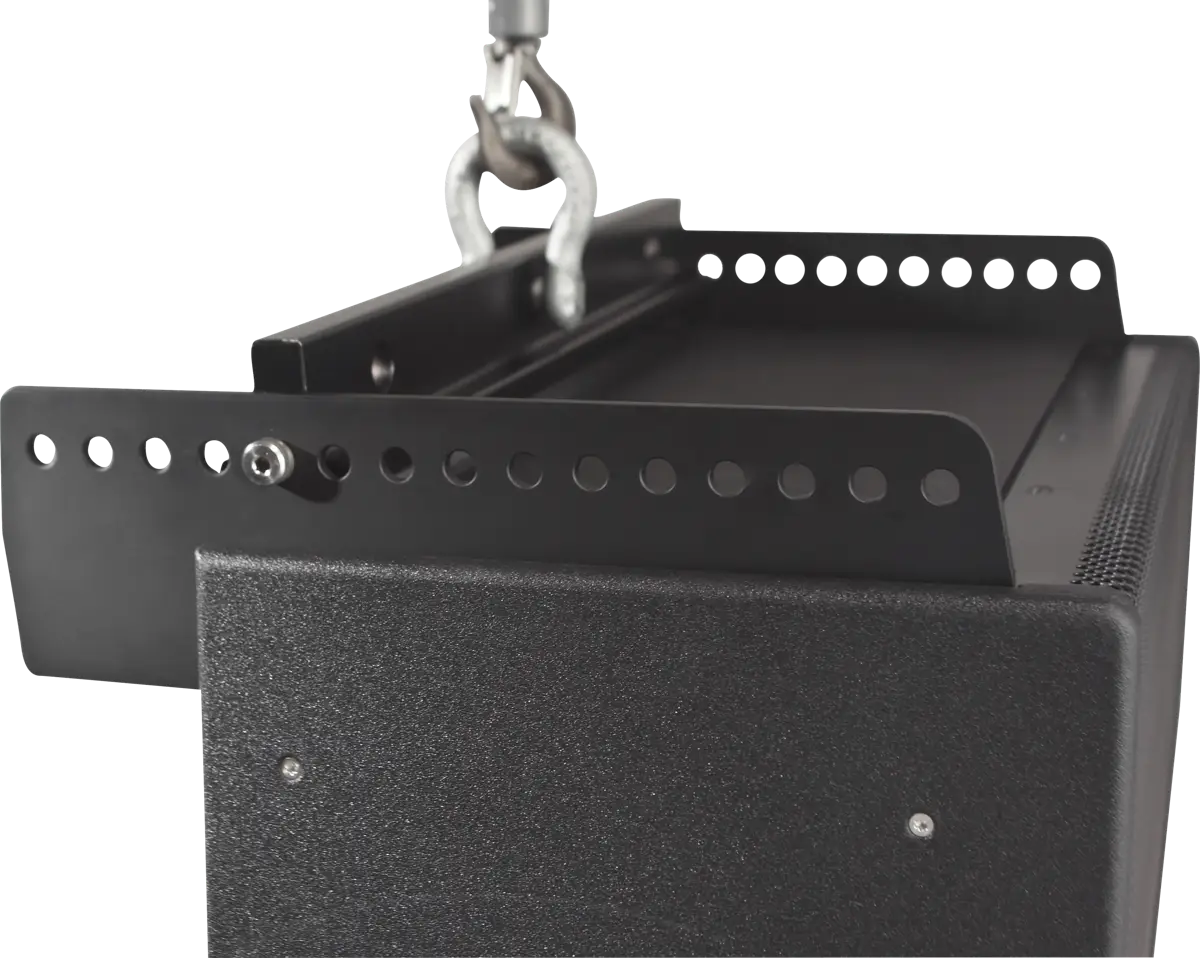

The EVA-SG2 standard grid handles straight hangs; the EVA-EG2 extended grid adds a spreader bar for suspended arrays.
Both grids come in black or white to match the modules.

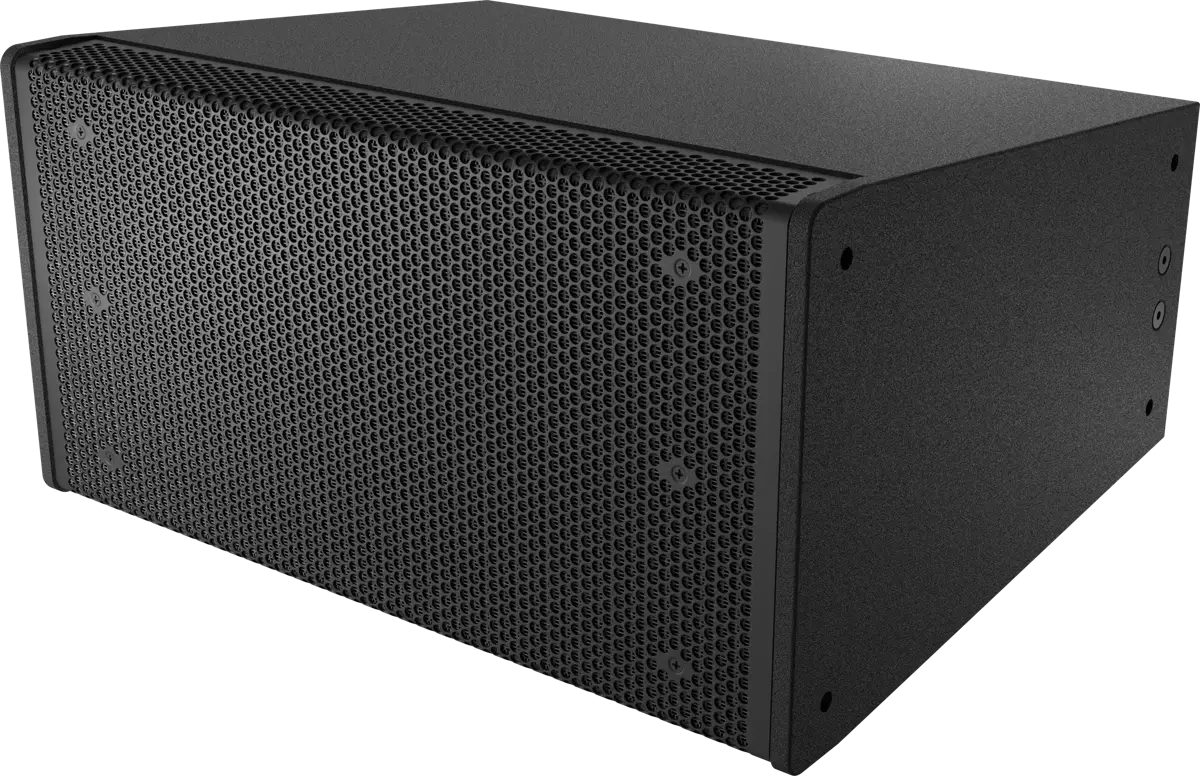

120° Models — X-Line Advance
120° Models — X-Line Advance | X2i | X2 | X1i | X1 |
|---|---|---|---|---|
| Configuration | ||||
| Configuration | 2-way, bi-amp, 12″ woofer | 2-way, bi-amp, 12″ woofer | 2-way, passive, 12″ woofer | 2-way, passive or bi-amp, 12″ woofer |
| Frequency Response (−3 dB) | ||||
| Frequency Response (−3 dB) | 52 Hz – 19 kHz | 52 Hz – 19 kHz | 57 Hz – 16 kHz | 57 Hz – 16 kHz |
| Peak SPL | ||||
| Peak SPL | 145 dB | 145 dB | 143 dB | 142 dB |
| Max Array Height | ||||
| Max Array Height | 24 (28.5 ft) | 24 (28.5 ft) | 24 (28.5 ft) | 24 (28.5 ft) |
| Weatherized Option | ||||
| Weatherized Option | Yes | No | Yes | No |
| Colors | ||||
| Colors | White or black | Black | White or black | Black |

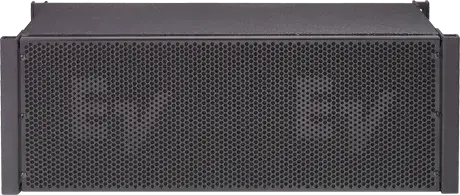

120° Models — Compact & Modular
120° Models — Compact & Modular | XLD | XLE | EVA |
|---|---|---|---|
| Configuration | |||
| Configuration | 3-way, bi-amp or tri-amp, dual 8″ woofers | 2-way, bi-amp or full-range, 8″ woofer | Passive array, two elements per cabinet |
| Frequency Response (−3 dB) | |||
| Frequency Response (−3 dB) | 75 Hz – 18 kHz | 90 Hz – 18 kHz | 60 Hz – 19 kHz |
| Peak SPL | |||
| Peak SPL | 142 dB (137 dB cont.) | 143 dB (137 dB cont.) | 135 dB (129 dB cont.) |
| Max Array Height | |||
| Max Array Height | 16 (13.65 ft) | 16 (13.65 ft) | 8 cabinets (11.66 ft) |
| Weatherized Option | |||
| Weatherized Option | Yes | Yes | Yes |
| Colors | |||
| Colors | White or black | White or black | White or black |
