Built for consultants, integrators, and specifiers
Specifying a system means balancing performance, budget, and the realities of the room.
Electro-Voice and Dynacord give you complete, compatible systems and the documentation to design with confidence -
from loudspeakers to networked DSP and amplification.
Proven under real constraints
Everything you need to specify with confidence.
From coverage prediction to complete, compatible systems and clear documentation, Electro-Voice and Dynacord help you design the right solution for every room.
Find the system that fits your space
Start with a system sized for spaces like yours — then adapt it with your integrator.
Single-room projects
Family pages carry sheet-verified specifications; EASE, PREVIEW, and SONICUE support runs across the install line, and Dynacord DSP presets shorten commissioning.
Typical needs
- Sheet-verified specs
- EASE / PREVIEW data
- DSP presets
- Single-rack designs
The 70/100 V version of the 5.25-inch EVID surface speaker, with a switch for every distributed line.
A complete 4-inch coaxial entry ceiling loudspeaker for clear background music and paging.
A complete 6.5-inch coaxial ceiling loudspeaker tuned for clear music and speech across open spaces.

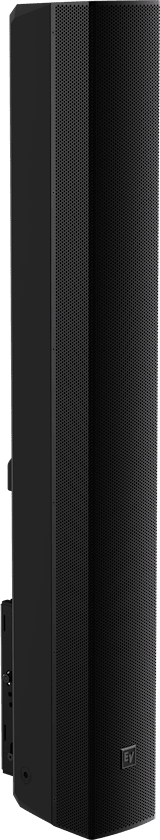

A passive line-radiator install column with a built-in 70/100-V transformer and ASC protection.
The 15-inch EVF G2 with a wide 90° by 90° square pattern.
A dual 15-inch EVF G2 subwoofer reaching down to 32 Hz.
A 60 W single-channel mixer amplifier with four inputs, ducking, and call-station support.
A 120 W single-channel mixer amplifier with four inputs, ducking, and call-station support.
A compact 2-channel installation amplifier with 600 W of flexible power sharing using powerTANK, supporting 4-ohm, 8-ohm, 70 V, and 100 V loudspeaker systems.
A 4-channel networked DSP install amplifier delivering 1,500 W total, with powerTANK power sharing, mic/line inputs, matrix mixer and FIR-Drive processing in a single rack unit.
A wall-mounted controller for the VZX-8 with a 1.77-inch color display and rotary encoder for zone, source, level, media playback, and programmable system control.
A premium single-zone tabletop call station for U-Series mixer amplifiers, phantom-powered with push-to-talk and a condenser mic.
Royal Institute of British Architects
Multi-zone installs
King William County Courthouse — a working courtroom tracing to 1725 — needed sound that respected the room while meeting modern demands: EVID loudspeakers on a Dynacord MXE5 matrix.
Typical needs
- Zone-by-zone design
- MXE5 matrix control
- Heritage constraints
- Court/conference mic integration
A 4-inch coaxial ceiling speaker that mounts fast and reads clean in any room.
The 70/100 V version of the 5.25-inch EVID surface speaker, with a switch for every distributed line.
A 6.5-inch two-way pendant speaker in white that brings even, full-range coverage to open-ceiling spaces.
An 8-inch in-ceiling subwoofer that adds weight to a distributed system without taking a square foot of floor.
A passive line-radiator install column with a built-in 70/100-V transformer and ASC protection.
A compact dual-10-inch surface-mount subwoofer that anchors indoor and outdoor music systems.
An 8-zone audio processor with powerful DSP, flexible system control, and browser-based configuration.
A 4-channel installation amplifier with 600 W of flexible power sharing using powerTANK, supporting 4-ohm, 8-ohm, 70 V, and 100 V loudspeaker systems.
An 8-channel networked DSP install amplifier delivering 3,000 W total, with powerTANK power sharing , 8 mic/line inputs, a 16x16 matrix and FIR-Drive procesing in a single rack unit.
A wall-mounted controller for the VZX-8 with a 1.77-inch color display and rotary encoder for zone, source, level, media playback, and programmable system control.
A 5.7-inch Full HD touch panel controller for SONICUE systems, powered over Ethernet and flush-mounted in a single-gang box.
King William County Courthouse
Large & networked systems
Yas Marina Circuit runs EVC, EVF, and EVH loudspeakers with networked Dynacord IPX amplification, an MXE5 matrix, and SONICUE — the same toolchain that carried Estadio Más Monumental's 85,000 seats.
Typical needs
- Networked IPX amplification
- SONICUE supervision
- Redundancy planning
- Stadium-scale references
The 90 or 120 degree X-Line Advance install element that brings concert-grade output to a fixed room.
The 90 or 120 degree X-Line Advance install element that brings concert-grade output to a fixed room.
The dual 18 X-Line Advance install subwoofer that anchors the low end under an X1i or X2i array.
A three-way, horn-loaded point-source system with a wider 60x40 pattern for long throw.
A weatherized dual 8-inch line-array module with wide 120° by 20° coverage for fixed installs.
The 90° x 90° EVH G2 — the widest-pattern 15-inch, two-way point-source in the line.
A weatherized 8-inch two-way install loudspeaker with 100° x 100° coverage, in white.
A 4-channel install DSP power amplifier rated 4 x 2500 W, with 96 kHz FIR Drive processing and OMNEO/Dante networking.
A 4-channel install DSP power amplifier rated 4 x 5000 W, with 96 kHz FIR Drive processing and OCA/Dante networking.
An 8-channel networked DSP install amplifier delivering 6,000 W total, with powerTANK power sharing , 8 mic/line inputs, a 16x16 matrix and FIR-Drive procesing in a single rack unit.
An open-architecture DSP matrix mix engine with 12 analog in / 8 analog out, 64x64 Dante, dual-SHARC processing, fully suppoerted in SONICUE.
A 5.7-inch Full HD touch panel controller for SONICUE systems, powered over Ethernet and flush-mounted in a single-gang box.
A networked wall controller with a 1.77-inch color display and encoder, powered over Ethernet, for SONICUE zone and source control.

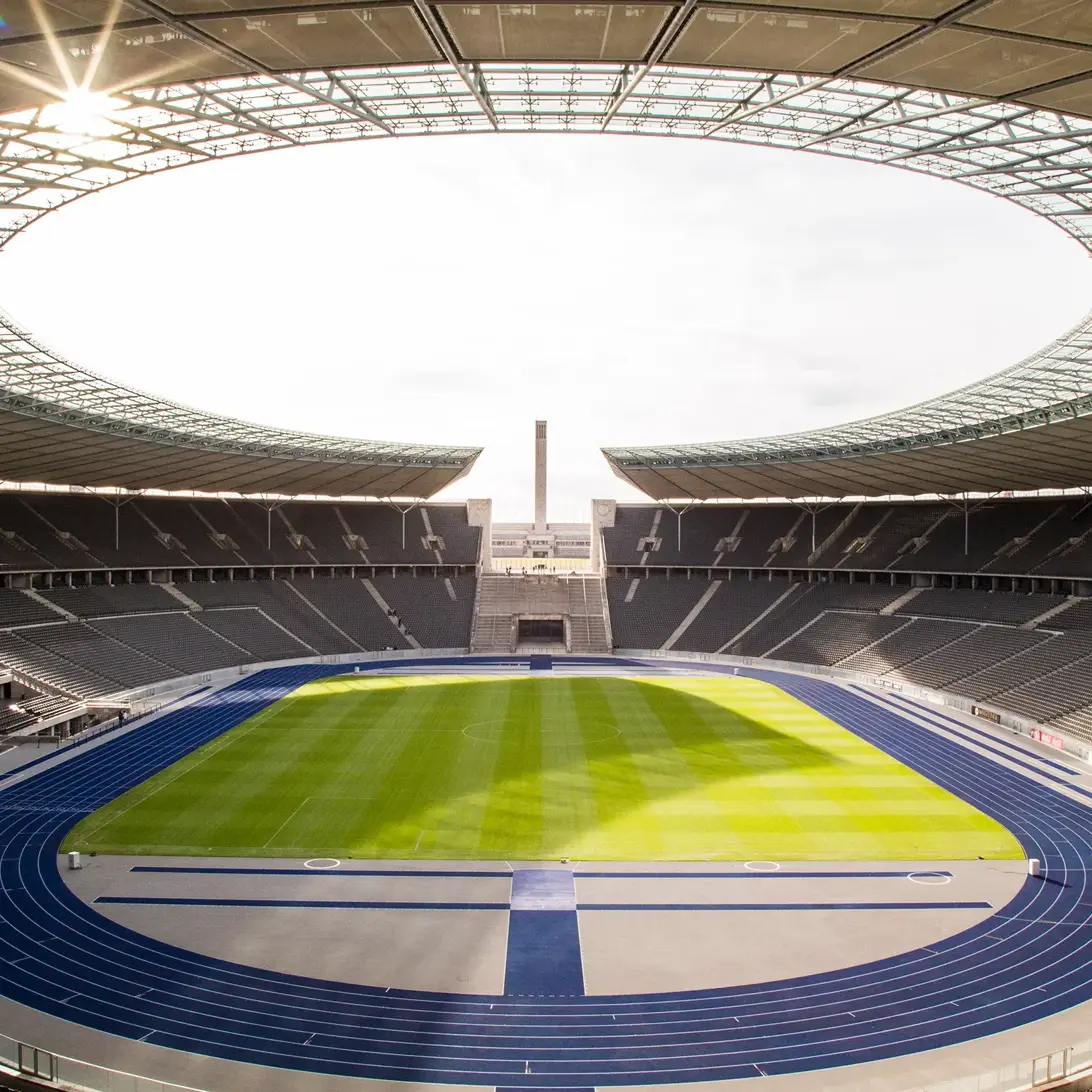

Berlin Olympiastadion
Every space is different — these recipes are starting points.
Proven in a courtroom that has held court since 1725

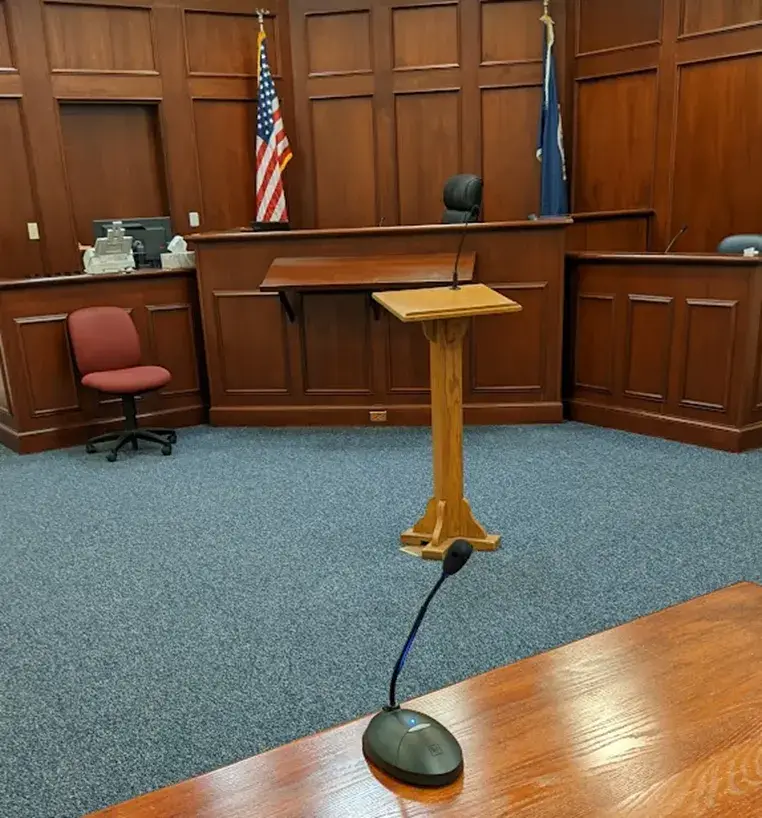

King William County Courthouse is on the National Register of Historic Places — opening the walls was never an option. A zoned Dynacord MXE5 system routes every courtroom, remote gallery, and ADA room; gooseneck microphones carry programmable mute switches that keep attorney-client sidebars out of the broadcast; and a single CPS4.5 amplifier runs the entire building. Staff picked up the touch panels without training.
The year court first sat here. The historic walls stayed intact.

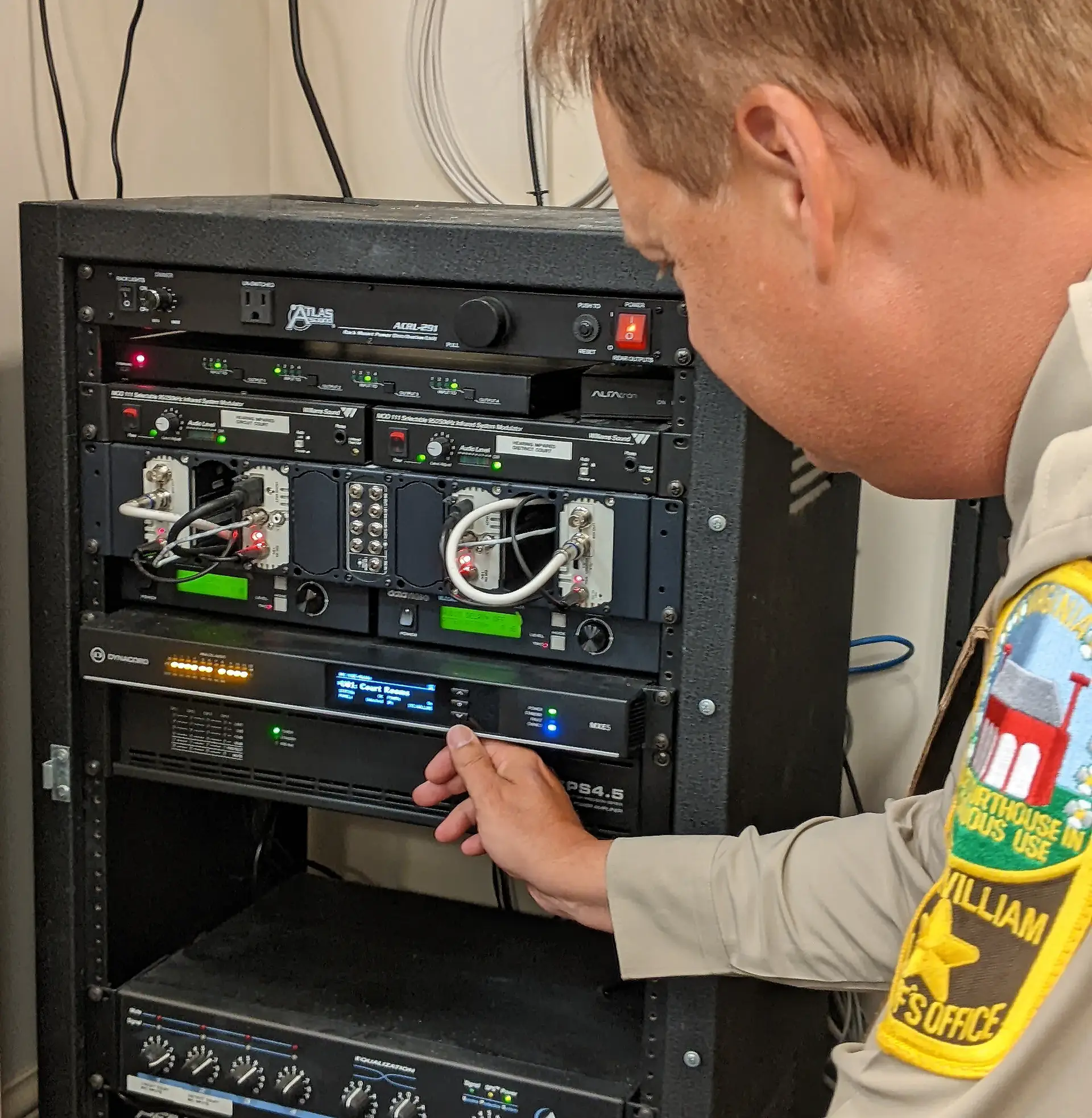

A single CPS4.5 four-channel amplifier runs the whole system.
Practical design support for real projects
Every project is different, but the goal is the same: the right system, documented and delivered without surprises.
Everything works together
Electro-Voice loudspeakers and Dynacord amplification and DSP
are designed as one system — making it easier to design, install, and operate.
Engineered together from the start.
Shared tools make systems easy to run and maintain.
Cleaner setup with fewer
compatibility issues.
Fewer unknowns. More
consistent results.
For integrators and consultants, this reduces risk and speeds up deployment. For venue teams, it means a system that’s easier to operate and support.
Ready to move forward?
For integrators & consultants
Browse the install line
Sheet-verified family pages across the range.
For venue operators
Plan BGM zones
The EV + Dynacord commercial overview.
See it at scale
Estadio, Celtic Park, Yas Marina — the case studies.
