CUT THE TRUCK SPACE

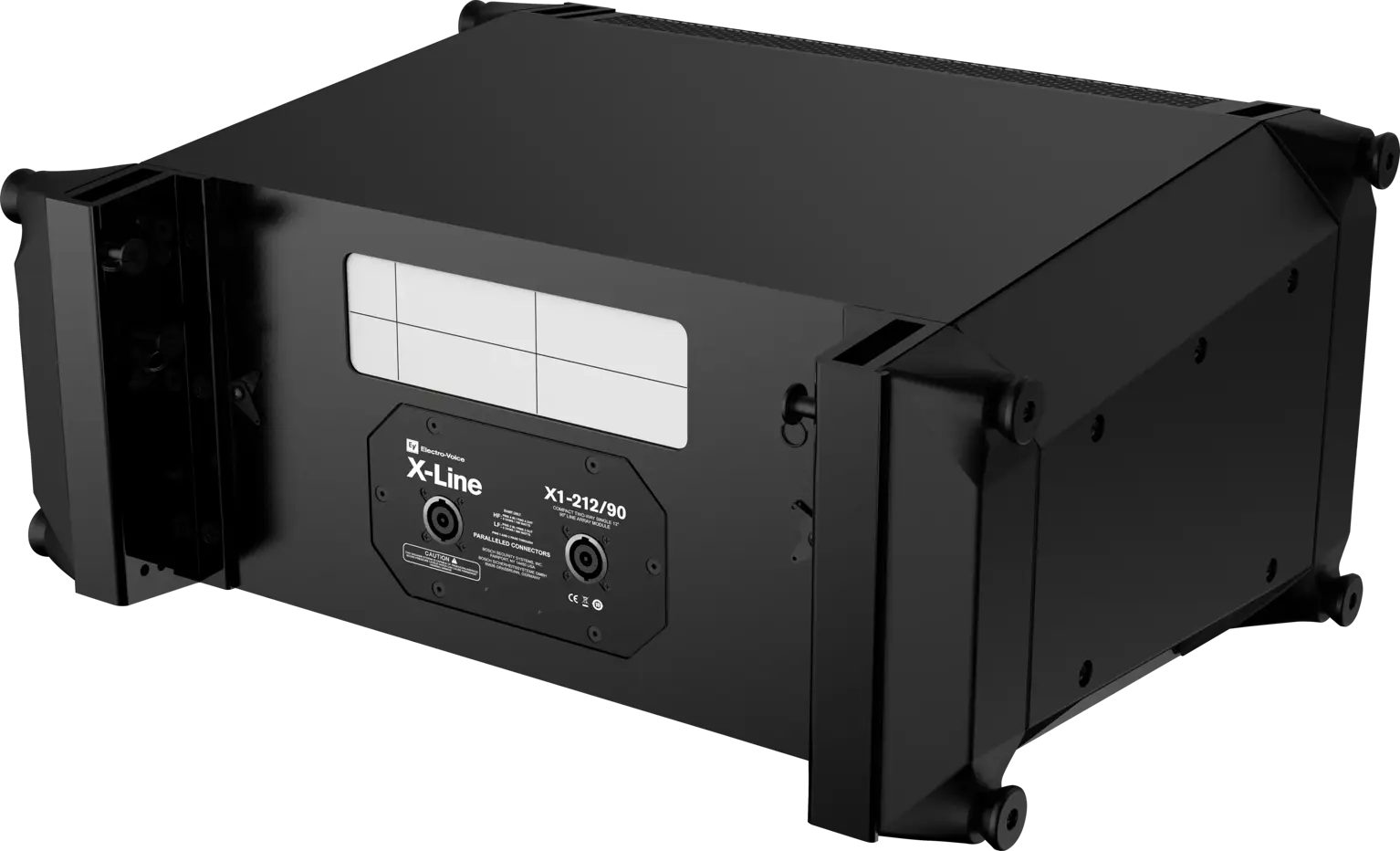

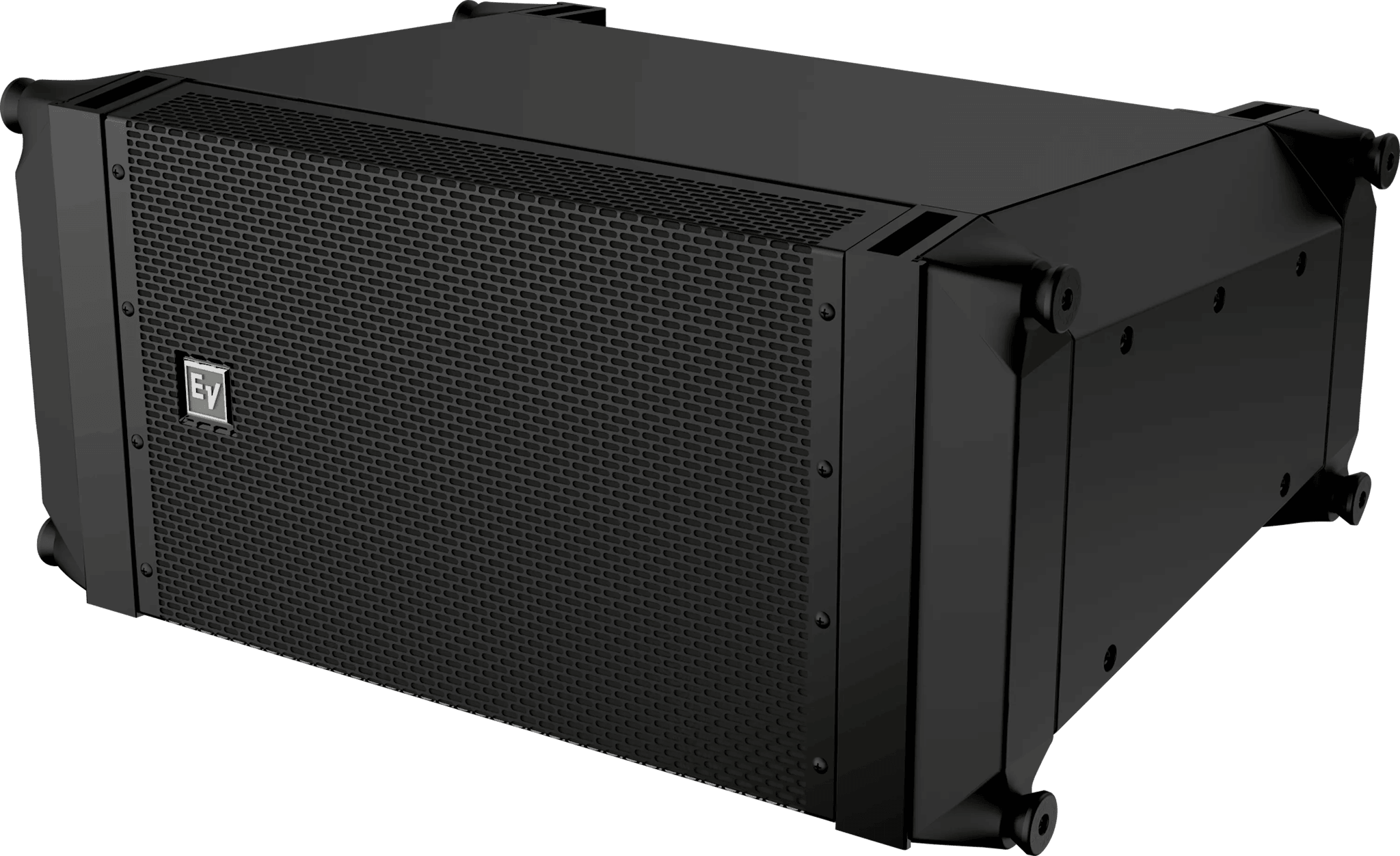

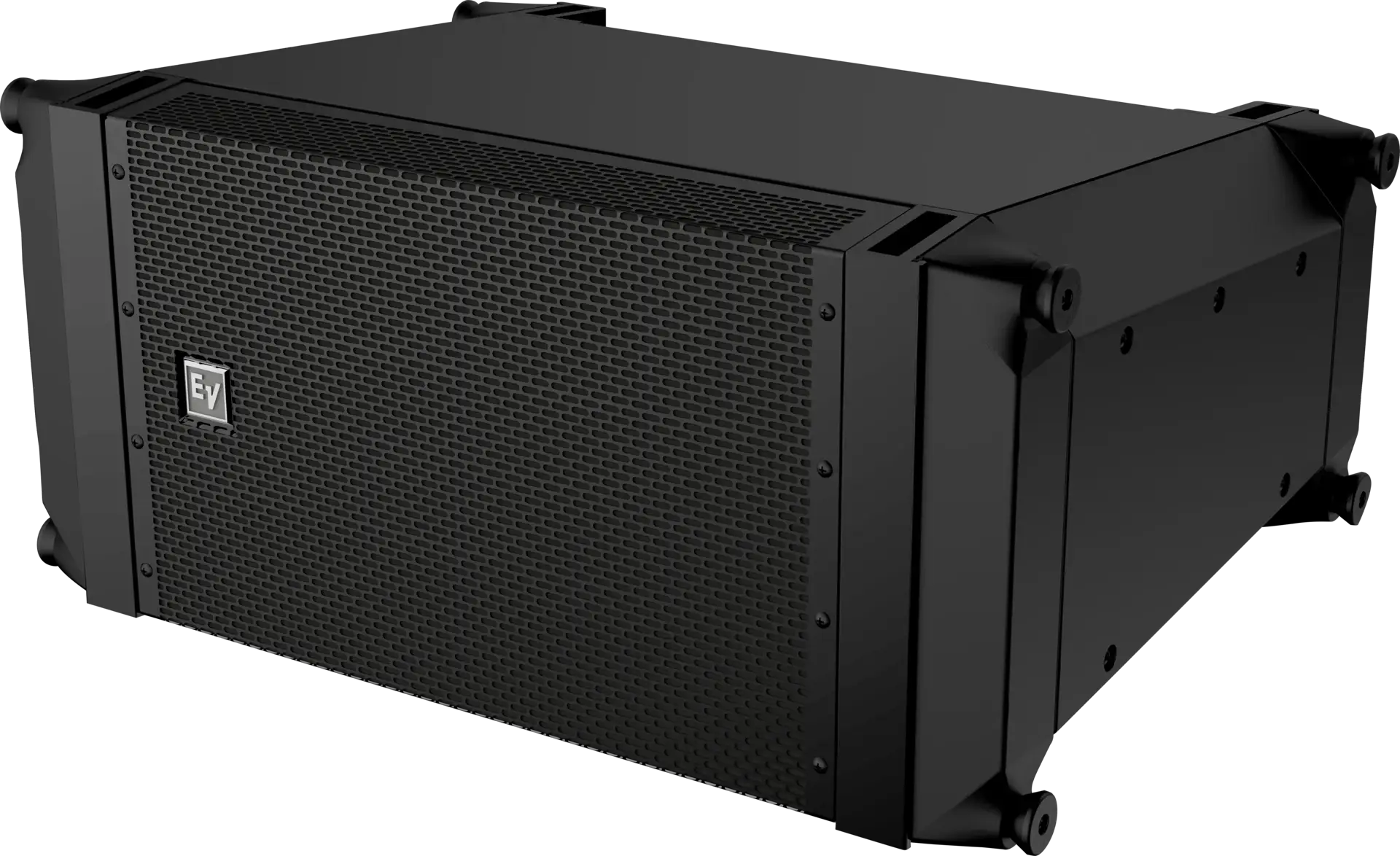

X1-212/120 Compact Touring Line-Array Element
Take the big-format sound and cut the truck space. The X1-212 is a compact 2-way touring line-array element, an SMX2121 12-inch woofer and two ND2R 2-inch titanium drivers behind Wavefront-shaping Circular Hydra plane-wave generators. Run it passive on one channel or bi-amp it, with FIR-DRIVE processing on Dynacord MXE5, TGX or IPX. The Integrated Rigging System sets splay from 0 to 10 degrees box to box, and PREVIEW or LAPS 3 designs the hang. Tours, regional rigs, houses of worship that build arrays: full-size coverage from a box two people can fly fast.
Key features
X-Line Advance
Features
Specifications
Overview & Features
- Configuration
2-way, passive or bi-amp (FIR-DRIVE processing required: Dynacord MXE5, TGX or IPX amplifiers)
Acoustic Performance
- Max SPL
143
- Frequency response low (-3 dB) (Hz)
57
- Frequency response high (-3 dB) (Hz)
16000
- Frequency Response
57 Hz - 16 kHz
- Coverage angle (H)
120
Thirty X2-212 flown with X1 fills and X12-128 subs: one standard X-Line rig, scaled room to room on Level 42's anniversary tour.
From The World Machine case study
