57 Hz – 18 kHz (−3 dB); 48 Hz – 20 kHz (−10 dB)
400 W continuous / 800 W program handling
22 M10 hard points; Euroblock + NL4

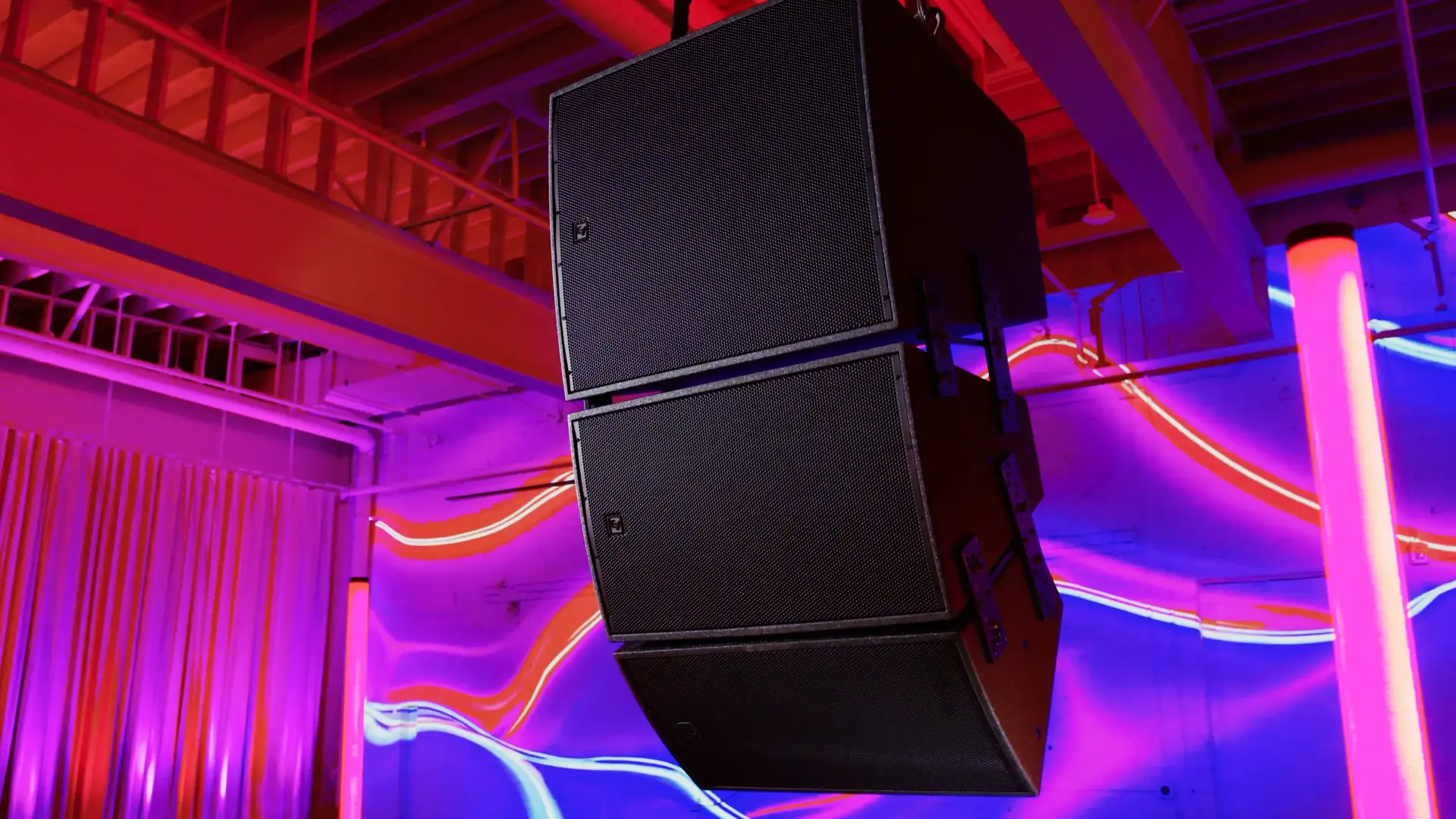

EVF & EVH G2 Install Loudspeakers
Point Source, Rebuilt From the Inside Out
The G2 generation keeps the footprint and replaces nearly everything else: new in-house EV transducers, low-loss crossovers, EV's highest-performance HF horns, and low-latency FIR presets with flat phase response. Front-loaded EVF for most rooms; horn-loaded EVH when the pattern has to hold at distance. IP55 fully-weatherized versions cover outdoor and marine installs.

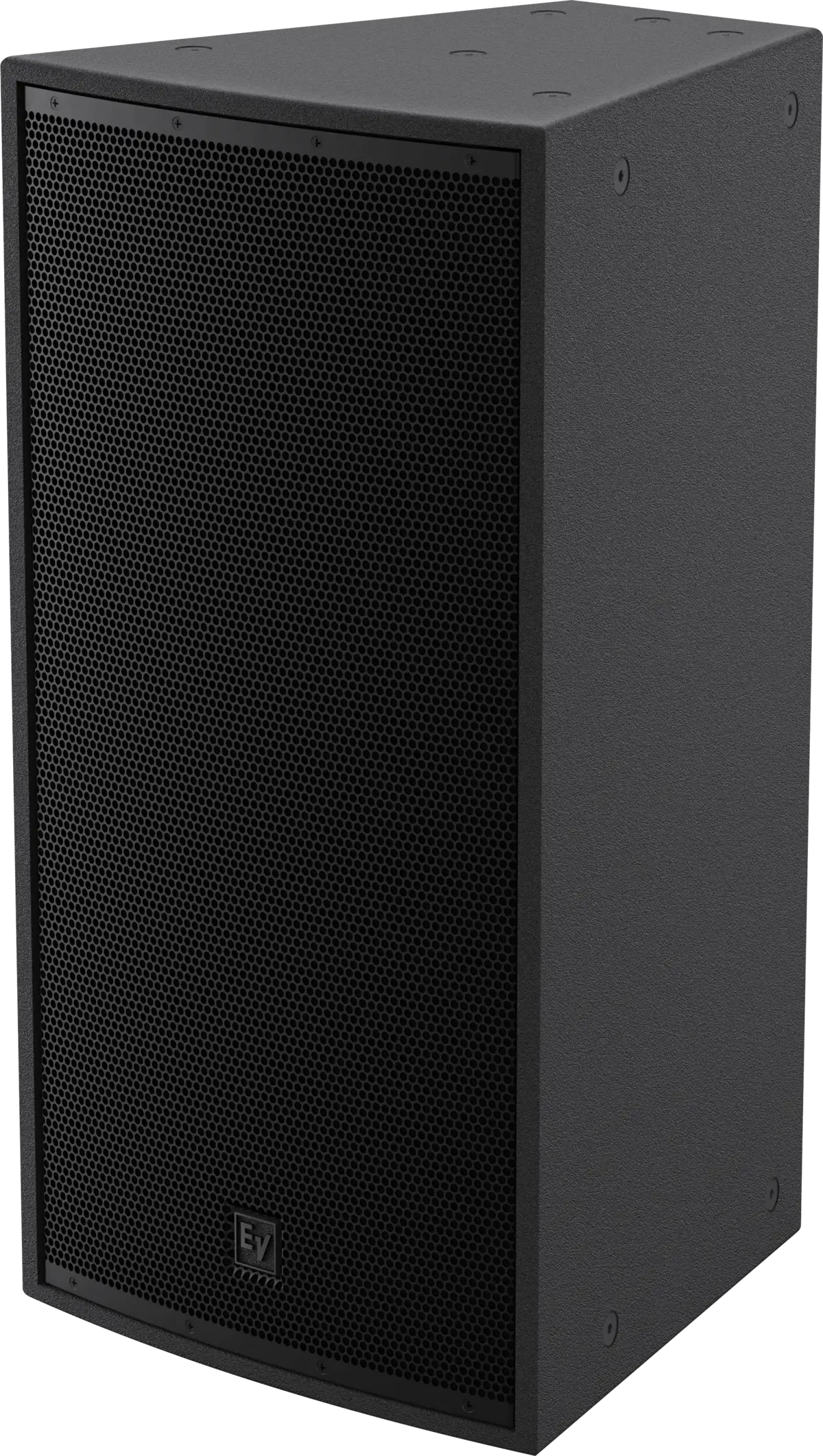

EVF-12 G2 — Front-Loaded 12″
The compact workhorse: G2 acoustics in a box that hangs where larger cabinets can't.
Five coverage patterns include a wide 120°×60° — unique in the range — so one model handles most rooms.
For: performing arts · houses of worship · theaters
Start here · Five patterns · 48 Hz reach · 30.5 kg

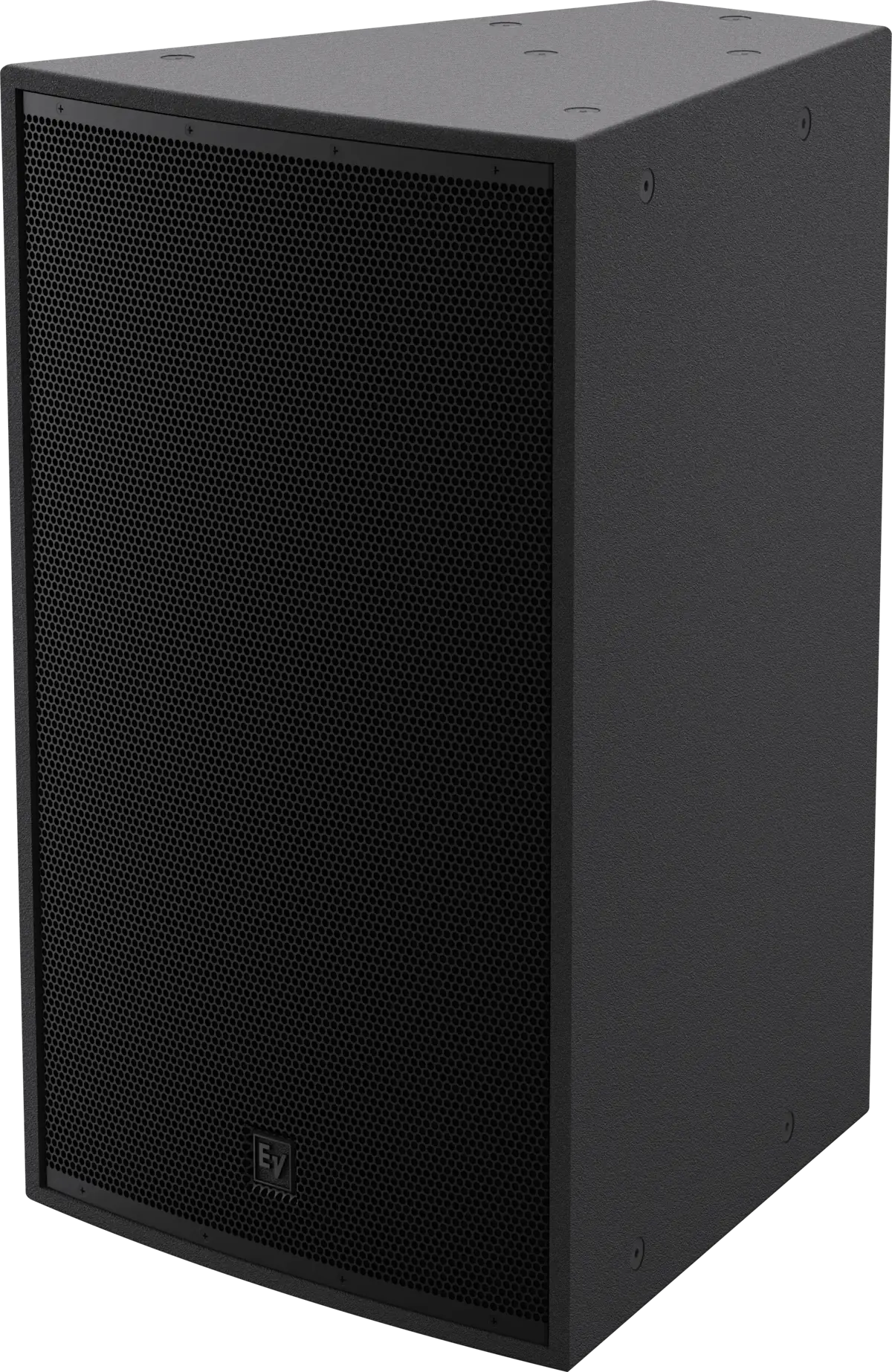

EVF-15 G2 — Front-Loaded 15″
The full-range main: a 15-inch design that reaches 40 Hz without a subwoofer.
Four coverage patterns with matched voicing carry mid-size rooms on a single box per side.
50 Hz – 18 kHz (−3 dB); 40 Hz – 20 kHz (−10 dB)
117 dB linear / up to 136 dB peak (AES75)
IP55 fully-weatherized versions available
For: live music venues · houses of worship · multi-purpose rooms
Four patterns · 40 Hz reach · 38 kg

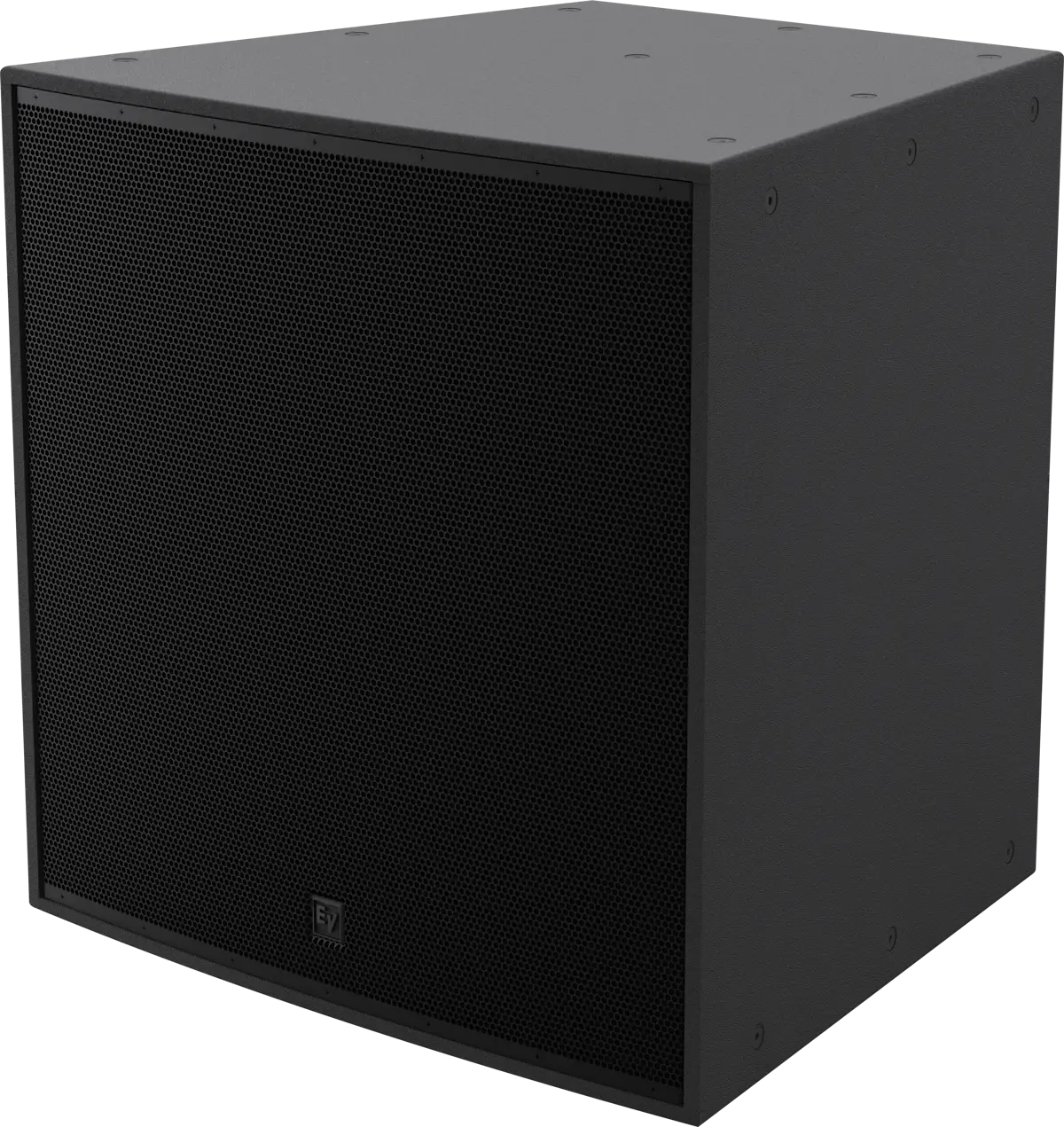

EVH-15 G2 — Horn-Loaded 15″
The pattern-control specialist: horn loading holds coverage tight at distance.
Five patterns from 40°×30° to 90°×90° put energy on seats, not walls — the choice for reverberant rooms and throws.
62 Hz – 18 kHz (−3 dB); 55 Hz – 20 kHz (−10 dB)
Up to 123 dB linear / 141 dB peak (AES75)
30 M10 rigging points
For: sports venues · reverberant spaces · long-throw installs
Five patterns · 141 dB peak · Long throw
Who It's For
Match the box to the gig — every card links to how people actually use it.
12″ · 15″ powered
DJs
Houses of Worship
Speech intelligibility and music impact in one hang — with weatherized options for courtyards.
12″ · 15″ powered
DJs
Performing Arts
Pattern choices and matched voicing keep every seat in the same mix.
Next Steps
Start with the most popular box — or jump back and compare the lineup.
Ready to Buy?
Start Here: EVF-12 G2
The model most systems start from.
Powering It?
Add a Dynacord IX Amplifier
Multichannel networked DSP amplification matched to passive point source.
Need Stadium Scale?
Level Up to the Next Family in the Series: MTS
Mega point source for the biggest bowls and outdoor systems.
Need Stadium Scale?
All Point-Source Families
Mega point source for the biggest bowls and outdoor systems.
