Three-way, bi-amplified; passive mid/high network at 3.6 kHz (6 Ω)
40°×30° and 60°×40° patterns, black or white, fully-weatherized versions
Dual Phoenix-type inputs with pass-through
MTS Series
Large-Format Point Source for Stadium Scale
MTS is Electro-Voice's large-format three-way, bi-amplified point source: coaxial mid/high compression drivers on a constant-directivity arc-source horn, over dual 15-inch low-frequency sections. Driven by Dynacord IPX DSP amplifiers and managed in SONICUE, it delivers up to 154 dB peak output — with a cardioid version that keeps the field behind it quiet.

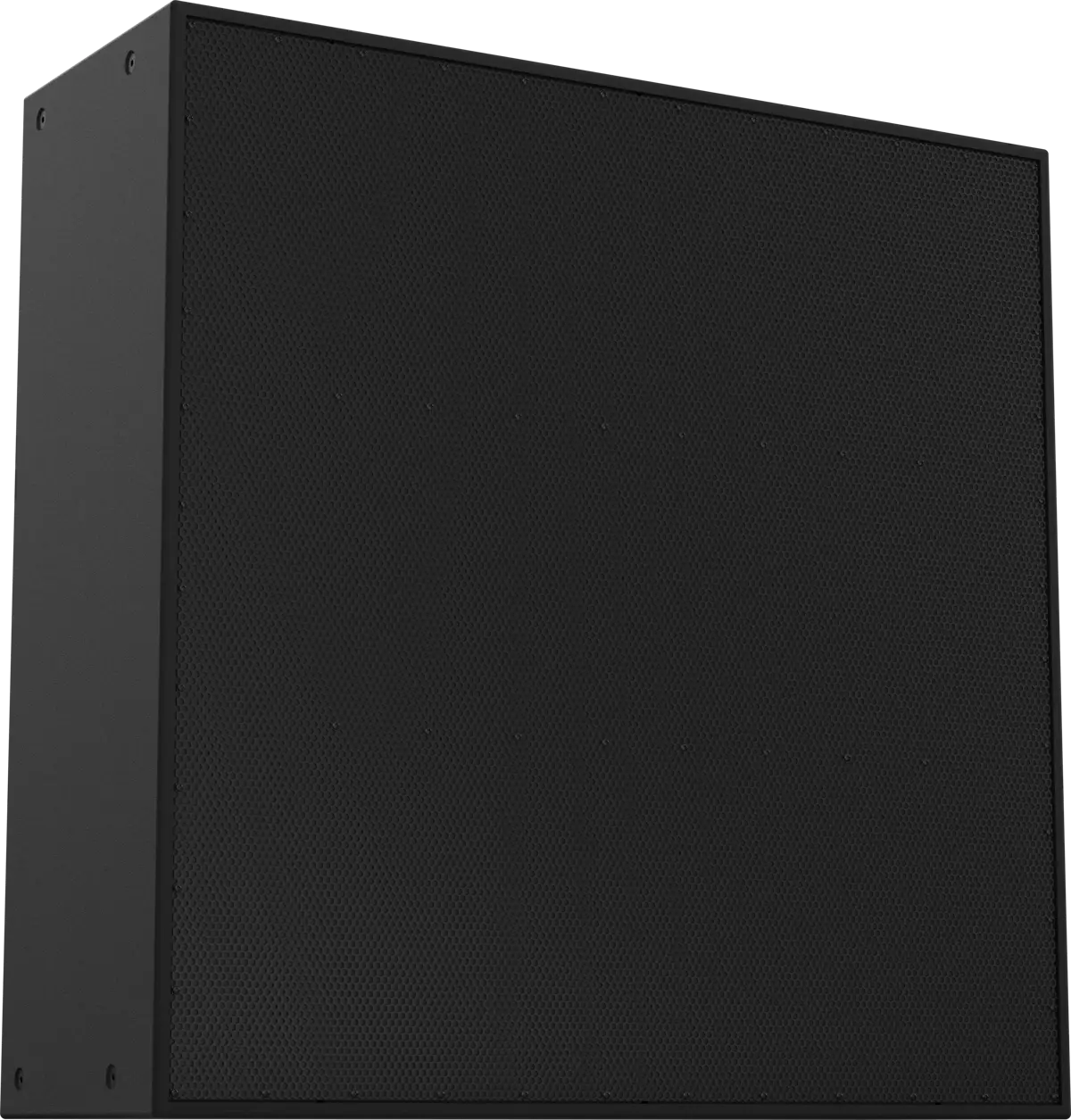

MTS-4153 — High-Output Three-Way
The straight-ahead MTS: maximum output per box for bowl seating and long throws.
Two pairs of 15-inch woofers under coaxial mid/high drivers on an arc-source horn — one cabinet per zone.
For: stadiums · arenas · outdoor sports
Start here · 3-way bi-amp · 40°×30° or 60°×40° · Full weather

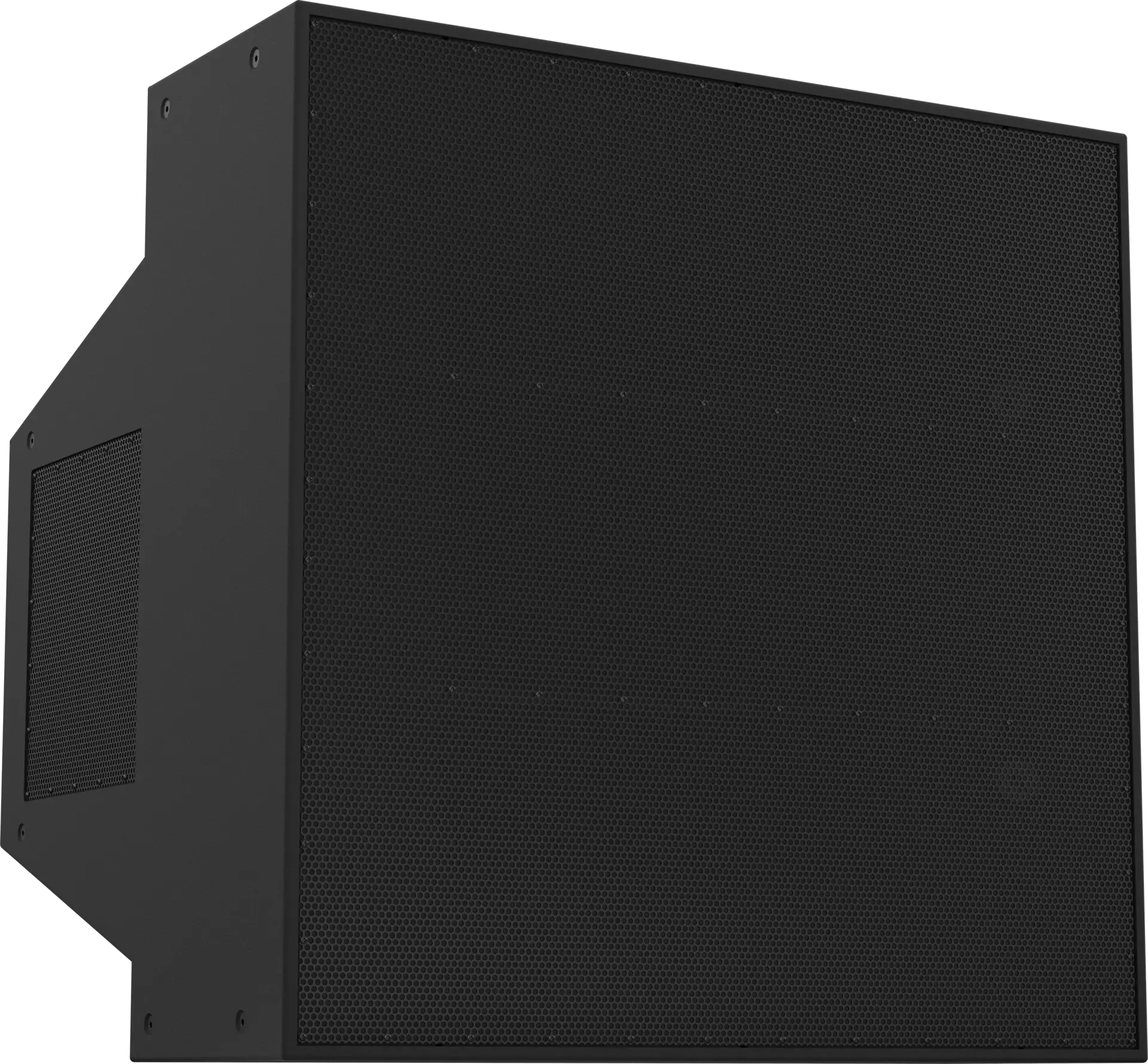

MTS-6154 — Cardioid Three-Way
The cardioid MTS: full output forward, 12 dB or more of rejection behind, below 200 Hz.
An integral cardioid chamber with dedicated 15-inch woofers protects stages, fields, and neighbors behind the hang.
Up to 154 dB peak SPL (12 dB crest, 100 Hz – 5 kHz)
−12 dB or more rear rejection below 200 Hz (135°–180° off-axis)
32 M10 hard points; 1092 × 1092 × 1191 mm, 182 kg
For: stadiums with field-side stages · noise-sensitive sites
154 dB peak · Cardioid LF · 32 rigging points
