ZLX-12 G2

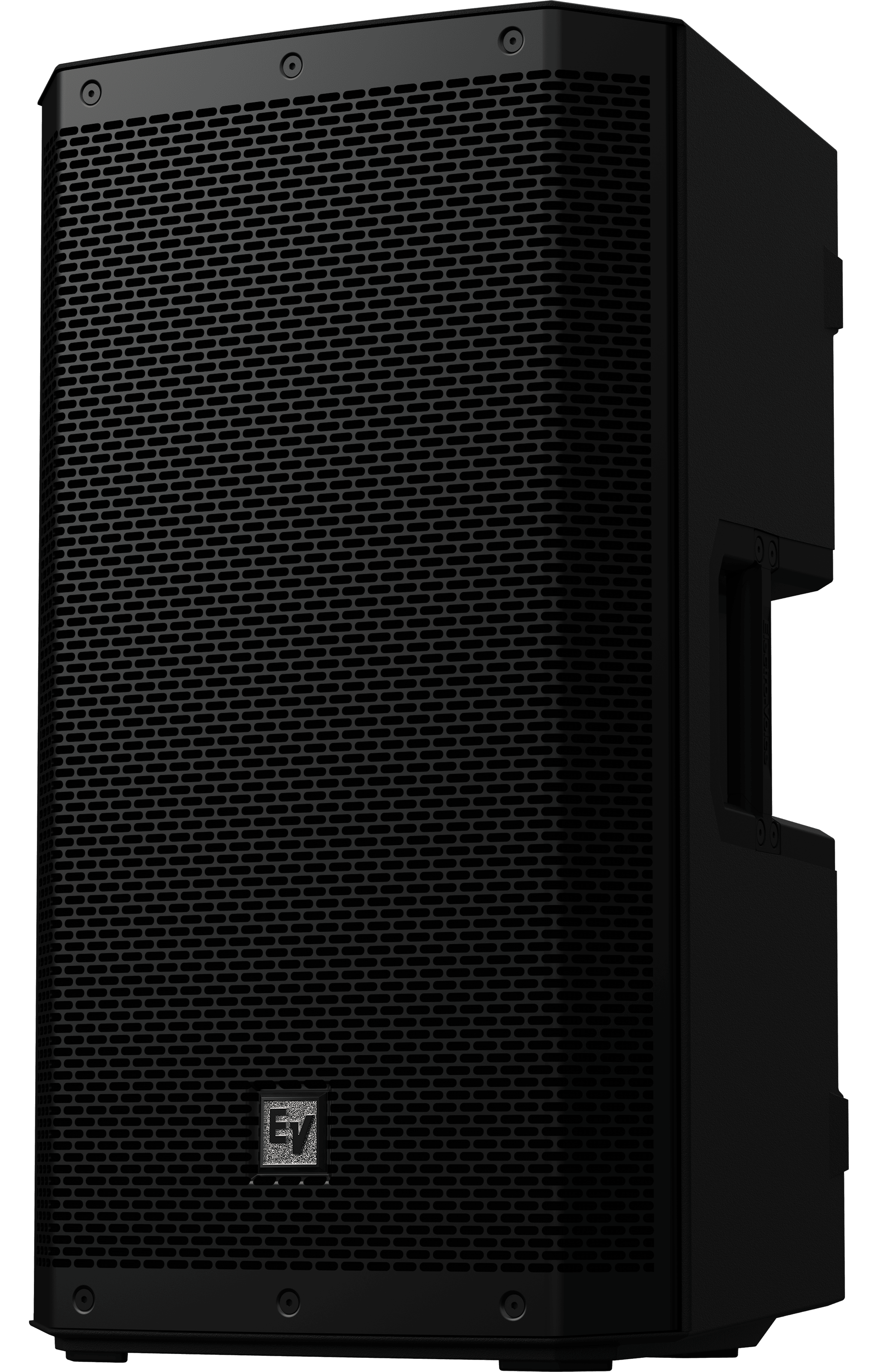

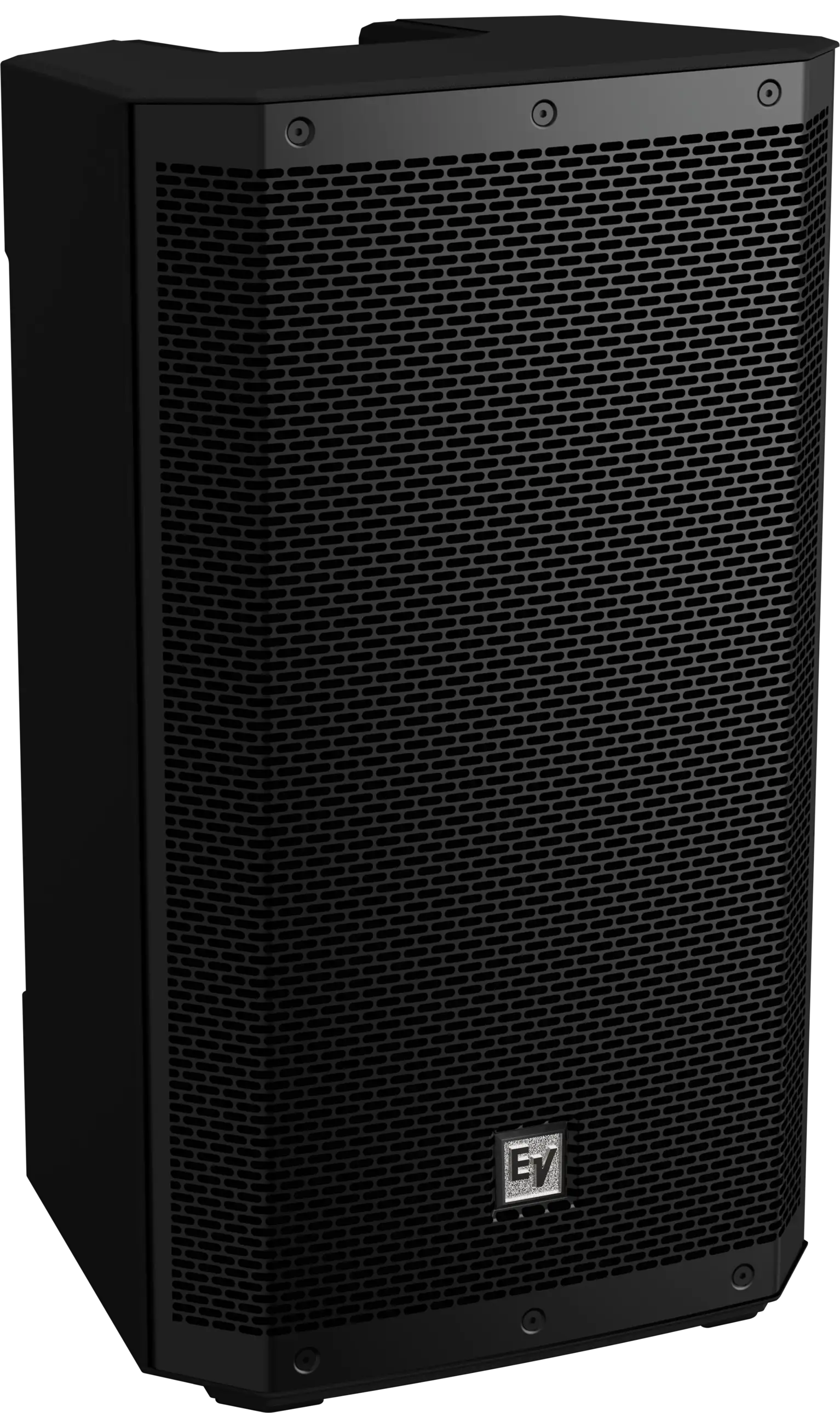

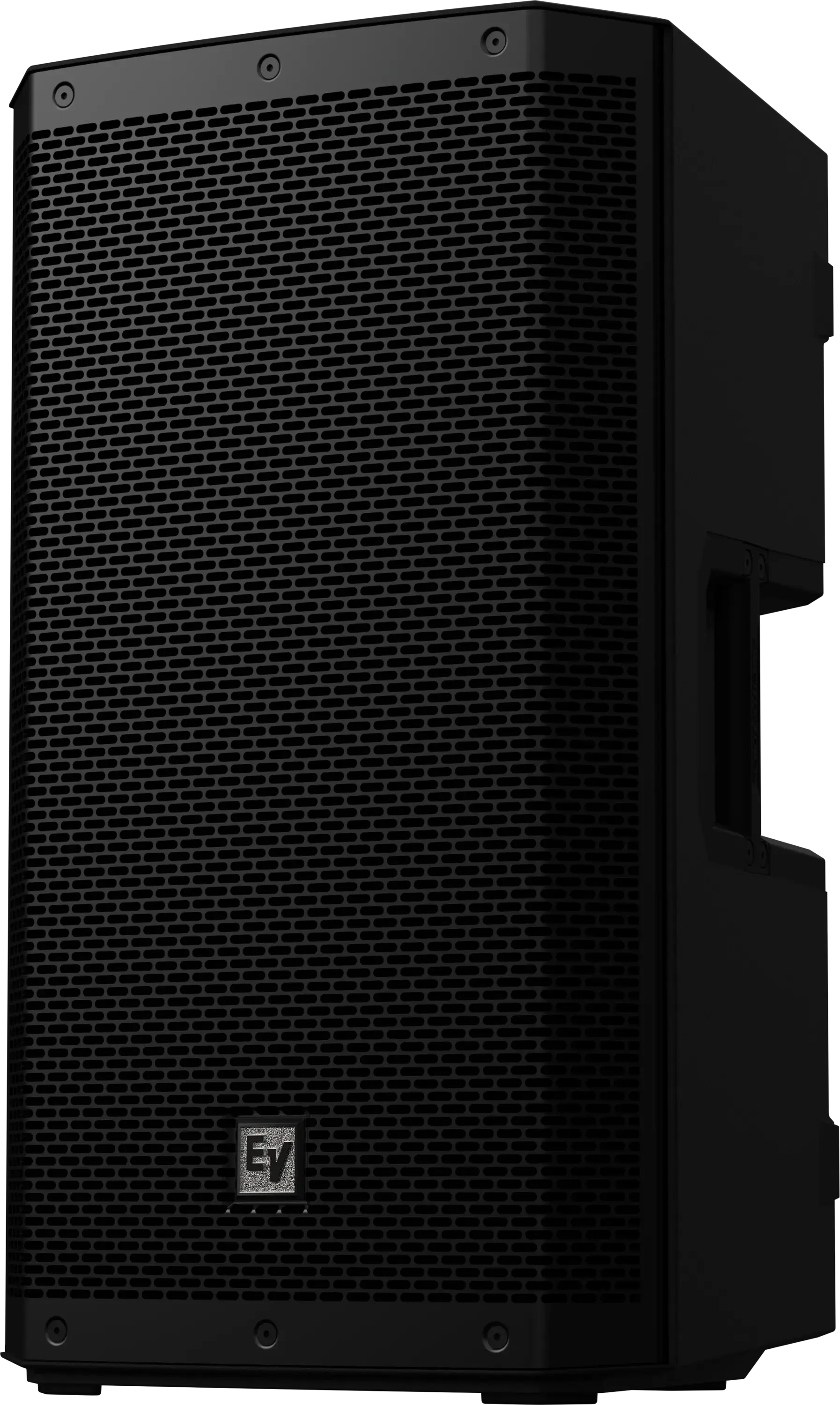

The ZLX-12 G2 is a 12-inch two-way passive loudspeaker built on the patented SST baffle for uniform coverage and tight, compact bass.
A 1.40-inch titanium compression driver pairs with a ferrite-magnet woofer inside a rugged polypropylene enclosure and powder-coated steel grille: pole-mountable, bracket-ready, and matched to its powered ZLX-G2 siblings.
What the ZLX-12 G2 brings
Engineered to project.
The SST baffle synchronizes the low- and high-frequency transducers for uniform coverage and tighter bass from a smaller box — the same acoustic core as the powered ZLX-G2 models, ready to drive from any capable amplifier.
Power handling
Sensitivity
Coverage
Built to be moved.
A rugged, ergonomic polypropylene enclosure and powder-coated steel grille stand up to daily transport. The compact SST cabinet keeps the 12-inch ZLX-12 G2 easy to carry, fly and pole-mount.
Weight
Woofer
Coverage
Features
Specifications
Overview & Features
- Configuration
2-way
Acoustic Performance
- Max SPL
125
- Frequency response low (-3 dB) (Hz)
69
- Frequency response high (-3 dB) (Hz)
18500
- Frequency Response
69 Hz – 18,500 Hz
- Frequency Range (-10 dB)
Shipping dimensions (H x W x D) (in) 26.38 in x 16.54 in x 15.94 in Weight (kg)
Compare the ZLX G2 Passive Models
Compare the ZLX G2 Passive Models | ZLX-8 G2 | ZLX-12 G2 | ZLX-15 G2 |
|---|---|---|---|
| Woofer | |||
| Woofer | 8″ | 12″ | 15″ |
| Design | |||
| Design | Two-way passive · SST baffle | Two-way passive · SST baffle | Two-way passive · SST baffle |
| High frequency | |||
| High frequency | 1.40″ titanium compression driver | 1.40″ titanium compression driver | 1.40″ titanium compression driver |
| Amplifier match | |||
| Amplifier match | SONICUE ZLX-G2 preset for Dynacord DSP amplifiers | SONICUE ZLX-G2 preset for Dynacord DSP amplifiers | SONICUE ZLX-G2 preset for Dynacord DSP amplifiers |
| Best for | |||
| Best for | Bars, restaurants and fixed installs | Rental, worship and bands — mains or monitors | Clubs, rental fleets and permanent rooms |
Powered versions of all three — ZLX-8P, 12P and 15P G2 — live on the ZLX G2 family page.
