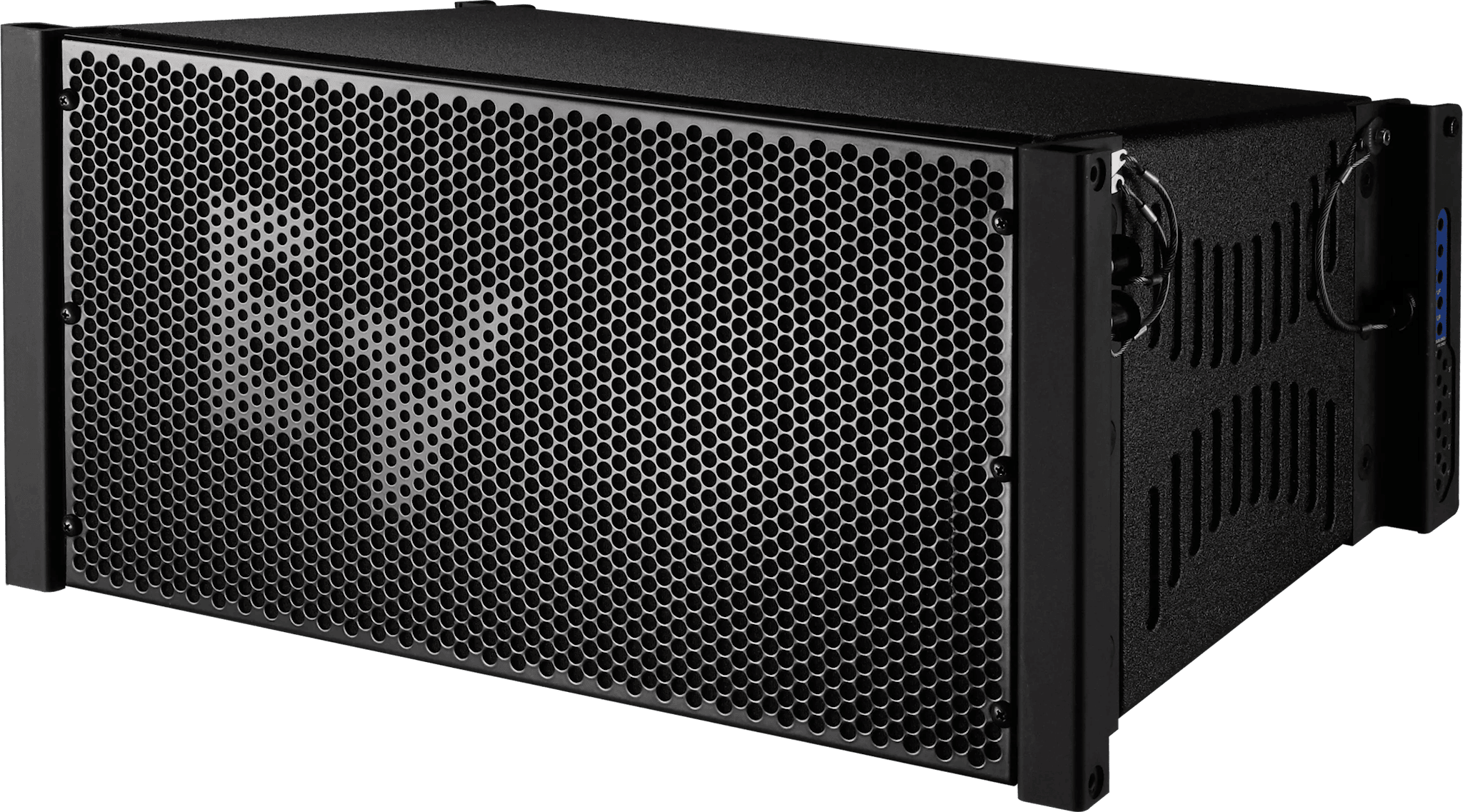

XLE191-FGB 2-Way Very Compact Line-Array Element
The 90 degree XLE element, weatherized for the tight installs that face the weather.
Aim tighter and forget the forecast. The XLE191 is the 90 degree member of the very compact XLE family, one DVN2080 8-inch neodymium woofer and two ND2S-8 titanium drivers into a 90 by 10 degree pattern at 17.2 kilograms. The weatherized FG build lives outdoors year round. Fly up to 16 elements on captive aluminum rigging in 1 degree steps, aimed in LAPS. Stadium concourses, transit, fascia fills: narrower throw, same tiny footprint.
Key features
Features
Aim tighter and forget the forecast. The XLE191 is the 90 degree member of the very compact XLE family, one DVN2080 8-inch neodymium woofer and two ND2S-8 titanium drivers into a 90 by 10 degree pattern at 17.2 kilograms. The weatherized FG build lives outdoors year round. Fly up to 16 elements on captive aluminum rigging in 1 degree steps, aimed in LAPS. Stadium concourses, transit, fascia fills: narrower throw, same tiny footprint.
Specifications
Overview & Features
- Configuration
2-way very compact line-array element, bi-amp or full-range
Acoustic Performance
- Max SPL
144
- Frequency response low (-3 dB) (Hz)
90
- Frequency response high (-3 dB) (Hz)
18000
- Frequency Response
90 Hz - 18 kHz
- Frequency Range (-10 dB)
75 Hz - 20 kHz
