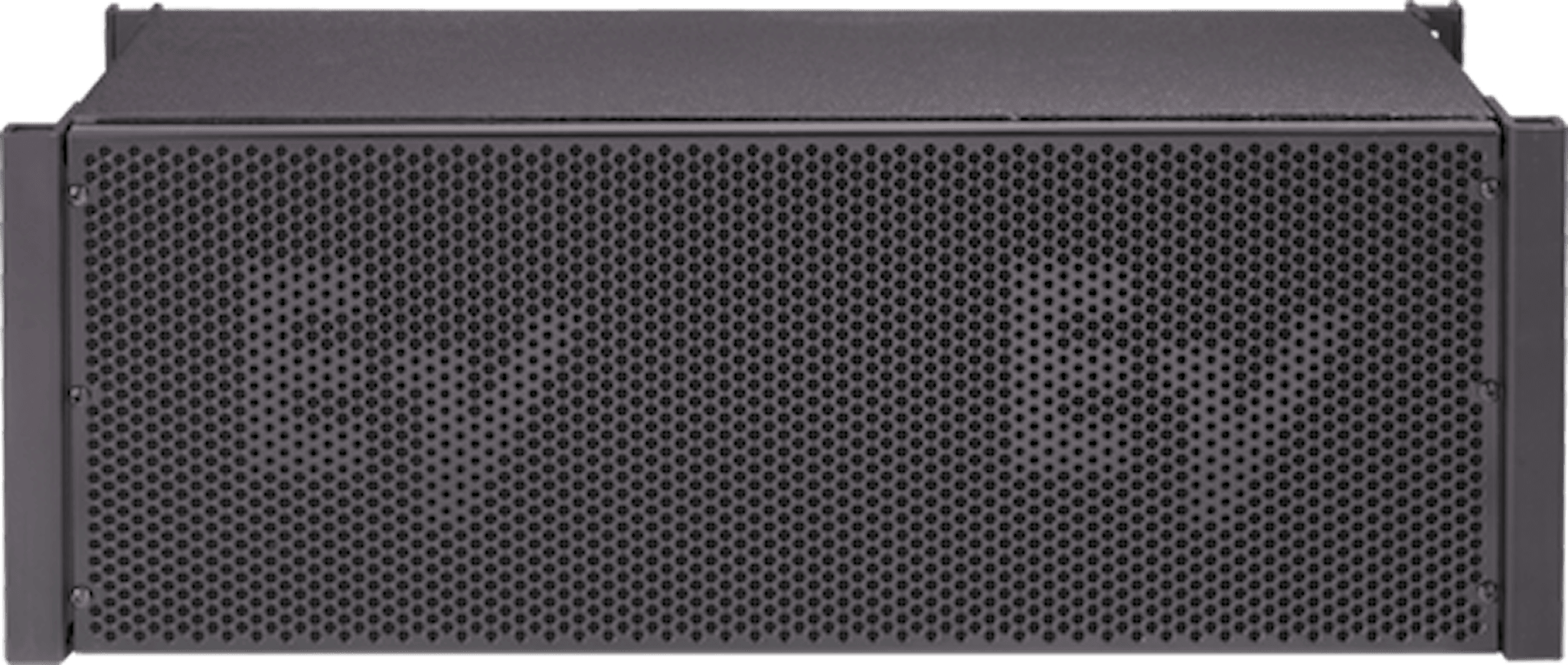

XLD291-FGB 3-Way Compact Line-Array Element
The 90 degree XLD element, weatherized for permanent outdoor arrays.
Cover the room, not the sightlines. The XLD291 is a 3-way very compact line-array element: two DVN2080 8-inch neodymium woofers and two ND2S-8 titanium compression drivers through a 90 by 10 degree waveguide, with Coverage Control Technology holding the horizontal pattern. Run it bi-amp or tri-amp, fly up to 16 elements on the fully captive aluminum rigging in 1 degree steps, and aim it in LAPS. Theaters, houses of worship, corporate AV, performing arts: full-bandwidth line-array coverage that disappears into the room.
Key features
Features
Cover the room, not the sightlines. The XLD291 is a 3-way very compact line-array element: two DVN2080 8-inch neodymium woofers and two ND2S-8 titanium compression drivers through a 90 by 10 degree waveguide, with Coverage Control Technology holding the horizontal pattern. Run it bi-amp or tri-amp, fly up to 16 elements on the fully captive aluminum rigging in 1 degree steps, and aim it in LAPS. Theaters, houses of worship, corporate AV, performing arts: full-bandwidth line-array coverage that disappears into the room.
Specifications
Overview & Features
- Configuration
3-way compact line-array element, bi-amp or tri-amp
Acoustic Performance
- Max SPL
144
- Frequency response low (-3 dB) (Hz)
75
- Frequency response high (-3 dB) (Hz)
18000
- Frequency Response
75 Hz - 18 kHz
- Frequency Range (-10 dB)
60 Hz - 20 kHz
