HANG CONCERT SOUND AND LEAVE IT THERE
X2i-212/120-FGB 2-Way Install Line-Array Element

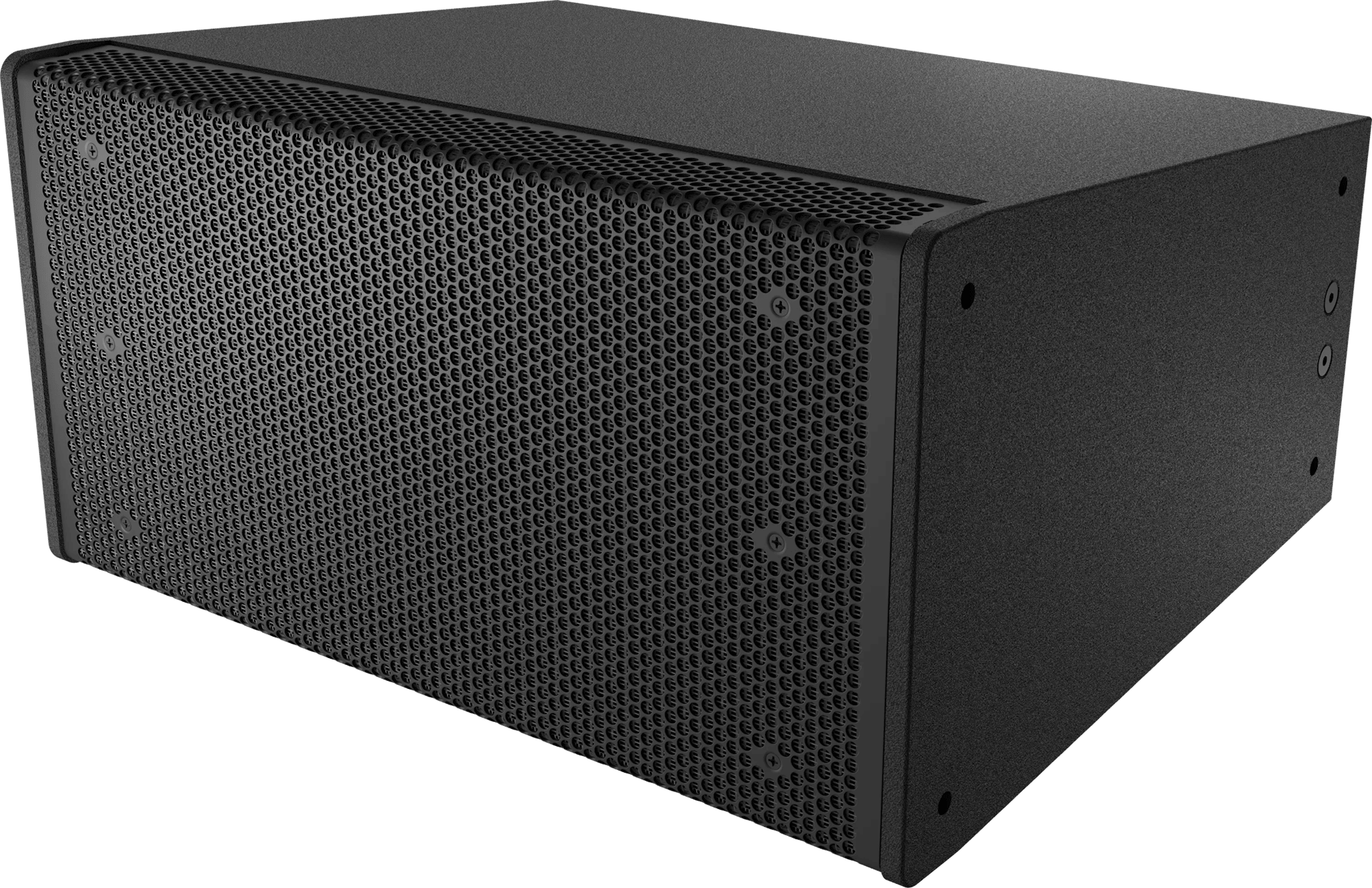

Hang concert sound and leave it there. The X2i-212 is a 2-way bi-amp line-array element built for installation, pairing a DVN3125 12-inch neodymium woofer with two ND6A 3-inch titanium compression drivers. Pin Diffraction Hydra plane-wave generators and the Mid-Band Hydra keep the wavefront coherent box to box, and EV acoustic lenses tighten array coupling. Eight M10 hard points and the optional X12I-RIGKIT grid fly up to 12 elements, grilles come off for service without dropping the array, and IP55 fiberglass versions take the weather. Runs on Dynacord IPX amplifiers with matched FIR-DRIVE presets. Arenas, stadium bowls, performing arts centers: the room hears the same show every night.
Key features
X-Line Advance
Features
Specifications
Overview & Features
- Configuration
2-way, bi-amp only (Dynacord IPX amplifiers)
Acoustic Performance
- Max SPL
145
- Frequency response low (-3 dB) (Hz)
52
- Frequency response high (-3 dB) (Hz)
19000
- Frequency Response
52 Hz - 19 kHz
- Coverage angle (H)
120

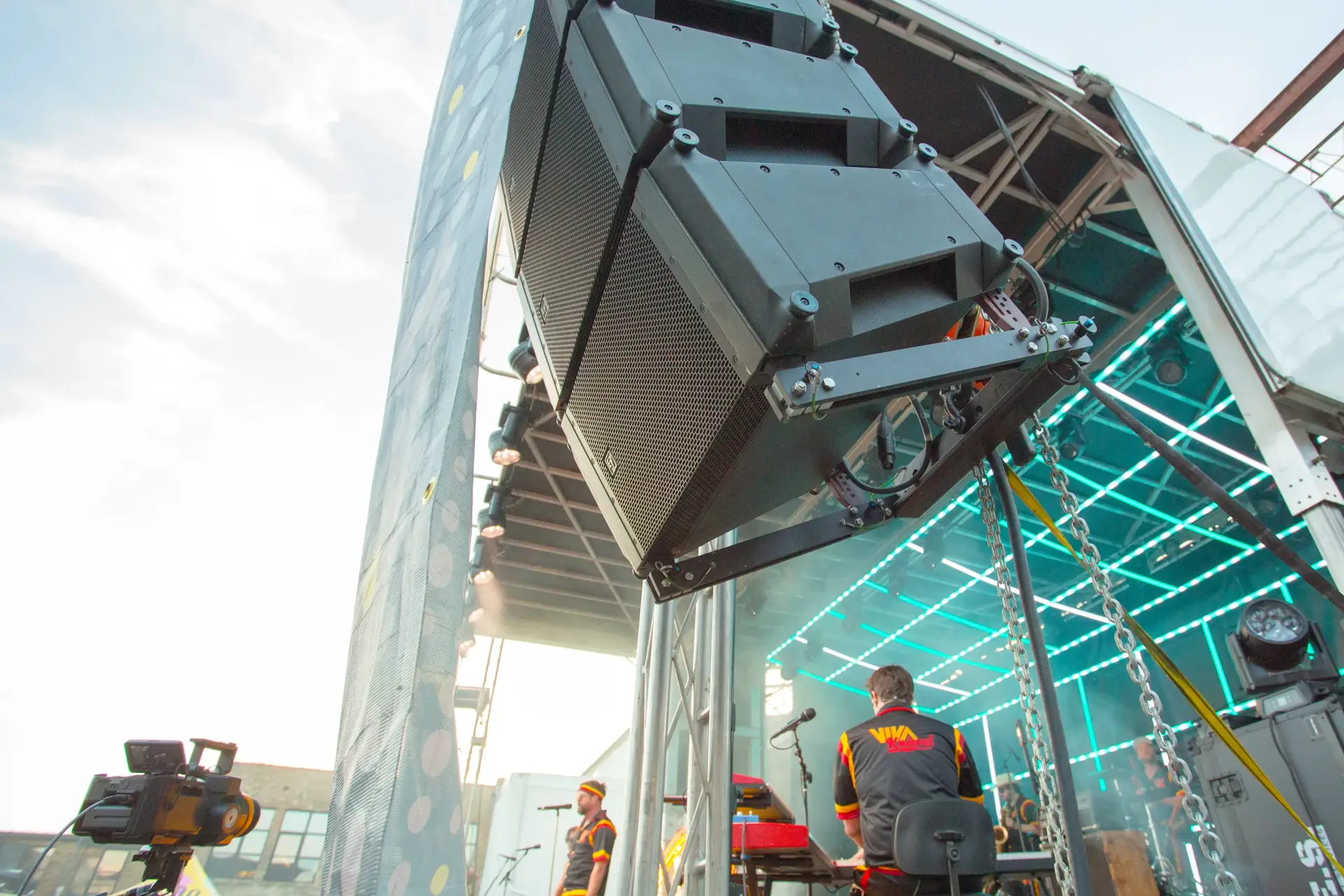

The same X-Line acoustics on the road: thirty X2-212 flown with X1 fills and X12-128 subs on Level 42's anniversary tour.
From The World Machine case study
Complete Your Rig
See the Whole X-Line
Line-array elements, cardioid subwoofers, and the rigging that hangs them clean. Explore the full X-Line Advance system.
Design the Install
From coverage maps to rigging loads, plan the deployment with an Electro-Voice system specialist.
