PUT A LINE ARRAY IN THE ROOM

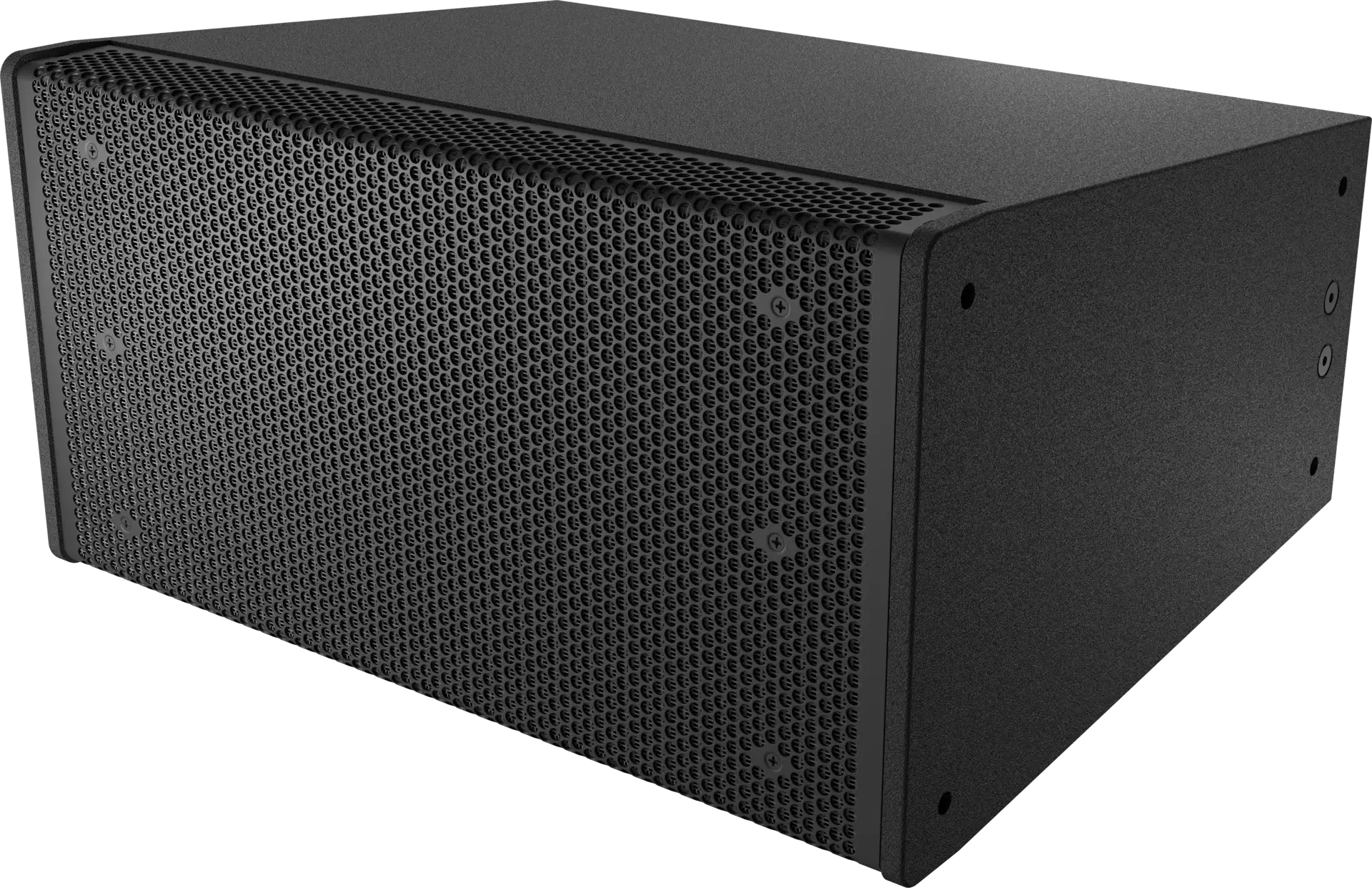

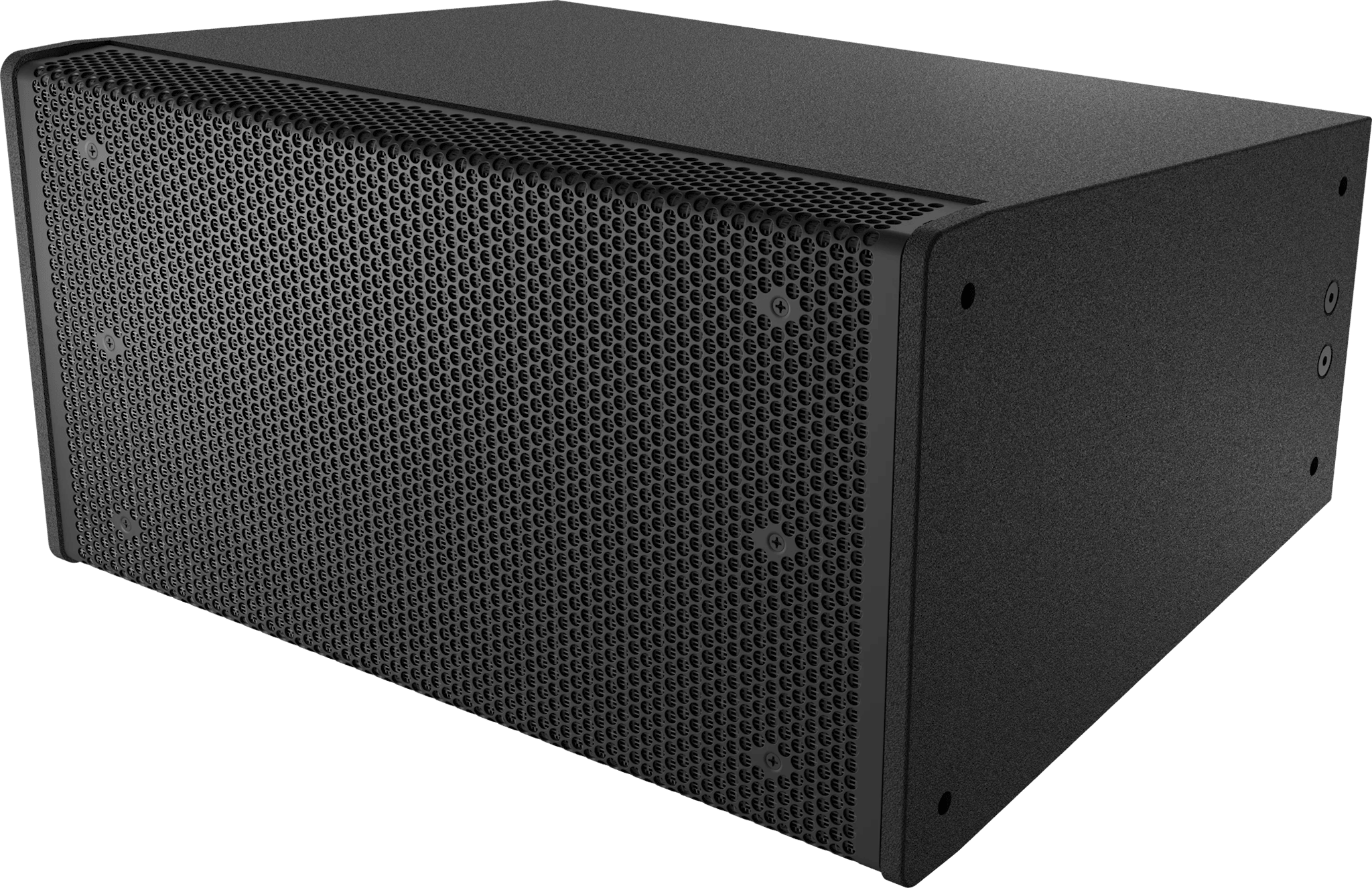

X1i-212/90-FGB Passive Install Line-Array Element
Put a line array in the room without an amp rack the size of one. The X1i-212 is a 2-way passive install element: an SMX2121 12-inch woofer and two ND2R 2-inch titanium compression drivers behind Wavefront-shaping Circular Hydra plane-wave generators, crossed at 1600 Hz. FIR-DRIVE processing on a Dynacord MXE5 matrix or IPX amplifier does the tuning, one channel per box. Eight M10 hard points take it to structure, and the optional X12I-RIGKIT grid flies up to 12 elements. Grilles remove for service without dropping the array, and IP55 fiberglass versions live outdoors. Performing arts centers, houses of worship, arenas: even coverage that installs clean and stays put.
Key features
X-Line Advance
Features
Specifications
Overview & Features
- Configuration
2-way, passive (FIR-DRIVE processing required: Dynacord MXE5 or IPX amplifiers)
Acoustic Performance
- Max SPL
143
- Frequency response low (-3 dB) (Hz)
57
- Frequency response high (-3 dB) (Hz)
16000
- Frequency Response
57 Hz - 16 kHz
- Coverage angle (H)
90
