V600:4 Power amplifier, 600W, 4 channel

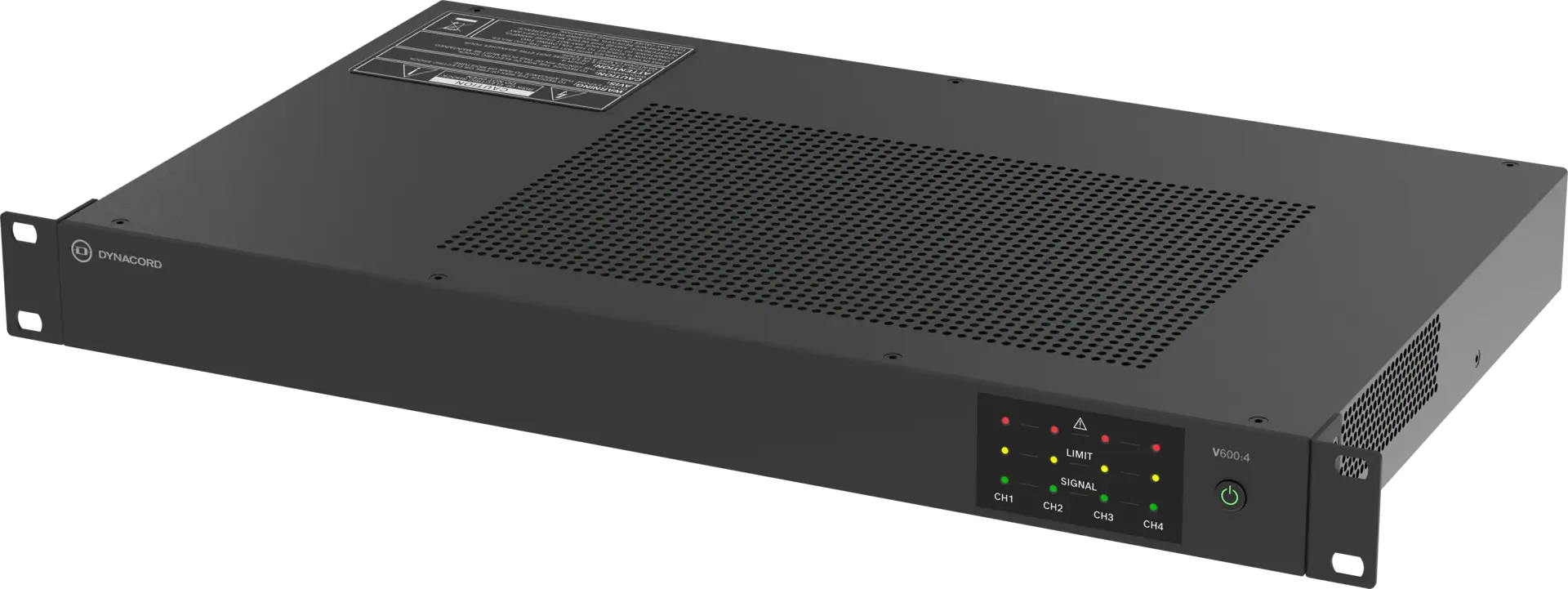

Dynacord V600:4 Image Right Top
V Series

FOUR CHANNELS FOR THE FIXED INSTALL

The four-channel V Series amplifier built for small to mid-sized installations, with multiple power drive options on Dynacord's patented VLD technology.
Loading

V600:4 Power amplifier, 600W, 4 channel

A 4-channel installation amplifier with 600 W of flexible power sharing using powerTANK, supporting 4-ohm, 8-ohm, 70 V, and 100 V loudspeaker systems.
  • Total Output Power*
  • Power Tank
  • Output Power* @ 70 V; all channels equally driven
  • Channels

Dynacord introduced the V600:4, the first member of a new amplifier line built for small to mid-sized installations.

The V600:4 offers high flexibility across applications through multiple power drive options built on Dynacord's patented VLD (Variable Load Drive) technology.

The V600:4 pairs with the V Series zone-audio platform — VZX-8 processing, VCS-8 call stations, and VWP wall panels — for complete small-venue systems.

Key Features

Tune it precisely
FIR filters, 31-band GEQ, and PEQ per channel onboard.
Drive distributed lines
direct-drive 70 V/100 V output, no transformer needed.
Protect the system
load-impedance monitoring plus full audio and thermal limiters.
Wire it clean
Phoenix connectors and a 19-inch, 2 RU install chassis.
Set and selectable
remote power and preset-select inputs for fixed installs.
Runs cool
front-to-rear three-stage fans, rated for +5°C to +40°C ambient.

Official how-to

How to Configure the V600

Complete the System

Where this unit fits, and what it pairs with.

Features

Flexible power across four channels. The V600:4 delivers 600 W of total output power across four channels, with flexible power sharing using powerTANK to dynamically allocate available power where it is needed. Support for 4-ohm, 8-ohm, 70 V, and 100 V loudspeaker systems gives installers the flexibility to use the same amplifier across a wide range of applications. Built-in ecoRAIL technology reduces energy consumption while continuing to deliver audio at levels suitable for background music, while Auto Power Down can reduce consumption even further during extended periods without signal. dualCOOL provides quiet convection cooling during normal operation and adds intelligent fan cooling only when needed, while a PFC power supply and comprehensive protection package support dependable operation under demanding conditions. The V600:4 integrates easily into larger V-Series systems. RJ45 Line-In accepts audio directly from the VZX-8 8-Zone Audio Processor for simple system wiring, while V600:2 and V600:4 amplifiers can be mixed and matched to create the right balance of power, channel count, and cost for each project. Its full-width, 1 RU design supports rack, tabletop, under-surface, or wall installation.
  • Share 600 W across four channels — flexible power sharing using powerTANK dynamically allocates available output power where it is needed without manual power allocation.
  • Power the loudspeaker system you need — supports 4-ohm, 8-ohm, 70 V, and 100 V loads from the same amplifier.
  • Save energy while the music keeps playing — ecoRAIL reduces power consumption while continuing to deliver audio at levels suitable for background music, while Auto Power Down reduces consumption even further during extended periods without signal.
  • Run quietly, even in sensitive spaces — dualCOOL operates by convection under normal conditions and adds intelligent fan cooling only when needed.
  • Built for dependable operation — a PFC power supply and comprehensive protection package help maintain reliable performance under demanding power and thermal conditions.
  • Connect directly to the VZX-8 — RJ45 Line-In accepts audio directly from the VZX-8 8-Zone Audio Processor for fast, simple system wiring.
  • Build the system around the power you need — mix and match V600:2 and V600:4 amplifiers to create the right channel count and power configuration for the loudspeaker system and project budget.
  • Mount it your way — use it in a rack, on a tabletop, under a surface, or on a wall in a full-width 1 RU design.

Specifications

Acoustic Performance

Frequency Response

Filter-selectable, -3 dB (ref. 1 kHz, analog in to speaker out): HP 30/100/150 Hz to 20 kHz, LP 30 to 150 Hz (4/8 ohm); HP 50/100/150 Hz to 20 kHz, LP 50 to 150 Hz (70/100 V)

THD+N

< 0.1% (1/8 rated output power, 1 kHz)

Crosstalk between channels (dBA)

< -70 dB (4 ohm) to < -95 dB (100 V), ref. 1 kHz, 12 dB below maximum

Signal-to-Noise Ratio

> 98 dB (A-weighted, ref. rated output power)

Power & Amplification

Total Output Power*

600 W

Direct Drive (70V/100V)

Yes
