EVC-1122-64 12" speaker 60x45
EVC-1122-VIB
FRONT ROW TO BACK. ONE BOX.
A variable-intensity 12-inch install loudspeaker that holds level evenly across a long room.
EVC-1122-64 12" speaker 60x45
A variable-intensity 12-inch install loudspeaker that holds level evenly across a long room.

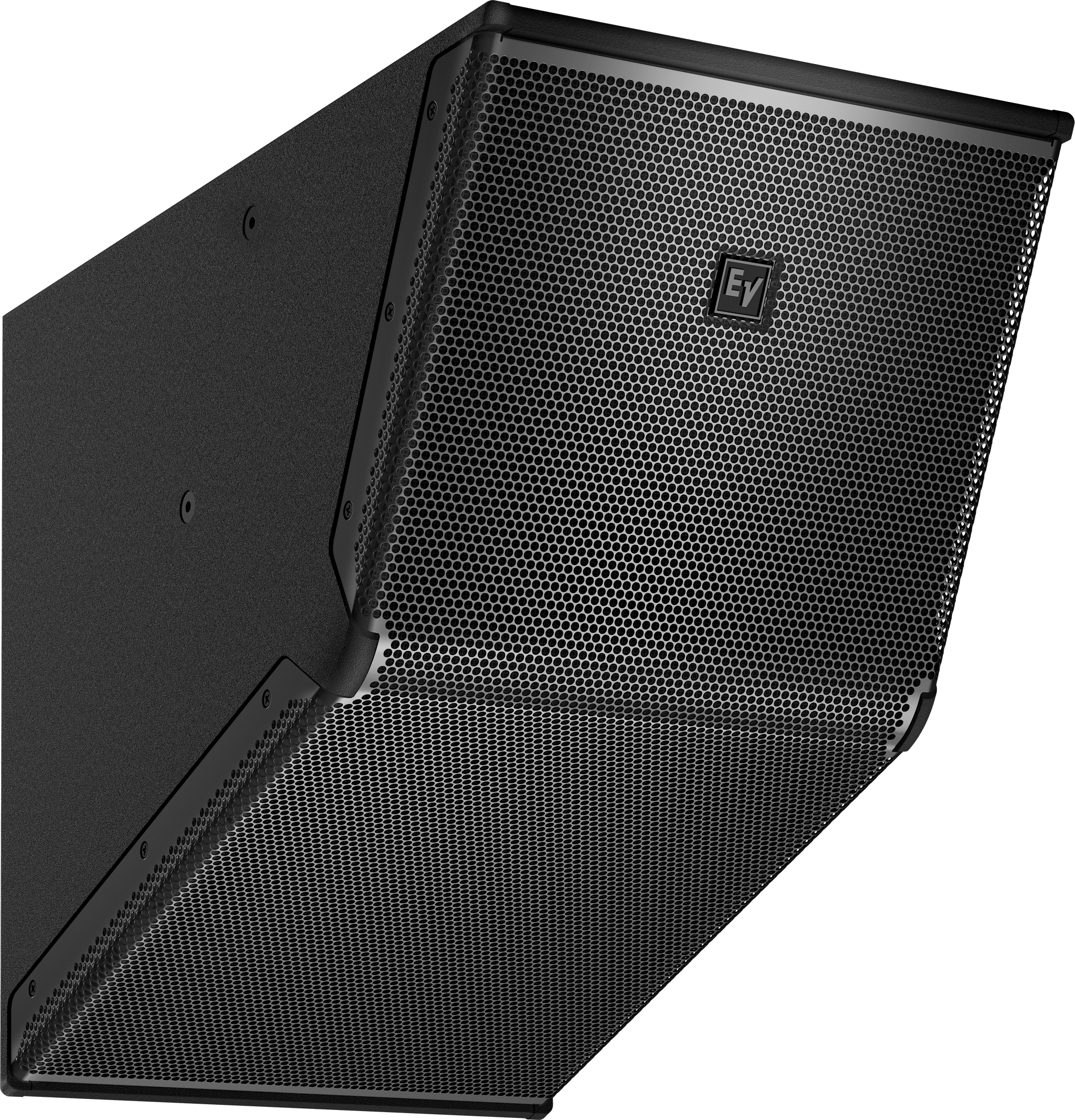

Cover the whole floor from a single point. The EVC-1122-VIB tilts its 12-inch woofer down and pairs it with an asymmetrical waveguide, so one box blankets a rectangular audience with barely a level change front to back. A 1.6 kHz fourth-order Linkwitz-Riley crossover keeps speech crisp and handles foreground music with ease. Houses of worship, transit halls, atriums, conference centers — mount it high, set the angle, and the room sounds even everywhere.
Key features
Even level, front to back
variable-intensity design covers a defined rectangle from one loudspeaker.
Clear speech, real music
1.25-inch titanium-dome driver and 12-inch EVS-12M woofer handle both.
Set coverage by geometry
mounting height and tilt angle define the audience area you reach.
Distributed-line ready
add the TK-150 and patented ASC keeps low end stable across paralleled boxes.
Install-friendly black finish
EVCoat enclosure, three M10 points, optional ceiling or wall U-bracket.
Run it both ways
use it stand-alone full-range, or as the mid-bass/high box in a multi-way system.
Features
Cover the whole floor from a single point. The EVC-1122-VIB tilts its 12-inch woofer down and pairs it with an asymmetrical waveguide, so one box blankets a rectangular audience with barely a level change front to back. A 1.6 kHz fourth-order Linkwitz-Riley crossover keeps speech crisp and handles foreground music with ease. Houses of worship, transit halls, atriums, conference centers — mount it high, set the angle, and the room sounds even everywhere.
- Even level, front to back — variable-intensity design covers a defined rectangle from one loudspeaker.
- Clear speech, real music — 1.25-inch titanium-dome driver and 12-inch EVS-12M woofer handle both.
- Set coverage by geometry — mounting height and tilt angle define the audience area you reach.
- Distributed-line ready — add the TK-150 and patented ASC keeps low end stable across paralleled boxes.
- Install-friendly black finish — EVCoat enclosure, three M10 points, optional ceiling or wall U-bracket.
Specifications
Acoustic Performance
- Frequency Response
70 Hz - 22 kHz
- Frequency Range (-10 dB)
50 Hz - 25 kHz
- Coverage Angle
90 × 55
Transducers & Drivers
- LF transducer size (in)
EVS-12M
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
7
