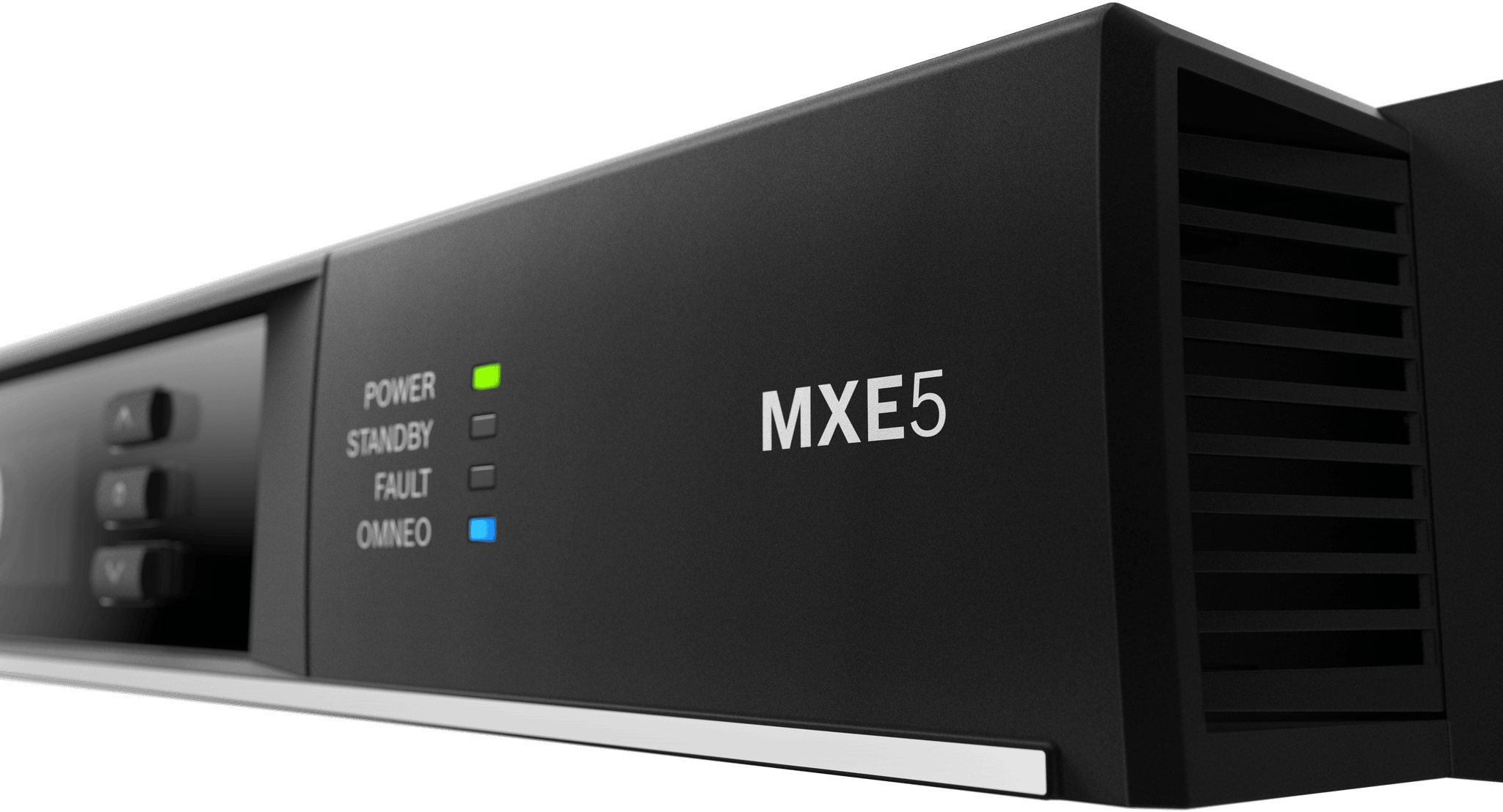

MXE5-64 DSP matrix mix engine 76x72 channels
MXE5-64 DSP matrix mix engine 76x72 channels
An open-architecture DSP matrix mix engine with 12 analog in / 8 analog out, 64x64 Dante, dual-SHARC processing, fully suppoerted in SONICUE.
Route the whole venue from one box. The MXE5-64 handles 76×72 channels of 48/96 kHz processing over Dante/AES67, with AES70/OCA control and latency low enough to forget about. Stadium, megachurch, performing-arts center, club — design the control surface once in SONICUE, then hand operators exactly the panel they need, on a touch panel, a wall plate, or their phone. The processing stays out of the way. The room just sounds right.
Key features
Scale to the building
76×72 matrix routing for foreground music across many zones.
Network-native
Dante/AES67 audio with AES70/OCA control on standard infrastructure.
Low latency, high rate
48/96 kHz processing with latencies low enough to ignore.
Operators get only what they need
design panels in SONICUE Control, deploy to TPC-1, WPN1, or the panel-viewer app.
Fits the install
open architecture integrates into the wider Dynacord signal chain.
Monitors itself
internal supervision, system monitoring, and watchdog with fault output; redundant audio networking supported.
Official video
MXE5-64 with SONICUE 1.4
Features
The MXE5-64 Matrix Mix Engine is a performance audio matrix designed to deliver high-quality audio in fixed installation projects, operating at 96 kHz or 48 kHz.
Working as a control center and communications hub for other system devices and IP-based peripherals, it provides comprehensive supervision and system wide control, featuring 12 analog mic/line inputs, 8 line outputs and 64x64 Dante channels.
The freely configurable DSP unit offers a variety of DSP blocks for customized DSP designs. Onboard are professional input and output processing features, including mixing, parametric EQ, delays, compression, limiting, ducking, auto mixing, auto gain control, ambient noise compensation and a comprehensive speaker processing with FIR drive.
MXE’s TaskEngine provides advanced, system wide control with functions like scheduler and scene handling. Designed and configured in SONICUE Sound System Software which also allows the creation of customized GUIs for use in SONICUE Control on TPC-1 touch panels, iOS devices or PCs.
- Open architecture DSP matrix for high performance audio applications
- 12 mic/line inputs, 8 line outputs, 8 configurable GPIOs
- 64 x 64 Dante channels
- TaskEngine for sophisticated system control and integration
- Integrated into SONICUE Sound System Software
Specifications
Overview & Features
- Configuration
12 mic/line inputs, 8 line outputs, 64x64 Dante
Acoustic Performance
- Signal-to-Noise Ratio
> 118 dB (analog in)
- THD+N
< 0.002%
DSP & Signal Processing
- DSP
Open architecture DSP
- DSP Sample Rate
48/96 kHz
- Matrix Size / Channels
configurable
