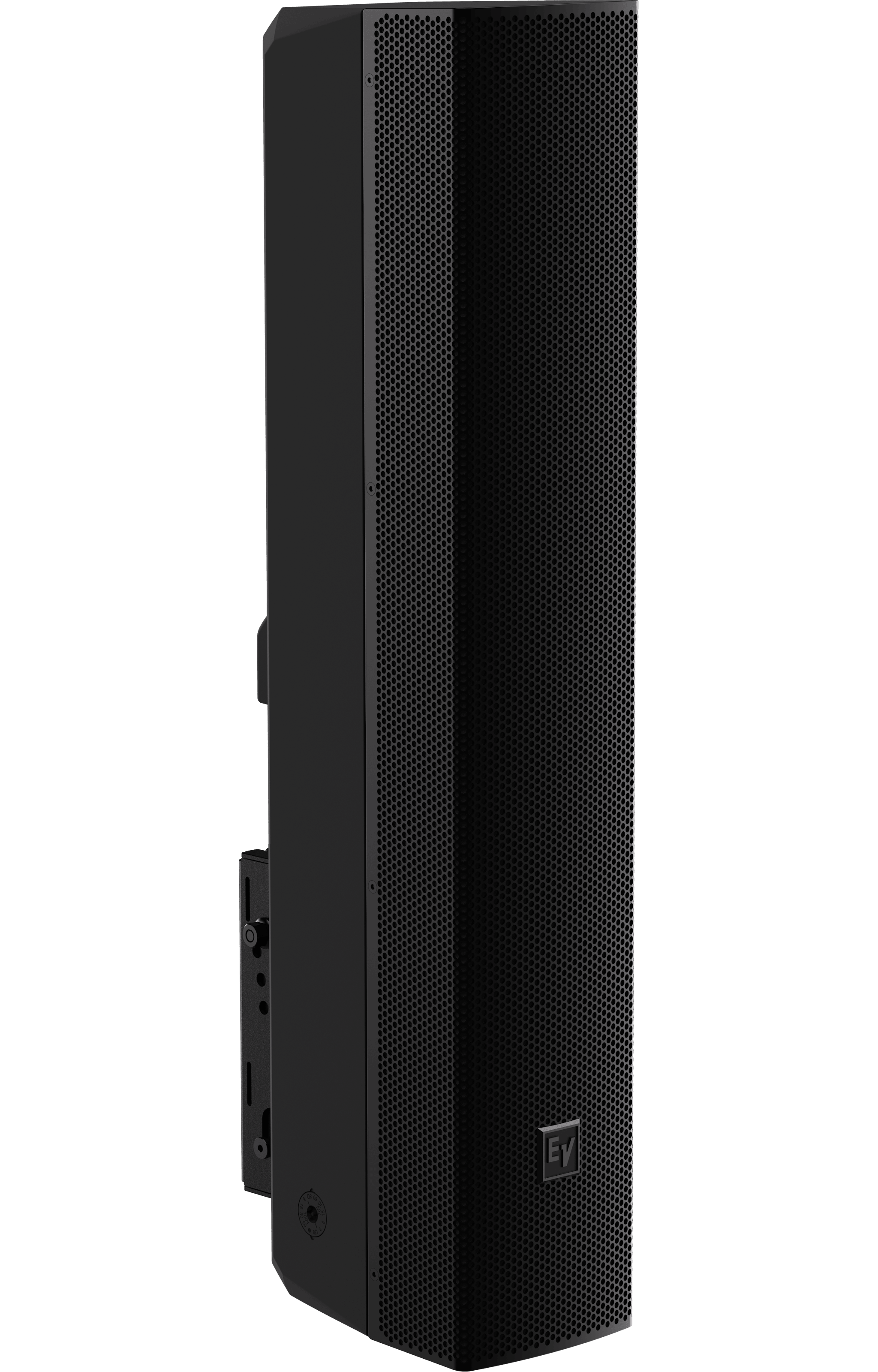

LRC-1060 Column speaker, 60cm, EN54
LRC-1060 Column speaker, 60cm, EN54
A passive line-radiator install column with a built-in 70/100-V transformer and ASC protection.
Features
Slim it onto the wall and let it work. The LRC-1060 is a passive line-radiator column built for install, with a pre-fitted transformer for 70- or 100-volt lines. EV's patented Automatic Saturation Compensation preserves low-frequency response and shields the electronics from improper loads, no matter how many speakers share the line. The included bracket handles almost any aim — flush, tilted, inverted, or panned. Foreground, background, or main speaker in a room that wants sound, not boxes.
- Drops onto distributed lines — pre-installed transformer for 70- or 100-volt systems.
- Protects the system — patented ASC preserves low end and guards electronics against improper loads.
- Aims almost any way — included bracket handles flush, downtilt, up-tilt (inverted), and pan.
- Blends in — sleek, neutral industrial column for foreground, background, or main duty.
- Best with Dynacord — dedicated presets on Dynacord DSP matrix processors and amplifiers tune output and protection.
Specifications
Overview & Features
- Configuration
Passive column array; 6x 2.5" active drivers + 2x 2.5" passive radiators
Acoustic Performance
- Max SPL
122
- Frequency Range (-10 dB)
70 Hz - 15000 Hz
- Coverage angle (H)
130
- Coverage angle (V)
20
- Coverage Angle
130 × 20
