EVC-1152-64 15" speaker 60x45
EVC-1152-64 15" speaker 60x45

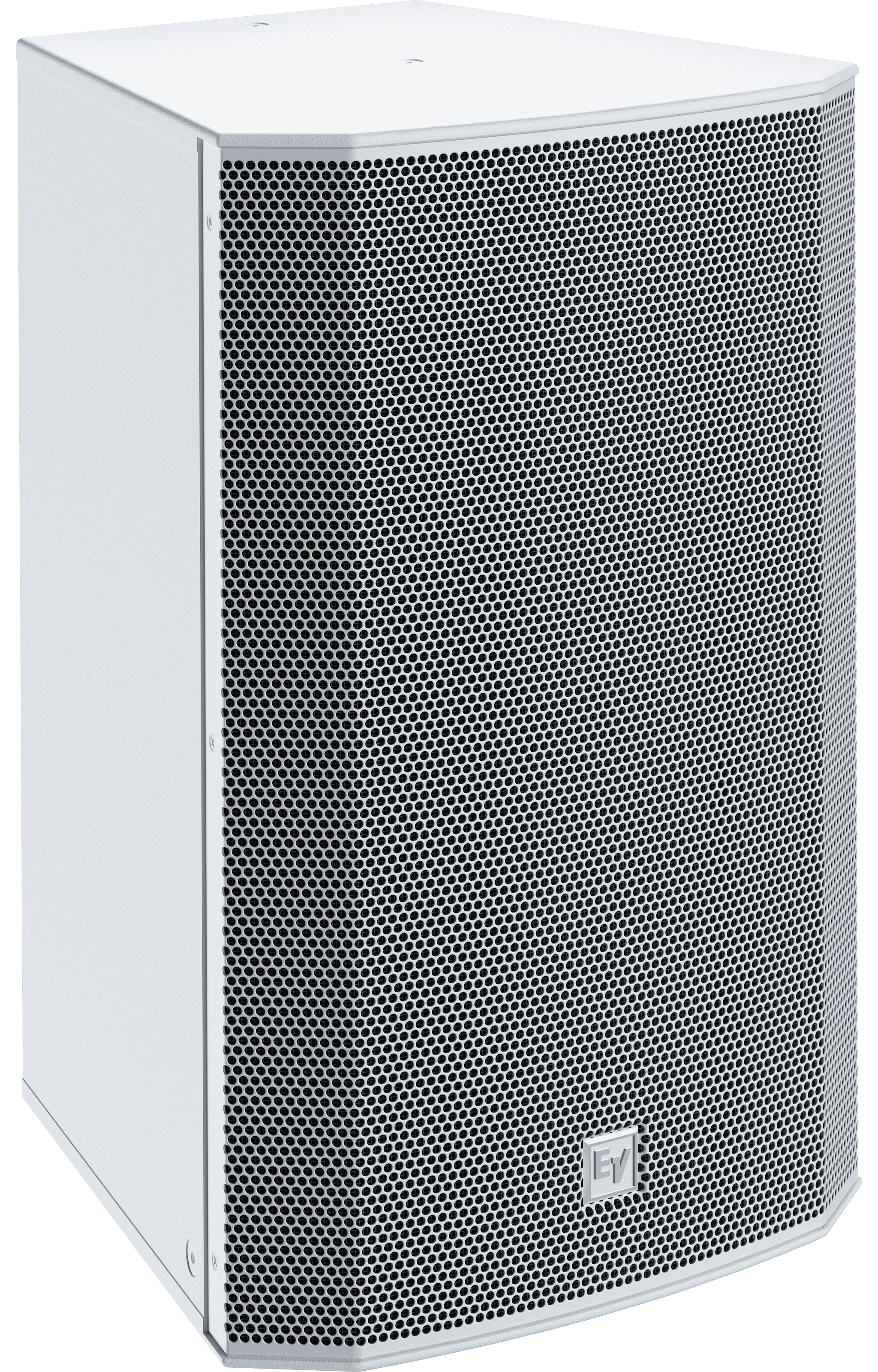

An indoor 15-inch two-way install loudspeaker in white with wide 90-by-55-degree coverage.
Features
Cover a wide room and still move air, in a finish that disappears overhead. The EVC-1152-95W teams a 15-inch EVS-15M woofer with a 1.25-inch titanium-dome compression driver on a rotatable 90-by-55-degree waveguide, spreading high output across a broad audience. A 1.6 kHz fourth-order Linkwitz-Riley crossover keeps speech and music defined off-axis, and the white enclosure blends into a light ceiling. Worship rooms, multipurpose halls, studios, showrooms — voice it once and let it carry.
- Wide and powerful — rotatable waveguide spreads 90-by-55-degree coverage from a 15-inch woofer.
- Bigger low end — 15-inch EVS-15M woofer for higher output across broad rooms.
- Clean off the main axis — 1.6 kHz fourth-order Linkwitz-Riley crossover holds definition.
- 70V/100V when you need it — add the TK-150 and patented ASC keeps bass and load stable.
- Blends in white — EVCoat enclosure, multiple M10 points, optional U-bracket, inputs to 10 AWG.
Specifications
Acoustic Performance
- Frequency Response
70 Hz - 21 kHz
- Frequency Range (-10 dB)
50 Hz - 25 kHz
- Coverage Angle
90 × 55
Transducers & Drivers
- LF transducer size (in)
EVS-15M
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
6.7
