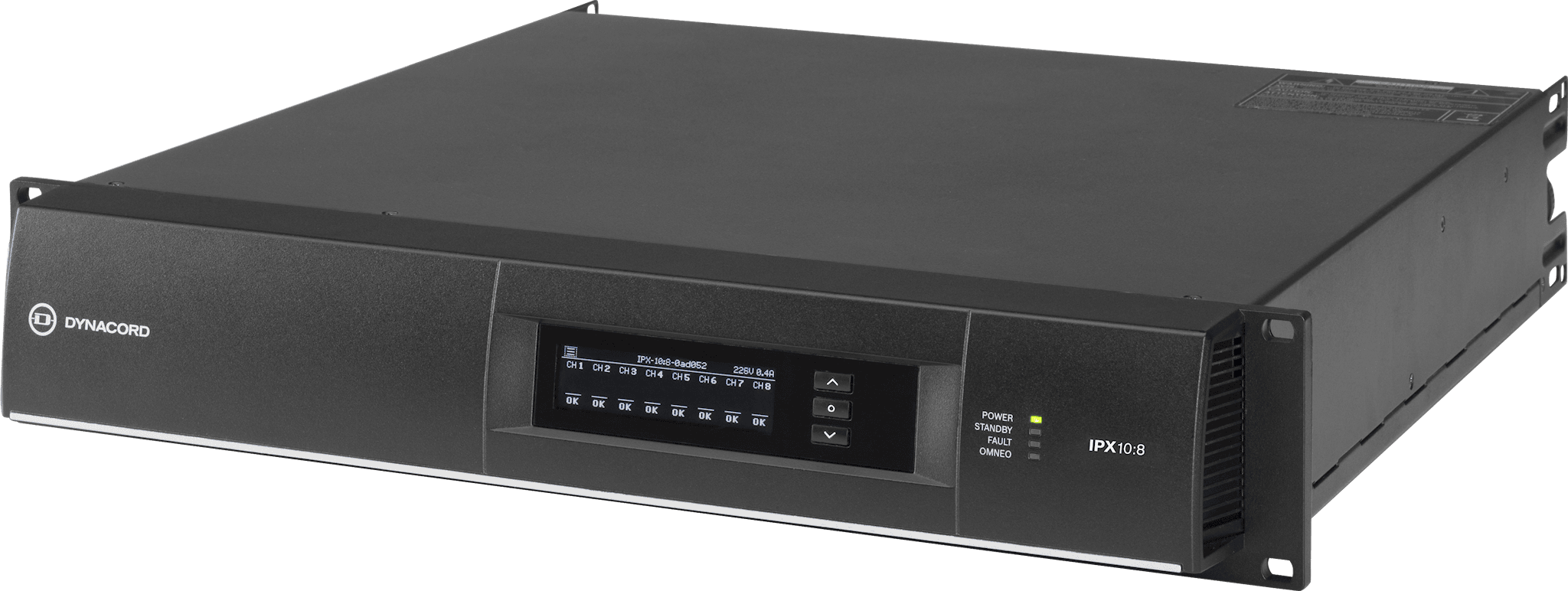

IPX10:8 DSP power amplifier, install
IPX10:8 DSP power amplifier, install
A 8-channel install DSP power amplifier rated 8 x 1250 W, with 96 kHz FIR Drive processing and OCA/Dante networking.
Run eight channels of a networked install from a single 2 RU box. The IPX10:8 puts out 8 x 1250 W of Class-D power with redundant OMNEO/Dante audio over EtherCON, plus the deepest DSP in the line — FIR filters up to 1,025 taps, per-channel speaker EQ, crossovers, and limiters. Direct-drive mode feeds 70/100/140/200 V lines straight, with impedance measurement and load monitoring watching each output. Source supervision and pilot-tone fallback keep audio alive if a feed drops. Arenas, transit hubs, and large multi-zone installs run on it.
Key features
Power eight zones
8 x 1250 W of Class-D output from one 2 RU chassis.
Network it redundantly
OMNEO/Dante over dual EtherCON, 48/96 kHz.
Shape the array
FIR up to 1,025 taps, plus speaker EQ, crossovers, and limiters.
Drive lines direct
70/100/140/200 V output with load monitoring per channel.
Stay on air
source supervision and pilot-tone fallback switch over on signal loss.
Wire it from the box
ships with Euroblock input, output, and GPIO connectors, rack screws, and the 32A powerCON.
Short introduction
IPX Series Amplifiers
Complete the System
Where this unit fits, and what it pairs with.
Features
Networked install power with the processing on board. The IPX10:8 drives 8 channels with 1250 W simultaneously, with a native 96 kHz DSP, FIR Drive up to 1025 taps, and Dante/OCA over OMNEO with fallback for redundancy. Class D output and ecoRAIL keep efficiency high and running costs down, while load monitoring and pilot-tone supervision watch every line. Two rack units. Stadiums, houses of worship, retail, transport hubs, and multi-zone installs that route and process from the amplifier itself.
- Multichannel power: 8 channels at 1250 W/4 Ohms, 70 V, 100 V, or 1800W/2.6 Ohms.
- Processing built in: native 96 kHz DSP with FIR Drive up to 1025 taps.
- Networked audio: Dante / OCA over OMNEO with fallback for redundant routing.
- Watches the system: load monitoring and pilot-tone supervision on every line.
- Efficient by design: Class D output with ecoRAIL power management to cut running cost.
- ghostPOWER keeps DSP and network running to bridged mainspower switching in mission critical systems.
Specifications
Overview & Features
- Configuration
8-channel
Acoustic Performance
- Frequency Response
20 Hz to 20 kHz (±0.5 dB)
- THD+N
< 0.05 %
- Crosstalk between channels (dBA)
< -80 dB
Power & Amplification
- Total Output Power*
10.000 W
- Bridged Output Power 4 Ω
2600 W
