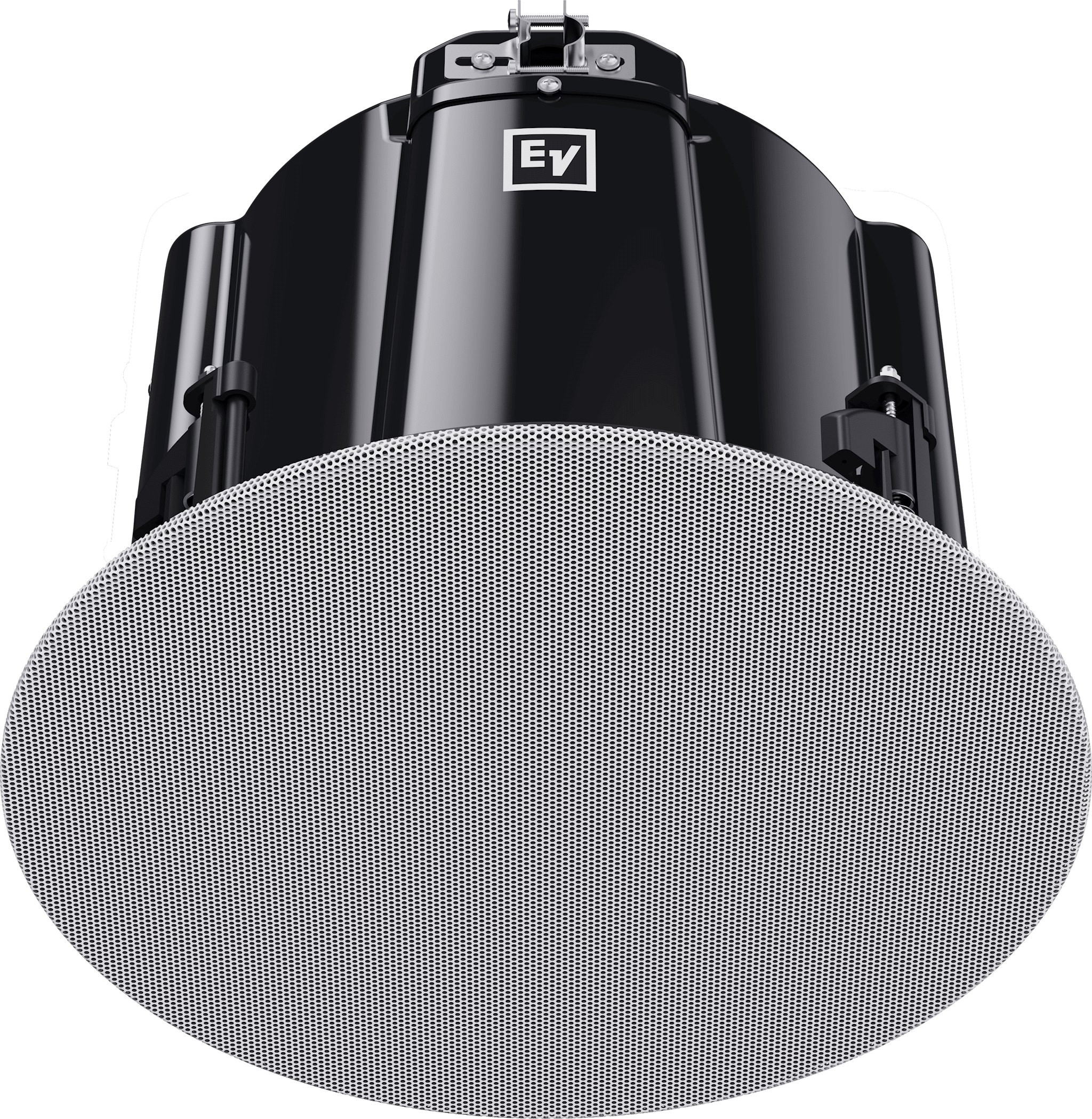

EVID-C8.2HC-G2 Ceiling speaker 8" high-ceiling white
EVID-C8.2HC-G2 Ceiling speaker 8" high-ceiling white
An 8-inch coaxial ceiling loudspeaker engineered to stay clear and loud from way up top.
Cover a space where the ceiling is a long way from the floor. The EVID-C8.2HC-G2 pushes 95 dB sensitivity and a 124 dB peak through a focused 75-degree conical pattern, so atriums, transit halls, and big-box retail get intelligible sound at distance. SwiftLock keeps the install fast and safe; the front-baffle switch sets high-power 70 V/100 V taps up to 90 W or 8-ohm bypass. Bezel-less magnetic white grille, back can, tile rails, and mounting ring included.
Key features
Reach the floor from up high
95 dB sensitivity and 124 dB peak SPL.
Stay intelligible at distance
focused 75-degree conical pattern.
Drive long throws
high-power taps up to 90 W on 70 V/100 V or 8-ohm bypass.
Install fast and safe
SwiftLock system with included tile rails, C-ring, and mounting ring.
Pass inspection
UL 1480A, UL 2043 air-handling, and CSA C22.2 No. 205 certified.
Carry the whole song
full 60 Hz to 20 kHz bandwidth from the 8-inch coaxial two-way.
Explore the Full EVID-C-G2 Range
Every EVID ceiling format — premium C-G2, essential EC, and all-in-one PC systems — compared side by side on the Ceiling Speakers page.
Features
Cover a space where the ceiling is a long way from the floor. The EVID-C8.2HC-G2 pushes 95 dB sensitivity and a 124 dB peak through a focused 75-degree conical pattern, so atriums, transit halls, and big-box retail get intelligible sound at distance. SwiftLock keeps the install fast and safe; the front-baffle switch sets high-power 70 V/100 V taps up to 90 W or 8-ohm bypass. Bezel-less magnetic white grille, back can, tile rails, and mounting ring included.
- Reach the floor from up high — 95 dB sensitivity and 124 dB peak SPL.
- Stay intelligible at distance — focused 75-degree conical pattern.
- Drive long throws — high-power taps up to 90 W on 70 V/100 V or 8-ohm bypass.
- Install fast and safe — SwiftLock system with included tile rails, C-ring, and mounting ring.
- Pass inspection — UL 1480A, UL 2043 air-handling, and CSA C22.2 No. 205 certified.
Specifications
Acoustic Performance
- Max SPL
118
- Frequency Range (-10 dB)
60 Hz – 20,000 Hz
- Coverage Angle (cone)
75
- Sensitivity (1W/1m)
95 dB SPL 1 W, 1 m
Transducers & Drivers
- LF transducer size (in)
8 in
- HF transducer size (in)
352.6 [13.9]
