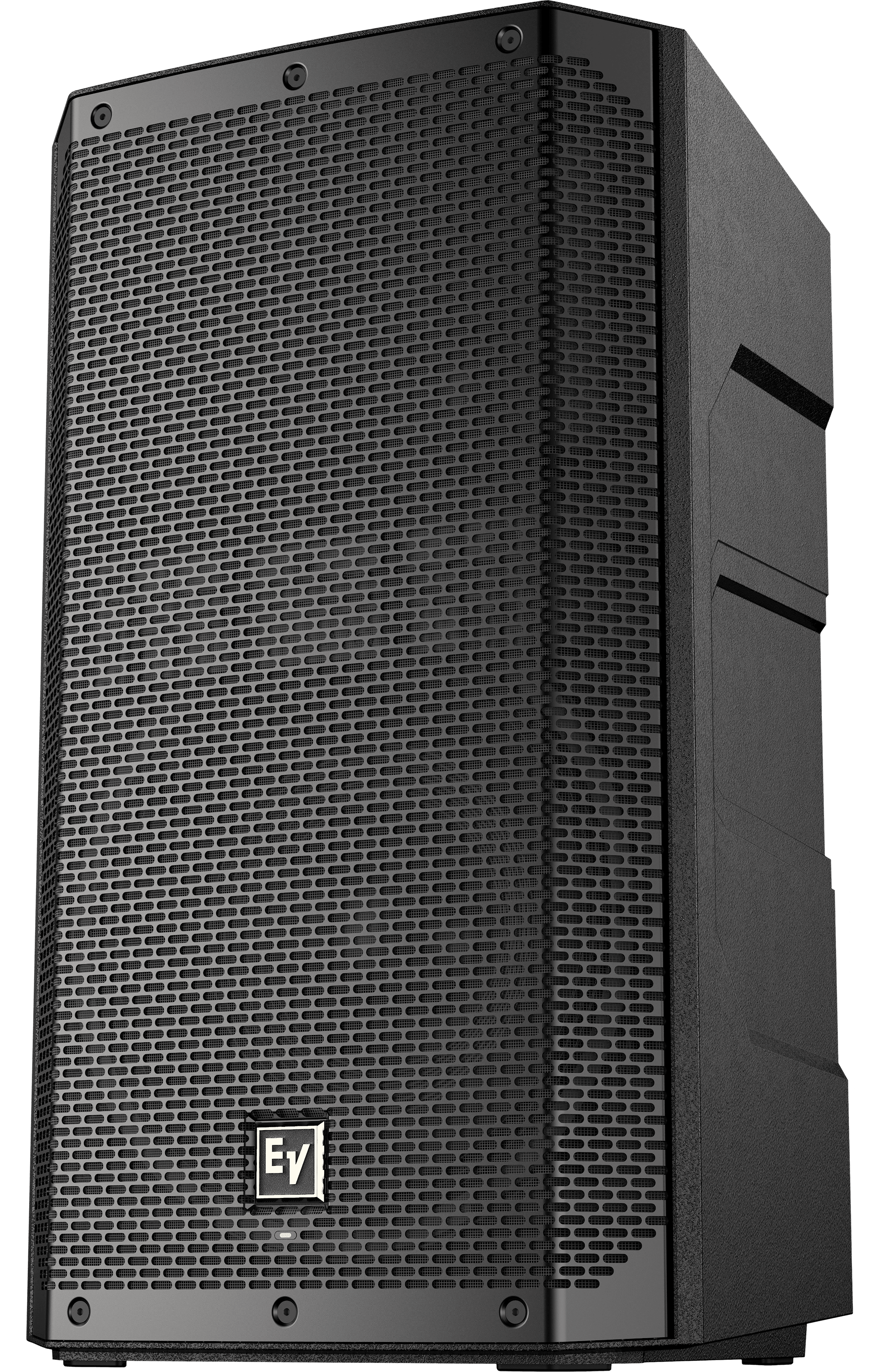

ELX200-12P 12" 2-Way Powered Speaker
Powered Loudspeaker
Plug In. Run the Room.
A powered 12-inch two-way with QuickSmartDSP and Bluetooth control for up to six speakers.
ELX200-12P 12" 2-Way Powered Speaker
A powered 12-inch two-way with QuickSmartDSP and Bluetooth control for up to six speakers.
Set it on a pole and the gig is ready. The ELX200-12P pairs an EV-engineered 12-inch EVS-12M woofer and a DH-1L 1-inch titanium compression driver with up to 1,200 W of Class-D power for up to 130 dB SPL. QuickSmartDSP puts four presets, three-band EQ, system-match crossovers, and limiting on the rear panel, and QuickSmart App controls up to six boxes over Bluetooth. Band, mobile DJ, house of worship, install: full control, right from out front.
Key Features
Strong, Clean Output
up to 130 dB SPL from a 1,200 W Class-D amplifier.
Control From the Crowd
QuickSmart App manages up to six speakers over Bluetooth.
Tune It on Board
four presets, three-band EQ, system-match crossovers, and limiting.
EV-Engineered Sound
EVS-12M 12-inch woofer with a DH-1L 1-inch titanium driver.
Easy to Carry and Rig
light polypropylene cabinet with the proven ZLX handle design.
Hang It or Stand It
three M10 threaded mounting points ready it for portable or installed work.
Features
Set it on a pole and the gig is ready. The ELX200-12P pairs an EV-engineered 12-inch EVS-12M woofer and a DH-1L 1-inch titanium compression driver with up to 1,200 W of Class-D power for up to 130 dB SPL. QuickSmartDSP puts four presets, three-band EQ, system-match crossovers, and limiting on the rear panel, and QuickSmart Mobile controls up to six boxes over Bluetooth. Band, mobile DJ, house of worship, install — full control, right from out front.
- Strong, clean output — up to 130 dB SPL from a 1,200 W Class-D amplifier.
- Control from the crowd — QuickSmart Mobile manages up to six speakers over Bluetooth.
- Tune it on board — four presets, three-band EQ, system-match crossovers, and limiting.
- EV-engineered sound — EVS-12M 12-inch woofer with a DH-1L 1-inch titanium driver.
- Easy to carry and rig — light polypropylene cabinet with the proven ZLX handle design.
Specifications
Acoustic Performance
- Max SPL
130
- Frequency Response
57 Hz - 16 kHz
- Frequency Range (-10 dB)
51 Hz - 20 kHz
- Coverage Angle
90 × 60
Transducers & Drivers
- LF transducer size (in)
12
- Element Type
DH-1L 1-inch titanium compressio driver
