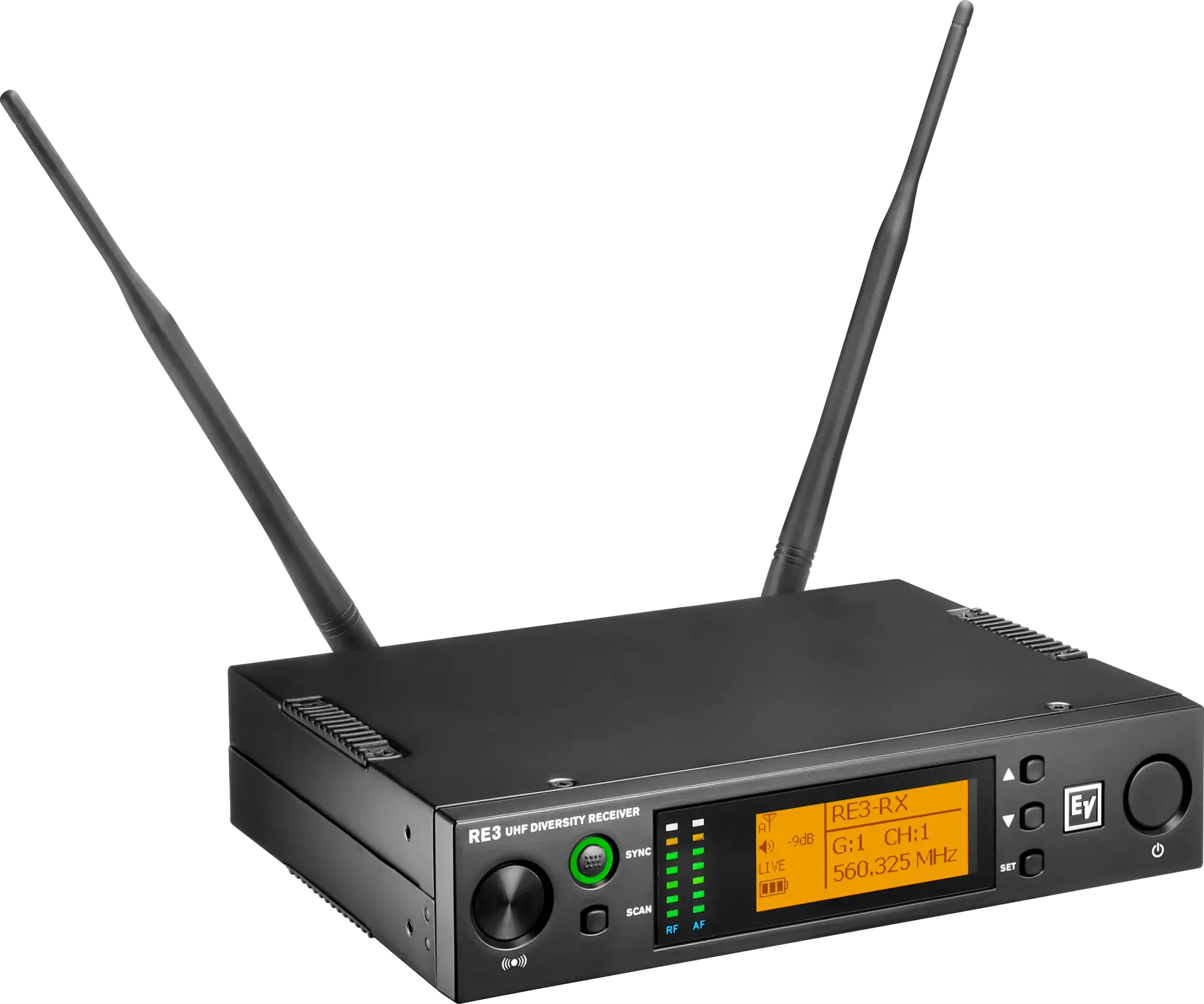

RE3-RX-5H RE3 half rack space receiver
RE3-RX
THE BRAIN OF THE RIG.
A half-rack RE3 diversity receiver that scans, syncs, and holds a clean signal.
RE3-RX-5H RE3 half rack space receiver
A half-rack RE3 diversity receiver that scans, syncs, and holds a clean signal.
Make the wireless the easy part of the show. The RE3-RX-5H is a half-rack diversity receiver: two antennas, switched moment-by-moment on signal strength, so dropouts stay rare. Scan to find a clear frequency in 25 kHz steps, then sync every setting to the transmitter over the air. The backlit LCD shows group, channel, RF, and battery at a glance. Single channel or a packed multichannel rack, it just stays locked.
Key features
Fewer dropouts
True antenna diversity picks the stronger of two antennas moment by moment.
Clean channel in seconds
Scan finds an open frequency in 25 kHz steps across a 36 MHz range.
Set it from the rack
Sync frequency, gain, RF power, and lockout to the transmitter wirelessly.
See it at a glance
Backlit LCD shows group, channel, antenna A/B, RF, and battery status.
Balanced and unbalanced out
One XLR and one 1/4-inch jack feed any console or mixer.
Remote the antennas
Detachable ½-wave antennas on BNC connectors, with DC 12: 15 V antenna booster power onboard.
Features
Make the wireless the easy part of the show. The RE3-RX-5H is a half-rack diversity receiver: two antennas, switched moment-by-moment on signal strength, so dropouts stay rare. Scan to find a clear frequency in 25 kHz steps, then sync every setting to the transmitter over the air. The backlit LCD shows group, channel, RF, and battery at a glance. Single channel or a packed multichannel rack, it just stays locked.
- Fewer dropouts — true antenna diversity picks the stronger of two antennas moment by moment.
- Clean channel in seconds — scan finds an open frequency in 25 kHz steps across a 36 MHz range.
- Set it from the rack — sync frequency, gain, RF power, and lockout to the transmitter wirelessly.
- See it at a glance — backlit LCD shows group, channel, antenna A/B, RF, and battery status.
- Balanced and unbalanced out — one XLR and one 1/4-inch jack feed any console or mixer.
Specifications
Acoustic Performance
- Frequency Response
63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
- THD+N
<0.6%@1kHz
- Signal-to-Noise Ratio
>100dB(A)
Connectivity & I/O
- RF Frequency Band
803 - 806 MHz
Dimensions & Weight
- Shipping Weight
3.28 lb (1.49 kg)
Identification
- Series / Family
RE3 WIRELESS
- Material Number
F.01U.353.080
