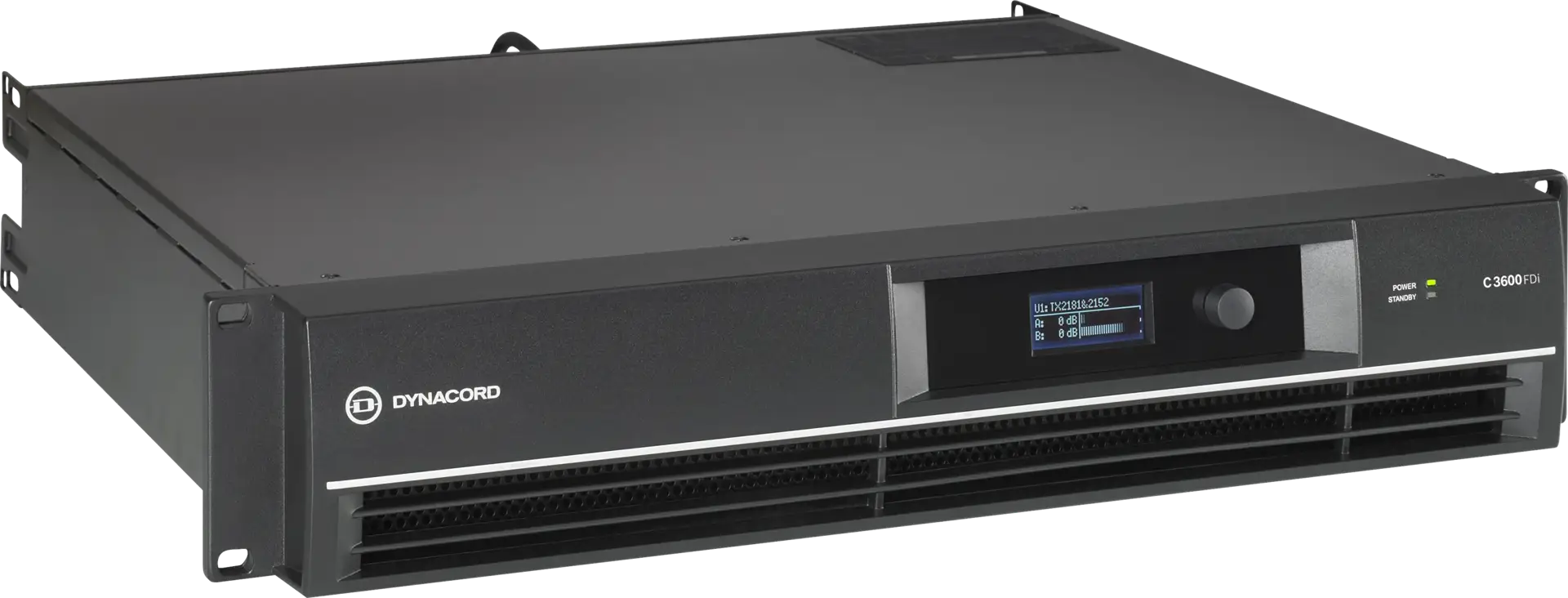

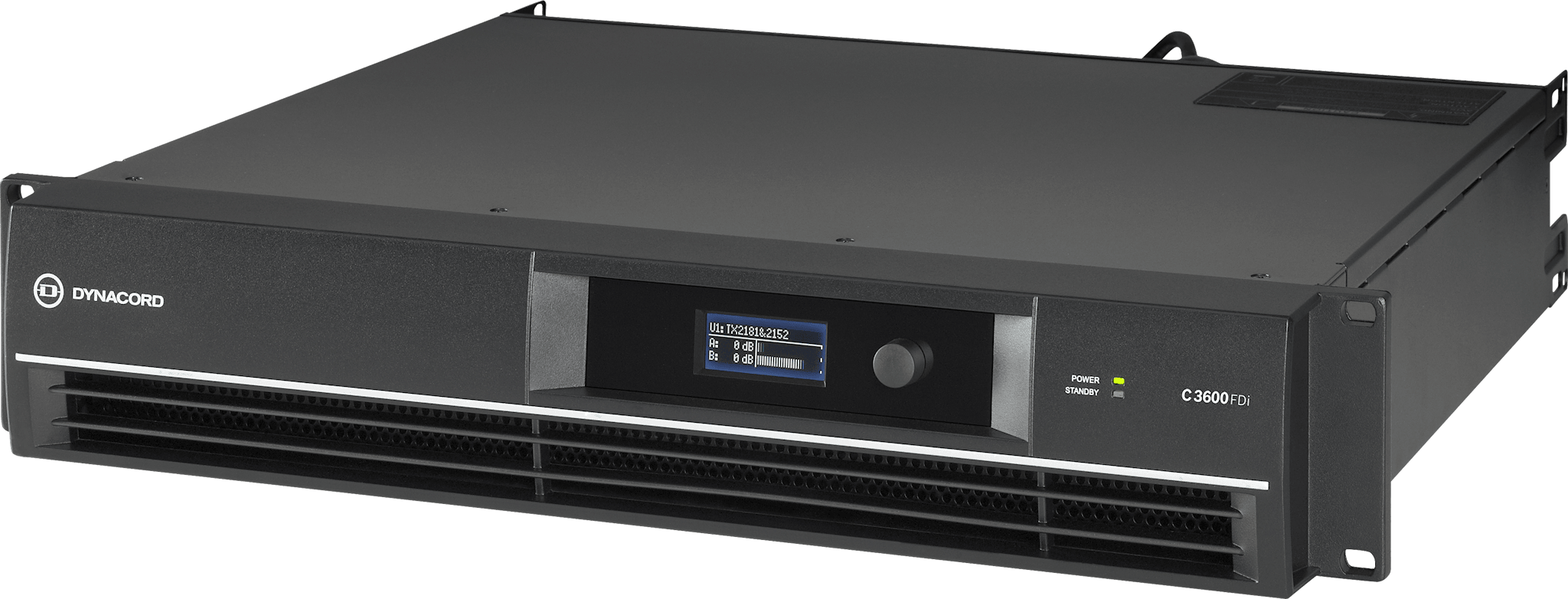

C3600FDi DSP power amplifier, install
C3600FDI
THE TOP OF THE C-SERIES.
A 2 x 1800 W Class-H install amplifier with FIR drive for the most demanding fixed systems.
C3600FDi DSP power amplifier, install
A 2-channel install DSP power amplifier rated 2 x 1800 W, with integrated FIR Drive speaker processing, controlled in SONICUE, Euroblock connections.
Anchor the largest install with the most output in the line. The C3600FDi delivers a 2 x 1800 W Class-H output stage and the full C-Series DSP — FIR filters, per-channel PEQ, output delay, and load-impedance monitoring — for rooms where coverage and control both have to be absolute. Direct-drive 70 V/100 V feeds distributed lines straight, deep protection guards every fault path, and three-stage cooling keeps it composed under sustained demand. Large venues, arenas, and multi-zone halls run on it.
Key features
Lead the line
2 x 1800 W from a Class-H output stage.
Tune to the room
FIR filters, PEQ per channel, and output delay onboard.
Feed lines direct
70 V/100 V operation without an output transformer.
Guard every path
protection for temperature, DC, HF, back-EMF, and inrush.
Stay composed
front-to-rear three-stage fans in a 19-inch, 2 RU chassis.
Quiet where it counts
signal-to-noise ratio better than 109 dB, A-weighted.
Two-channel power amplifiers
L Series and C Series Amplifiers
Complete the System
Where this unit fits, and what it pairs with.
Features
The install version of the L platform. The C3600FDi delivers 2 x 1800 W into 4 ohm with fully integrated FIR Drive, sets up and supervises in SONICUE (USB), connects on Euroblock with GPIO for remote power and preset control. It drives 70 V direct drive and low-impedance loads. Three-stage front-to-rear fans and a full protection suite keep it running in the rack. Two rack units. Retail, hospitality, corporate, houses of worship, and fixed installs that want touring-grade processing built in.
- Install power: 1800 W per channel into 4 ohm with integrated FIR Drive processing.
- Low-impedance operation for 2/4/8 ohm speaker systems
- Set up in SONICUE (USB):levels, EQ, speaker settings with FIR filters, PEQ, delay, and limiters.
- Install-ready connections: Euroblock in/out and GPIO for remote power and preset select.
- Reliable in the rack: full protection suite with 3-stage front-to-rear cooling.
Specifications
Overview & Features
- Configuration
2-channel
Acoustic Performance
- Frequency Response
10 Hz to 21 kHz (±1 dB)
- THD+N
< 0.05 %
- Crosstalk between channels (dBA)
< -80 dB
- Signal-to-Noise Ratio
>109 dB
Power & Amplification
- Total Output Power*
3600 W
