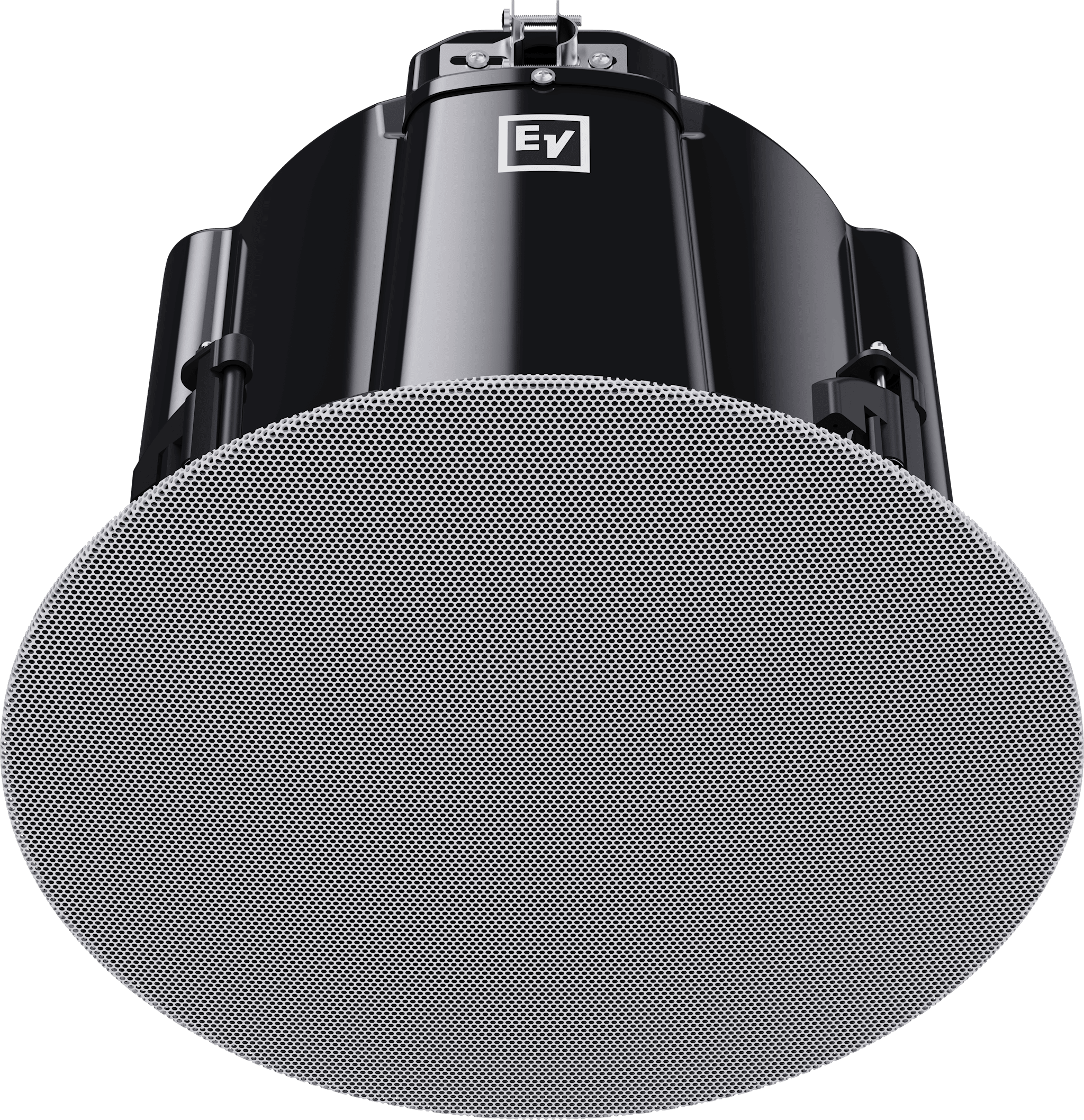

EVID-C8.1S-G2 Ceiling subwoofer 8" white
EVID-C8.1S-G2 Ceiling subwoofer 8" white
An 8-inch in-ceiling subwoofer that adds weight to a distributed system without taking a square foot of floor.
Give a ceiling-speaker system the bottom it's missing. The EVID-C8.1S-G2 is a complete 8-inch in-ceiling sub working 45 Hz to 380 Hz with 180 W continuous power handling and omnidirectional output, so music in a lounge, retail space, or restaurant feels full instead of thin. SwiftLock drops it in fast; the front-baffle switch sets 70 V/100 V taps up to 60 W or 8-ohm bypass. Bezel-less magnetic white grille, back can, tile rails, and mounting ring included.
Key features
Add real low end overhead
45 Hz to 380 Hz with 180 W continuous power handling.
Spread bass evenly
omnidirectional 360-degree output across the room.
Reclaim the floor
full subwoofer performance entirely in the ceiling.
Install fast and safe
SwiftLock system with included tile rails, C-ring, and mounting ring.
Match the system
60/30/15/7.5 W taps or 8-ohm bypass, certified UL 1480A, UL 2043, and CSA C22.2 No. 205.
Loop to the next box
side terminal cover hides a 4-pin block with pass-through for daisy-chaining on 12-gauge wire.
Explore the Full EVID-C-G2 Range
Every EVID ceiling format — premium C-G2, essential EC, and all-in-one PC systems — compared side by side on the Ceiling Speakers page.
Features
Give a ceiling-speaker system the bottom it's missing. The EVID-C8.1S-G2 is a complete 8-inch in-ceiling sub working 45 Hz to 380 Hz with 180 W continuous power handling and omnidirectional output, so music in a lounge, retail space, or restaurant feels full instead of thin. SwiftLock drops it in fast; the front-baffle switch sets 70 V/100 V taps up to 60 W or 8-ohm bypass. Bezel-less magnetic white grille, back can, tile rails, and mounting ring included.
- Add real low end overhead — 45 Hz to 380 Hz with 180 W continuous power handling.
- Spread bass evenly — omnidirectional 360-degree output across the room.
- Reclaim the floor — full subwoofer performance entirely in the ceiling.
- Install fast and safe — SwiftLock system with included tile rails, C-ring, and mounting ring.
- Match the system — 60/30/15/7.5 W taps or 8-ohm bypass, certified UL 1480A, UL 2043, and CSA C22.2 No. 205.
Specifications
Acoustic Performance
- Max SPL
113
- Frequency Range (-10 dB)
45 Hz – 380 Hz
- Coverage Angle (cone)
360
- Sensitivity (1W/1m)
90 dB SPL 1 W, 1 m
Transducers & Drivers
- LF transducer size (in)
8 in
Power & Amplification
- Power handling (continuous) (W)
180 W
