WPN1 Wall panel controller, networked
WPN1 Wall panel controller, networked

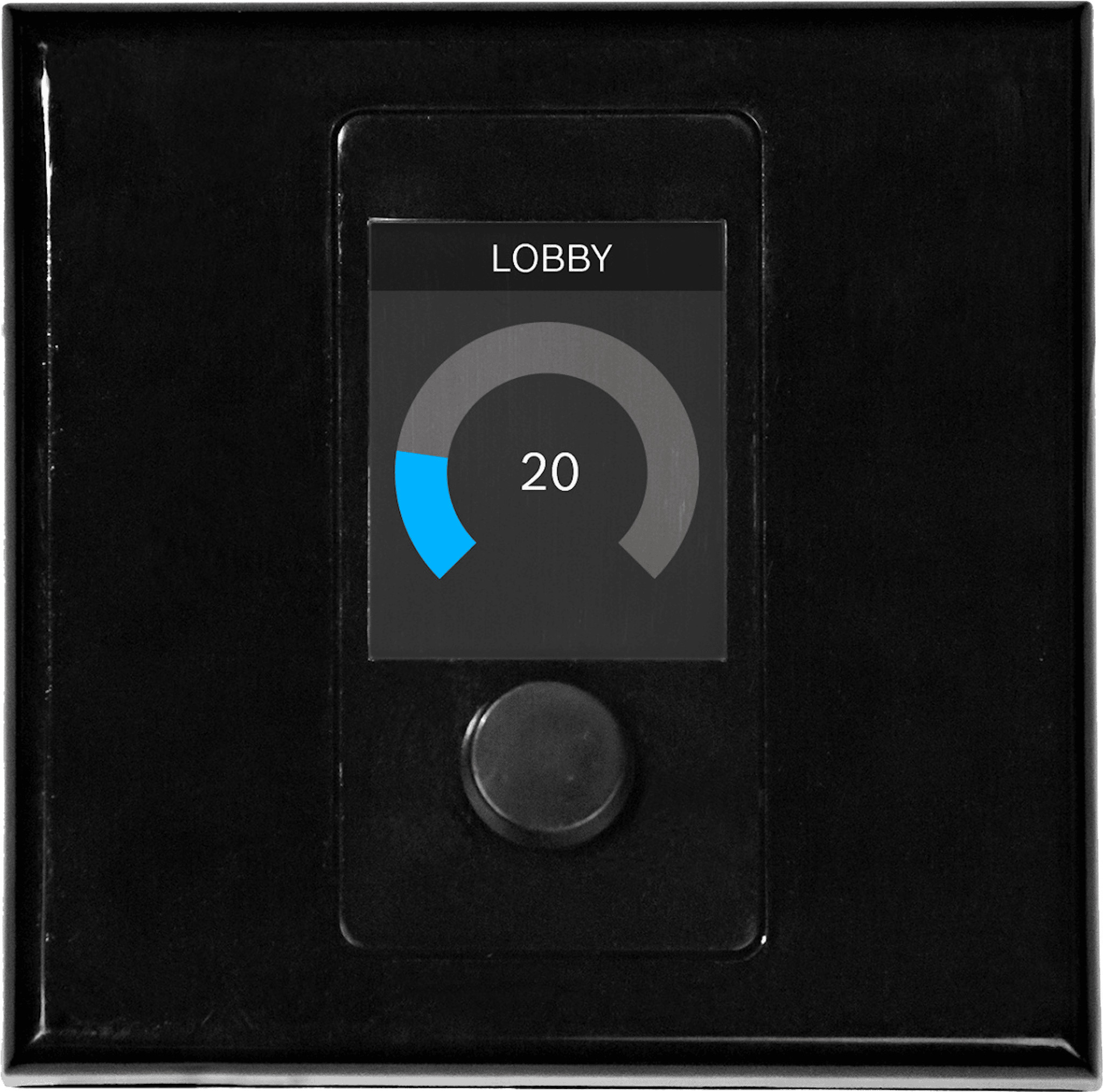

A networked wall controller with a 1.77-inch color display and encoder, powered over Ethernet, for SONICUE zone and source control.
Give the user one dial that does exactly what the room needs. The WPN1 controls a SONICUE system over the network — from a single zone-volume knob up to multi-zone control or logic-driven control of external devices through an MXE5. A 1.77-inch color TFT and a rotary encoder keep the front simple; the configuration behind it is as detailed as the project demands. PoE powers it on one cable, and it ships with white and black fronts.
Key features
As simple or deep as needed
single zone-volume control up to multi-zone and external-device control.
Configured to the project
build the interface in SONICUE, paired to an MXE5 control server.
One cable does it
Power over Ethernet powers and connects the panel on a single run.
Fits and finishes clean
mounts in a standard wall box, ships with white and black fronts.
Clear at a glance
a 1.77-inch color TFT display driven by a rotary encoder.
Light on the PoE budget
draws 1.30 W or less over standard IEEE 802.3af Power over Ethernet.
Exploring the SONICUE ecosystem
TPC-1 and WPN1 Wall Panel Controllers
Features
A tidy dial on the wall. The WPN1 pairs a 1.77-inch color TFT display with an encoder for curtomized control of SONICUE systems, powered over Ethernet. It mounts in EU or US single-gang wall boxes and ships with white and black front covers to adpt to the room. Retail, hospitality, meeting spaces, houses of worship, and any zone that wants a simple, good-looking control.
- At-a-glance control: 1.77-inch color display with an encoder for zones, sources, and other parameters
- One cable: Power over Ethernet (802.3af), under 1.3 W.
- Fits the room: ships with white and black front covers; EU version includes wall plates.
- Standard network: 100BASE-TX / 1000BASE-T Ethernet.
- Works with the system: direct SONICUE control via a compatible control server.
Specifications
Overview & Features
- Configuration
1.77 in color TFT (160 x 128, 480 cd/m²) with encoder
Power & Amplification
- Operating Voltage / Power
PoE (IEEE 802.3af, ≤ 1.30 W)
Connectivity & I/O
- Network Protocol
SONICUE
Mounting & Rigging
- Mounting Type
Wall-mounted (EU / US wall box)
Dimensions & Weight
- Dimensions (H x W x D) (mm)
86.3 x 86.3 x 47.3 mm
Identification
- Series / Family
MXE ACCESSORIES
- Material Number
F.01U.388.087
