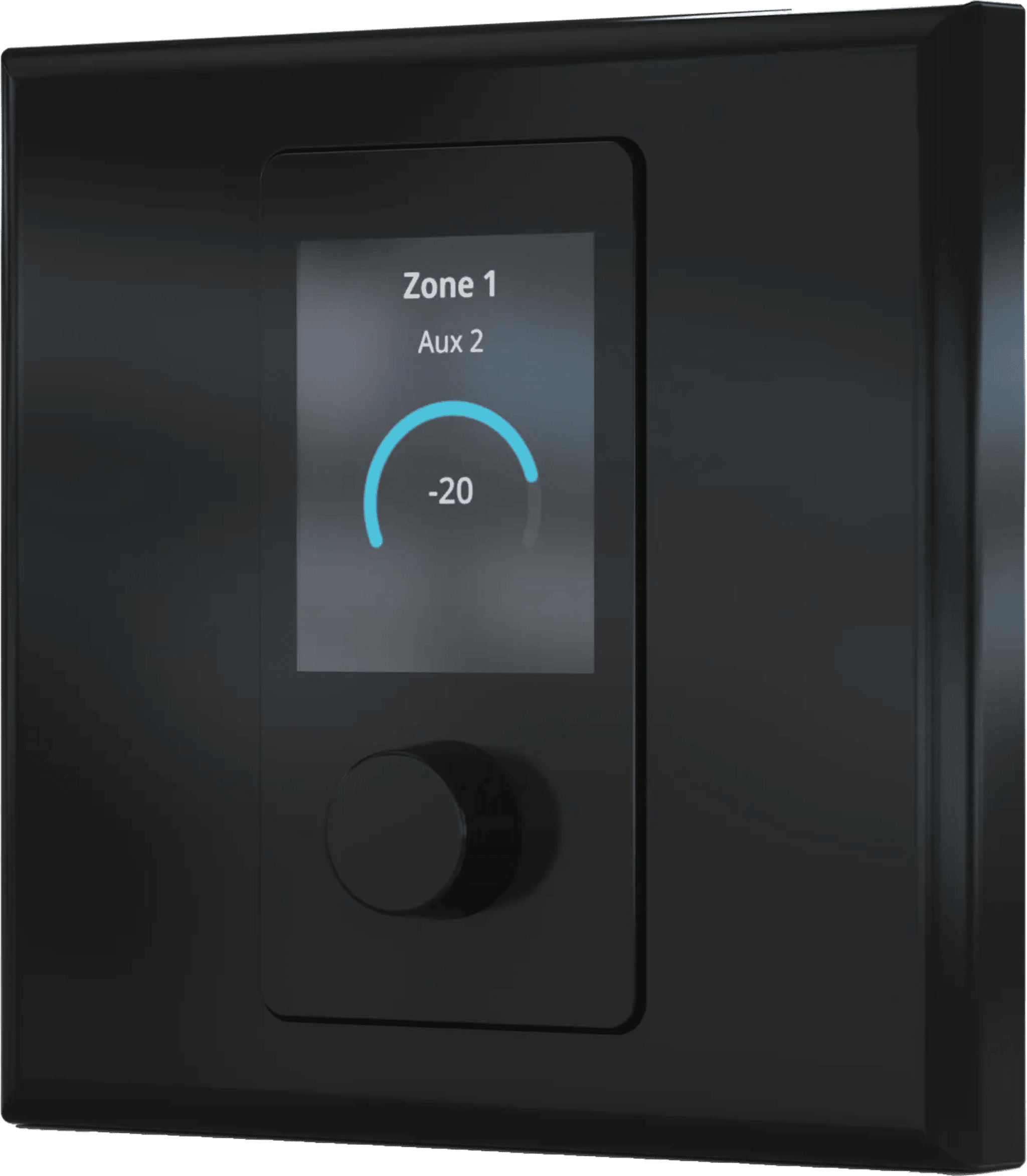

VWP Wall panel controller, V series
Details
v-series-keyvisual_res_1280x720
VWP

CONTROL ON THE WALL.

A wall-mounted controller for the VZX-8 with a 1.77-inch color display and encoder, plug-and-play powered over RJ45, for zone, source, and level control.
Loading

VWP Wall panel controller, V series

A wall-mounted controller for the VZX-8 with a 1.77-inch color display and rotary encoder for zone, source, level, media playback, and programmable system control.
  • Mounting Type
  • Configuration
  • Daisy Chain Capable / Max
  • Connectivity
Documentation & Downloads

Put control on the wall. The VWP gives staff a 1.77-inch color display and a rotary encoder to set levels, zones, sources, and media playback on a VZX-8 system. It powers plug-and-play from the VZX-8 accessory port over RJ45, daisy-chains up to 16 panels per processor, and supports Unicode for 150+ languages, a 4-digit PIN lock, and multiple user profiles. It ships with white and black covers to match the room. Retail, hospitality, houses of worship, and any V-Series zone that wants simple wall control.

Key features

Control on the wall
1.77-inch color display and encoder for levels, zones, sources, and media.
Plug-and-play power
runs over RJ45 from the VZX-8 accessory port, no separate supply.
Scales out
daisy-chain up to 16 VWP panels per VZX-8 (8 per port).
Fits any site
Unicode for 150+ languages, 4-digit PIN lock, and multiple user profiles.
Matches the room
ships with interchangeable white and black front covers.

VWP

Features

Put powerful system control on the wall. The VWP gives users a 1.77-inch color display and rotary encoder for level, zone, source, and media playback control in a VZX-8 system. It can also trigger programmable Actions to mute audio, play messages, change scenes, enable or disable schedules, control GPIO, and more. The VWP receives power and communication from the VZX-8 accessory bus over RJ45, supports daisy-chaining of up to 16 accessories per processor, and includes Unicode support for 150+ languages, a 4-digit PIN lock, and multiple user profiles. Interchangeable white and black front covers help it fit the room, with versions for standard US and EU wall-mount boxes.
  • Control more from the wall — manage levels, zones, sources, and media playback from a 1.77-inch color display and rotary encoder.
  • Trigger powerful system Actions — mute audio, play messages, change scenes, enable or disable schedules, control GPIO, and more.
  • Power and connect over one cable — power and communication come from the VZX-8 accessory bus over RJ45, with no separate power supply required.
  • Expand control across the system — connect up to 16 V-Series accessories per VZX-8 across its two accessory ports.
  • Adapt to users and locations — Unicode supports 150+ languages, while a 4-digit PIN lock and multiple user profiles help tailor access and operation.
  • Fit the installation — interchangeable white and black front covers are included, with versions for standard US and EU wall-mount boxes.

Specifications

Overview & Features

Configuration

Color TFT Display

Power & Amplification

Power consumption (W)

0.4 W or less

Operating Voltage / Power

(Bus powered)

Connectivity & I/O

Connectivity

2 × RJ45 ports for input and daisy-chain output

Daisy Chain Capable / Max

Yes / up to 16 per VZX-8

GPIO / Control

24-detent 360 deg continuous push-button encoder; user controls: level, mute, zone, source, media player; 4-digit PIN lock and multiple user profiles

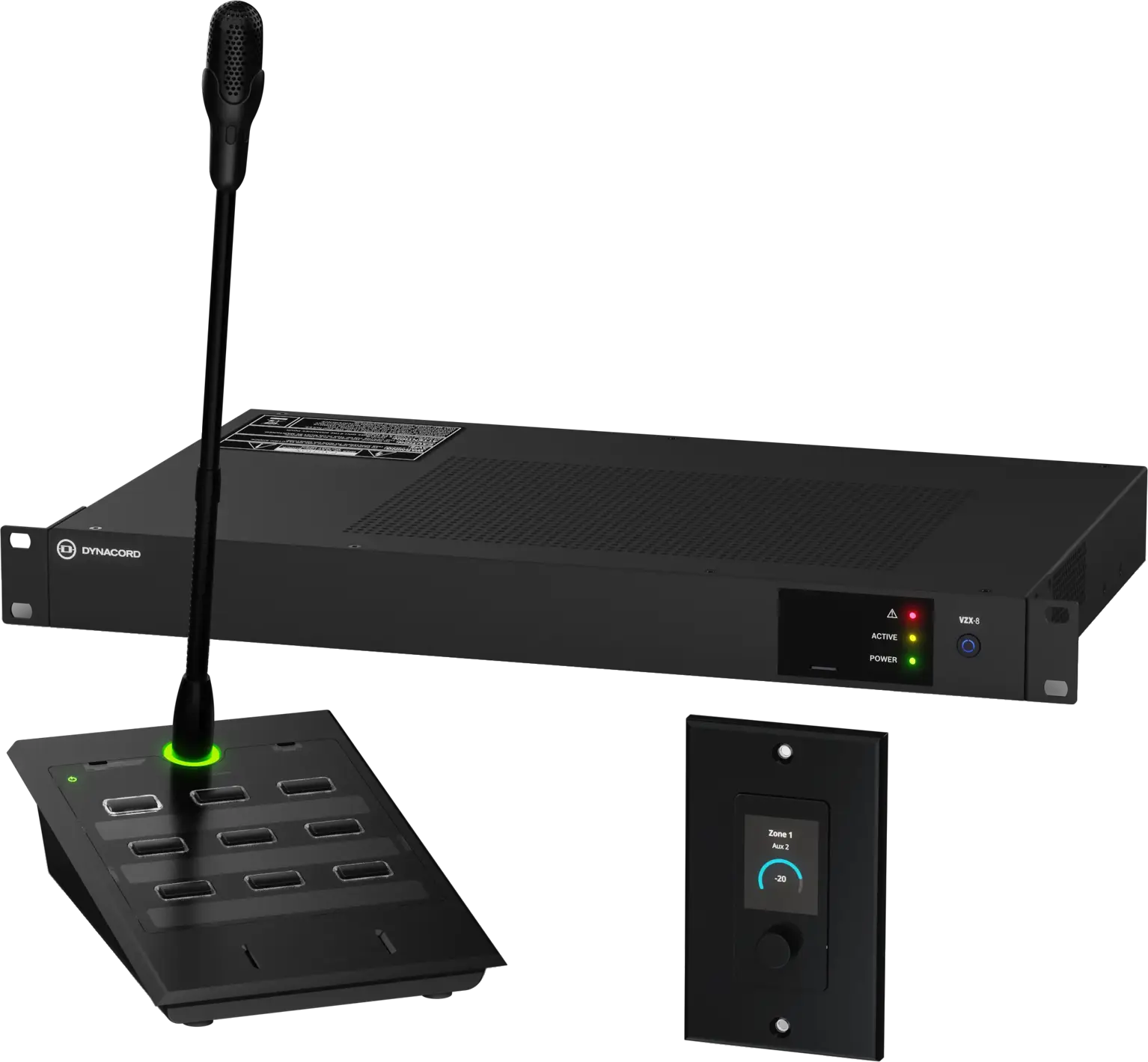

Dynacord_VSeriesZoneAudioPlatform_Family

PART OF THE V SERIES SYSTEM.

The VWP puts VZX-8 zone control on the wall: levels, sources, and media from a 1.77-inch color display, powered over RJ45.
