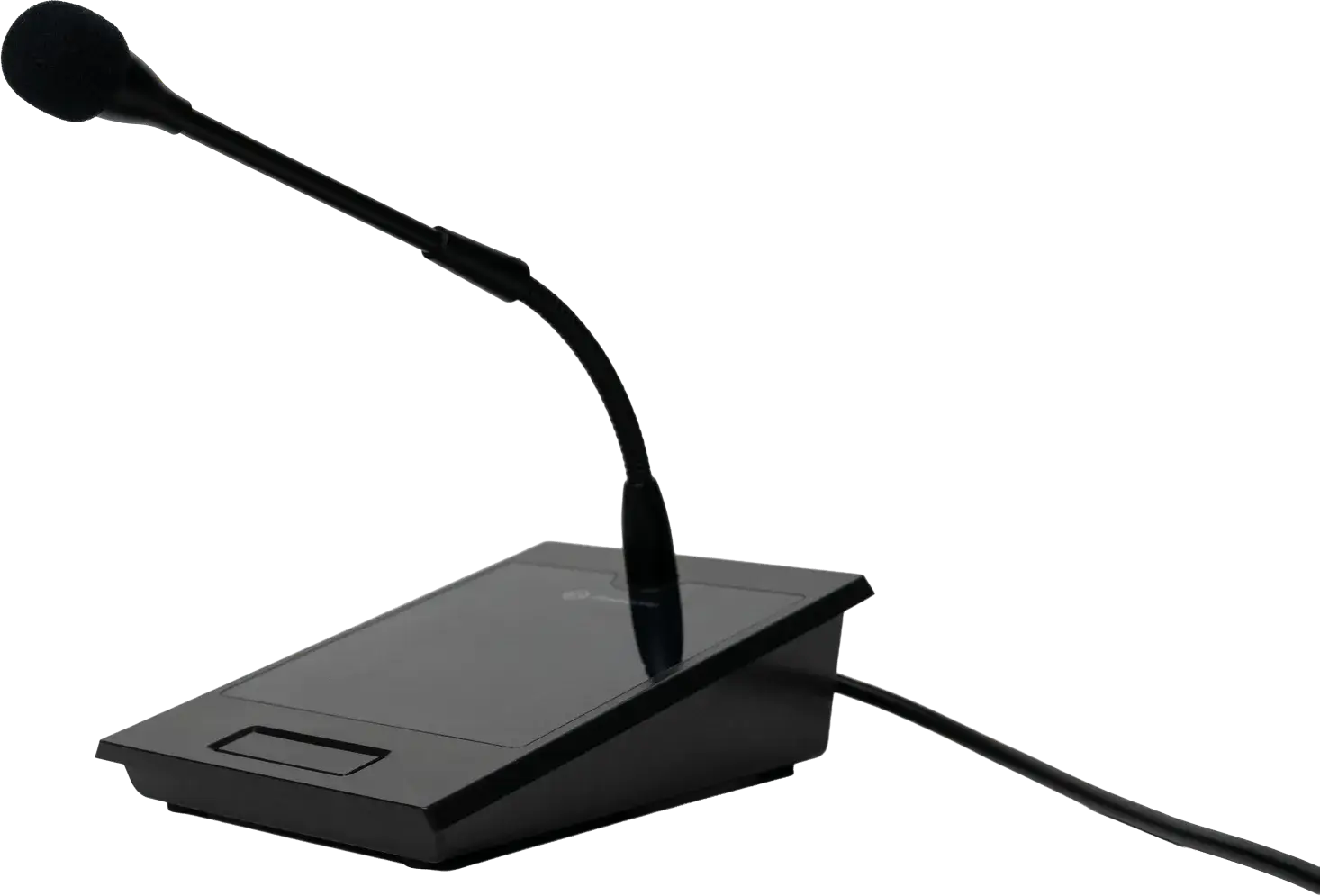

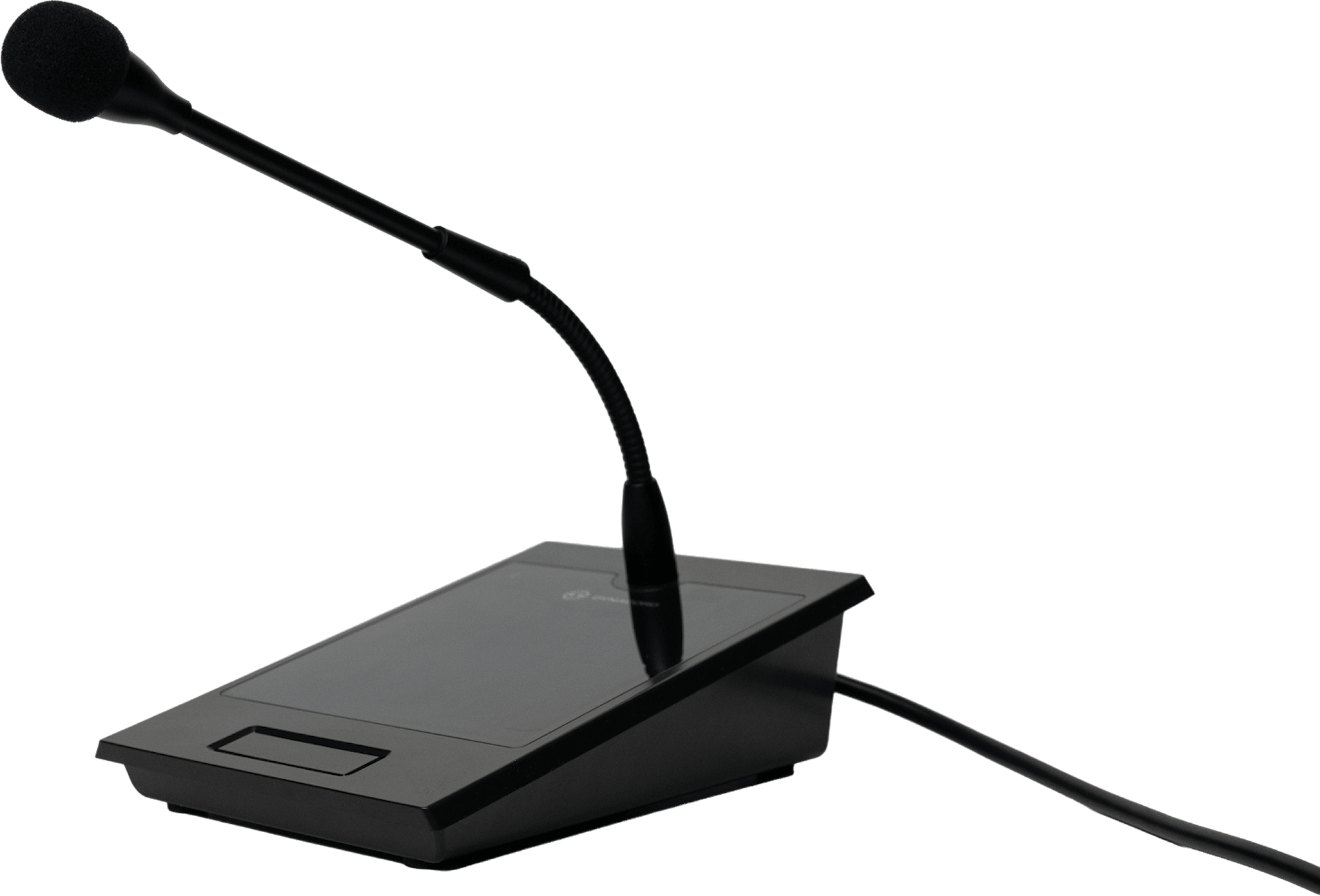

UCS-1 Call station, 1 zone
UCS-1
ONE ZONE. ONE CLEAN CALL.
A single-zone gooseneck call station built for clear, focused paging where one area is all you need.
UCS-1 Call station, 1 zone
A premium single-zone tabletop call station for U-Series mixer amplifiers, phantom-powered with push-to-talk and a condenser mic.
- Mounting Type
- Phantom Power
- Microphone Type
- Microphone Polar Pattern
Page one zone and page it well. The UCS-1 is a single-zone call station with a gooseneck condenser capsule tuned for speech — 100 Hz to 16 kHz, omnidirectional, handling up to 100 dB SPL before distortion climbs. Phantom power runs it from 12 to 48 V, and the signal-black housing sits quietly on any desk or counter. Retail floor, small office, house of worship — wherever a single area needs a voice, the UCS-1 puts it there without fuss.
Key features
Made for speech
100 Hz to 16 kHz response, tuned for clear announcements.
Handles the loud talker
up to 100 dB SPL maximum input before distortion.
Powers simply
12 to 48 V phantom, 11 mA draw, with a 2 m cable.
Sits anywhere
signal-black housing for desk, counter, or lectern.
Built to last the day
rated -10 to 45 degrees C across the operating range.
Quiet on the line
equivalent input noise of 38 dBA keeps the station's own hiss out of the page.
Official overview
U Series Amplifiers and Mixer Amplifiers
Complete the System
Where this unit fits, and what it pairs with.
Features
Instant paging from the counter. The UCS-1 is a premium single-zone paging and call station for U-Series mixer amplifiers, with a push-to-talk button, a unidirectional gooseneck condenser microphone, and a green LED that shows when the microphone is live. It operates on 48 V phantom power directly from the amplifier, includes a 2-meter cable, and connects via a 5-pin Euroblock—ideal for cafés, retail counters, small houses of worship, reception desks, and other spaces that need simple, reliable paging..
- One-touch paging — a single push-to-talk button makes announcements fast and simple.
- No separate power supply — operates on 48 V phantom power from the U-Series mixer amplifier.
- Ready to connect — includes a 2-meter cable and supports 5-pin Euroblock wiring for push-to-talk operation, or 3-pin wiring for an always-active microphone.
- Clear feedback — a unidirectional condenser microphone and green live indicator make operating status easy to see.
- Stays put — a weighted tabletop base with rubber feet keeps the station stable during use.
Specifications
Overview & Features
- Configuration
Push-to-Talk button
Acoustic Performance
- Frequency Response
100 Hz - 16 kHz
- Sensitivity
-56 dB V/PA (1.60 m V/PA)
- THD+N
<1% (maximum input)
- Maximum Acoustic Input
100 dB SPL
Power & Amplification
- Operating Voltage / Power
12 V to 48 V phantom (from U-Series mixer amplifier)
