U60:1M Mixer amplifier 60W, 1 channel
U60:1M
JUST ENOUGH. EXACTLY RIGHT.
A 60 W single-channel mixer amplifier with four inputs, ducking, and call-station support.
U60:1M Mixer amplifier 60W, 1 channel
A 60 W single-channel mixer amplifier with four inputs, ducking, and call-station support.
- Total Output Power*
- Direct Drive (70V/100V)
- Mounting Type
- Phantom Power

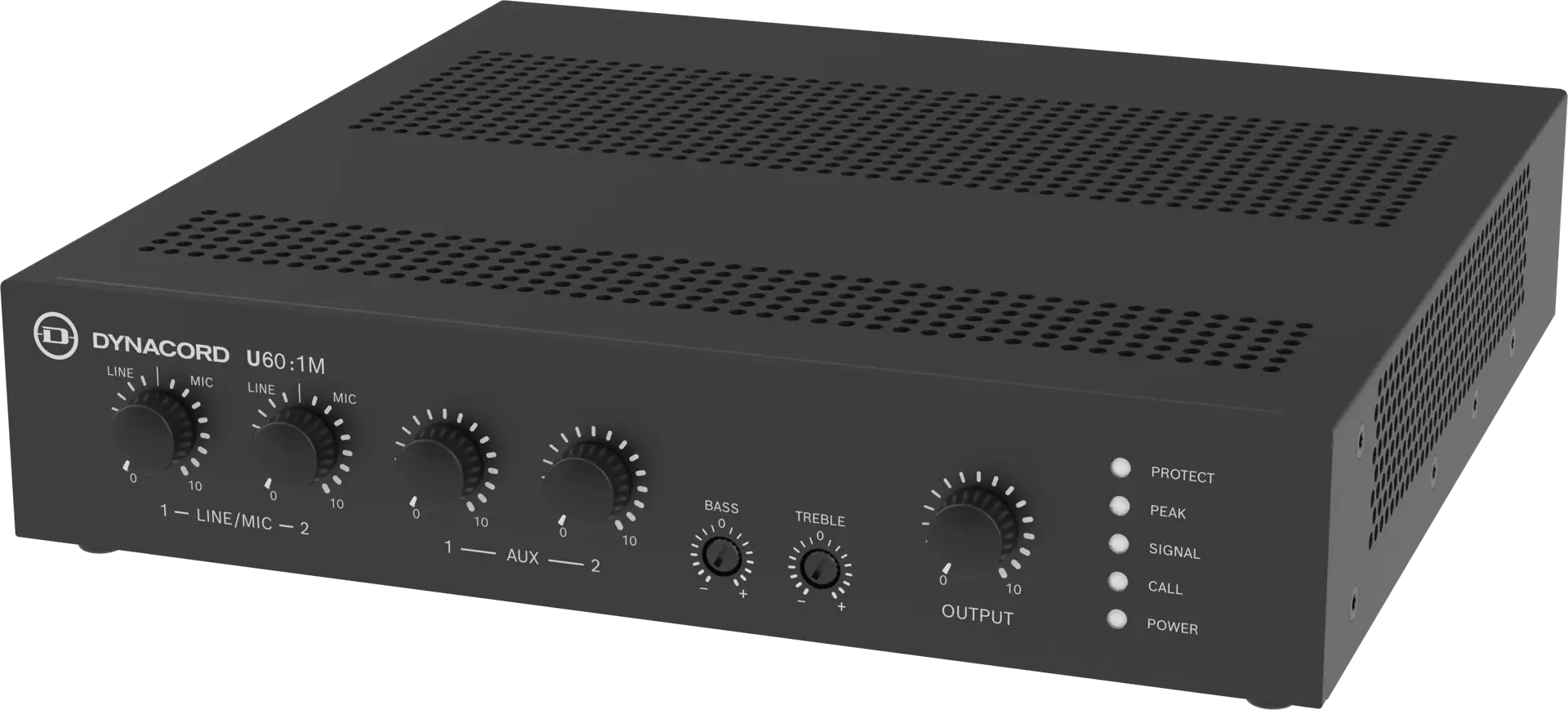

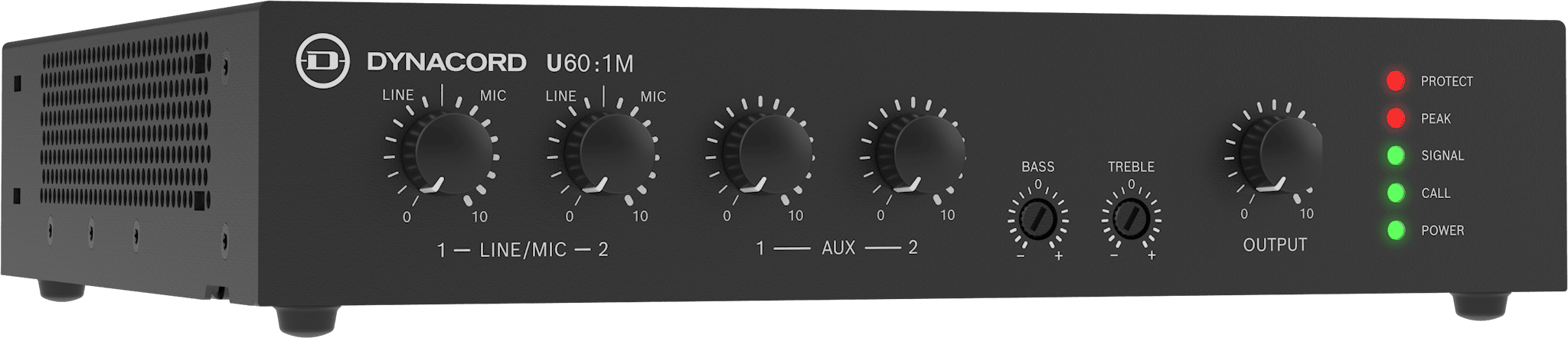

Cover a modest zone with music and paging in one box. The U60:1M mixes four inputs — two mic/line, two aux — plus a priority emergency input, with phantom power on both mic channels and VOX ducking that drops the music under a live announcement. Its 60 W reaches 70 V, 100 V, 4 ohm, or 8 ohm systems from a half-rack, 1U enclosure, with front-panel gain and tone for quick adjustments. Restaurants, retail, classrooms, chapels, and waiting areas that need clean sound without a big rack.
Key features
Right-sized power
60 W into 70 V, 100 V, 4 ohm, or 8 ohm loads for modest zones.
Mix it in one box
four inputs (two mic/line, two aux) plus a priority emergency input.
Voice comes first
VOX ducking drops the music automatically under a live announcement.
Run a mic anywhere
phantom power on both mic inputs, plus call-station operation with chime.
Half the rack
half-rack 1U box; two fit side by side in a single rack unit.
Mount it your way
included brackets handle single and dual rack mounting; desktop and under-counter installs work too.
Official overview
U Series Amplifiers and Mixer Amplifiers
Complete the System
Where this unit fits, and what it pairs with.
Features
Mix music and microphones. Power the right-sized zone. The U60:1M combines four input channels—two mic/line inputs and two aux inputs—with 60 W of output for 70 V, 100 V, 4-ohm, or 8-ohm systems. Phantom power on both mic inputs and VOX ducking make live announcements simple, while front-panel input and output level controls provide easy day-to-day operation. Tamper-resistant bass and treble controls help protect system settings, and a priority emergency input keeps critical messages getting through. Its compact half-rack, 1 RU design supports tabletop, rack, under-surface, or wall installation—ideal for restaurants, retail spaces, classrooms, small houses of worship, waiting areas, and other applications that need background music and paging without a large equipment rack.
- Right-sized power for everyday zones — Full 60 W into 70 V, 100 V, 4-ohm, or 8-ohm loads.
- Mix it all in one box — four inputs, including two mic/line and two aux inputs, plus a priority emergency input.
- Put voice first — VOX ducking automatically lowers the music during live announcements.
- Ready for microphones and paging — phantom power on both mic inputs, plus call-station operation with chime.
- Mount it your way — use it on a tabletop, in a rack, under a surface, or on a wall; two units fit side by side in 1 RU.
Specifications
Overview & Features
- Configuration
1-channel
Power & Amplification
- Total Output Power*
60 W
- Direct Drive (70V/100V)
100 V / 70 V
- Power consumption (W)
f=70 Hz, 12 dB/oct.
- Operating Voltage / Power
100 VAC - 240 VAC ±10%, 50/60 Hz
Connectivity & I/O
- Phantom Power
48V
