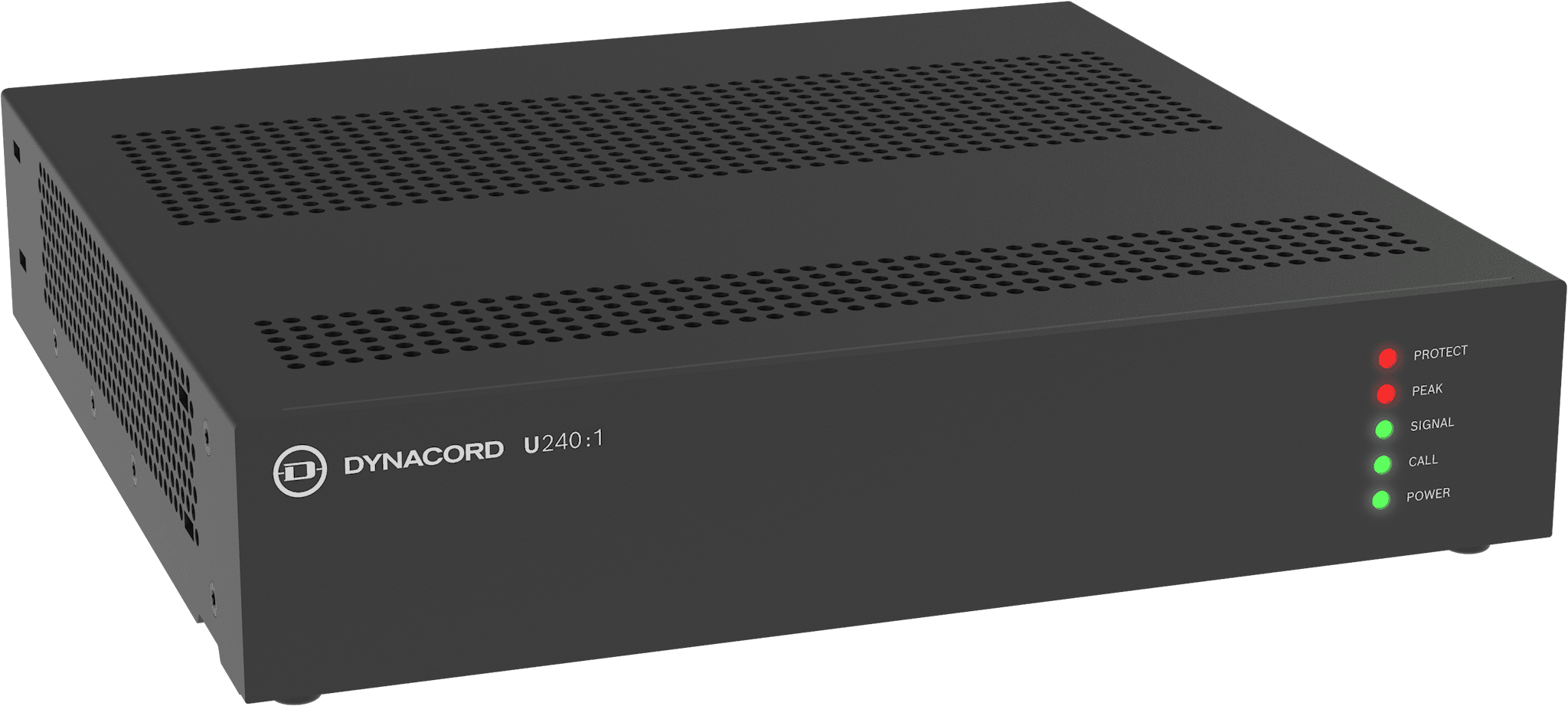

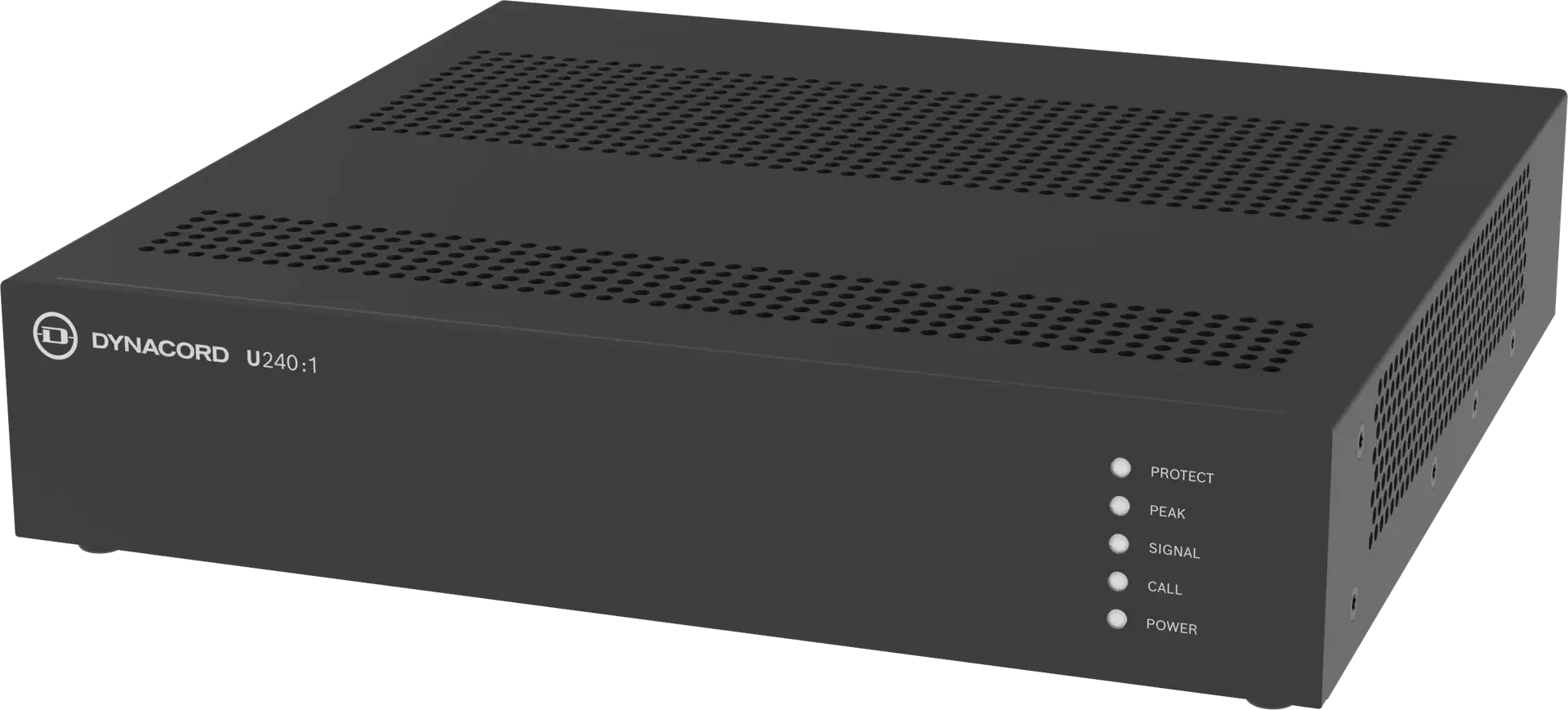

U240:1 Power amplifier 240W, 1 channel
U240:1
TWICE THE POWER. SAME SMALL BOX.
A 240 W single-channel install amplifier for background music and clear paging, in half a rack space.
U240:1 Power amplifier 240W, 1 channel
A 120 W single-channel install amplifier for background music and paging, in half a rack space.
- Total Output Power*
- Direct Drive (70V/100V)
- Mounting Type
Cover a bigger zone from the same footprint. The U240:1 puts 240 W into 70 V, 100 V, 4 ohm, or 8 ohm systems from a half-rack, 1U box, with efficient Class D amplification and a quiet temperature-controlled fan. Gain, bass, and treble sit on the rear panel — set once and walk away — and a priority emergency input keeps announcements landing. Two rack side by side in a single U. Restaurants, retail, schools, houses of worship, museums, galleries, transport hubs.
Key features
More power, same footprint
full 240 W into 70 V, 100 V, 4 ohm, or 8 ohm loads.
Half the rack
half-rack 1U box; two fit side by side in a single rack unit.
No accidental tweaks
gain, bass, and treble live on the rear panel, away from curious hands.
Messages always get through
priority emergency input with 100 V or line level selection.
Quiet by design
temperature-controlled fan stays silent at lower output levels.
Mount it your way
included brackets handle single and dual rack mounting; desktop and under-counter installs work too.
Official overview
U Series Amplifiers and Mixer Amplifiers
Complete the System
Where this unit fits, and what it pairs with.
Features
More power. Same compact footprint. The U240:1 delivers 240 W for 70 V, 100 V, 4-ohm, or 8-ohm systems in a compact half-rack, 1 RU design. Efficient Class D amplification and a temperature-controlled fan provide quiet, dependable operation, while rear-panel gain, bass, and treble controls help prevent unwanted adjustments. A priority emergency input keeps critical messages getting through. Flexible mounting supports tabletop, rack, under-surface, or wall installation—ideal for larger zones in restaurants, retail, schools, houses of worship, museums, galleries, and transport hubs.
- More power, same footprint — Full 240 W into 70 V, 100 V, 4-ohm, or 8-ohm loads.
- Mount it your way — use it on a tabletop, in a rack, under a surface, or on a wall; two units fit side by side in 1 RU.
- Keep settings protected — rear-panel gain, bass, and treble controls help prevent unwanted adjustments.
- Keep critical messages moving — a priority emergency input supports 100 V or line-level signals.
- Quiet by design — the quiet, temperature-controlled fan stays off at lower output levels.
Specifications
Overview & Features
- Configuration
1-channel
Acoustic Performance
- Sensitivity
500 mV
Power & Amplification
- Total Output Power*
240 W
- Direct Drive (70V/100V)
100 V / 70 V
- Power consumption (W)
- Operating Voltage / Power
100 VAC - 240 VAC, 50/60 Hz
