TPC-1 Touch panel controller, 5.7 in
TPC-1 Touch panel controller, 5.7 in
A 5.7-inch Full HD touch panel controller for SONICUE systems, powered over Ethernet and flush-mounted in a single-gang box.

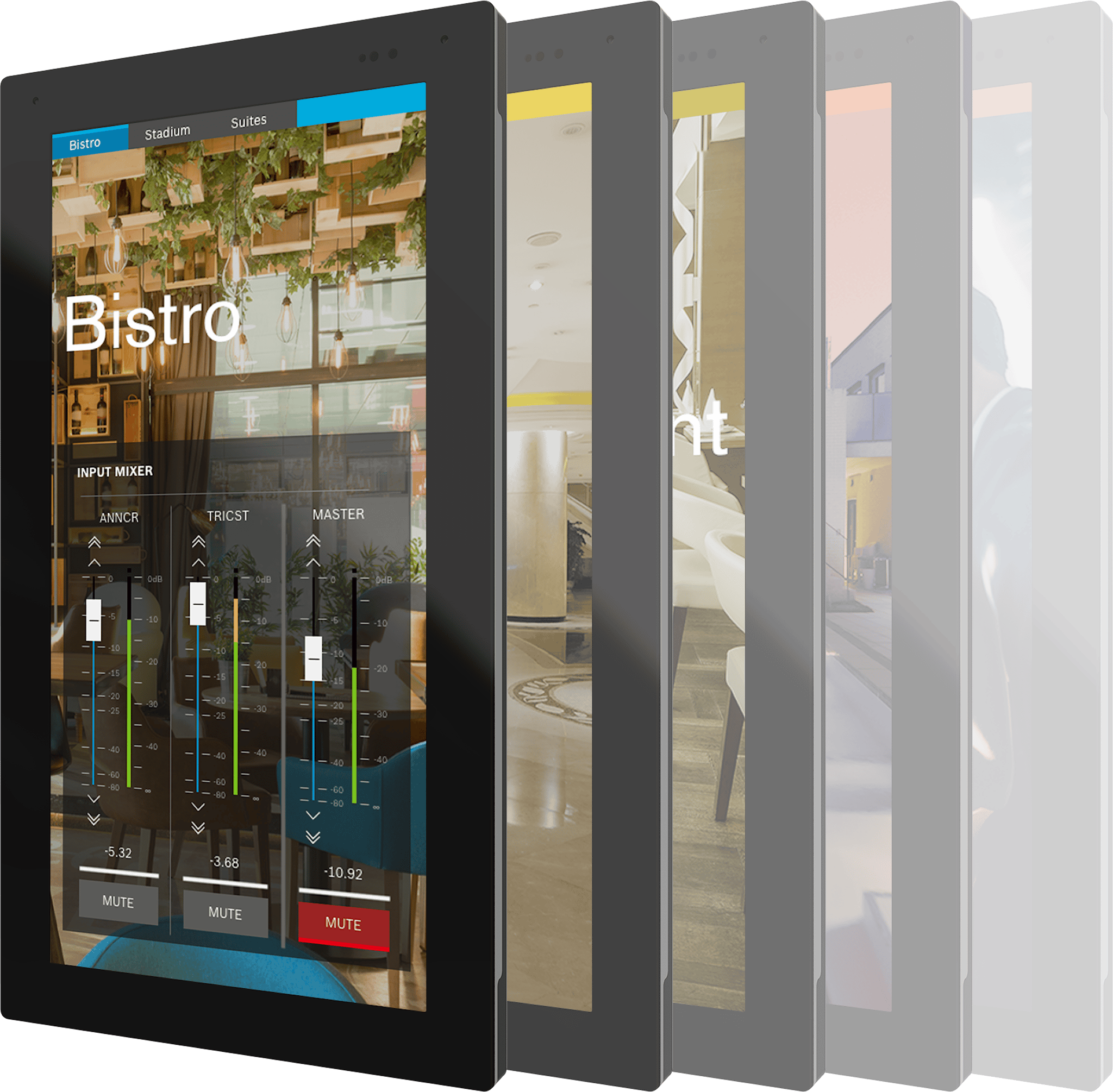

Hand the room a control surface it actually understands. The TPC-1 is a 5.7-inch HD touch panel (720 x 1440) that drives a SONICUE system over a single PoE connection. The interface is a free control canvas — drop in images, schematics, or a logo, then lay out exactly the controls the venue needs. A slim in-wall profile fits EU, UK, or US boxes even in shallow walls, and the mounting plate adds theft resistance. Boardroom, lobby, classroom, multipurpose space.
Key features
Control the system, not a menu
a free SONICUE control canvas built around the venue's controls.
Make it the room's own
add images, schematic designs, or a logo to the interface.
One cable does it
Power over Ethernet (802.3af) carries power and control on a single run.
Fits shallow walls
slim in-wall profile with universal EU, UK, and US box mounting.
Sharp and bright
5.7-inch IPS display at 720 x 1440, 450 nits, 16.7 million colors.
Knows you're there
integrated proximity sensor with a 120 cm range and 25-degree capture angle.
Exploring the SONICUE ecosystem
TPC-1 and WPN1 Wall Panel Controllers
Features
One screen for the room. The TPC-1 is a 5.7-inch Full HD touch controller for SONICUE systems, giving staff simple control of zones, sources, and levels from the wall. It powers over Ethernet, mounts in a standard single-gang US, UK, or EU box. Houses of worship, retail, hospitality, corporate, and any install that wants a clean touch interface on the wall.
- 5.7-inch Full HD touch panel for SONICUE systems
- Customizable design in SONICUE's Panel Designer
- One cable: Power over Ethernet, typical 6 W, max 8 W.
- Flush mount: fits a standard single-gang US, UK, or EU wall box.
- Works with the system: integrated control server can control all IPX,IX and MXE devices.
Specifications
Overview & Features
- Configuration
5.7 in HD TFT touch panel
Power & Amplification
- Power consumption (W)
Typical 6 W Maximum 8 W
- Operating Voltage / Power
PoE (typ. 6 W, max 8 W)
Connectivity & I/O
- Network Protocol
SONICUE
Protection & Environmental
- Ambient Temperature
± 0 °C to +45 °C
- Certifications
CE, FCC Part 15 Class B, RoHS/WEEE compliant
