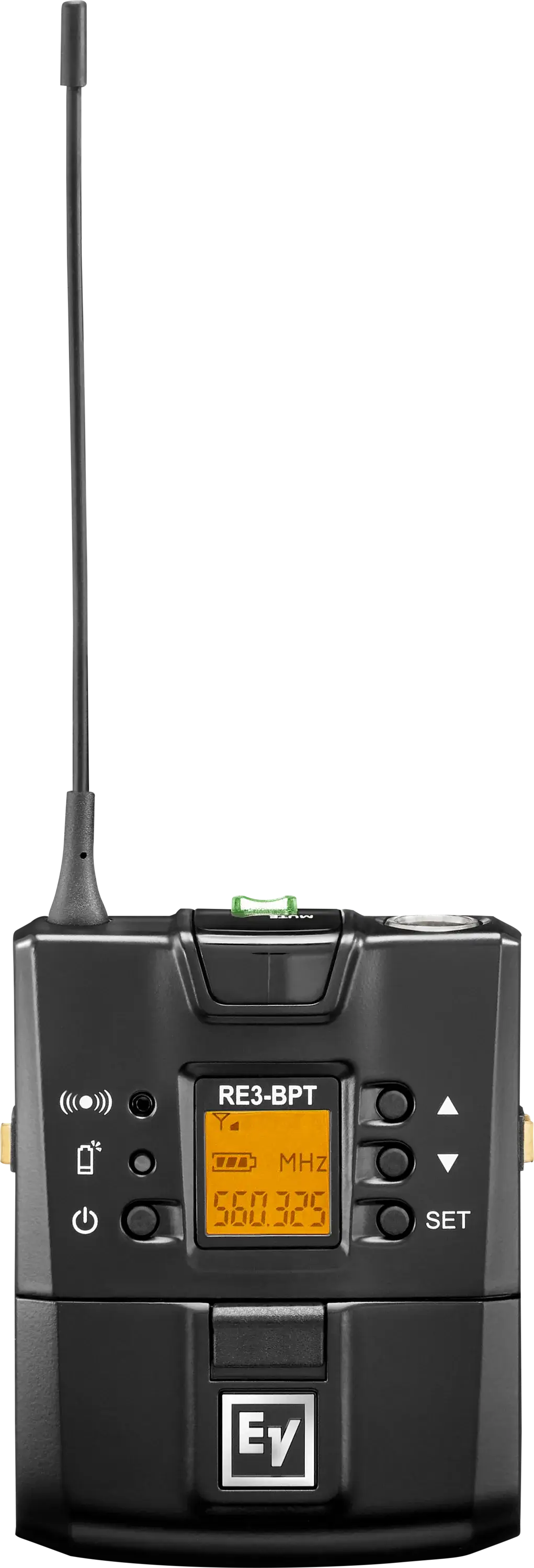

RE3-BPT-5H Bodypack transmitter
RE3-BPT
SMALL BODY. SERIOUS RANGE.
A rugged all-metal UHF bodypack transmitter that wears light and tunes wide, in the 560: 596 MHz band.
RE3-BPT-5H Bodypack transmitter
A rugged all-metal UHF bodypack transmitter that wears light and tunes wide, in the 560–596 MHz band.
Wear it, hide it, forget it. The RE3-BPT-5H is an all-metal UHF bodypack that disappears under clothing yet stands up to stage and studio abuse. Switch output between 10 mW and 50 mW to match short throws or long rooms, and work 36 MHz of tuning across 560 to 596 MHz to dodge interference. Ultrasonic sync matches it to the receiver in one tap, and recharging contacts feed the optional BC2 station. Presentations, theater, performance: clip in and go.
Key features
Match the room's range
Switchable 10 mW or 50 mW RF output for short or long throws.
Wide room to find clear air
36 MHz of tuning across the 560 to 596 MHz band.
Sync without the menu dive
Ultrasonic sync copies the receiver's frequency in one tap.
Built to survive the gig
All-metal body with a magnetic sliding latch on the battery door.
Power your way
2 AA alkaline or NiMH cells, with recharging contacts for the optional BC2 station.
Feed it any source
Accepts a wide variety of input devices: lapel mics to instrument mics on the 4-pin mini plug.
Features
Wear it, hide it, forget it. The RE3-BPT-5H is an all-metal UHF bodypack that disappears under clothing yet stands up to stage and studio abuse. Switch output between 10 mW and 50 mW to match short throws or long rooms, and work 36 MHz of tuning across 560 to 596 MHz to dodge interference. Ultrasonic sync matches it to the receiver in one tap, and recharging contacts feed the optional BC2 station. Presentations, theater, performance — clip in and go.
- Match the room's range — switchable 10 mW or 50 mW RF output for short or long throws.
- Wide room to find clear air — 36 MHz of tuning across the 560 to 596 MHz band.
- Sync without the menu dive — ultrasonic sync copies the receiver's frequency in one tap.
- Built to survive the gig — all-metal body with a magnetic sliding latch on the battery door.
- Power your way — 2 AA alkaline or NiMH cells, with recharging contacts for the optional BC2 station.
Specifications
Connectivity & I/O
- RF Frequency Band
653-663 MHz
Construction & Materials
- Color
Black polyurethane paint
Dimensions & Weight
- Net weight
6.14 oz. (0.174 kg)
- Dimension depth (in)
0.98
- Dimension height (in)
3.2
- Dimension width (in)
2.54
