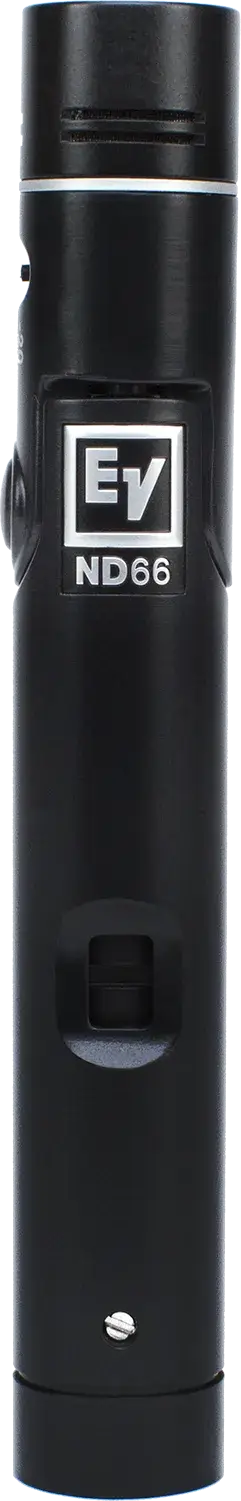

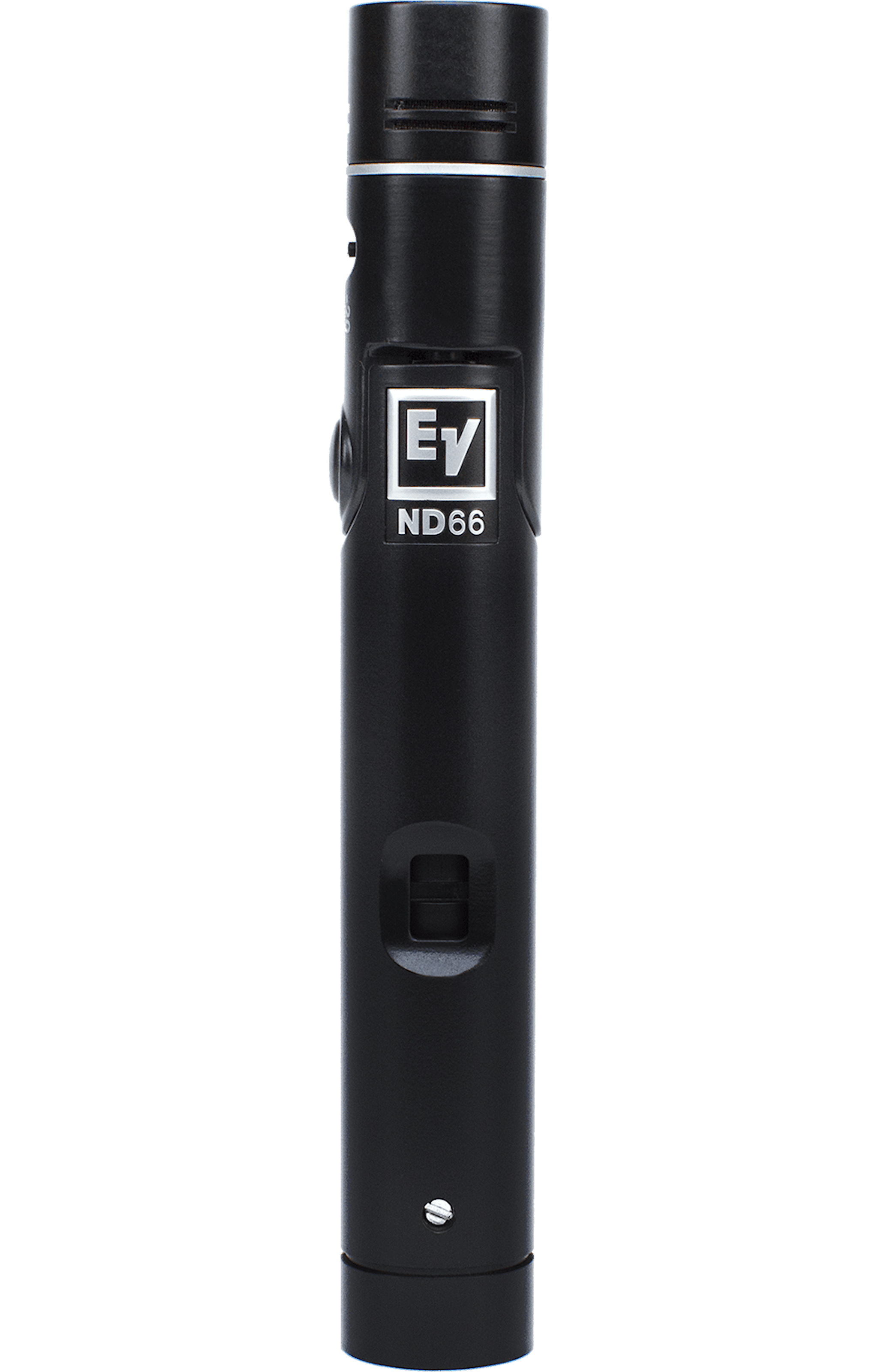

ND66 Condenser cardioid instrument microphone
ND66
CRISP. DETAILED. PRECISE.
A small-diaphragm condenser instrument mic for percussion and strings, with pads and filters built in.
ND66 Condenser cardioid instrument microphone
A small-diaphragm condenser instrument mic for percussion and strings, with pads and filters built in.
Catch the detail other mics miss. The ND66's self-biased small-diaphragm condenser element responds to the fast, complex nature of percussion and strings for a clean, crisp, detailed sound. Selectable -10 and -20 dB pads keep loud, high-transient sources from overloading the element, and switchable 75 Hz and 150 Hz high-pass filters clear out low-end rumble. The locking rotating head sets placement in tight spots: push, rotate, release. Overheads, hi-hat, acoustic guitar, percussion: get the air and the attack.
Key features
Hear the detail
Small-diaphragm condenser captures fast percussion and string transients.
Tame the loud stuff
Selectable -10 and -20 dB pads prevent element overload.
Clear the low end
Switchable 75 Hz and 150 Hz high-pass filters cut rumble.
Place it anywhere
Locking rotating head sets the angle and holds it.
Ready out of the box
Ships with foam windscreen, gig bag, stand clip, and thread adapter.
Clamp it to the kit
Optional DRC-2 drum rim clamp and SAND-1 stand adapter extend placement options.
Features
Catch the detail other mics miss. The ND66's self-biased small-diaphragm condenser element responds to the fast, complex nature of percussion and strings for a clean, crisp, detailed sound. Selectable -10 and -20 dB pads keep loud, high-transient sources from overloading the element, and switchable 75 Hz and 150 Hz high-pass filters clear out low-end rumble. The locking rotating head sets placement in tight spots — push, rotate, release. Overheads, hi-hat, acoustic guitar, percussion — get the air and the attack.
- Hear the detail — small-diaphragm condenser captures fast percussion and string transients.
- Tame the loud stuff — selectable -10 and -20 dB pads prevent element overload.
- Clear the low end — switchable 75 Hz and 150 Hz high-pass filters cut rumble.
- Place it anywhere — locking rotating head sets the angle and holds it.
- Ready out of the box — ships with foam windscreen, gig bag, stand clip, and thread adapter.
Specifications
Acoustic Performance
- Max SPL
146
- Polar Pattern
Cardioid
- Signal-to-Noise Ratio
74 dB (@ 94 dB SPL)
Transducers & Drivers
- Element Type
Self-biased Condenser
Impedance
- Nominal Impedance
200 ohms
Construction & Materials
- Color
Black polyurethane paint
