MTS-6154-64CPWB Loudspeaker cardioid 60x40 PW blk
MTS-6154-64CPWB Loudspeaker cardioid 60x40 PW blk

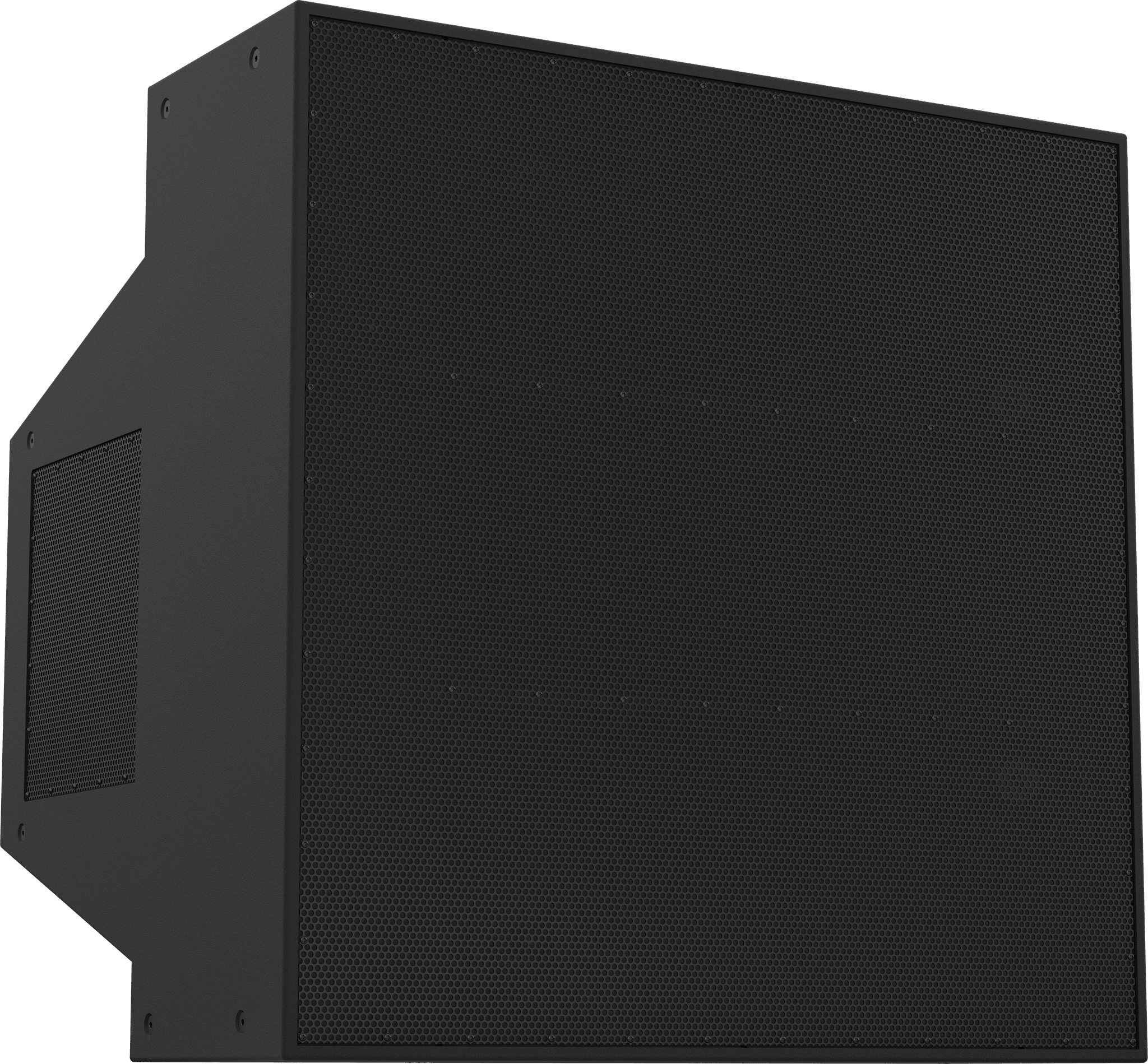

A weatherized cardioid point-source system with a wide 60 by 40 pattern.
Spread the sound wide and keep the stage quiet. The MTS-6154-64CPWB opens to a 60-by-40 pattern while its integrated low-frequency cardioid chamber cuts rear output by 12 dB or more below 200 Hz. Three-way and bi-amplified, it pairs with Dynacord IPX amplifiers for full output and peaks at 154 dB. Weatherized in black for outdoor stages and stadium bowls, it holds the same broad, clean coverage in the rain that it does indoors.
Key features
Fill it wide
60 by 40 nominal pattern for broad, even audience coverage.
Keep the stage clean
cardioid chamber cuts rear output 12 dB or more below 200 Hz.
Loud where it counts
peak SPL of 154 dB from a bi-amplified three-way design.
Pairs with the amps
driven by Dynacord IPX-series DSP power amplifiers for full output.
Takes the weather
weatherized PW black finish for outdoor and stadium use.
Same coverage, rain or shine
holds the same broad, clean coverage in the rain that it does indoors.
Features
Spread the sound wide and keep the stage quiet. The MTS-6154-64CPWB opens to a 60-by-40 pattern while its integrated low-frequency cardioid chamber cuts rear output by 12 dB or more below 200 Hz. Three-way and bi-amplified, it pairs with Dynacord IPX amplifiers for full output and peaks at 154 dB. Weatherized in black for outdoor stages and stadium bowls, it holds the same broad, clean coverage in the rain that it does indoors.
- Fill it wide — 60 by 40 nominal pattern for broad, even audience coverage.
- Keep the stage clean — cardioid chamber cuts rear output 12 dB or more below 200 Hz.
- Loud where it counts — peak SPL of 154 dB from a bi-amplified three-way design.
- Pairs with the amps — driven by Dynacord IPX-series DSP power amplifiers for full output.
- Takes the weather — weatherized PW black finish for outdoor and stadium use.
Specifications
Acoustic Performance
- Max SPL
154
- Frequency Response
62 Hz - 18 kHz
- Frequency Range (-10 dB)
55 Hz - 20 kHz
- Coverage Angle
60 × 40
- Polar Pattern
Cardioid
Connectivity & I/O
- Connectivity
10 AWG (6 mm²) Phoenix/Euroblock input and pass through
