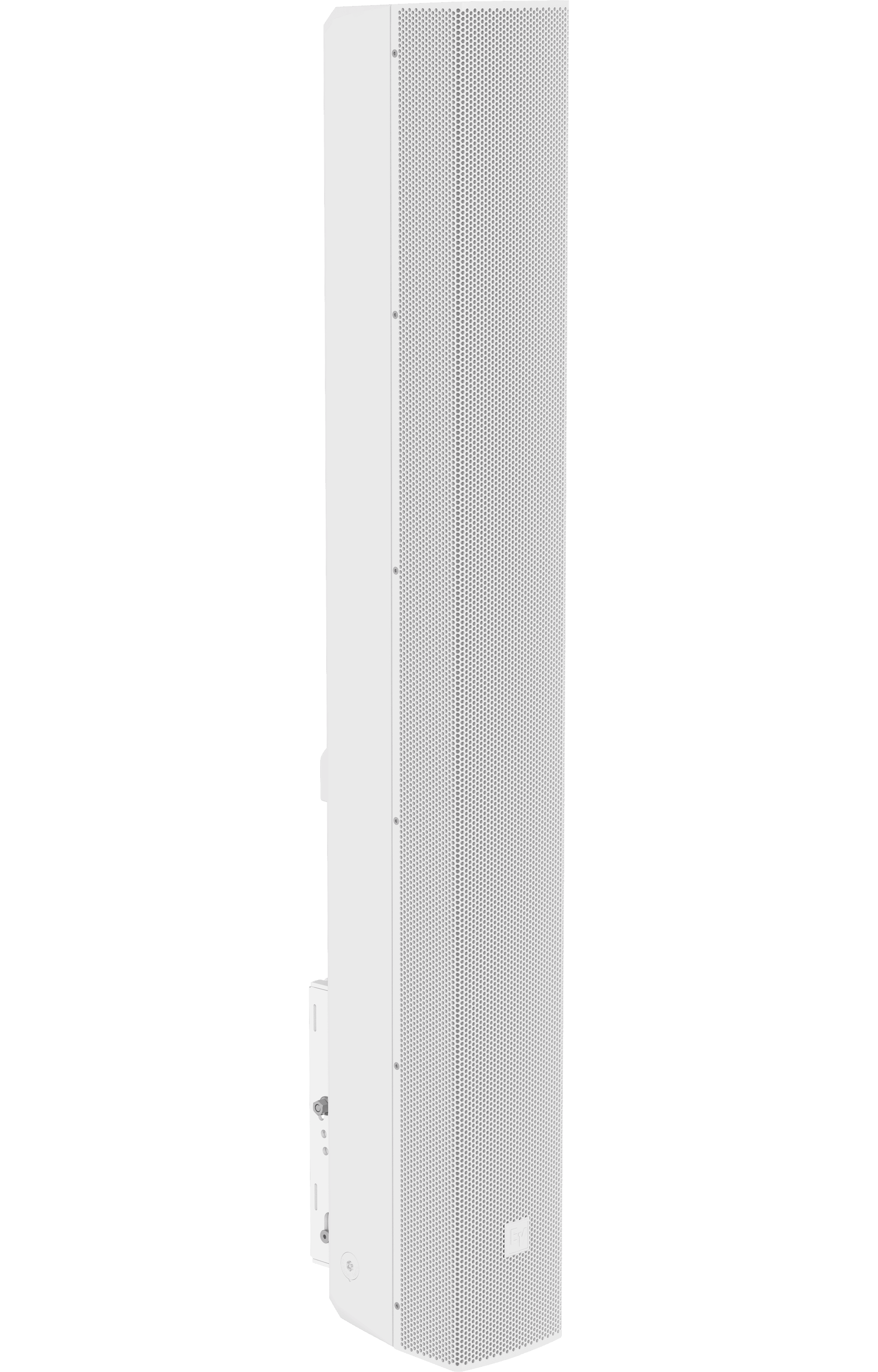

LRC-1100 Column speaker, 100cm, EN54
LRC-1100 Column speaker, 100cm, EN54
A passive line-radiator install column with a built-in 70/100-V transformer and ASC protection.
Features
Mount it once and forget it. The LRC-1100 is a passive line-radiator column engineered for install, with a pre-fitted transformer for 70- or 100-volt lines. EV's patented Automatic Saturation Compensation preserves low-frequency response and protects the electronics from improper loads, regardless of how many speakers hang on the line. The included bracket aims flush, tilted, inverted, or panned to match the wall. Mains, support, foreground, or background — one tidy column covers the part.
- Drops onto distributed lines — pre-installed transformer for 70- or 100-volt systems.
- Protects the system — patented ASC preserves low end and guards electronics against improper loads.
- Aims almost any way — included bracket handles flush, downtilt, up-tilt (inverted), and pan.
- Blends in — sleek, neutral industrial column that suits mains, support, foreground, or background.
- Best with Dynacord — dedicated presets on Dynacord DSP matrix processors and amplifiers tune output and protection.
Specifications
Overview & Features
- Configuration
Twelve 2.5" active drivers with PaSS phase plugs; three 2.5" and six 6.5" passive radiators
Acoustic Performance
- Max SPL
126
- Frequency Response
-2 4
- Frequency Range (-10 dB)
65
- Coverage angle (H)
130
- Coverage angle (V)
40
