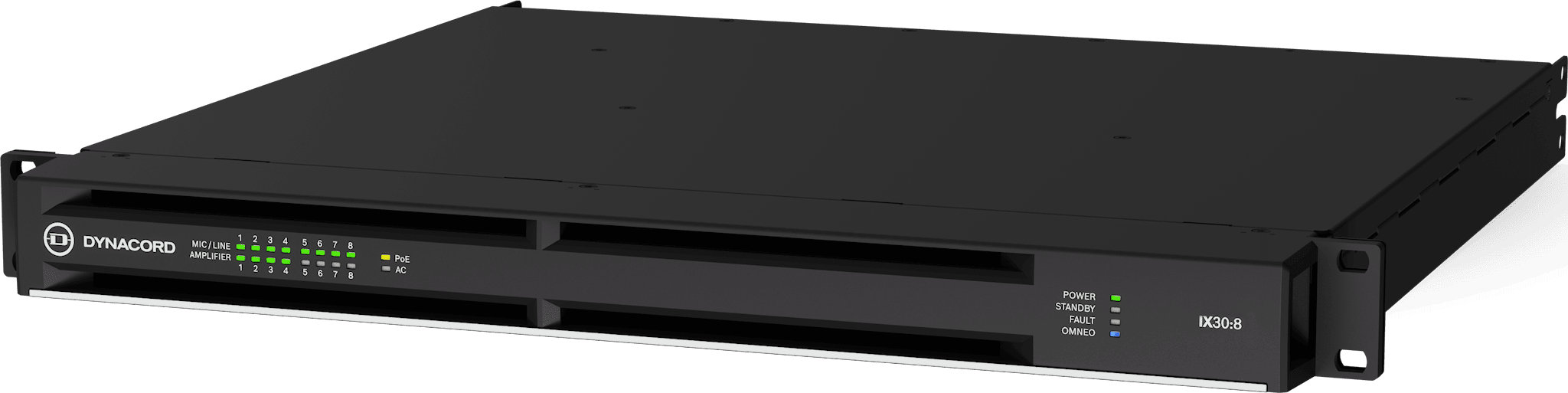

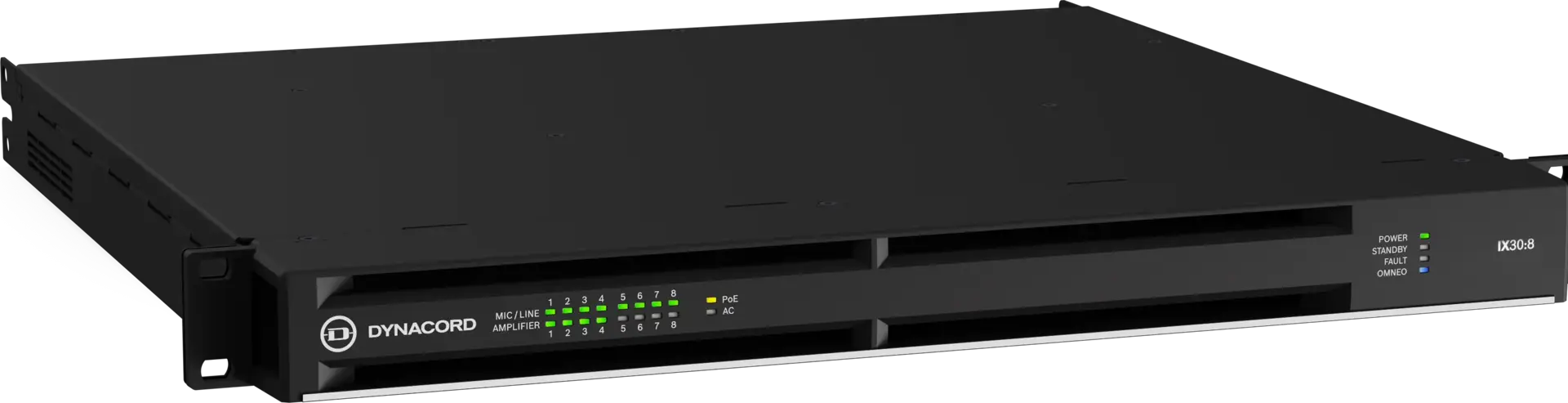

IX30:8 8-channel DSP power amplifier, 3 kW
IX30:8
EIGHT CHANNELS. ONE ENGINE.
An 8-channel networked DSP amplifier with 3 kW total output, a 16 x 16 matrix mixer, and SONICUE control.
IX30:8 8-channel DSP power amplifier, 3 kW
An 8-channel networked DSP install amplifier delivering 3,000 W total, with powerTANK power sharing , 8 mic/line inputs, a 16x16 matrix and FIR-Drive procesing in a single rack unit.
Cover more zones from one rack unit. The IX30:8 spreads 3 kW across eight channels, backed by a native 96 kHz DSP, a 16 x 16 matrix mixer, Dynacord FX, and FIR-Drive — with eight Dante inputs, eight Dante outputs, and eight mic/line inputs. powerTANK drives Hi-Z or Lo-Z without a mode switch. ghostPOWER over PoE keeps the DSP and network alive when mains drops, and ecoRAIL trims the draw. Multi-zone retail, transit, worship, hospitality.
Key features
Eight channels, one box
3 kW total with a 16 x 16 matrix mixer for multi-zone routing.
powerTANK power sharing
One power budget for the whole amplifier — powerTANK shares the total output across channels, so any channel can draw more when it needs it.
Hi-Z or Lo-Z drive per channel
Select constant-voltage or low-impedance operation for each channel — no bridging required for 100 V lines.
Wide I/O
8 Dante mic/line inputs usable as Dante break-in points, and 8 Dante outputs.
Stay up when mains drops
ghostPOWER over PoE holds the DSP, network, and inputs active.
Run lean
patented ecoRAIL technology trims energy draw, with idle/eco mode at 40 W.
Control from the wall
runs as a SONICUE control server for the WPN1 wall controller, TPC-1, iOS, and Windows devices.
Multichannel networked DSP amplifiers
IX Series Amplifiers
Complete the System
Where this unit fits, and what it pairs with.
Features
The IX30:8 is a 8-channel networked DSP amplifier with 3.0 kW total output power. Capable of driving Hi-Z or Lo-Z loads with powerTANK technology, it is ideal for a wide range of applications including sports venues, houses of worship, live performance spaces and hospitality. Featuring eight (8) Dante inputs, eight (8) Dante outputs and eight (8) mic/line inputs that can be used as Dante break-in points. The natively operating 96 kHz DSP features a fully equipped 16 x 16 matrix mixer, EQs, dynamics, Dynacord FX and FIR-Drive capability. All 16 inputs feature pilot-tone detection, while the eight (8) Dante and eight (8) amplifier outputs allow to add pilot tones up to 30 kHz. Dynacord‘s patented ecoRAIL technology for optimizing energy consumption. ghostPOWER via POE maintains the entire DSP, the Dante network and all mic/line inputs active, independent of the mains power. The integrated MXEstyle TaskEngine allows for system automation, scheduling, control, and integration to third party devices. IX series is fully integrated in Dynacord‘s SONICUE Sound System Software and can be used as a SONICUE control server, for direct use with the WPN1 wall panel as well as TPC-1, iOS, Android and Windows devices.
- 8-channel networked DSP amplifier with 3.0 kW powerTANK for Hi-Z and Lo-Z operation
- 8 x 8 Dante with OCA/AES70 remote control, 8 mic/line inputs usable as Dante break-in
- 96 kHz fully featured DSP matrix mixer and MXE-style TaskEngine for system logic, automation, scheduling and integration
- ghostPOWER via PoE to maintain DSP, Dante network and mic/line inputs
- High efficiency ecoRAIL technology for lower operating costs
Specifications
Overview & Features
- Configuration
8-channel
Acoustic Performance
- Frequency Response
20 Hz to 20 kHz (±1 dB)
- THD+N
<0.1 %
- Crosstalk between channels (dBA)
< -80 dB
Power & Amplification
- Total Output Power*
3000 W
- Bridged Output Power 4 Ω
750 W
