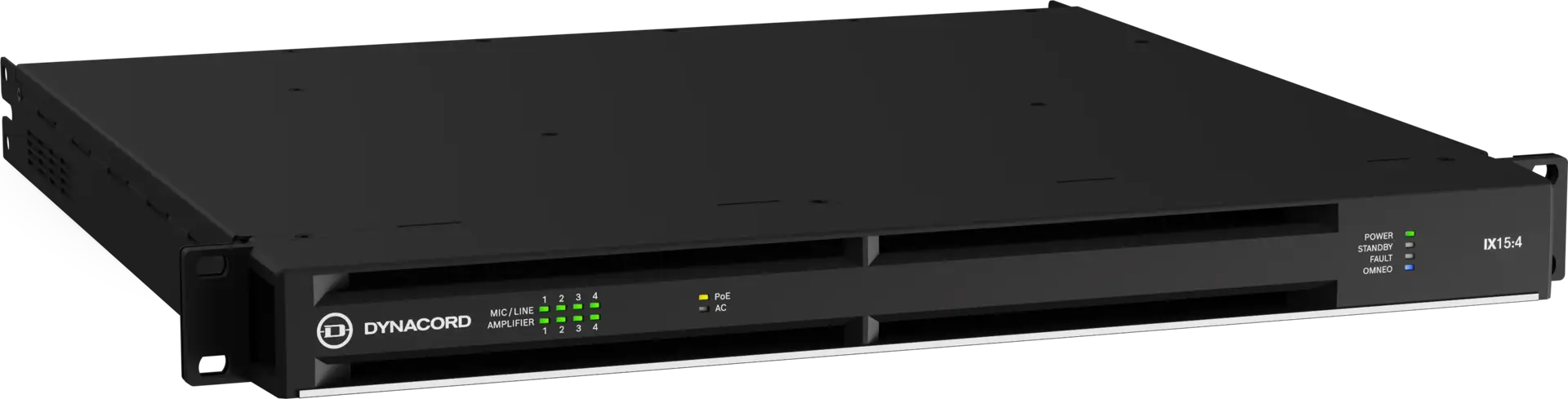

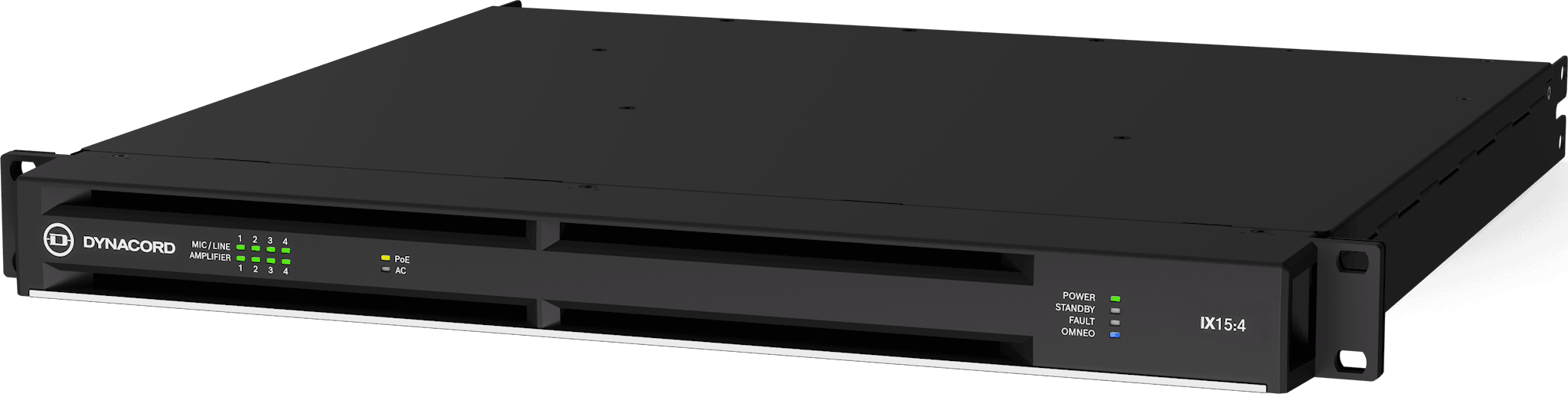

IX15:4 4-channel DSP power amplifier, 1.5 kW
IX15:4
AMP, MIXER, AND BRAIN. ONE BOX.
A 4-channel networked DSP amplifier with 1.5 kW total output, a 12 x 12 matrix mixer, and SONICUE control.
IX15:4 4-channel DSP power amplifier, 1.5 kW
A 4-channel networked DSP install amplifier delivering 1,500 W total, with powerTANK power sharing, mic/line inputs, matrix mixer and FIR-Drive processing in a single rack unit.
Run the whole signal chain from one rack unit. The IX15:4 pairs 1.5 kW of powerTANK output with a native 96 kHz DSP, a 12 x 12 matrix mixer, Dynacord FX, and FIR-Drive — fed by eight Dante inputs, eight Dante outputs, and four mic/line inputs. powerTANK drives Hi-Z or Lo-Z without a mode switch. ghostPOWER over PoE keeps the DSP, the network, and the inputs alive when mains drops. Sports venue, house of worship, hospitality, live room.
Key features
One box, whole chain
1.5 kW amplification, 12 x 12 matrix mixer, FX, and FIR-Drive in 1 RU.
powerTANK power sharing
One power budget for the whole amplifier — powerTANK shares the total output across channels, so any channel can draw more when it needs it.
Hi-Z or Lo-Z drive per channel
Select constant-voltage or low-impedance operation for each channel — no bridging required for 100 V lines.
Wide I/O
8 Dante inputs, 8 Dante outputs, and 4 mic/line inputs usable as Dante break-in points.
Stay up when mains drops
ghostPOWER over PoE holds the DSP, network, and inputs active.
Run lean
patented ecoRAIL technology trims energy draw, with idle/eco mode at 26 W.
Automate the building
the integrated MXEstyle TaskEngine handles scheduling, automation, and third-party device integration.
Multichannel networked DSP amplifiers
IX Series Amplifiers
Complete the System
Where this unit fits, and what it pairs with.
Features
The IX15:4 is a 4-channel networked DSP amplifier with 1.5 kW total output power. Capable of driving Hi-Z or Lo-Z loads with powerTANK technology, it is ideal for a wide range of applications including sports venues, houses of worship, live performance spaces and hospitality. Featuring eight (8) Dante inputs, eight (8) Dante outputs and four (4) mic/line inputs that can be used as Dante break-in points. The natively operating 96 kHz DSP features a fully equipped 12 x 12 matrix mixer, EQs, dynamics, Dynacord FX and FIR-Drive capability. All 12 inputs feature pilot-tone detection, while the eight (8) Dante and four (4) amplifier outputs allow to add pilot tones up to 30 kHz. Dynacord‘s patented ecoRAIL technology for optimizing energy consumption. ghostPOWER via POE maintains the entire DSP, the Dante network and all mic/line inputs active, independent of the mains power. The integrated MXEstyle TaskEngine allows for system automation, scheduling, control, and integration to third party devices. IX series is fully integrated in Dynacord‘s SONICUE Sound System Software and can be used as a SONICUE control server, for direct use with the WPN1 wall panel as well as TPC-1, iOS, Android and Windows devices.
- 4-channel networked DSP amplifier with 1.5 kW powerTANK for Hi-Z and Lo-Z operation
- 8 x 8 Dante with OCA/AES70 remote control, 4 mic/line inputs usable as Dante break-in
- 96 kHz fully featured DSP matrix mixer and MXE-style TaskEngine for system logic, automation, scheduling and integration
- ghostPOWER via PoE to maintain DSP, Dante network and mic/line inputs
- High efficiency ecoRAIL technology for lower operating costs
Specifications
Overview & Features
- Configuration
4-channel
Acoustic Performance
- Frequency Response
20 Hz to 20 kHz (±1 dB)
- THD+N
<0.1 %
- Crosstalk between channels (dBA)
< -80 dB
Power & Amplification
- Total Output Power*
1500 W
- Bridged Output Power 4 Ω
750 W
