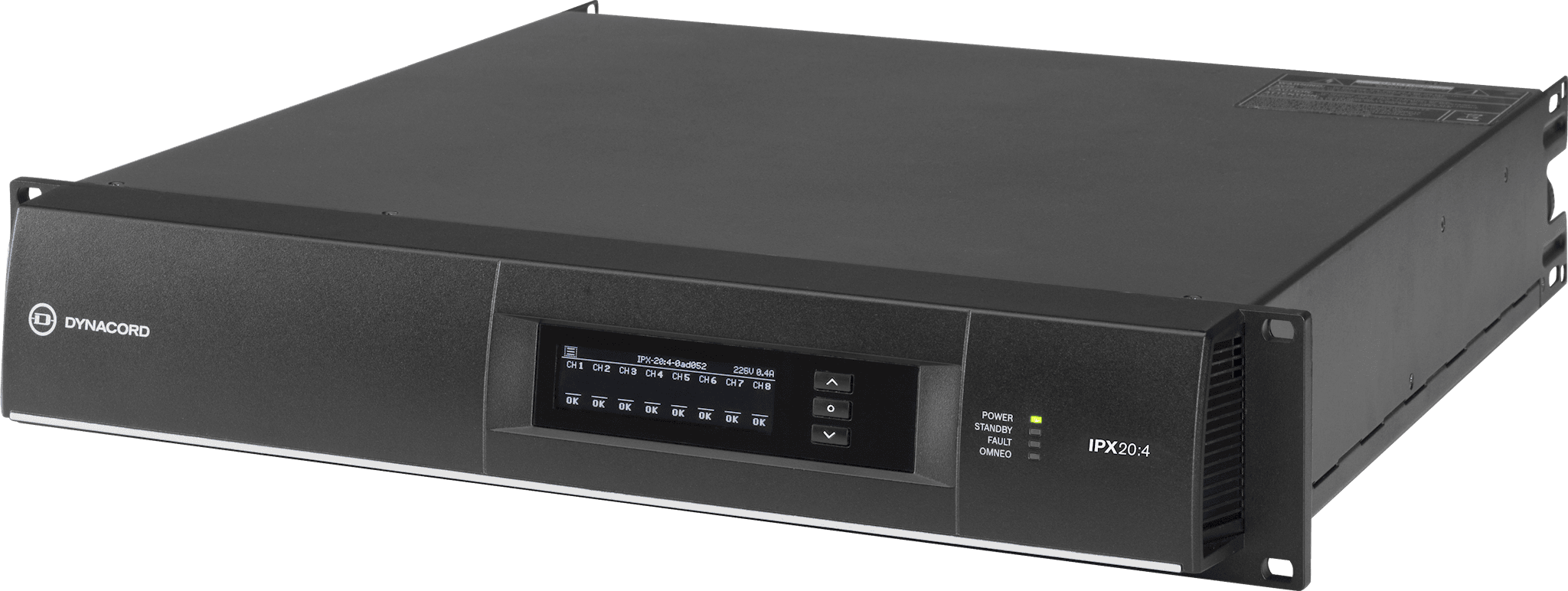

IPX20:4 DSP power amplifier, install
IPX20:4 DSP power amplifier, install
A 4-channel install DSP power amplifier rated 4 x 5000 W, with 96 kHz FIR Drive processing and OCA/Dante networking.
Drive the big room from one rack space. The IPX20:4 puts out 5000 W per channel into 4 ohms, switches each output to Low-Z or 70/100/140 V direct drive, and runs 48/96 kHz processing over OMNEO/Dante. FIR-Drive linear-phase filters, per-channel limiters, and impedance load monitoring keep the system honest. Signal latency stays at 0.70 ms, so timing never becomes the problem. Stadium, transit hub, performing-arts center, house of worship — high output where the install demands it.
Key features
Power the room
5000 W per channel into 4 ohms across four outputs in a single rack space.
Drive Low-Z or constant-voltage
per-channel 70/100/140 V direct drive, no external transformers.
Network-native audio
48/96 kHz processing over OMNEO/Dante with redundant connection.
Tune the loudspeaker, not around it
FIR-Drive up to 1025 taps with per-channel peak and RMS limiters.
Know the load
built-in impedance measurement and pilot-tone supervision flag a fault before it spreads.
Keep the noise floor low
118 dB signal-to-noise A-weighted at the digital input, with THD under 0.05%.
Short introduction
IPX Series Amplifiers
Complete the System
Where this unit fits, and what it pairs with.
Features
Networked install power with the processing on board. The IPX20:4 drives 4 channels at up to 5000 W each, with a native 96 kHz DSP, FIR Drive up to 1025 taps, and Dante/OCA over OMNEO with fallback for redundancy. Class D output and ecoRAIL keep efficiency high and running costs down, while load monitoring and pilot-tone supervision watch every line. Two rack units. Stadiums, houses of worship, retail, transport hubs, and multi-zone installs that route and process from the amplifier itself.
- Multichannel power: 4 channels at 5000 W/4 Ohms,70V, 100V, or 6000W/2.6 Ohms.
- Processing built in: native 96 kHz DSP with FIR Drive up to 1025 taps.
- Networked audio: Dante / OCA over OMNEO with fallback for redundant routing.
- Watches the system: load monitoring and pilot-tone supervision on every line.
- Efficient by design: Class D output with ecoRAIL power management to cut running cost.
- ghostPOWER keeps DSP and network running to bridged mainspower switching in mission critical systems
Specifications
Overview & Features
- Configuration
4-channel
Acoustic Performance
- Frequency Response
20 Hz to 20 kHz (±1.0 dB)
- THD+N
< 0.05 %
- Crosstalk between channels (dBA)
< -80 dB
Power & Amplification
- Total Output Power*
20.000 W
- Bridged Output Power 4 Ω
n.a.
