EVOLVE 90 Column Loudspeaker System
Powered Column System
BIGGER ROOM. SAME EASY SETUP.
An 18-inch column system with the throw, coverage, and output for crowds of 300 to 500 and up.
EVOLVE 90 Column Loudspeaker System
An 18-inch column system with the throw, coverage, and output for crowds of 300 to 500 and up.

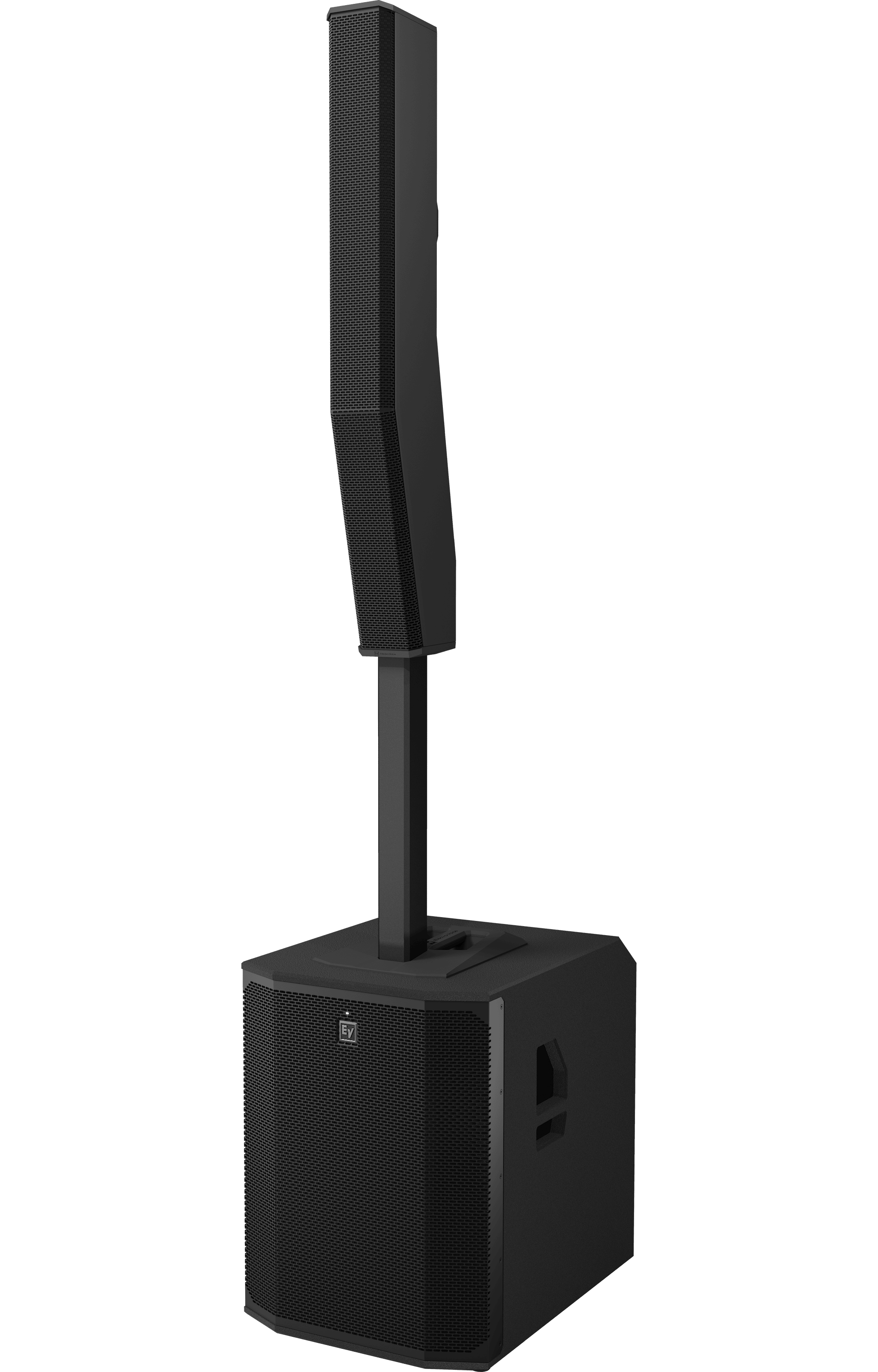

Take the EVOLVE sound to a bigger floor. The EVOLVE 90 pairs an 18-inch subwoofer with eight 4.7-inch neodymium drivers for 134 dB peak SPL, 120° x 25° coverage, and reach for larger shows. A 2,000 W Class-D amp, four sound modes, and XLR/TRS, RCA, AES/EBU, and Bluetooth inputs cover any source. Control it from the QuickSmart App alongside other EVOLVE speakers. DJ sets, live bands, productions, big rooms. Set up fast, fill the space.
Key Features
Fill a Bigger Room
18-inch sub and eight 4.7-inch drivers hit 134 dB peak SPL.
Reach the Back
120° x 25° waveguide coverage with longer throw for crowds of 300 to 500-plus.
Power on Tap
2,000 W Class-D amp, split 1,000 W LF and 1,000 W HF.
Plug in Anything
Dual XLR/TRS combo, stereo RCA, AES/EBU, and Bluetooth TWS streaming.
Run the Whole Rig
QuickSmart App control with four modes and EVOLVE system linking.
Dig Down to 35 Hz
18-inch cast-frame woofer with a 4-inch voice coil holds response to 35 Hz at -3 dB.
Features
Take the EVOLVE sound to a bigger floor. The EVOLVE 90 pairs an 18-inch subwoofer with eight 4.7-inch neodymium drivers for 134 dB peak SPL, 120° x 25° coverage, and reach for larger shows. A 2,000 W Class-D amp, four sound modes, and XLR/TRS, RCA, AES/EBU, and Bluetooth inputs cover any source. Control it from the QuickSmart app alongside other EVOLVE speakers. DJ sets, live bands, productions, big rooms — set up fast, fill the space.
- Fill a bigger room — 18-inch sub and eight 4.7-inch drivers hit 134 dB peak SPL.
- Reach the back — 120° x 25° waveguide coverage with longer throw for crowds of 300 to 500-plus.
- Power on tap — 2,000 W Class-D amp, split 1,000 W LF and 1,000 W HF.
- Plug in anything — dual XLR/TRS combo, stereo RCA, AES/EBU, and Bluetooth TWS streaming.
- Run the whole rig — QuickSmart app control with four modes and EVOLVE system linking.
Specifications
Acoustic Performance
- Max SPL
134
- Frequency Response
35 Hz – 18,000 Hz
- Frequency Range (-10 dB)
28 Hz – 20,000 Hz
- Coverage Angle
120 × 25
Power & Amplification
- Powered
true
- Total Output Power*
2000 W
