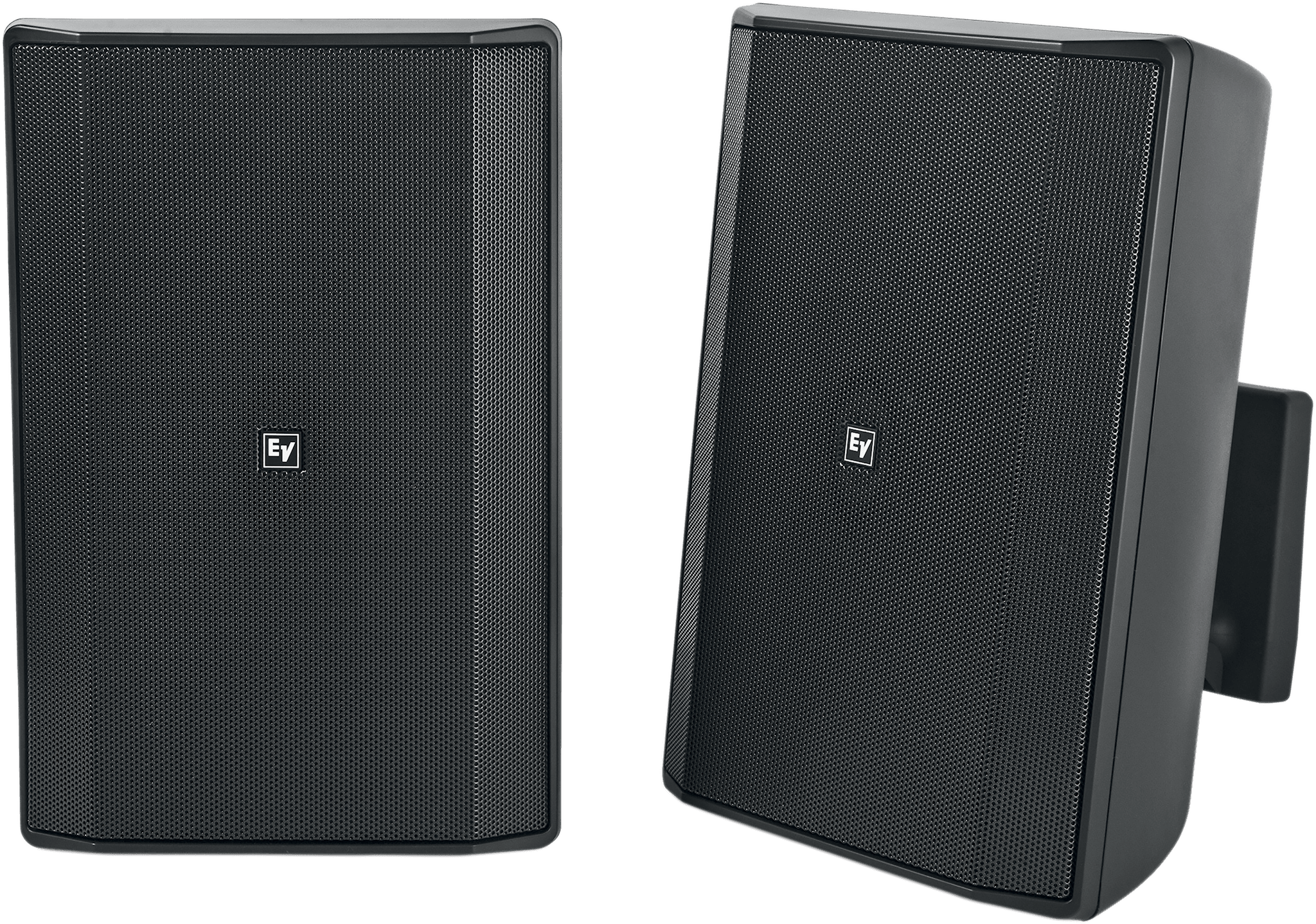

EVID-S8.2T speaker 8” cabinet 70/100V pair
EVID-S8.2TB
BIG ROOM. ONE LINE.
The 70/100 V version of the 8-inch EVID surface speaker, set for high-power distributed zones.
EVID-S8.2T speaker 8” cabinet 70/100V pair
The 70/100 V version of the 8-inch EVID surface speaker, set for high-power distributed zones.
Drive a large zone straight off a constant-voltage line. The EVID-S8.2TB adds a 60 W transformer to the two-way 8-inch box, with 7.5 W, 15 W, 30 W, or 60 W taps for 70 V or 100 V — plus 8-ohm bypass — set from a rear switch. It reaches 50 Hz to 20 kHz with a wide 90-by-90-degree pattern, goes up fast on the pre-assembled swiveling mount, and carries IP54 for the outdoors. Right for big retail and hospitality.
Key features
Drive a big zone
60 W transformer with 7.5/15/30/60 W taps for 70 V or 100 V, plus 8-ohm bypass.
Set it fast
tap and bypass selection on a rear switch.
Reach low and wide
8-inch two-way design, 50 Hz to 20 kHz, 90-by-90-degree pattern.
Install fast
pre-assembled mount swings 90 degrees horizontal, 45 vertical, wall or ceiling.
Put it outside
IP54 against sun, salt, and moisture; black, paintable, sold in pairs.
Page the whole floor
designed for paging and sound reinforcement alongside background and foreground music.
Explore the Full EVID-S Range
The full EVID wall-mount range — S-Series cabinets, all-weather models, subwoofers, and the classic EVID line — on the Surface-Mount Speakers page.
Features
Drive a large zone straight off a constant-voltage line. The EVID-S8.2TB adds a 60 W transformer to the two-way 8-inch box, with 7.5 W, 15 W, 30 W, or 60 W taps for 70 V or 100 V — plus 8-ohm bypass — set from a rear switch. It reaches 50 Hz to 20 kHz with a wide 90-by-90-degree pattern, goes up fast on the pre-assembled swiveling mount, and carries IP54 for the outdoors. Right for big retail and hospitality.
- Drive a big zone — 60 W transformer with 7.5/15/30/60 W taps for 70 V or 100 V, plus 8-ohm bypass.
- Set it fast — tap and bypass selection on a rear switch.
- Reach low and wide — 8-inch two-way design, 50 Hz to 20 kHz, 90-by-90-degree pattern.
- Install fast — pre-assembled mount swings 90 degrees horizontal, 45 vertical, wall or ceiling.
- Put it outside — IP54 against sun, salt, and moisture; black, paintable, sold in pairs.
Specifications
Identification
- Series / Family
EVID SURFACE
- Material Number
F.01U.332.742
