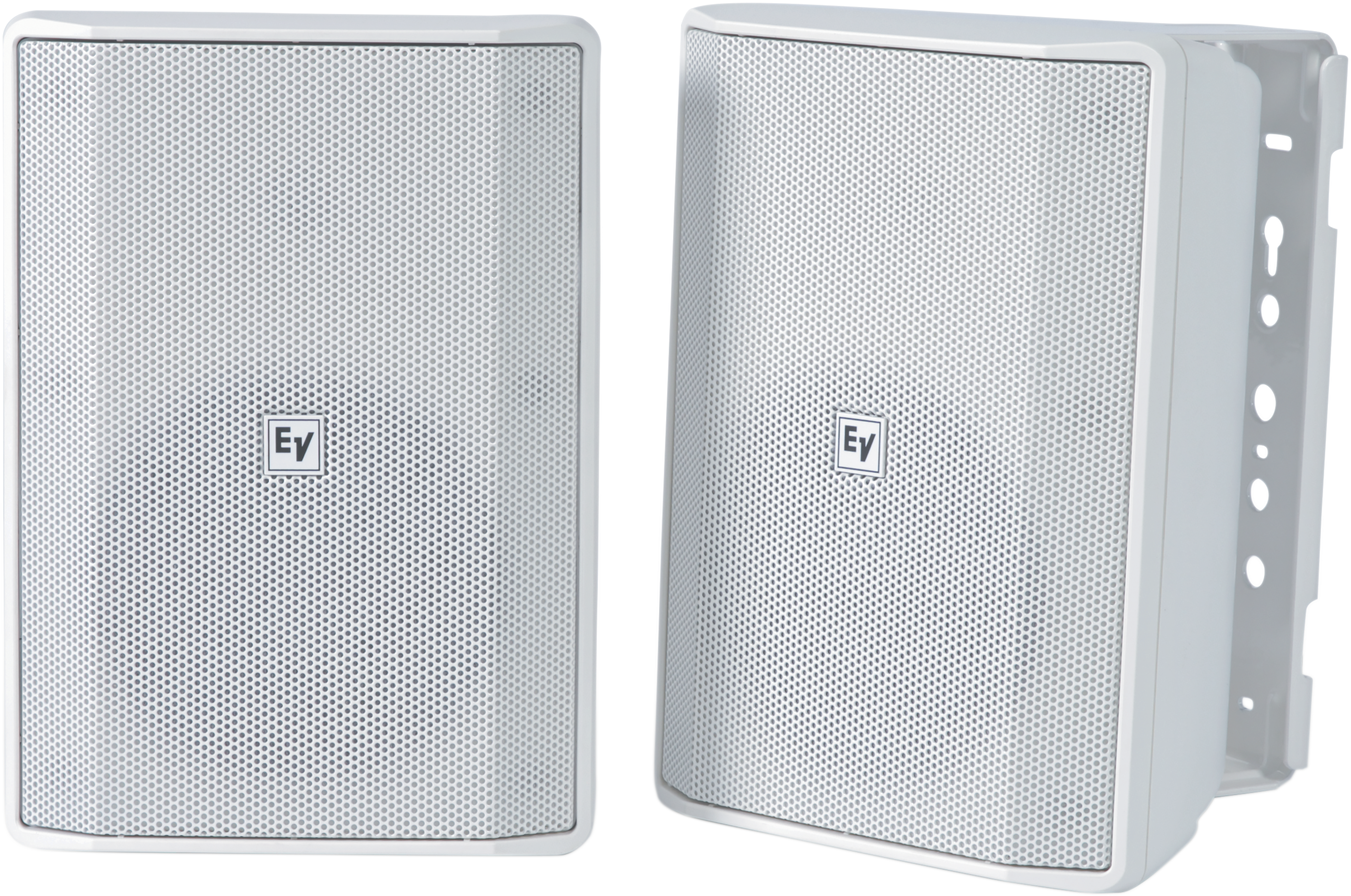

EVID-S5.2X speaker 5” cabinet 70/100V IP65
EVID-S5.2X speaker 5” cabinet 70/100V IP65
An IP65 5.25-inch surface speaker with a marine-grade grille for the harshest outdoor sites.
Put real sound where the weather is brutal. The EVID-S5.2XB takes the two-way 5.25-inch design to IP65, with a marine-grade aluminum grille against sun, salt, and moisture on a seafront, poolside, or exposed site. It reaches 55 Hz to 20 kHz at 75 W continuous, 300 W peak, and covers voice evacuation, music, and paging. A 60 W transformer taps 8/15/30/60 W on 70 V or 100 V plus 8-ohm bypass; the U-bracket swings 80 degrees. Black, sold in pairs.
Key features
Survive the elements
IP65 rating and a marine-grade aluminum grille against sun, salt, and moisture.
Carry the program outdoors
55 Hz to 20 kHz, 75 W continuous, 300 W peak, up to 114 dB peak SPL.
Cover evacuation too
rated for voice evacuation, paging, and music.
Tap to any line
60 W transformer with 8/15/30/60 W taps for 70 V or 100 V, plus 8-ohm bypass.
Aim it on site
included U-bracket swings through 80 degrees; black, paintable, sold in pairs.
Spread sound evenly
wide, uniform dispersion from the two-way 5.25-inch design.
Explore the Full EVID-S Range
The full EVID wall-mount range — S-Series cabinets, all-weather models, subwoofers, and the classic EVID line — on the Surface-Mount Speakers page.
Features
Put real sound where the weather is brutal. The EVID-S5.2XB takes the two-way 5.25-inch design to IP65, with a marine-grade aluminum grille against sun, salt, and moisture on a seafront, poolside, or exposed site. It reaches 55 Hz to 20 kHz at 75 W continuous, 300 W peak, and covers voice evacuation, music, and paging. A 60 W transformer taps 8/15/30/60 W on 70 V or 100 V plus 8-ohm bypass; the U-bracket swings 80 degrees. Black, sold in pairs.
- Survive the elements — IP65 rating and a marine-grade aluminum grille against sun, salt, and moisture.
- Carry the program outdoors — 55 Hz to 20 kHz, 75 W continuous, 300 W peak, up to 114 dB peak SPL.
- Cover evacuation too — rated for voice evacuation, paging, and music.
- Tap to any line — 60 W transformer with 8/15/30/60 W taps for 70 V or 100 V, plus 8-ohm bypass.
- Aim it on site — included U-bracket swings through 80 degrees; black, paintable, sold in pairs.
Specifications
Construction & Materials
- Color
Black (RAL 9004) or white (RAL 9003)
Identification
- Series / Family
EVID SURFACE
- Material Number
F.01U.332.738
