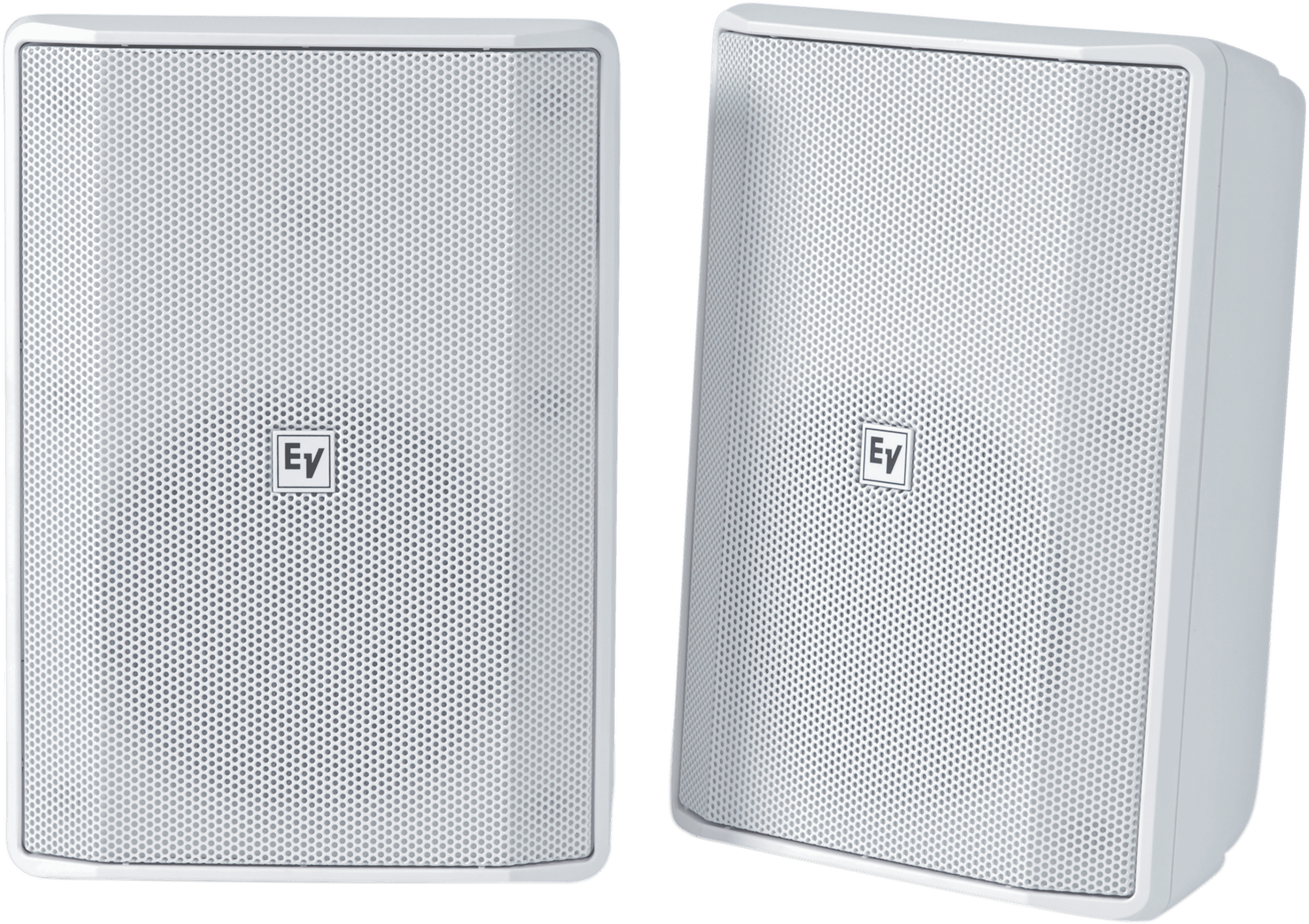

EVID-S5.2T speaker 5” cabinet 70/100V pair
EVID-S5.2T speaker 5” cabinet 70/100V pair
The 70/100 V version of the 5.25-inch EVID surface speaker, with a switch for every distributed line.
Cover a bigger zone straight off a constant-voltage line. The EVID-S5.2TW adds a 30 W transformer to the two-way 5.25-inch box, with 3.7 W, 7.5 W, 15 W, or 30 W taps for 70 V or 100 V — plus 8-ohm bypass — set from a rear switch. It reaches 60 Hz to 20 kHz with a wide 90-by-90-degree pattern, goes up fast on the pre-assembled swiveling mount, and carries IP54 for the outdoors. White finish for a bright space.
Key features
Tap to the zone
30 W transformer with 3.7/7.5/15/30 W taps for 70 V or 100 V, plus 8-ohm bypass.
Set it fast
tap and bypass selection on a rear switch.
Cover wide and even
two-way 5.25-inch design, 60 Hz to 20 kHz, 90-by-90-degree pattern.
Install fast
pre-assembled mount swings 90 degrees horizontal, 45 vertical, wall or ceiling.
Blend into bright rooms
white, paintable, IP54 against sun, salt, and moisture; sold in pairs.
Round out the install
optional WC-58W weather input cover (IP65), plus an SMS-TR-5 threaded-rod adapter.
Explore the Full EVID-S Range
The full EVID wall-mount range — S-Series cabinets, all-weather models, subwoofers, and the classic EVID line — on the Surface-Mount Speakers page.
Features
Cover a bigger zone straight off a constant-voltage line. The EVID-S5.2TW adds a 30 W transformer to the two-way 5.25-inch box, with 3.7 W, 7.5 W, 15 W, or 30 W taps for 70 V or 100 V — plus 8-ohm bypass — set from a rear switch. It reaches 60 Hz to 20 kHz with a wide 90-by-90-degree pattern, goes up fast on the pre-assembled swiveling mount, and carries IP54 for the outdoors. White finish for a bright space.
- Tap to the zone — 30 W transformer with 3.7/7.5/15/30 W taps for 70 V or 100 V, plus 8-ohm bypass.
- Set it fast — tap and bypass selection on a rear switch.
- Cover wide and even — two-way 5.25-inch design, 60 Hz to 20 kHz, 90-by-90-degree pattern.
- Install fast — pre-assembled mount swings 90 degrees horizontal, 45 vertical, wall or ceiling.
- Blend into bright rooms — white, paintable, IP54 against sun, salt, and moisture; sold in pairs.
Specifications
Identification
- Series / Family
EVID SURFACE
- Material Number
F.01U.332.737
