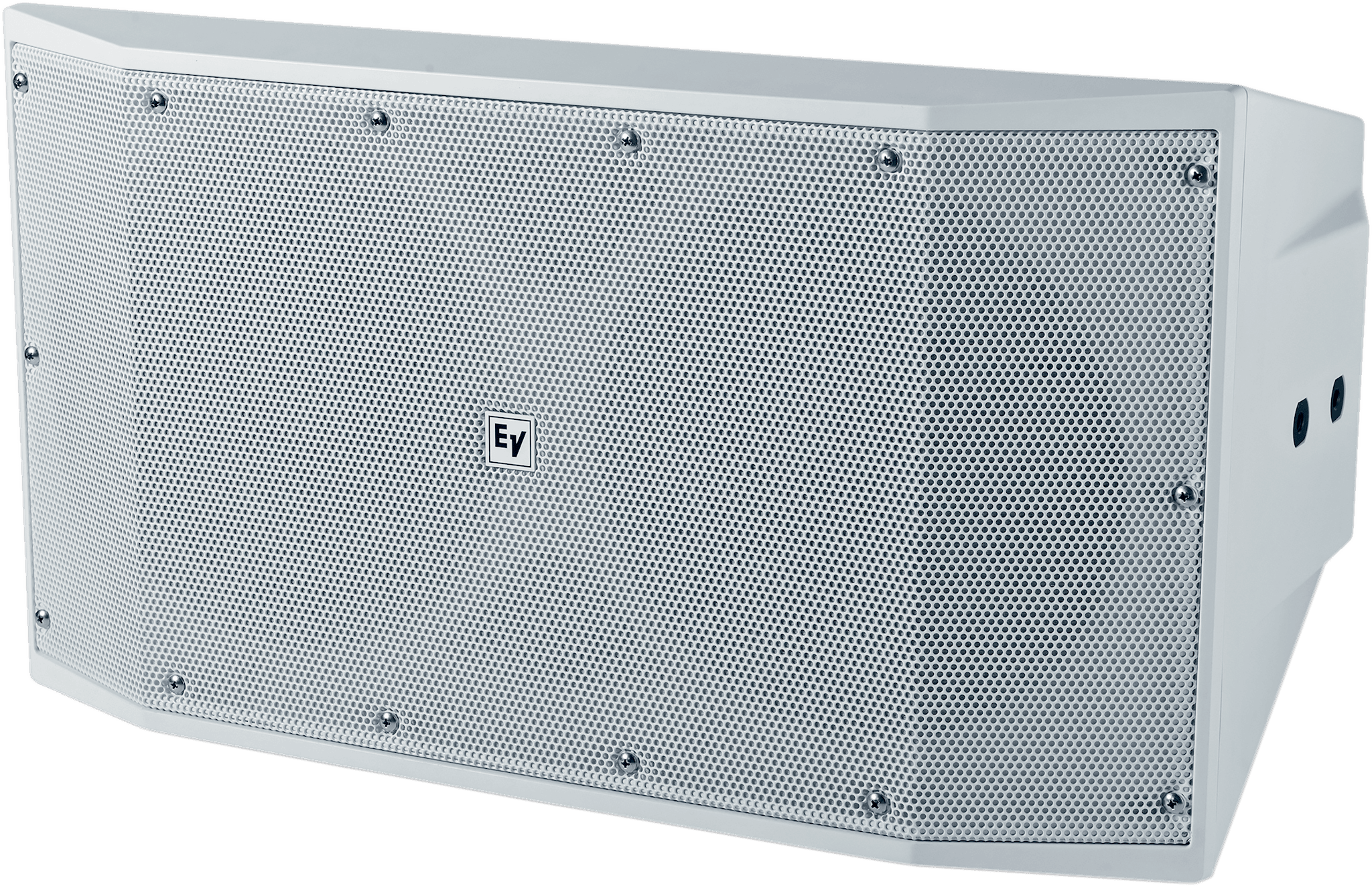

EVID-S10.1D subwoofer 2x10" cabinet
EVID-S10.1D subwoofer 2x10" cabinet
A compact dual-10-inch surface-mount subwoofer that anchors indoor and outdoor music systems.
Add the low end a room is missing without giving up the floor. The EVID-S10.1DW pairs two 10-inch woofers in a compact cabinet — 400 W continuous, 1,600 W peak — and runs stereo at 8 ohms or mono at 4 ohms from a rear switch. It ships at IP54 and steps up to IP65 with the included port plugs, so a patio, poolside bar, or theme-park midway gets clean bass through sun, salt, and moisture.
Key features
Anchor the system
two 10-inch woofers handle 400 W continuous, 1,600 W peak pink noise.
Wire it your way
stereo at 8 ohms or mono at 4 ohms, set by a rear switch.
Take it outdoors
IP54 out of the box, IP65 with the included port plugs against sun, salt, and moisture.
Mount it anywhere
fly from M10 points or add the optional U-bracket; tested to an 8:1 safety factor.
Match the space
black or white polypropylene enclosure, paintable to the decor.
Loop out to satellites
dual 4-pin detachable Euroblocks bring the signal in and send a feed on to satellite speakers.
Explore the Full EVID-S Range
The full EVID wall-mount range — S-Series cabinets, all-weather models, subwoofers, and the classic EVID line — on the Surface-Mount Speakers page.
Features
Add the low end a room is missing without giving up the floor. The EVID-S10.1DW pairs two 10-inch woofers in a compact cabinet — 400 W continuous, 1,600 W peak — and runs stereo at 8 ohms or mono at 4 ohms from a rear switch. It ships at IP54 and steps up to IP65 with the included port plugs, so a patio, poolside bar, or theme-park midway gets clean bass through sun, salt, and moisture.
- Anchor the system — two 10-inch woofers handle 400 W continuous, 1,600 W peak pink noise.
- Wire it your way — stereo at 8 ohms or mono at 4 ohms, set by a rear switch.
- Take it outdoors — IP54 out of the box, IP65 with the included port plugs against sun, salt, and moisture.
- Mount it anywhere — fly from M10 points or add the optional U-bracket; tested to an 8:1 safety factor.
- Match the space — black or white polypropylene enclosure, paintable to the decor.
Specifications
Mounting & Rigging
- Suspension / Rigging
four M10 fly points on top and one M10 safety point on the back
Dimensions & Weight
- Dimension height (mm)
632.0
- Dimension width (mm)
532.3
Identification
- Series / Family
EVID SURFACE
- Material Number
F.01U.332.745
