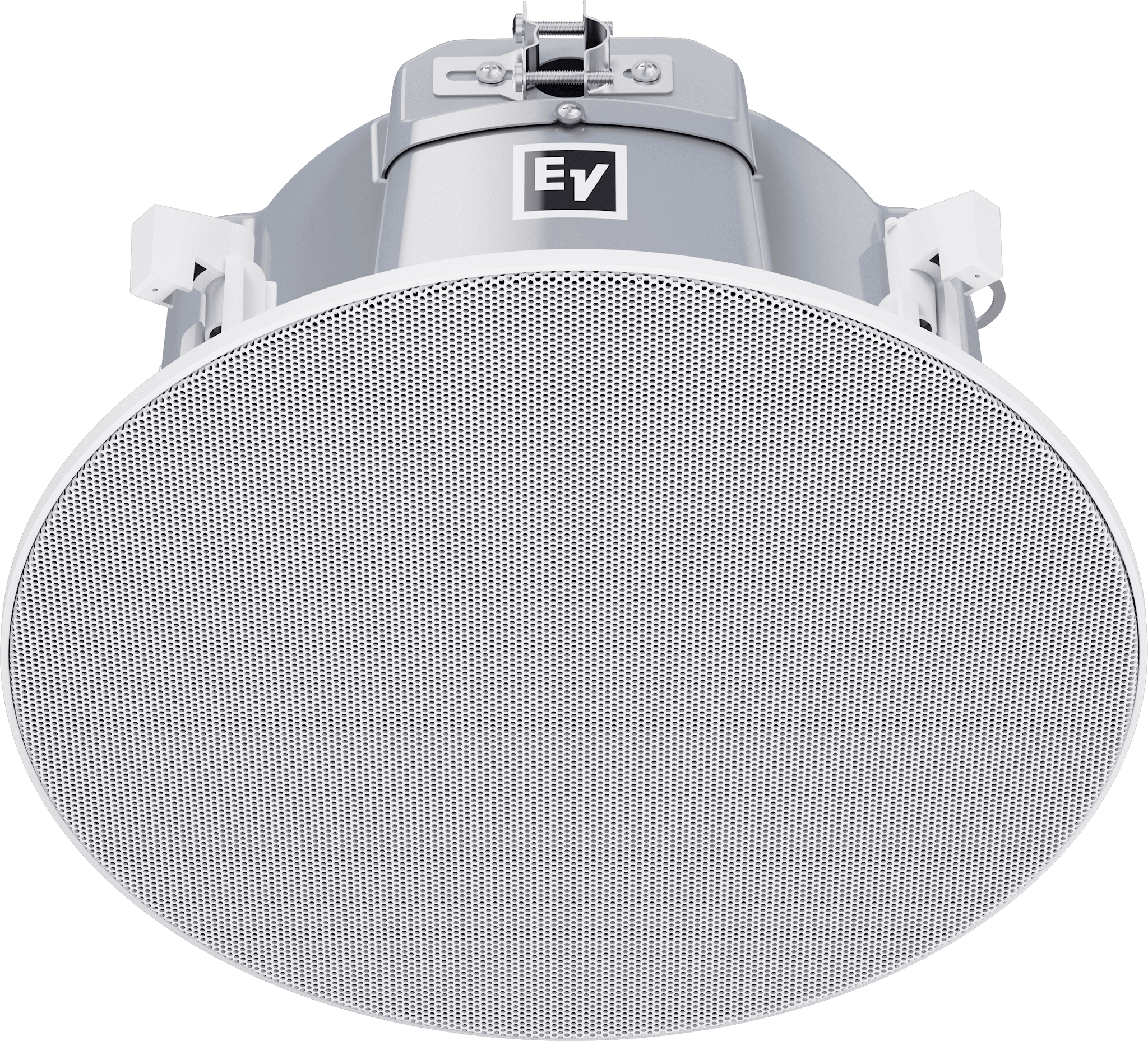

EVID-EC6.2E Ceiling speaker 6.5" EVAC white
EVID-EC6.2E Ceiling speaker 6.5" EVAC white
An EVAC-certified 6.5-inch coaxial ceiling loudspeaker for life-safety voice and everyday music.
Specify one speaker for music and for the moment that matters. The EVID-EC6.2E is a 6.5-inch coaxial two-way carrying a 110-degree pattern with 30 W continuous handling, certified to CAN/ULC 541:2023, CSA C22.2 No. 205, and IEC 62368-1 for voice-evacuation duty. A front-baffle switch sets 70 V/100 V taps up to 30 W or 8-ohm bypass, and the EVID install kit makes the drop-in fast. Bezel-less magnetic white grille, back can, tile rails, and mounting ring included.
Key features
Cleared for life safety
certified to CAN/ULC 541:2023, CSA C22.2 No. 205, and IEC 62368-1.
Cover the space wide
6.5-inch coaxial two-way with a 110-degree conical pattern.
Handle the load
30 W continuous, 120 W peak power handling.
Set the tap at the baffle
30/15/7.5/3.75/1.88 W on 70 V/100 V or 8-ohm bypass.
Install clean
bezel-less magnetic white grille with included tile rails and mounting ring, packaged in pairs.
Loop the circuit through
pass-through terminal keeps the speaker run moving — 4-pin Euroblock, up to 12-gauge wire.
Explore the Full EVID-EC Range
Every EVID ceiling format — premium C-G2, essential EC, and all-in-one PC systems — compared side by side on the Ceiling Speakers page.
Features
Specify one speaker for music and for the moment that matters. The EVID-EC6.2E is a 6.5-inch coaxial two-way carrying a 110-degree pattern with 30 W continuous handling, certified to CAN/ULC 541:2023, CSA C22.2 No. 205, and IEC 62368-1 for voice-evacuation duty. A front-baffle switch sets 70 V/100 V taps up to 30 W or 8-ohm bypass, and the EVID install kit makes the drop-in fast. Bezel-less magnetic white grille, back can, tile rails, and mounting ring included.
- Cleared for life safety — certified to CAN/ULC 541:2023, CSA C22.2 No. 205, and IEC 62368-1.
- Cover the space wide — 6.5-inch coaxial two-way with a 110-degree conical pattern.
- Handle the load — 30 W continuous, 120 W peak power handling.
- Set the tap at the baffle — 30/15/7.5/3.75/1.88 W on 70 V/100 V or 8-ohm bypass.
- Install clean — bezel-less magnetic white grille with included tile rails and mounting ring, packaged in pairs.
Specifications
Acoustic Performance
- Max SPL
107
- Frequency Range (-10 dB)
85 Hz – 20,000 Hz
- Coverage Angle (cone)
110
- Sensitivity (1W/1m)
92 dB SPL 1 W, 1 m
Transducers & Drivers
- LF transducer size (in)
6.5 in
- HF transducer size (in)
1 in
