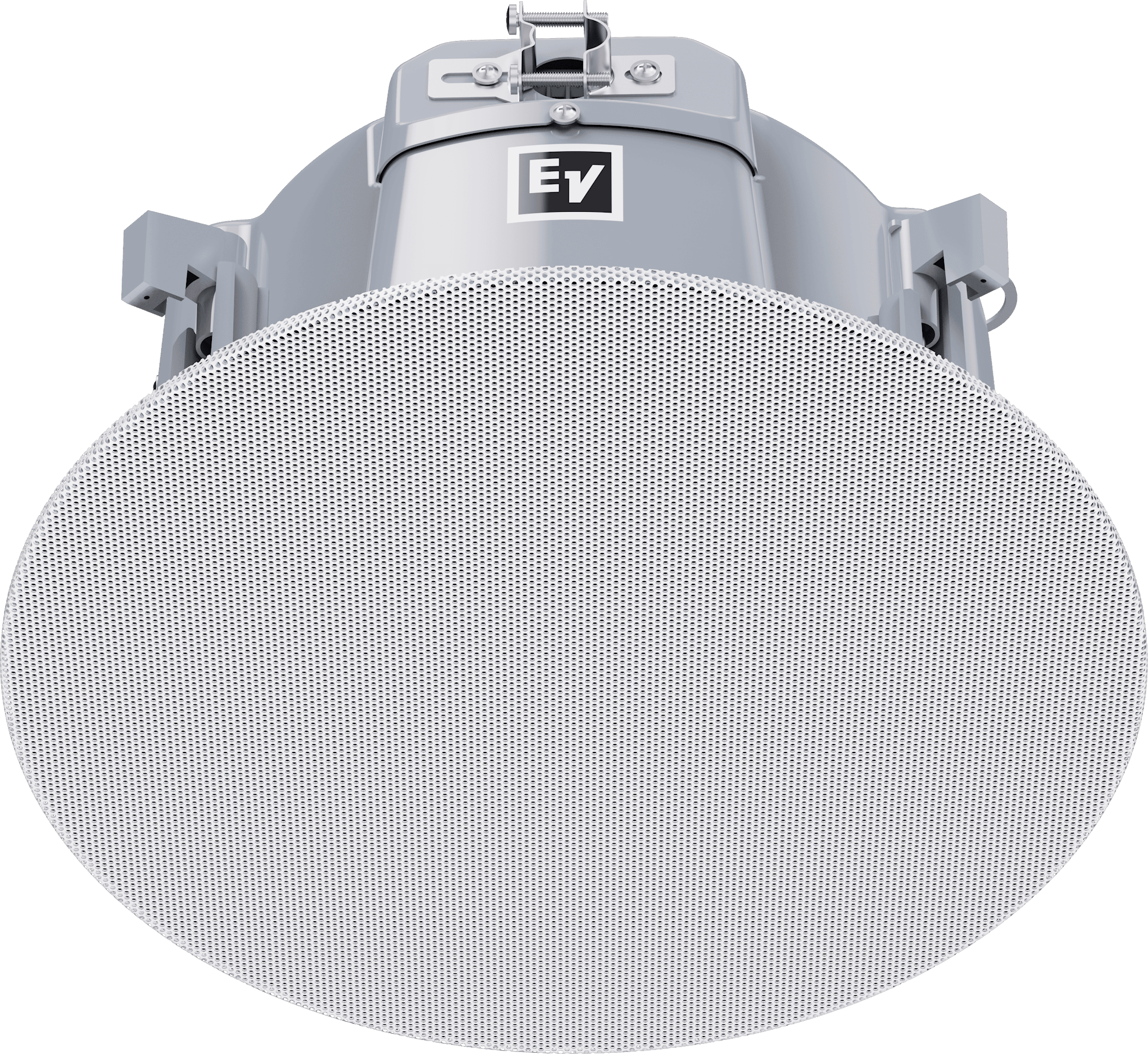

EVID-EC6.2 Ceiling speaker 6.5" 70/100V white
EVID-EC6.2 Ceiling speaker 6.5" 70/100V white
A complete 6.5-inch coaxial entry ceiling loudspeaker for even, full music and clear paging.
Cover a floor with full, even sound and keep the budget honest. The EVID-EC6.2 is a 6.5-inch coaxial two-way working 80 Hz to 20 kHz with 92 dB sensitivity and a 110-degree conical pattern — a clean workhorse for retail, restaurants, and offices. A front-baffle switch sets 70 V/100 V taps up to 30 W or 8-ohm bypass, and the shared EVID kit makes the drop-in fast and safe. Magnetic white grille, back can, and tile rails included.
Key features
Cover wide and even
6.5-inch coaxial two-way with a 110-degree conical pattern.
Run it efficiently
92 dB sensitivity across 80 Hz to 20 kHz.
Set the level fast
30/15/7.5/3.75/1.88 W taps on 70 V/100 V or 8-ohm bypass.
Install clean
bezel-less magnetic white grille with included tile rails and mounting ring.
Pass safety review
UL 1480A, UL 2043 air-handling, and CSA C22.2 No. 205 certified, packaged in pairs.
Hang safe in soft tile
included mounting ring and tile bridge suspend it safely in mineral-wool and fiber-based ceilings.
Explore the Full EVID-EC Range
Every EVID ceiling format — premium C-G2, essential EC, and all-in-one PC systems — compared side by side on the Ceiling Speakers page.
Features
Cover a floor with full, even sound and keep the budget honest. The EVID-EC6.2 is a 6.5-inch coaxial two-way working 80 Hz to 20 kHz with 92 dB sensitivity and a 110-degree conical pattern — a clean workhorse for retail, restaurants, and offices. A front-baffle switch sets 70 V/100 V taps up to 30 W or 8-ohm bypass, and the shared EVID kit makes the drop-in fast and safe. Magnetic white grille, back can, and tile rails included.
- Cover wide and even — 6.5-inch coaxial two-way with a 110-degree conical pattern.
- Run it efficiently — 92 dB sensitivity across 80 Hz to 20 kHz.
- Set the level fast — 30/15/7.5/3.75/1.88 W taps on 70 V/100 V or 8-ohm bypass.
- Install clean — bezel-less magnetic white grille with included tile rails and mounting ring.
- Pass safety review — UL 1480A, UL 2043 air-handling, and CSA C22.2 No. 205 certified, packaged in pairs.
Specifications
Acoustic Performance
- Max SPL
110
- Frequency Range (-10 dB)
80 Hz – 20,000 Hz
- Coverage Angle (cone)
110
- Sensitivity (1W/1m)
92 dB SPL 1 W, 1 m
Transducers & Drivers
- LF transducer size (in)
6.5 in
- HF transducer size (in)
1 in
