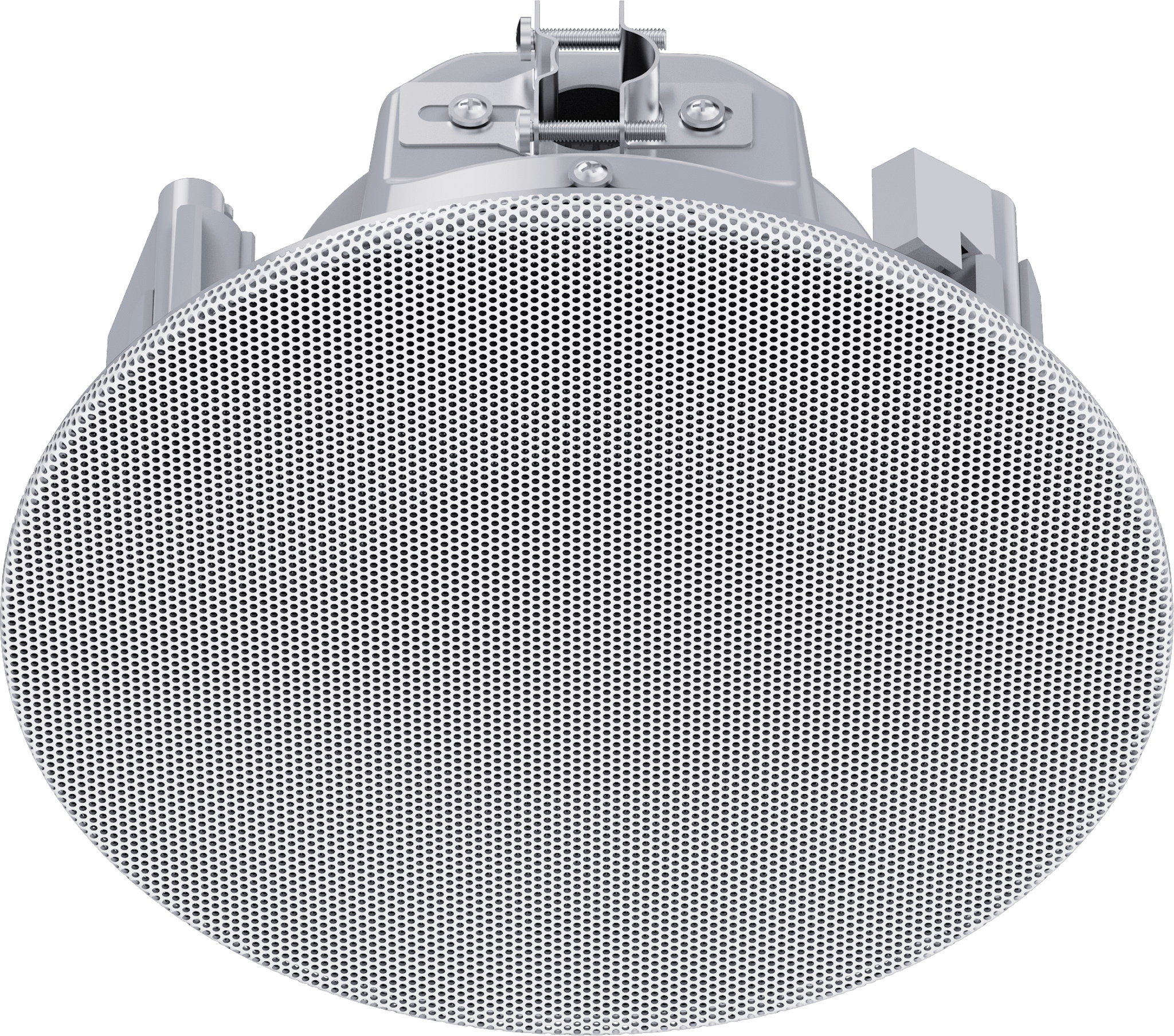

EVID-EC3.1 Ceiling speaker 3" 70/100V white
EVID-EC3.1 Ceiling speaker 3" 70/100V white
A 3-inch full-range entry ceiling loudspeaker for paging, background music, and tidy small-room coverage.
Put clean speech and easy background music into corridors, restrooms, and small offices without overthinking it. The EVID-EC3.1 is a 3-inch full-range driver with a wide 135-degree pattern from 90 Hz to 19 kHz, so coverage stays smooth at low listening levels. A front-baffle switch sets 70 V/100 V taps up to 15 W or 8-ohm bypass, and it shares the EVID ceiling install kit. Bezel-less magnetic white grille, back can, tile rails, and mounting ring all in the box.
Key features
Cover small rooms wide
135-degree conical pattern from a single 3-inch driver.
Keep paging clear
90 Hz to 19 kHz full-range, tuned for speech and background music.
Set the level fast
15/7.5/3.75/1.88/0.9 W taps on 70 V/100 V or 8-ohm bypass.
Drop it in clean
bezel-less magnetic white grille with included tile rails and mounting ring.
Pass safety review
UL 1480A, UL 2043 air-handling, and CSA C22.2 No. 205 certified, packaged in pairs.
Tuck into tight spaces
low-profile heavy-gauge steel back can mounts where plenum depth is scarce.
Explore the Full EVID-EC Range
Every EVID ceiling format — premium C-G2, essential EC, and all-in-one PC systems — compared side by side on the Ceiling Speakers page.
Features
Put clean speech and easy background music into corridors, restrooms, and small offices without overthinking it. The EVID-EC3.1 is a 3-inch full-range driver with a wide 135-degree pattern from 90 Hz to 19 kHz, so coverage stays smooth at low listening levels. A front-baffle switch sets 70 V/100 V taps up to 15 W or 8-ohm bypass, and it shares the EVID ceiling install kit. Bezel-less magnetic white grille, back can, tile rails, and mounting ring all in the box.
- Cover small rooms wide — 135-degree conical pattern from a single 3-inch driver.
- Keep paging clear — 90 Hz to 19 kHz full-range, tuned for speech and background music.
- Set the level fast — 15/7.5/3.75/1.88/0.9 W taps on 70 V/100 V or 8-ohm bypass.
- Drop it in clean — bezel-less magnetic white grille with included tile rails and mounting ring.
- Pass safety review — UL 1480A, UL 2043 air-handling, and CSA C22.2 No. 205 certified, packaged in pairs.
Specifications
Acoustic Performance
- Max SPL
100
- Frequency Range (-10 dB)
90 Hz – 19,000 Hz
- Coverage Angle (cone)
135
- Sensitivity (1W/1m)
84 dB SPL 1 W, 1 m
Transducers & Drivers
- LF transducer size (in)
3 in
Power & Amplification
- Power handling (continuous) (W)
40 W
