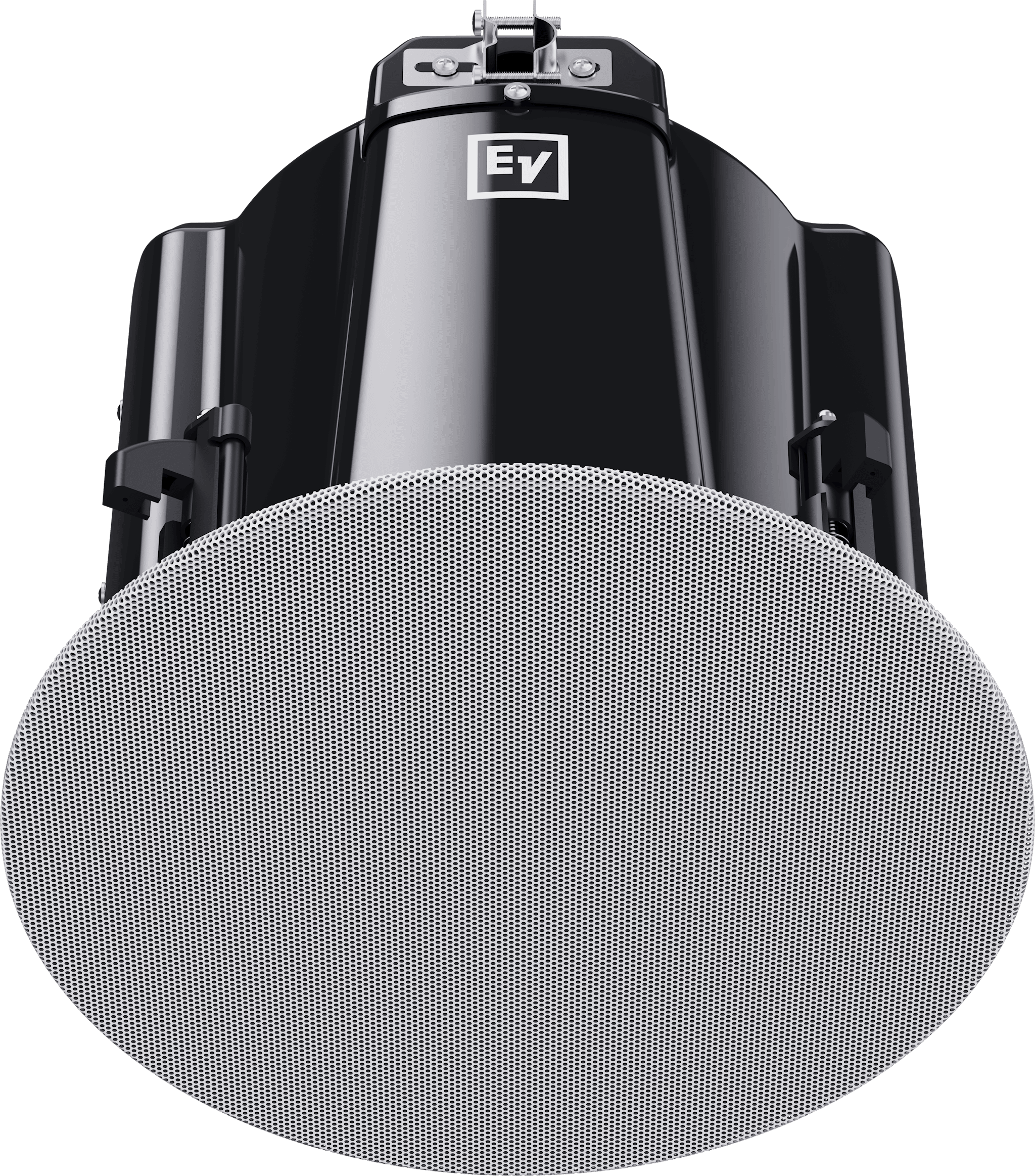

EVID-C8.2-G2 Ceiling speaker 8" 70/100V white
EVID-C8.2-G2 Ceiling speaker 8" 70/100V white
A complete 8-inch coaxial ceiling loudspeaker for higher output and more focused coverage.
Reach farther down the room with more level and a tighter beam. The EVID-C8.2-G2 is a point-source coaxial two-way running 60 Hz to 20 kHz with 90 dB sensitivity and a 90-degree conical pattern — ideal where ceilings are higher or coverage needs to stay controlled. SwiftLock handles the install; a front-baffle switch sets 70 V/100 V taps up to 60 W or 8-ohm bypass. Bezel-less magnetic white grille, back can, tile rails, and mounting ring all included.
Key features
Throw farther, stay focused
90-degree conical pattern with 90 dB sensitivity.
Carry full-range music
8-inch coaxial two-way, 60 Hz to 20 kHz.
Drive more level
up to 60 W on 70 V/100 V lines or 8-ohm bypass.
Install fast and safe
SwiftLock system with included tile rails, C-ring, and mounting ring.
Disappear and pass review
bezel-less magnetic white grille, UL 1480A, UL 2043, and CSA C22.2 No. 205 certified.
Wire through, not back
4-pin terminal block takes 12-gauge wire and passes through to the next speaker in the chain.
Explore the Full EVID-C-G2 Range
Every EVID ceiling format — premium C-G2, essential EC, and all-in-one PC systems — compared side by side on the Ceiling Speakers page.
Features
Reach farther down the room with more level and a tighter beam. The EVID-C8.2-G2 is a point-source coaxial two-way running 60 Hz to 20 kHz with 90 dB sensitivity and a 90-degree conical pattern — ideal where ceilings are higher or coverage needs to stay controlled. SwiftLock handles the install; a front-baffle switch sets 70 V/100 V taps up to 60 W or 8-ohm bypass. Bezel-less magnetic white grille, back can, tile rails, and mounting ring all included.
- Throw farther, stay focused — 90-degree conical pattern with 90 dB sensitivity.
- Carry full-range music — 8-inch coaxial two-way, 60 Hz to 20 kHz.
- Drive more level — up to 60 W on 70 V/100 V lines or 8-ohm bypass.
- Install fast and safe — SwiftLock system with included tile rails, C-ring, and mounting ring.
- Disappear and pass review — bezel-less magnetic white grille, UL 1480A, UL 2043, and CSA C22.2 No. 205 certified.
Specifications
Acoustic Performance
- Max SPL
110
- Frequency Range (-10 dB)
60 Hz – 20,000 Hz
- Coverage Angle (cone)
90
- Sensitivity (1W/1m)
90 dB SPL 1 W, 1 m
Transducers & Drivers
- LF transducer size (in)
8 in
- HF transducer size (in)
mm [in]
