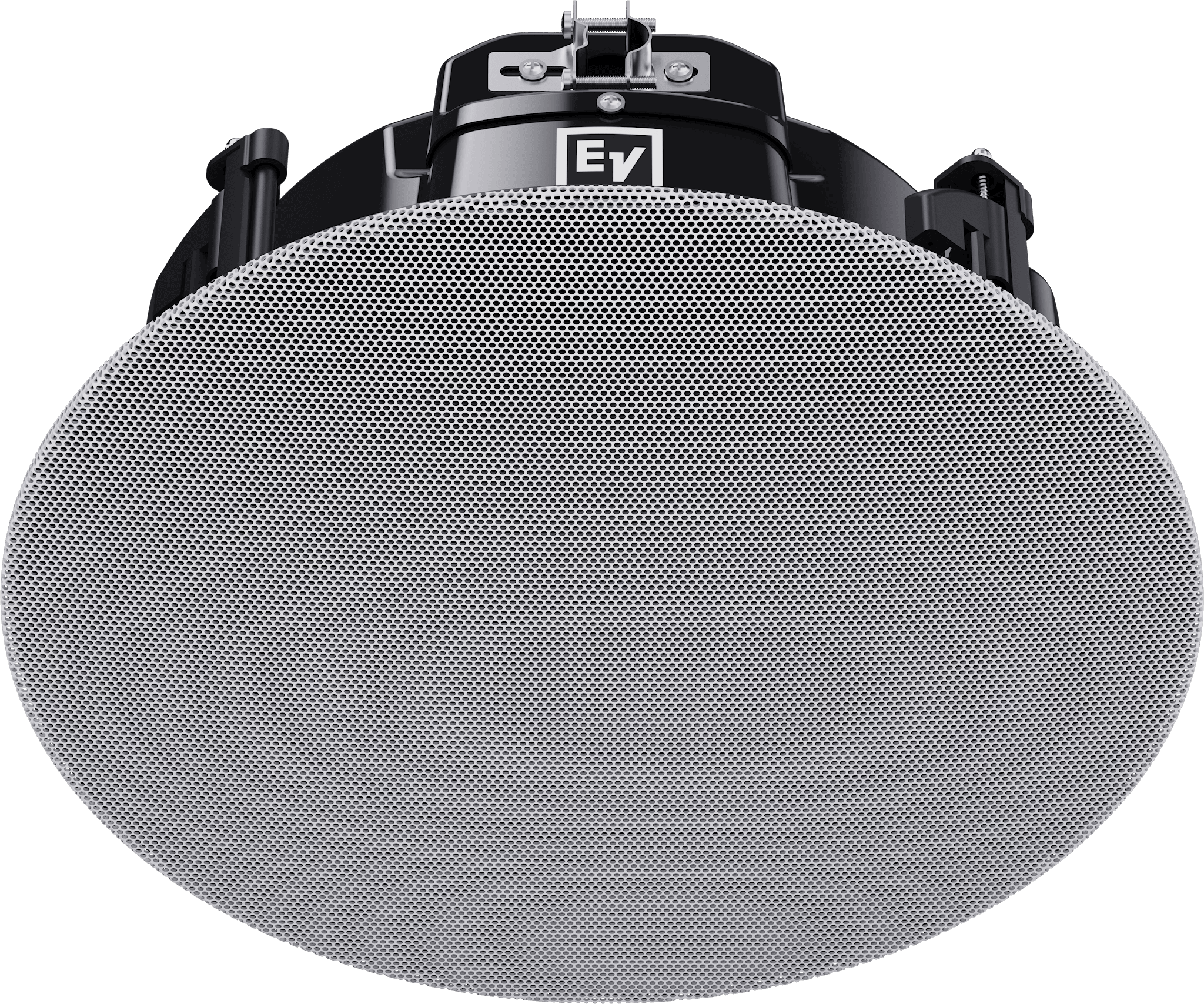

EVID-C6.2LP-G2 Ceiling speaker 6.5" low-profile white
EVID-C6.2LP-G2 Ceiling speaker 6.5" low-profile white
A low-profile 6.5-inch coaxial ceiling loudspeaker for tight plenums that still wants full-range music.
Pull real low end out of a ceiling that barely has room for it. The EVID-C6.2LP-G2 mounts in 4.8 inches yet reaches 60 Hz with 90 dB sensitivity and a 110-degree conical pattern — the point-source coaxial design keeps coverage even as people move through the space. SwiftLock speeds the install; a front-baffle switch sets 70 V/100 V taps up to 30 W or 8-ohm bypass. Magnetic white grille, back can, and tile rails included.
Key features
Fit a tight ceiling
low-profile design mounts in 4.8 inches.
Keep the low end
60 Hz to 20 kHz with 90 dB sensitivity.
Cover evenly
point-source coaxial two-way, 110-degree conical pattern.
Wire and set fast
SwiftLock install plus front-baffle 30/15/7.5/3.75/1.88 W taps or 8-ohm bypass.
Pass inspection
UL 1480A, UL 2043 air-handling, and CSA C22.2 No. 205 certified, packaged in pairs.
Keep headroom in reserve
115 dB peak SPL on tap when the room fills up.
Explore the Full EVID-C-G2 Range
Every EVID ceiling format — premium C-G2, essential EC, and all-in-one PC systems — compared side by side on the Ceiling Speakers page.
Features
Pull real low end out of a ceiling that barely has room for it. The EVID-C6.2LP-G2 mounts in 4.8 inches yet reaches 60 Hz with 90 dB sensitivity and a 110-degree conical pattern — the point-source coaxial design keeps coverage even as people move through the space. SwiftLock speeds the install; a front-baffle switch sets 70 V/100 V taps up to 30 W or 8-ohm bypass. Magnetic white grille, back can, and tile rails included.
- Fit a tight ceiling — low-profile design mounts in 4.8 inches. • Keep the low end — 60 Hz to 20 kHz with 90 dB sensitivity. • Cover evenly — point-source coaxial two-way, 110-degree conical pattern. • Wire and set fast — SwiftLock install plus front-baffle 30/15/7.5/3.75/1.88 W taps or 8-ohm bypass. • Pass inspection — UL 1480A, UL 2043 air-handling, and CSA C22.2 No. 205 certified, packaged in pairs.
Specifications
Acoustic Performance
- Max SPL
109
- Frequency Range (-10 dB)
60 Hz – 20,000 Hz
- Coverage Angle (cone)
110
- Sensitivity (1W/1m)
90 dB SPL 1 W, 1 m
Transducers & Drivers
- LF transducer size (in)
6 in
- HF transducer size (in)
352.6 [13.88]
