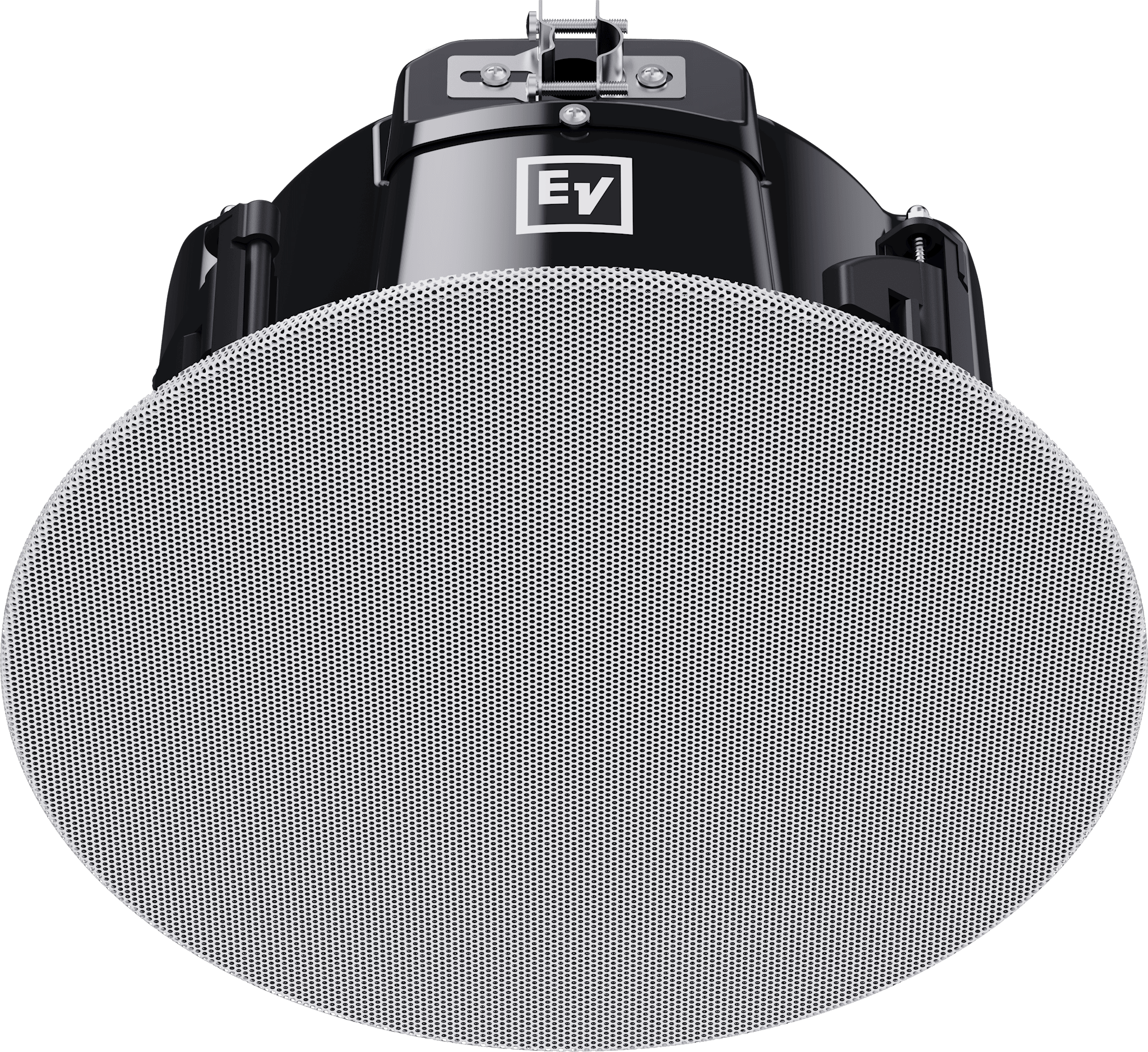

EVID-C6.2-G2 Ceiling speaker 6.5" 70/100V white
EVID-C6.2-G2 Ceiling speaker 6.5" 70/100V white
A complete 6.5-inch coaxial ceiling loudspeaker tuned for clear music and speech across open spaces.
Light up a retail floor, lobby, or restaurant with sound that lands the same everywhere. The EVID-C6.2-G2 is a point-source coaxial two-way reaching down to 65 Hz with 90 dB sensitivity and a 110-degree conical pattern, so fewer boxes do more room. SwiftLock and a front-baffle tap switch — up to 30 W on 70 V/100 V or 8-ohm bypass — make the install quick and the commissioning quicker. Magnetic white grille, back can, and tile rails included.
Key features
Cover more with fewer boxes
110-degree conical pattern and 90 dB sensitivity, 65 Hz to 20 kHz.
Sound consistent off-axis
point-source coaxial two-way design.
Install fast and safe
SwiftLock system with included tile rails, C-ring, and mounting ring.
Set levels at the baffle
30/15/7.5/3.75/1.88 W taps on 70 V/100 V or 8-ohm bypass.
Disappear into the ceiling
bezel-less magnetic white grille, certified UL 1480A, UL 2043, and CSA C22.2 No. 205.
Paint it to match
paint covers ship in the box, with customized colors available beyond RAL 9003 signal white.
Explore the Full EVID-C-G2 Range
Every EVID ceiling format — premium C-G2, essential EC, and all-in-one PC systems — compared side by side on the Ceiling Speakers page.
Features
Light up a retail floor, lobby, or restaurant with sound that lands the same everywhere. The EVID-C6.2-G2 is a point-source coaxial two-way reaching down to 65 Hz with 90 dB sensitivity and a 110-degree conical pattern, so fewer boxes do more room. SwiftLock and a front-baffle tap switch — up to 30 W on 70 V/100 V or 8-ohm bypass — make the install quick and the commissioning quicker. Magnetic white grille, back can, and tile rails included.
- Cover more with fewer boxes — 110-degree conical pattern and 90 dB sensitivity, 65 Hz to 20 kHz.
- Sound consistent off-axis — point-source coaxial two-way design.
- Install fast and safe — SwiftLock system with included tile rails, C-ring, and mounting ring.
- Set levels at the baffle — 30/15/7.5/3.75/1.88 W taps on 70 V/100 V or 8-ohm bypass.
- Disappear into the ceiling — bezel-less magnetic white grille, certified UL 1480A, UL 2043, and CSA C22.2 No. 205.
Specifications
Acoustic Performance
- Max SPL
109
- Frequency Range (-10 dB)
65 Hz – 20,000 Hz
- Coverage Angle (cone)
110
- Sensitivity (1W/1m)
90 dB SPL 1 W, 1 m
Transducers & Drivers
- LF transducer size (in)
6 in
- HF transducer size (in)
1 in
