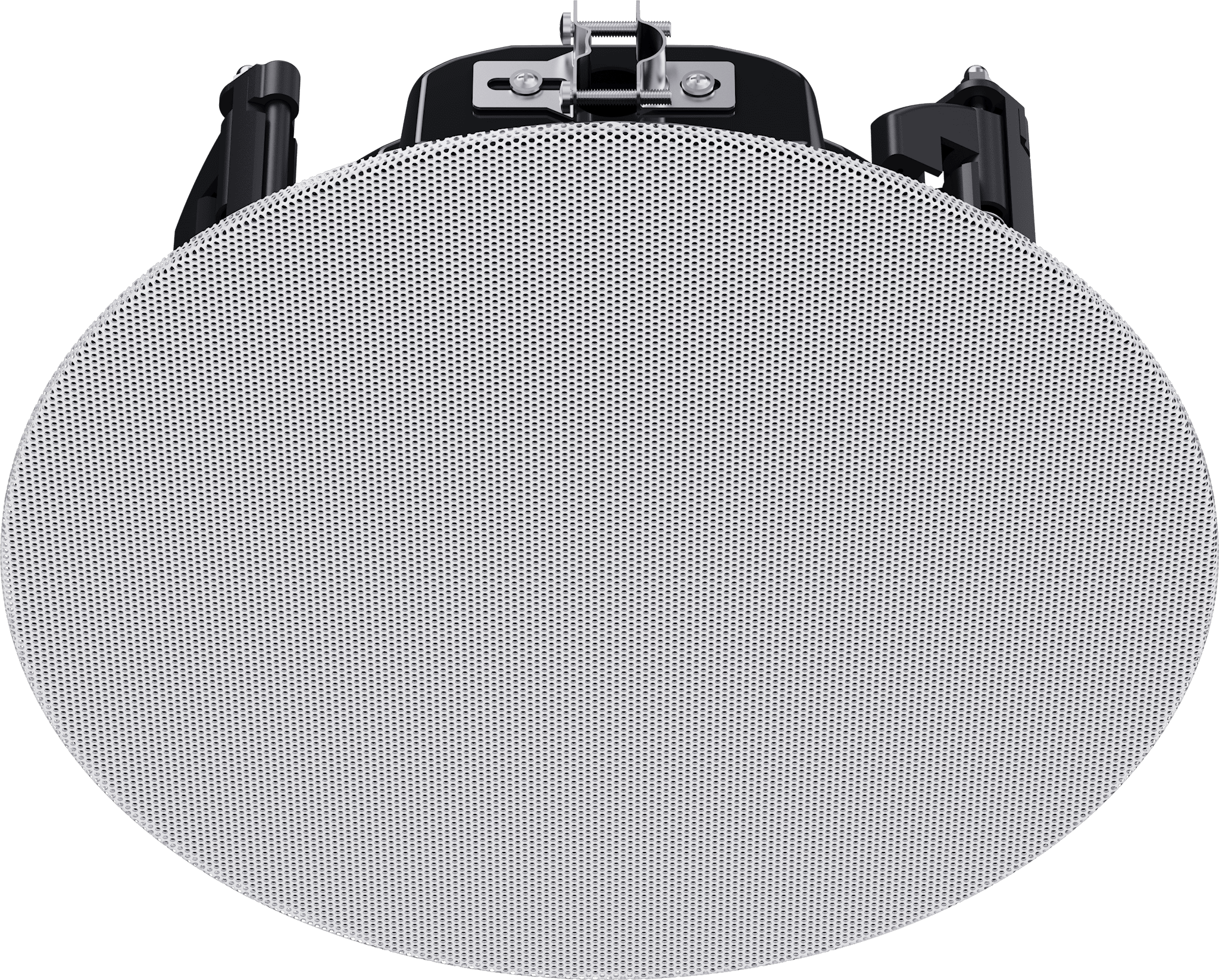

EVID-C4.2LP-G2 Ceiling speaker 4" low-profile white
EVID-C4.2LP-G2 Ceiling speaker 4" low-profile white
A complete 4-inch coaxial ceiling loudspeaker that drops into the tightest plenum and still sounds like more.
Get clean, even coverage where there's barely any depth to work with. The EVID-C4.2LP-G2 is a point-source coaxial two-way that mounts in just 3.4 inches and throws a 130-degree conical pattern from 80 Hz to 20 kHz. SwiftLock makes the install fast and safe, and a front-baffle switch sets the 70 V/100 V tap up to 30 W or 8-ohm bypass — no guesswork in the ceiling. Magnetic white grille, back can, and tile rails included.
Key features
Fit a shallow ceiling
mounts in 3.4 inches with a low-profile back can.
Cover wide and even
point-source coaxial design, 130-degree conical pattern, 80 Hz to 20 kHz.
Install fast and safe
SwiftLock system with included tile rails, C-ring, and mounting ring.
Dial the level in seconds
front-baffle switch for 30/15/7.5/3.75/1.88 W taps or 8-ohm bypass.
Pass safety review
UL 1480A, UL 2043 air-handling, CSA C22.2 No. 205 certified, sold and packaged in pairs.
Daisy-chain the run
4-pin Euroblock input with pass-through feeds the next speaker on up to 12 AWG wire.
Explore the Full EVID-C-G2 Range
Every EVID ceiling format — premium C-G2, essential EC, and all-in-one PC systems — compared side by side on the Ceiling Speakers page.
Features
Get clean, even coverage where there's barely any depth to work with. The EVID-C4.2LP-G2 is a point-source coaxial two-way that mounts in just 3.4 inches and throws a 130-degree conical pattern from 80 Hz to 20 kHz. SwiftLock makes the install fast and safe, and a front-baffle switch sets the 70 V/100 V tap up to 30 W or 8-ohm bypass — no guesswork in the ceiling. Magnetic white grille, back can, and tile rails included.
- Fit a shallow ceiling — mounts in 3.4 inches with a low-profile back can.
- Cover wide and even — point-source coaxial design, 130-degree conical pattern, 80 Hz to 20 kHz.
- Install fast and safe — SwiftLock system with included tile rails, C-ring, and mounting ring.
- Dial the level in seconds — front-baffle switch for 30/15/7.5/3.75/1.88 W taps or 8-ohm bypass.
- Pass safety review — UL 1480A, UL 2043 air-handling, CSA C22.2 No. 205 certified, sold and packaged in pairs.
Specifications
Acoustic Performance
- Max SPL
106
- Frequency Range (-10 dB)
80 Hz – 20,000 Hz
- Coverage Angle (cone)
130
- Sensitivity (1W/1m)
88 dB SPL 1 W, 1 m
Transducers & Drivers
- LF transducer size (in)
4 in
- HF transducer size (in)
302 [11.89]
